ZVW30L-AHXEBW (2011)
Toyota Prius
ILLUST NO. 2 OF 5(0904- )
EXTERIOR (1/2)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74511F - LABEL, NAME (IDENTIFICATION LASER LABEL) | ||||
| 74511-48020 |
ZVW30..EUR *111,REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE |
1 | ||
| 74511-2B300 |
ZVW30..LHD *111,REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL NAME PLATE & ADR & ID PLATE&TAIWAN SPEC |
1 | ||
| 74511-48050 |
ZVW30..EUR *111 |
1 | ||
| 74511-60480 |
ZVW30..EUR *111 |
1 | ||
| 74511-48030 |
ZVW30..LHD *111,REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL NAME PLATE & ID PLATE(ALGERIA)&ALGERIA SPEC |
1 | ||
| 74511-48020 |
ZVW30..EUR *111,REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE |
1 | ||
| 74511-2B300 |
ZVW30..LHD *111,REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL NAME PLATE & ADR & ID PLATE&TAIWAN SPEC |
1 | ||
| 74596A - LABEL, SIDE AIR BAG CAUTION | ||||
| 74596-53010 |
ZVW30..ARL,EUR |
2 | ||
| 74596-53011 |
ZVW30..ARL,EUR |
2 | ||
| 74751 - LABEL, TIRE PRESSURE INFORMATION | ||||
| 42661-47200 |
ZVW30..EUR |
1 | ||
| 42661-47190 |
ZVW30..EUR TIRE & DISC WHEEL-195/65R15 6J ALMINUM EUROPE |
1 | ||
| 42661-47190 |
ZVW30..EUR TIRE & DISC WHEEL-195/65R15 6J |
1 | ||
| 42661-47540 |
ZVW30..LHD ALGERIA SPEC&TIRE & DISC WHEEL-195/65R15 6J ALUMINUM GENERAL COUNTRY&SPARE TIRE-195/65R15 6J ALMINUM GENERAL COUNTRY |
1 | ||
| 42661-47200 |
ZVW30..EUR TIRE & DISC WHEEL-195/65R15 6J ALUMINUM GENERAL COUNTRY&SPARE TIRE-195/65R15 6J ALMINUM GENERAL COUNTRY |
1 | ||
| 42661-47200 |
ZVW30..EUR |
1 | ||
ILLUST NO. 4 OF 5(0904- )
INTERIOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74541E - PLATE, COMPACT SPARE TIRE CAUTION | ||||
| 42668-20020 |
ZVW30..ARL,EUR |
1 | ||
| 42668-20020 |
ZVW30..EUR TIRE & DISC WHEEL-195/65R15 6J ALUMINUM GENERAL COUNTRY&SPARE TIRE-195/65R15 6J ALMINUM GENERAL COUNTRY |
1 | ||
| 42668-20020 |
ZVW30..ARL,EUR |
1 | ||
| 42668-42010 |
ZVW30..EUR TIRE & DISC WHEEL-195/65R15 6J ALUMINUM GENERAL COUNTRY&SPARE TIRE-195/65R15 6J ALMINUM GENERAL COUNTRY |
1 | ||
| 42668-42010 |
ZVW30..ARL,EUR |
1 | ||
| 74541E - PLATE, COMPACT SPARE TIRE CAUTION | ||||
| 42668-20020 |
ZVW30..ARL,EUR |
1 | ||
| 42668-20020 |
ZVW30..EUR TIRE & DISC WHEEL-195/65R15 6J ALUMINUM GENERAL COUNTRY&SPARE TIRE-195/65R15 6J ALMINUM GENERAL COUNTRY |
1 | ||
| 42668-20020 |
ZVW30..ARL,EUR |
1 | ||
| 42668-42010 |
ZVW30..EUR TIRE & DISC WHEEL-195/65R15 6J ALUMINUM GENERAL COUNTRY&SPARE TIRE-195/65R15 6J ALMINUM GENERAL COUNTRY |
1 | ||
| 42668-42010 |
ZVW30..ARL,EUR |
1 | ||
| 74598A - LABEL, PASSENGER AIR BAG CAUTION | ||||
| 74598-30080 |
ZVW30..EUR |
1 | ||
| 87529B - LABEL, A/C FILTER INFORMATION | ||||
| 87529-50010 |
ZVW30 |
1 | ||
| G9279A - LABEL, BATTERY CAUTION,NO.4 | ||||
| G9279-47040 |
ZVW30 |
1 | ||
| G9288A - LABEL, BATTERY CARGING NOTICE | ||||
| G9288-76020 |
ZVW30..LHD KAZAKHSTAN SPEC |
1 | ||
| G9288-47100 |
ZVW30..ARL,EUR |
1 | ||
| G9288-76020 |
ZVW30..LHD RUSSIA SPEC |
1 | ||
| G9288-47100 |
ZVW30..ARL,EUR |
1 | ||
ILLUST NO. 3 OF 5(0904- )
EXTERIOR (2/2)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69339C - LABEL, CHILD PROTECTOR INFORMATION | ||||
| 69339-12010 |
ZVW30..ARL,EUR TYPE A:REFER ILLUST. |
2 | ||
| 69339-33040 |
ZVW30..ARL,EUR TYPE B:REFER ILLUST. |
2 | ||
| 74559B - LABEL, FUEL INFORMATION | ||||
| 74559-14050 |
ZVW30..EUR |
1 | ||
| 74559-33020 |
ZVW30..LHD KAZAKHSTAN SPEC |
1 | ||
| 74559-14050 |
ZVW30..EUR |
1 | ||
| 74559-33020 |
ZVW30..LHD RUSSIA SPEC |
1 | ||
| 74559-20140 |
ZVW30..EUR |
1 | ||
ILLUST NO. 5 OF 5(1210- )LHD
TURKEY SPEC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74501B - LABEL SET, CAUTION | ||||
| 74501-64010 |
ZVW30..LHD TURKEY SPEC |
1 | ||

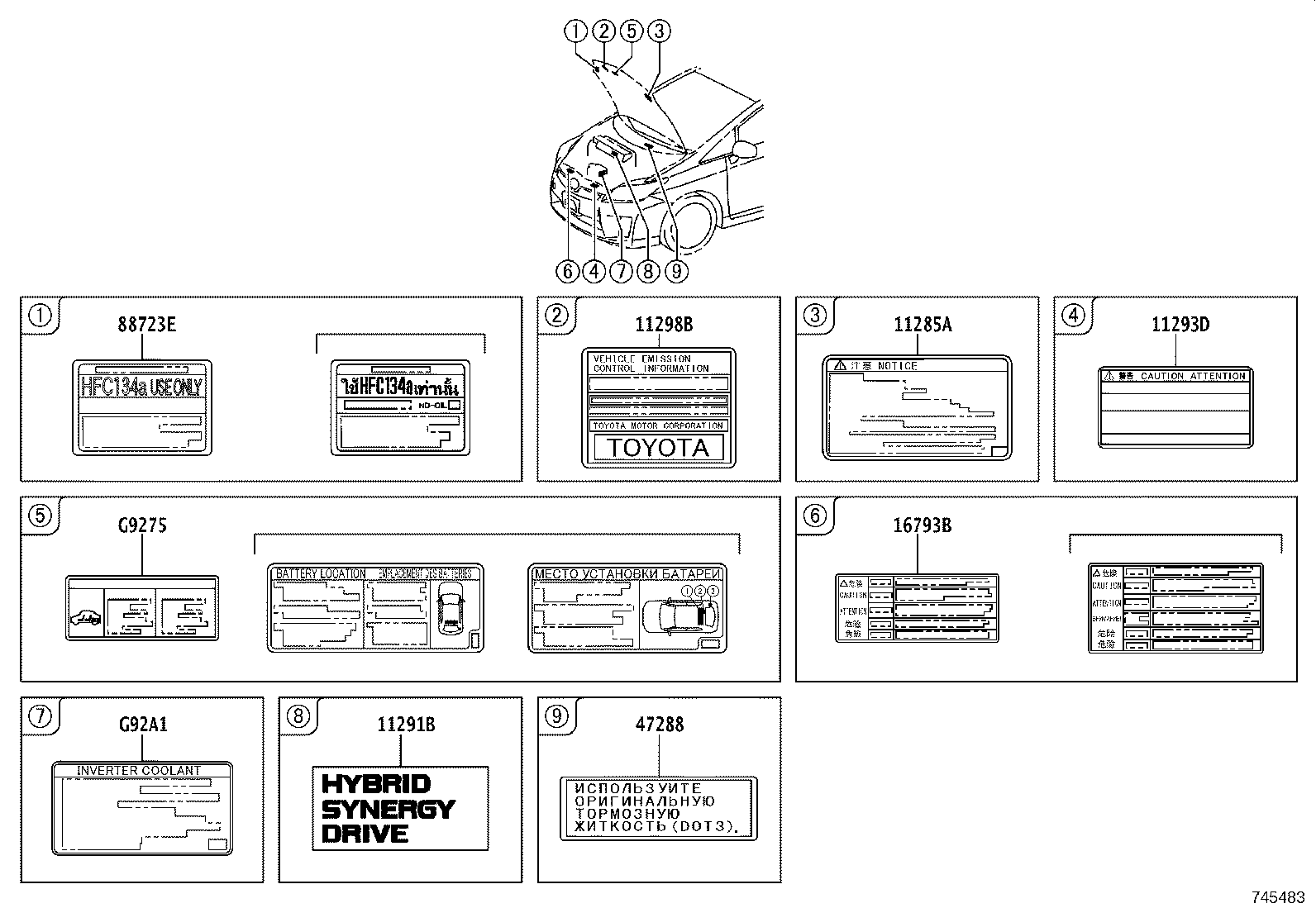

ILLUST NO. 1 OF 5(0904- )
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11285A - LABEL, COOLANT SYSTEM NOTICE | ||||
| 11285-37060 |
2ZRFXE..ZVW30..ARL,EUR |
1 | ||
| 11285-37040 |
2ZRFXE..ZVW30..ARL,EUR |
1 | ||
| 11291B - PLATE, ENGINE NAME | ||||
| 11291-37060 |
2ZRFXE..ZVW30..ARL,EUR |
1 | ||
| 11291-37060 |
2ZRFXE..ZVW30..ARL,EUR |
1 | ||
| 11293D - LABEL, ENGINE CAUTION | ||||
| 11293-21080 |
2ZRFXE..ZVW30 |
1 | ||
| 11293-21081 |
2ZRFXE..ZVW30..ARL,EUR |
1 | ||
| 11293-36070 |
2ZRFXE..ZVW30..ARL,EUR |
1 | ||
| 11298B - LABEL, EMISSION CONTROL INFORMATION | ||||
| 11298-37260 |
2ZRFXE..ZVW30..LHD PHILIPPINE SPEC |
1 | ||
| 11298-37260 |
2ZRFXE..ZVW30..LHD PHILIPPINE SPEC |
1 | ||
| 16793B - LABEL, COOLING FAN INFORMATION | ||||
| 16793-28020 |
2ZRFXE..ZVW30..ARL,EUR |
1 | ||
| 16793-31040 |
2ZRFXE..ZVW30..ARL,EUR |
1 | ||
| 47288 - LABEL, BRAKE FLUID NOTICE | ||||
| 47288-33010 |
ZVW30..LHD KAZAKHSTAN SPEC |
1 | ||
| 47288-33010 |
ZVW30..LHD RUSSIA SPEC |
1 | ||
| 88723E - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-47070 |
ZVW30..ARL,EUR |
1 | ||
| 88723-47070 |
ZVW30..ARL,EUR |
1 | ||
| G9275 - LABEL, BATTERY CAUTION, NO.1 | ||||
| G9275-76040 |
ZVW30..LHD KAZAKHSTAN SPEC |
1 | ||
| G9275-76020 |
ZVW30..ARL,EUR |
1 | ||
| G9275-47030 |
ZVW30 |
1 | ||
| G9275-76040 |
ZVW30..LHD RUSSIA SPEC |
1 | ||
| G92A1 - LABEL, HYBRID COOLANT SYSTEM INFORMATION | ||||
| G92A1-48010 |
ZVW30 |
1 | ||
