ZVW30L-AHXEBW (2011)
Toyota Prius

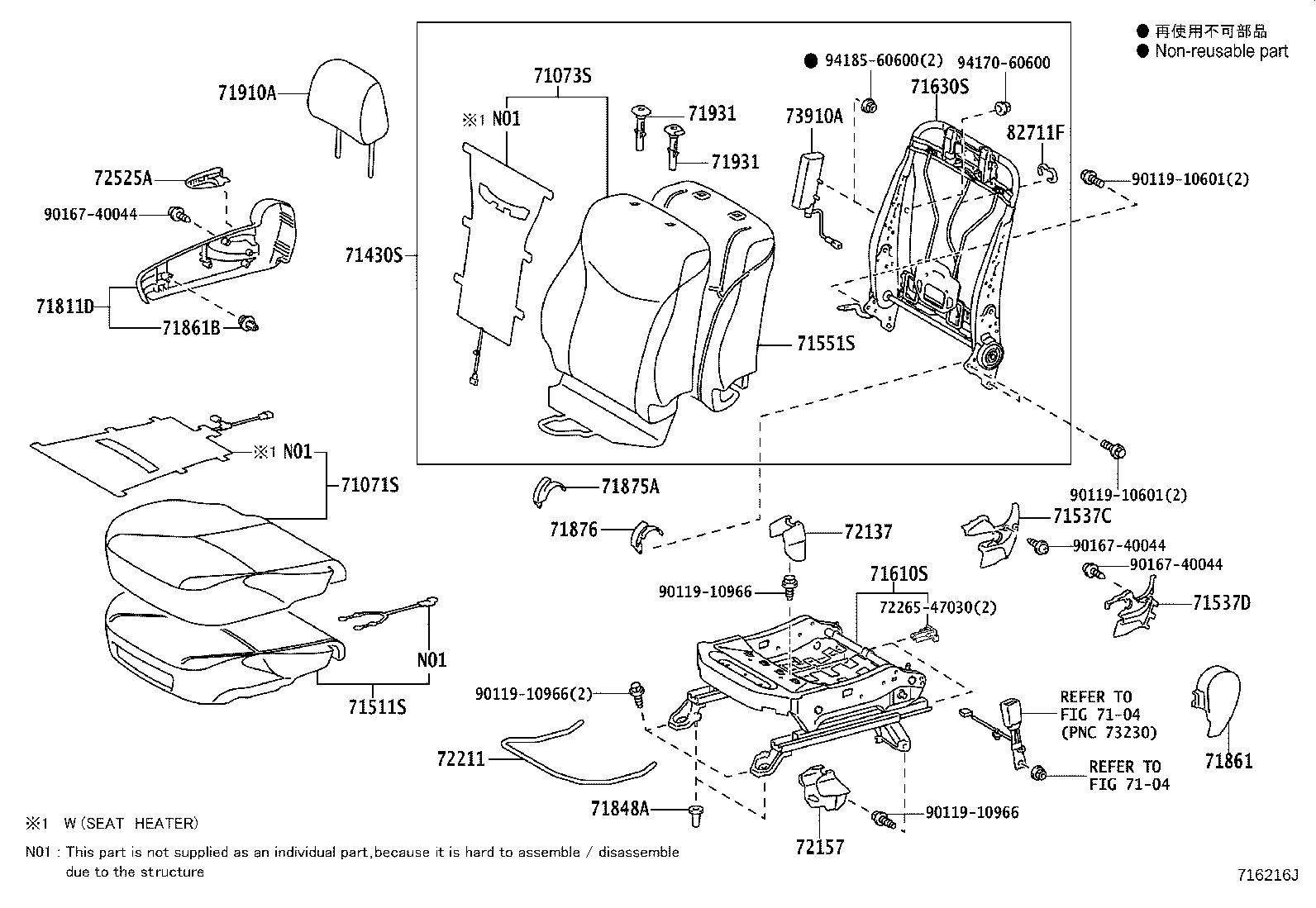

ILLUST NO. 1 OF 2(0904- )LHD
RH SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-47230B0 |
ZVW30..LHD SEAT COVER MATERIAL-FABRIC,MD.GRAY,TRIM1# |
1 | ||
| 71071-47230G0 |
ZVW30..LHD SEAT COVER MATERIAL-FABRIC,AQUA,TRIM6# |
1 | ||
| 71071-47270B0 |
ZVW30..LHD SEAT COVER MATERIAL-NATURAL LEATHER,MD.GRAY,TRIM1# |
1 | ||
| 71071-47270G0 |
ZVW30..LHD PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA,TRIM6# |
1 | ||
| 71071-47270B0 |
ZVW30..LHD PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&SEAT COVER MATERIAL-NATURAL LEATHER,MD.GRAY,TRIM1# |
1 | ||
| 71071-47270G0 |
ZVW30..LHD SEAT COVER MATERIAL-NATURAL LEATHER,AQUA,TRIM6# |
1 | ||
| 71071-47250B0 |
ZVW30..LHD MD.GRAY,TRIM1# |
1 | ||
| 71071-47250G0 |
ZVW30..LHD AQUA,TRIM6# |
1 | ||
| 71071-47600C5 |
ZVW30..LHD EXPORT UPPER PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 71071-47600C5 |
ZVW30..LHD EXPORT UPPER PACKAGE&PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 71071-47600G4 |
ZVW30..LHD EXPORT UPPER PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA,TRIM6# |
1 | ||
| 71071-47610C5 |
ZVW30..LHD TAIWAN SPEC&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 71071-47610G4 |
ZVW30..LHD TAIWAN SPEC&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA,TRIM6# |
1 | ||
| 71071-47610G4 |
ZVW30..LHD TAIWAN SPEC&EXPORT UPPER PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA,TRIM6# |
1 | ||
| 71071-47610C5 |
ZVW30..LHD TAIWAN SPEC&EXPORT UPPER PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 71071-47600G4 |
ZVW30..LHD PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA,TRIM6# |
1 | ||
| 71071-47400G6 |
ZVW30..LHD AQUA,TRIM6# |
1 | ||
| 71071-47400C4 |
ZVW30..LHD BLACK,TRIM2# |
1 | ||
| 71071-47600C5 |
ZVW30..LHD PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 71071-47610C5 |
ZVW30..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE&BRAZIL SPEC&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 71071-47610C5 |
ZVW30..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL NAME PLATE & ADR & ID PLATE&TAIWAN SPEC&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 71071-47600G4 |
ZVW30..LHD EXPORT UPPER PACKAGE&PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA,TRIM6# |
1 | ||
| 71071-47232C2 |
ZVW30..LHD EXPORT SIMPLE PACKAGE&SEAT COVER MATERIAL-FABRIC,BLACK,TRIM2# |
1 | ||
| 71071-47600C6 |
ZVW30..LHD SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71071-47610G4 |
ZVW30..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL NAME PLATE & ADR & ID PLATE&TAIWAN SPEC&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA,TRIM6# |
1 | ||
| 71071-47600G5 |
ZVW30..LHD SEAT COVER MATERIAL-NATURAL LEATHER,AQUA/AQUA/ECRU,TRIM6# |
1 | ||
| 71071-47600C5 |
ZVW30..LHD SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 71071-47600G4 |
ZVW30..LHD SEAT COVER MATERIAL-NATURAL LEATHER,AQUA,TRIM6# |
1 | ||
| 71071-47610G4 |
ZVW30..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE&BRAZIL SPEC&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA,TRIM6# |
1 | ||
| 71071-47232G4 |
ZVW30..LHD EXPORT SIMPLE PACKAGE&SEAT COVER MATERIAL-FABRIC,AQUA,TRIM6# |
1 | ||
| 71071-47600G5 |
ZVW30..LHD PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA/AQUA/ECRU,TRIM6# |
1 | ||
| 71071-47400G7 |
ZVW30..LHD AQUA/AQUA/ECRU,TRIM6# |
1 | ||
| 71071-47600C6 |
ZVW30..LHD PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71071-47610C6 |
ZVW30..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE&BRAZIL SPEC&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71071-47400C5 |
ZVW30..LHD BLACK/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71071-47600G5 |
ZVW30..LHD EXPORT UPPER PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA/AQUA/ECRU,TRIM6# |
1 | ||
| 71071-47610C6 |
ZVW30..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL NAME PLATE & ADR & ID PLATE&TAIWAN SPEC&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71071-47600C6 |
ZVW30..LHD EXPORT UPPER PACKAGE&PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71071-47600C6 |
ZVW30..LHD EXPORT UPPER PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71071-47610C6 |
ZVW30..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL NAME PLATE & ADR & ID PLATE&TAIWAN SPEC&EXPORT UPPER PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71071-47600G5 |
ZVW30..LHD EXPORT UPPER PACKAGE&PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA/AQUA/ECRU,TRIM6# |
1 | ||
| 71071-47610G5 |
ZVW30..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL NAME PLATE & ADR & ID PLATE&TAIWAN SPEC&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA/AQUA/ECRU,TRIM6# |
1 | ||
| 71071-47610G5 |
ZVW30..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL NAME PLATE & ADR & ID PLATE&TAIWAN SPEC&EXPORT UPPER PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA/AQUA/ECRU,TRIM6# |
1 | ||
| 71071-47610G5 |
ZVW30..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE&BRAZIL SPEC&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA/AQUA/ECRU,TRIM6# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-47200G0 |
ZVW30..EUR SEAT COVER MATERIAL-FABRIC,AQUA,TRIM6# |
1 | ||
| 71073-47200B0 |
ZVW30..EUR SEAT COVER MATERIAL-FABRIC,MD.GRAY,TRIM1# |
1 | ||
| 71073-47230G0 |
ZVW30..EUR SEAT COVER MATERIAL-NATURAL LEATHER,AQUA,TRIM6# |
1 | ||
| 71073-47230G0 |
ZVW30..ARL,EUR PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA,TRIM6# |
1 | ||
| 71073-47230B0 |
ZVW30..ARL,EUR PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&SEAT COVER MATERIAL-NATURAL LEATHER,MD.GRAY,TRIM1# |
1 | ||
| 71073-47220B0 |
ZVW30..EUR MD.GRAY,TRIM1# |
1 | ||
| 71073-47230B0 |
ZVW30..EUR SEAT COVER MATERIAL-NATURAL LEATHER,MD.GRAY,TRIM1# |
1 | ||
| 71073-47220G0 |
ZVW30..EUR AQUA,TRIM6# |
1 | ||
| 71073-47350C5 |
ZVW30..EUR BLACK,TRIM2# |
1 | ||
| 71073-47490G3 |
ZVW30..LHD EXPORT UPPER PACKAGE&PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA,TRIM6# |
1 | ||
| 71073-47490C3 |
ZVW30..LHD EXPORT UPPER PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 71073-47500C4 |
ZVW30..LHD TAIWAN SPEC&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 71073-47500C4 |
ZVW30..LHD TAIWAN SPEC&EXPORT UPPER PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 71073-47490G3 |
ZVW30..LHD EXPORT UPPER PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA,TRIM6# |
1 | ||
| 71073-47500G4 |
ZVW30..LHD TAIWAN SPEC&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA,TRIM6# |
1 | ||
| 71073-47500G4 |
ZVW30..LHD TAIWAN SPEC&EXPORT UPPER PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA,TRIM6# |
1 | ||
| 71073-47470C1 |
ZVW30..EUR EXPORT SIMPLE PACKAGE&SEAT COVER MATERIAL-FABRIC,BLACK,TRIM2# |
1 | ||
| 71073-47350G7 |
ZVW30..EUR AQUA,TRIM6# |
1 | ||
| 71073-47470G1 |
ZVW30..EUR EXPORT SIMPLE PACKAGE&SEAT COVER MATERIAL-FABRIC,AQUA,TRIM6# |
1 | ||
| 71073-47490C3 |
ZVW30..LHD EXPORT UPPER PACKAGE&PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 71073-47490C3 |
ZVW30..LHD PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 71073-47500C4 |
ZVW30..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL NAME PLATE & ADR & ID PLATE&TAIWAN SPEC&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 71073-47500C4 |
ZVW30..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE&BRAZIL SPEC&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 71073-47490C3 |
ZVW30..LHD SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 71073-47490G3 |
ZVW30..LHD SEAT COVER MATERIAL-NATURAL LEATHER,AQUA,TRIM6# |
1 | ||
| 71073-47500G4 |
ZVW30..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE&BRAZIL SPEC&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA,TRIM6# |
1 | ||
| 71073-47490G3 |
ZVW30..LHD PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA,TRIM6# |
1 | ||
| 71073-47350C7 |
ZVW30..EUR BLACK/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71073-47350G9 |
ZVW30..EUR AQUA/AQUA/ECRU,TRIM6# |
1 | ||
| 71073-47490C5 |
ZVW30..EUR SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71073-47490G5 |
ZVW30..LHD PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA/AQUA/ECRU,TRIM6# |
1 | ||
| 71073-47500C6 |
ZVW30..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL NAME PLATE & ADR & ID PLATE&TAIWAN SPEC&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71073-47470G3 |
ZVW30..EUR EXPORT SIMPLE PACKAGE&SEAT COVER MATERIAL-FABRIC,AQUA,TRIM6# |
1 | ||
| 71073-47500G4 |
ZVW30..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL NAME PLATE & ADR & ID PLATE&TAIWAN SPEC&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA,TRIM6# |
1 | ||
| 71073-47490G5 |
ZVW30..EUR SEAT COVER MATERIAL-NATURAL LEATHER,AQUA/AQUA/ECRU,TRIM6# |
1 | ||
| 71073-47490C5 |
ZVW30..LHD PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71073-47470C4 |
ZVW30..EUR EXPORT SIMPLE PACKAGE&SEAT COVER MATERIAL-FABRIC,BLACK,TRIM2# |
1 | ||
| 71073-47351C7 |
ZVW30..EUR BLACK/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71073-47491C5 |
ZVW30..EUR SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71073-47500C6 |
ZVW30..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE&BRAZIL SPEC&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71073-47500G6 |
ZVW30..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE&BRAZIL SPEC&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA/AQUA/ECRU,TRIM6# |
1 | ||
| 71073-47500G6 |
ZVW30..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL NAME PLATE & ADR & ID PLATE&TAIWAN SPEC&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA/AQUA/ECRU,TRIM6# |
1 | ||
| 71073-47491C5 |
ZVW30..LHD PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71073-47492C6 |
ZVW30..LHD SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71073-47352Q0 |
ZVW30..EUR AQUA/AQUA/ECRU,TRIM6# |
1 | ||
| 71073-47491G5 |
ZVW30..LHD PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA/AQUA/ECRU,TRIM6# |
1 | ||
| 71073-47352C8 |
ZVW30..EUR BLACK/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71073-47491G5 |
ZVW30..EUR SEAT COVER MATERIAL-NATURAL LEATHER,AQUA/AQUA/ECRU,TRIM6# |
1 | ||
| 71073-47501C6 |
ZVW30..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE&BRAZIL SPEC&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71073-47471G4 |
ZVW30..EUR EXPORT SIMPLE PACKAGE&SEAT COVER MATERIAL-FABRIC,AQUA,TRIM6# |
1 | ||
| 71073-47471C5 |
ZVW30..EUR EXPORT SIMPLE PACKAGE&SEAT COVER MATERIAL-FABRIC,BLACK,TRIM2# |
1 | ||
| 71073-47492C6 |
ZVW30..LHD PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71073-47492G6 |
ZVW30..LHD SEAT COVER MATERIAL-NATURAL LEATHER,AQUA/AQUA/ECRU,TRIM6# |
1 | ||
| 71073-47501G6 |
ZVW30..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE&BRAZIL SPEC&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA/AQUA/ECRU,TRIM6# |
1 | ||
| 71073-47501C6 |
ZVW30..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL NAME PLATE & ADR & ID PLATE&TAIWAN SPEC&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71073-47351G9 |
ZVW30..EUR AQUA/AQUA/ECRU,TRIM6# |
1 | ||
| 71073-47501G6 |
ZVW30..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL NAME PLATE & ADR & ID PLATE&TAIWAN SPEC&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA/AQUA/ECRU,TRIM6# |
1 | ||
| 71073-47502C7 |
ZVW30..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL NAME PLATE & ADR & ID PLATE&TAIWAN SPEC&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71073-47492G6 |
ZVW30..LHD EXPORT UPPER PACKAGE&PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA/AQUA/ECRU,TRIM6# |
1 | ||
| 71073-47492G6 |
ZVW30..LHD EXPORT UPPER PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA/AQUA/ECRU,TRIM6# |
1 | ||
| 71073-47502G7 |
ZVW30..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE&BRAZIL SPEC&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA/AQUA/ECRU,TRIM6# |
1 | ||
| 71073-47492C6 |
ZVW30..LHD EXPORT UPPER PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71073-47502G7 |
ZVW30..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL NAME PLATE & ADR & ID PLATE&TAIWAN SPEC&EXPORT UPPER PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA/AQUA/ECRU,TRIM6# |
1 | ||
| 71073-47502C7 |
ZVW30..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL NAME PLATE & ADR & ID PLATE&TAIWAN SPEC&EXPORT UPPER PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71073-47492G6 |
ZVW30..LHD PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA/AQUA/ECRU,TRIM6# |
1 | ||
| 71073-47502G7 |
ZVW30..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL NAME PLATE & ADR & ID PLATE&TAIWAN SPEC&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA/AQUA/ECRU,TRIM6# |
1 | ||
| 71073-47502C7 |
ZVW30..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE&BRAZIL SPEC&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71073-47492C6 |
ZVW30..LHD EXPORT UPPER PACKAGE&PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-47200B0 |
ZVW30..LHD SEAT COVER MATERIAL-NATURAL LEATHER,MD.GRAY,TRIM1# |
1 | ||
| 71430-47180B0 |
ZVW30..LHD SEAT COVER MATERIAL-FABRIC,MD.GRAY,TRIM1# |
1 | ||
| 71430-47200G0 |
ZVW30..LHD SEAT COVER MATERIAL-NATURAL LEATHER,AQUA,TRIM6# |
1 | ||
| 71430-47200B0 |
ZVW30..LHD PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&SEAT COVER MATERIAL-NATURAL LEATHER,MD.GRAY,TRIM1# |
1 | ||
| 71430-47200G0 |
ZVW30..LHD PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA,TRIM6# |
1 | ||
| 71430-47190G0 |
ZVW30..LHD AQUA,TRIM6# |
1 | ||
| 71430-47180G0 |
ZVW30..LHD SEAT COVER MATERIAL-FABRIC,AQUA,TRIM6# |
1 | ||
| 71430-47190B0 |
ZVW30..LHD MD.GRAY,TRIM1# |
1 | ||
| 71430-47670G3 |
ZVW30..LHD EXPORT UPPER PACKAGE&PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA,TRIM6# |
1 | ||
| 71430-47680C3 |
ZVW30..LHD TAIWAN SPEC&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 71430-47670C3 |
ZVW30..LHD EXPORT UPPER PACKAGE&PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 71430-47680G3 |
ZVW30..LHD TAIWAN SPEC&EXPORT UPPER PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA,TRIM6# |
1 | ||
| 71430-47670G3 |
ZVW30..LHD EXPORT UPPER PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA,TRIM6# |
1 | ||
| 71430-47680G3 |
ZVW30..LHD TAIWAN SPEC&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA,TRIM6# |
1 | ||
| 71430-47680C3 |
ZVW30..LHD TAIWAN SPEC&EXPORT UPPER PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 71430-47670C3 |
ZVW30..LHD EXPORT UPPER PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 71430-47380G6 |
ZVW30..LHD AQUA,TRIM6# |
1 | ||
| 71430-47660G1 |
ZVW30..LHD EXPORT SIMPLE PACKAGE&SEAT COVER MATERIAL-FABRIC,AQUA,TRIM6# |
1 | ||
| 71430-47670C3 |
ZVW30..LHD SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 71430-47380C4 |
ZVW30..LHD BLACK,TRIM2# |
1 | ||
| 71430-47670G3 |
ZVW30..LHD PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA,TRIM6# |
1 | ||
| 71430-47670C3 |
ZVW30..LHD PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 71430-47680G3 |
ZVW30..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL NAME PLATE & ADR & ID PLATE&TAIWAN SPEC&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA,TRIM6# |
1 | ||
| 71430-47380C6 |
ZVW30..LHD BLACK/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71430-47660C1 |
ZVW30..LHD EXPORT SIMPLE PACKAGE&SEAT COVER MATERIAL-FABRIC,BLACK,TRIM2# |
1 | ||
| 71430-47680G3 |
ZVW30..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE&BRAZIL SPEC&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA,TRIM6# |
1 | ||
| 71430-47670C5 |
ZVW30..LHD SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71430-47680C3 |
ZVW30..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL NAME PLATE & ADR & ID PLATE&TAIWAN SPEC&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 71430-47680C3 |
ZVW30..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE&BRAZIL SPEC&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 71430-47380G8 |
ZVW30..LHD AQUA/AQUA/ECRU,TRIM6# |
1 | ||
| 71430-47670G5 |
ZVW30..LHD PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA/AQUA/ECRU,TRIM6# |
1 | ||
| 71430-47680G5 |
ZVW30..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE&BRAZIL SPEC&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA/AQUA/ECRU,TRIM6# |
1 | ||
| 71430-47670G3 |
ZVW30..LHD SEAT COVER MATERIAL-NATURAL LEATHER,AQUA,TRIM6# |
1 | ||
| 71430-47680C5 |
ZVW30..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE&BRAZIL SPEC&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71430-47670G5 |
ZVW30..LHD SEAT COVER MATERIAL-NATURAL LEATHER,AQUA/AQUA/ECRU,TRIM6# |
1 | ||
| 71430-47680G5 |
ZVW30..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL NAME PLATE & ADR & ID PLATE&TAIWAN SPEC&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA/AQUA/ECRU,TRIM6# |
1 | ||
| 71430-47670C5 |
ZVW30..LHD PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71430-47660G2 |
ZVW30..LHD EXPORT SIMPLE PACKAGE&SEAT COVER MATERIAL-FABRIC,AQUA,TRIM6# |
1 | ||
| 71430-47680C5 |
ZVW30..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL NAME PLATE & ADR & ID PLATE&TAIWAN SPEC&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71430-47660C2 |
ZVW30..LHD EXPORT SIMPLE PACKAGE&SEAT COVER MATERIAL-FABRIC,BLACK,TRIM2# |
1 | ||
| 71430-47671G0 |
ZVW30..LHD SEAT COVER MATERIAL-NATURAL LEATHER,AQUA/AQUA/ECRU,TRIM6# |
1 | ||
| 71430-47671C0 |
ZVW30..LHD PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71430-47681G0 |
ZVW30..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL NAME PLATE & ADR & ID PLATE&TAIWAN SPEC&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA/AQUA/ECRU,TRIM6# |
1 | ||
| 71430-47681C0 |
ZVW30..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL NAME PLATE & ADR & ID PLATE&TAIWAN SPEC&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71430-47671C0 |
ZVW30..LHD SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71430-47672C0 |
ZVW30..LHD SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71430-47381G0 |
ZVW30..LHD AQUA/AQUA/ECRU,TRIM6# |
1 | ||
| 71430-47681G0 |
ZVW30..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE&BRAZIL SPEC&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA/AQUA/ECRU,TRIM6# |
1 | ||
| 71430-47671G0 |
ZVW30..LHD PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA/AQUA/ECRU,TRIM6# |
1 | ||
| 71430-47672G0 |
ZVW30..LHD SEAT COVER MATERIAL-NATURAL LEATHER,AQUA/AQUA/ECRU,TRIM6# |
1 | ||
| 71430-47382C0 |
ZVW30..LHD BLACK/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71430-47672C0 |
ZVW30..LHD PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71430-47382G0 |
ZVW30..LHD AQUA/AQUA/ECRU,TRIM6# |
1 | ||
| 71430-47661G0 |
ZVW30..LHD EXPORT SIMPLE PACKAGE&SEAT COVER MATERIAL-FABRIC,AQUA,TRIM6# |
1 | ||
| 71430-47682C0 |
ZVW30..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE&BRAZIL SPEC&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71430-47661C0 |
ZVW30..LHD EXPORT SIMPLE PACKAGE&SEAT COVER MATERIAL-FABRIC,BLACK,TRIM2# |
1 | ||
| 71430-47381C0 |
ZVW30..LHD BLACK/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71430-47672C0 |
ZVW30..LHD EXPORT UPPER PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71430-47672C0 |
ZVW30..LHD EXPORT UPPER PACKAGE&PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71430-47682G0 |
ZVW30..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE&BRAZIL SPEC&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA/AQUA/ECRU,TRIM6# |
1 | ||
| 71430-47681C0 |
ZVW30..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE&BRAZIL SPEC&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71430-47682G0 |
ZVW30..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL NAME PLATE & ADR & ID PLATE&TAIWAN SPEC&EXPORT UPPER PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA/AQUA/ECRU,TRIM6# |
1 | ||
| 71430-47682G0 |
ZVW30..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL NAME PLATE & ADR & ID PLATE&TAIWAN SPEC&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA/AQUA/ECRU,TRIM6# |
1 | ||
| 71430-47672G0 |
ZVW30..LHD EXPORT UPPER PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA/AQUA/ECRU,TRIM6# |
1 | ||
| 71430-47672G0 |
ZVW30..LHD EXPORT UPPER PACKAGE&PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA/AQUA/ECRU,TRIM6# |
1 | ||
| 71430-47682C0 |
ZVW30..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL NAME PLATE & ADR & ID PLATE&TAIWAN SPEC&EXPORT UPPER PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71430-47682C0 |
ZVW30..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL NAME PLATE & ADR & ID PLATE&TAIWAN SPEC&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71430-47672G0 |
ZVW30..LHD PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA/AQUA/ECRU,TRIM6# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71501-47010 |
ZVW30..LHD |
1 | ||
| 71501-47010 |
ZVW30..LHD |
1 | ||
| 71537C - PROTECTOR, FRONT SEAT CUSHION EDGE, RH | ||||
| 71537-47020G0 |
ZVW30..LHD AQUA,TRIM6# |
1 | ||
| 71537-47020C0 |
ZVW30..LHD BLACK,TRIM2# |
1 | ||
| 71537-47020B0 |
ZVW30..LHD MD.GRAY,TRIM1# |
1 | ||
| 71537-47020G0 |
ZVW30..LHD AQUA,TRIM6# |
1 | ||
| 71537D - PROTECTOR, FRONT SEAT CUSHION EDGE, LH | ||||
| 71538-47020B0 |
ZVW30..LHD MD.GRAY,TRIM1# |
1 | ||
| 71538-47020G0 |
ZVW30..LHD AQUA,TRIM6# |
1 | ||
| 71538-47020G0 |
ZVW30..LHD AQUA,TRIM6# |
1 | ||
| 71538-47020C0 |
ZVW30..LHD BLACK,TRIM2# |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-47210 |
ZVW30..ARL,EUR |
1 | ||
| 71551-47130 |
ZVW30..ARL,EUR |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-47030 |
ZVW30..LHD PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71610-47050 |
ZVW30..LHD |
1 | ||
| 71610-47030 |
ZVW30..LHD SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71610-47210 |
ZVW30..LHD PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71610-47210 |
ZVW30..LHD EXPORT UPPER PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71610-47210 |
ZVW30..LHD SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71610-47210 |
ZVW30..LHD EXPORT UPPER PACKAGE&PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71610-47191 |
ZVW30..LHD |
1 | ||
| 71610-47211 |
ZVW30..LHD EXPORT UPPER PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71610-47211 |
ZVW30..LHD EXPORT UPPER PACKAGE&PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71610-47211 |
ZVW30..LHD SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71610-47190 |
ZVW30..LHD |
1 | ||
| 71610-47211 |
ZVW30..LHD PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-47030 |
ZVW30..LHD |
1 | ||
| 71630-47030 |
ZVW30..LHD |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-47080B0 |
ZVW30..LHD MD.GRAY,TRIM1# |
1 | ||
| 71811-47080G0 |
ZVW30..LHD AQUA,TRIM6# |
1 | ||
| 71811-47080G0 |
ZVW30..LHD AQUA,TRIM6# |
1 | ||
| 71811-47080C0 |
ZVW30..LHD BLACK,TRIM2# |
1 | ||
| 71848A - CAP, SEAT ADJUSTER COVER, RH | ||||
| 71848-47010 |
ZVW30..ARL,EUR |
2 | ||
| 71848-47010 |
ZVW30..ARL,EUR |
2 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-47060G0 |
ZVW30..LHD AQUA,TRIM6# |
1 | ||
| 71861-47060C0 |
ZVW30..LHD BLACK,TRIM2# |
1 | ||
| 71861-47060G0 |
ZVW30..LHD AQUA,TRIM6# |
1 | ||
| 71861-47060B0 |
ZVW30..LHD MD.GRAY,TRIM1# |
1 | ||
| 71861B - CLIP(FOR FRONT SEAT SHIELD, RH) | ||||
| 62217-12050 |
ZVW30 |
1 | ||
| 71769-47020 |
ZVW30..ARL,EUR |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-47030G0 |
ZVW30..ARL,EUR AQUA,TRIM6# |
1 | ||
| 71875-47030B0 |
ZVW30..ARL,EUR MD.GRAY,TRIM1# |
1 | ||
| 71875-47030G0 |
ZVW30..ARL,EUR AQUA,TRIM6# |
1 | ||
| 71875-47030C0 |
ZVW30..ARL,EUR BLACK,TRIM2# |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-47030C0 |
ZVW30..ARL,EUR BLACK,TRIM2# |
1 | ||
| 71876-47030G0 |
ZVW30..ARL,EUR AQUA,TRIM6# |
1 | ||
| 71876-47030B0 |
ZVW30..ARL,EUR MD.GRAY,TRIM1# |
1 | ||
| 71876-47030G0 |
ZVW30..ARL,EUR AQUA,TRIM6# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-47120G0 |
ZVW30..EUR AQUA,TRIM6# |
2 | ||
| 71910-47110B0 |
ZVW30..EUR SEAT COVER MATERIAL-FABRIC,MD.GRAY,TRIM1# |
2 | ||
| 71910-47130B0 |
ZVW30..ARL,EUR PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&SEAT COVER MATERIAL-NATURAL LEATHER,MD.GRAY,TRIM1# |
2 | ||
| 71910-47120B0 |
ZVW30..EUR MD.GRAY,TRIM1# |
2 | ||
| 71910-47130G0 |
ZVW30..ARL,EUR PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA,TRIM6# |
2 | ||
| 71910-47130B0 |
ZVW30..EUR SEAT COVER MATERIAL-NATURAL LEATHER,MD.GRAY,TRIM1# |
2 | ||
| 71910-47130C4 |
ZVW30..LHD EXPORT UPPER PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
2 | ||
| 71910-47130G0 |
ZVW30..EUR SEAT COVER MATERIAL-NATURAL LEATHER,AQUA,TRIM6# |
2 | ||
| 71910-47130C4 |
ZVW30..LHD TAIWAN SPEC&EXPORT UPPER PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
2 | ||
| 71910-47110G0 |
ZVW30..EUR SEAT COVER MATERIAL-FABRIC,AQUA,TRIM6# |
2 | ||
| 71910-47130G5 |
ZVW30..LHD TAIWAN SPEC&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA,TRIM6# |
2 | ||
| 71910-47130G5 |
ZVW30..LHD EXPORT UPPER PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA,TRIM6# |
2 | ||
| 71910-47130C4 |
ZVW30..LHD TAIWAN SPEC&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
2 | ||
| 71910-47130G5 |
ZVW30..LHD EXPORT UPPER PACKAGE&PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA,TRIM6# |
2 | ||
| 71910-47130C4 |
ZVW30..LHD PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
2 | ||
| 71910-47130G5 |
ZVW30..LHD SEAT COVER MATERIAL-NATURAL LEATHER,AQUA,TRIM6# |
2 | ||
| 71910-47130C4 |
ZVW30..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE&BRAZIL SPEC&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
2 | ||
| 71910-47110G2 |
ZVW30..EUR EXPORT SIMPLE PACKAGE&SEAT COVER MATERIAL-FABRIC,AQUA,TRIM6# |
2 | ||
| 71910-47130C4 |
ZVW30..LHD SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
2 | ||
| 71910-47130G5 |
ZVW30..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL NAME PLATE & ADR & ID PLATE&TAIWAN SPEC&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA,TRIM6# |
2 | ||
| 71910-47200G8 |
ZVW30..EUR AQUA,TRIM6# |
2 | ||
| 71910-47130C4 |
ZVW30..LHD EXPORT UPPER PACKAGE&PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
2 | ||
| 71910-47130G5 |
ZVW30..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE&BRAZIL SPEC&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA,TRIM6# |
2 | ||
| 71910-47130G5 |
ZVW30..LHD PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA,TRIM6# |
2 | ||
| 71910-47200C6 |
ZVW30..EUR BLACK/LT.GRAY,TRIM2# |
2 | ||
| 71910-47110C1 |
ZVW30..EUR EXPORT SIMPLE PACKAGE&SEAT COVER MATERIAL-FABRIC,BLACK,TRIM2# |
2 | ||
| 71910-47130G5 |
ZVW30..LHD EXPORT UPPER PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA,TRIM6# |
2 | ||
| 71910-47130G5 |
ZVW30..LHD TAIWAN SPEC&EXPORT UPPER PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA,TRIM6# |
2 | ||
| 71910-47130C4 |
ZVW30..LHD EXPORT UPPER PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
2 | ||
| 71910-47130C4 |
ZVW30..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL NAME PLATE & ADR & ID PLATE&TAIWAN SPEC&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
2 | ||
| 71910-47130C4 |
ZVW30..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL NAME PLATE & ADR & ID PLATE&TAIWAN SPEC&EXPORT UPPER PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
2 | ||
| 71910-47130C4 |
ZVW30..LHD EXPORT UPPER PACKAGE&PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
2 | ||
| 71910-47130G5 |
ZVW30..LHD EXPORT UPPER PACKAGE&PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA,TRIM6# |
2 | ||
| 71910-47130G5 |
ZVW30..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL NAME PLATE & ADR & ID PLATE&TAIWAN SPEC&EXPORT UPPER PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA,TRIM6# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47020G0 |
ZVW30..ARL,EUR W(LOCK),AQUA,TRIM6# |
2 | ||
| 71931-47020G0 |
ZVW30..ARL,EUR W/O(LOCK),AQUA,TRIM6# |
2 | ||
| 71930-47020B0 |
ZVW30..ARL,EUR W(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71930-47020G0 |
ZVW30..ARL,EUR W(LOCK),AQUA,TRIM6# |
2 | ||
| 71931-47020B0 |
ZVW30..ARL,EUR W/O(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71931-47020C0 |
ZVW30..ARL,EUR W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-47020C0 |
ZVW30..ARL,EUR W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-47020G0 |
ZVW30..ARL,EUR W/O(LOCK),AQUA,TRIM6# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47020G0 |
ZVW30..ARL,EUR W(LOCK),AQUA,TRIM6# |
2 | ||
| 71931-47020G0 |
ZVW30..ARL,EUR W/O(LOCK),AQUA,TRIM6# |
2 | ||
| 71930-47020B0 |
ZVW30..ARL,EUR W(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71930-47020G0 |
ZVW30..ARL,EUR W(LOCK),AQUA,TRIM6# |
2 | ||
| 71931-47020B0 |
ZVW30..ARL,EUR W/O(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71931-47020C0 |
ZVW30..ARL,EUR W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-47020C0 |
ZVW30..ARL,EUR W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-47020G0 |
ZVW30..ARL,EUR W/O(LOCK),AQUA,TRIM6# |
2 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-47040B0 |
ZVW30..ARL,EUR MD.GRAY,TRIM1# |
1 | ||
| 72137-47040G0 |
ZVW30..ARL,EUR AQUA,TRIM6# |
1 | ||
| 72137-47040B0 |
ZVW30..ARL,EUR MD.GRAY,TRIM1# |
1 | ||
| 72137-47040C0 |
ZVW30..ARL,EUR BLACK,TRIM2#,6# |
1 | ||
| 72157 - COVER, SEAT TRACK BRACKET, INNER | ||||
| 72157-47040G0 |
ZVW30..ARL,EUR AQUA,TRIM6# |
1 | ||
| 72157-47040B0 |
ZVW30..ARL,EUR MD.GRAY,TRIM1# |
1 | ||
| 72157-47040C0 |
ZVW30..ARL,EUR BLACK,TRIM2#,6# |
1 | ||
| 72157-47040B0 |
ZVW30..ARL,EUR MD.GRAY,TRIM1# |
1 | ||
| 72211 - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-47020 |
ZVW30..ARL,EUR |
1 | ||
| 72211-47020 |
ZVW30..ARL,EUR |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-47010C0 |
ZVW30..ARL,EUR BLACK,TRIM2# |
1 | ||
| 72525-47010G0 |
ZVW30..ARL,EUR AQUA,TRIM6# |
1 | ||
| 72525-47010G0 |
ZVW30..ARL,EUR AQUA,TRIM6# |
1 | ||
| 72525-47010B0 |
ZVW30..ARL,EUR MD.GRAY,TRIM1# |
1 | ||
| 73910A - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-47050 |
ZVW30..ARL,EUR |
1 | ||
| 73910-47050 |
ZVW30..ARL,EUR |
1 | ||
| 82711F - CLAMP, WIRING HARNESS | ||||
| 82711-12120 |
ZVW30..ARL,EUR |
1 | ||
| 82711-12120 |
ZVW30..LHD |
1 | ||
| Common parts | ||||
| 72265-47030 | ||||
| 90119-10601 | ||||
| 90119-10966 | ||||
| 90167-40044 | ||||
| 94170-60600 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
ILLUST NO. 2 OF 2(0904- )LHD
LH SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-47190B1 |
ZVW30..LHD SEAT COVER MATERIAL-FABRIC,MD.GRAY,TRIM1# |
1 | ||
| 71072-47190G1 |
ZVW30..LHD SEAT COVER MATERIAL-FABRIC,AQUA,TRIM6# |
1 | ||
| 71072-47230B1 |
ZVW30..LHD PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&SEAT COVER MATERIAL-NATURAL LEATHER,MD.GRAY,TRIM1# |
1 | ||
| 71072-47230G1 |
ZVW30..LHD PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA,TRIM6# |
1 | ||
| 71072-47210B1 |
ZVW30..LHD MD.GRAY,TRIM1# |
1 | ||
| 71072-47230B1 |
ZVW30..LHD SEAT COVER MATERIAL-NATURAL LEATHER,MD.GRAY,TRIM1# |
1 | ||
| 71072-47230G1 |
ZVW30..LHD SEAT COVER MATERIAL-NATURAL LEATHER,AQUA,TRIM6# |
1 | ||
| 71072-47210G1 |
ZVW30..LHD AQUA,TRIM6# |
1 | ||
| 71072-47560G4 |
ZVW30..LHD TAIWAN SPEC&EXPORT UPPER PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA,TRIM6# |
1 | ||
| 71072-47570G4 |
ZVW30..LHD EXPORT UPPER PACKAGE&PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA,TRIM6# |
1 | ||
| 71072-47360C4 |
ZVW30..LHD BLACK,TRIM2# |
1 | ||
| 71072-47360G6 |
ZVW30..LHD AQUA,TRIM6# |
1 | ||
| 71072-47560C5 |
ZVW30..LHD TAIWAN SPEC&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 71072-47560G4 |
ZVW30..LHD TAIWAN SPEC&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA,TRIM6# |
1 | ||
| 71072-47560C5 |
ZVW30..LHD TAIWAN SPEC&EXPORT UPPER PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 71072-47570G4 |
ZVW30..LHD EXPORT UPPER PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA,TRIM6# |
1 | ||
| 71072-47570C4 |
ZVW30..LHD EXPORT UPPER PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 71072-47570G4 |
ZVW30..LHD PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA,TRIM6# |
1 | ||
| 71072-47570C4 |
ZVW30..LHD EXPORT UPPER PACKAGE&PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 71072-47560G4 |
ZVW30..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE&BRAZIL SPEC&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA,TRIM6# |
1 | ||
| 71072-47570C4 |
ZVW30..LHD PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 71072-47570C4 |
ZVW30..LHD SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 71072-47570G4 |
ZVW30..LHD SEAT COVER MATERIAL-NATURAL LEATHER,AQUA,TRIM6# |
1 | ||
| 71072-47560C5 |
ZVW30..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE&BRAZIL SPEC&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 71072-47570G5 |
ZVW30..LHD SEAT COVER MATERIAL-NATURAL LEATHER,AQUA/AQUA/ECRU,TRIM6# |
1 | ||
| 71072-47193C1 |
ZVW30..LHD EXPORT SIMPLE PACKAGE&SEAT COVER MATERIAL-FABRIC,BLACK,TRIM2# |
1 | ||
| 71072-47193G4 |
ZVW30..LHD EXPORT SIMPLE PACKAGE&SEAT COVER MATERIAL-FABRIC,AQUA,TRIM6# |
1 | ||
| 71072-47560C5 |
ZVW30..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL NAME PLATE & ADR & ID PLATE&TAIWAN SPEC&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 71072-47360G7 |
ZVW30..LHD AQUA/AQUA/ECRU,TRIM6# |
1 | ||
| 71072-47560G4 |
ZVW30..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL NAME PLATE & ADR & ID PLATE&TAIWAN SPEC&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA,TRIM6# |
1 | ||
| 71072-47360C5 |
ZVW30..LHD BLACK/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71072-47570C5 |
ZVW30..LHD SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71072-47560G5 |
ZVW30..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE&BRAZIL SPEC&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA/AQUA/ECRU,TRIM6# |
1 | ||
| 71072-47560C6 |
ZVW30..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL NAME PLATE & ADR & ID PLATE&TAIWAN SPEC&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71072-47560C6 |
ZVW30..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL NAME PLATE & ADR & ID PLATE&TAIWAN SPEC&EXPORT UPPER PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71072-47560C6 |
ZVW30..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE&BRAZIL SPEC&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71072-47570C5 |
ZVW30..LHD PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71072-47560G5 |
ZVW30..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL NAME PLATE & ADR & ID PLATE&TAIWAN SPEC&EXPORT UPPER PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA/AQUA/ECRU,TRIM6# |
1 | ||
| 71072-47570G5 |
ZVW30..LHD PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA/AQUA/ECRU,TRIM6# |
1 | ||
| 71072-47570C5 |
ZVW30..LHD EXPORT UPPER PACKAGE&PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71072-47560G5 |
ZVW30..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL NAME PLATE & ADR & ID PLATE&TAIWAN SPEC&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA/AQUA/ECRU,TRIM6# |
1 | ||
| 71072-47570G5 |
ZVW30..LHD EXPORT UPPER PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA/AQUA/ECRU,TRIM6# |
1 | ||
| 71072-47570C5 |
ZVW30..LHD EXPORT UPPER PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71072-47570G5 |
ZVW30..LHD EXPORT UPPER PACKAGE&PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA/AQUA/ECRU,TRIM6# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-47120B0 |
ZVW30..EUR MD.GRAY,TRIM1# |
1 | ||
| 71074-47120G0 |
ZVW30..EUR AQUA,TRIM6# |
1 | ||
| 71074-47100G0 |
ZVW30..EUR SEAT COVER MATERIAL-FABRIC,AQUA,TRIM6# |
1 | ||
| 71074-47130B0 |
ZVW30..ARL,EUR PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&SEAT COVER MATERIAL-NATURAL LEATHER,MD.GRAY,TRIM1# |
1 | ||
| 71074-47130G0 |
ZVW30..EUR SEAT COVER MATERIAL-NATURAL LEATHER,AQUA,TRIM6# |
1 | ||
| 71074-47130B0 |
ZVW30..EUR SEAT COVER MATERIAL-NATURAL LEATHER,MD.GRAY,TRIM1# |
1 | ||
| 71074-47100B0 |
ZVW30..EUR SEAT COVER MATERIAL-FABRIC,MD.GRAY,TRIM1# |
1 | ||
| 71074-47130G0 |
ZVW30..ARL,EUR PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA,TRIM6# |
1 | ||
| 71074-47390C4 |
ZVW30..LHD TAIWAN SPEC&EXPORT UPPER PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 71074-47390C4 |
ZVW30..LHD TAIWAN SPEC&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 71074-47380G3 |
ZVW30..LHD EXPORT UPPER PACKAGE&PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA,TRIM6# |
1 | ||
| 71074-47390G4 |
ZVW30..LHD TAIWAN SPEC&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA,TRIM6# |
1 | ||
| 71074-47390G4 |
ZVW30..LHD TAIWAN SPEC&EXPORT UPPER PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA,TRIM6# |
1 | ||
| 71074-47380G3 |
ZVW30..LHD EXPORT UPPER PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA,TRIM6# |
1 | ||
| 71074-47240G8 |
ZVW30..EUR AQUA,TRIM6# |
1 | ||
| 71074-47240C6 |
ZVW30..EUR BLACK,TRIM2# |
1 | ||
| 71074-47380G3 |
ZVW30..LHD SEAT COVER MATERIAL-NATURAL LEATHER,AQUA,TRIM6# |
1 | ||
| 71074-47380C3 |
ZVW30..LHD PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 71074-47380C3 |
ZVW30..LHD EXPORT UPPER PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 71074-47380G3 |
ZVW30..LHD PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA,TRIM6# |
1 | ||
| 71074-47240C9 |
ZVW30..EUR BLACK/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71074-47390C4 |
ZVW30..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE&BRAZIL SPEC&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 71074-47360G1 |
ZVW30..EUR EXPORT SIMPLE PACKAGE&SEAT COVER MATERIAL-FABRIC,AQUA,TRIM6# |
1 | ||
| 71074-47380C3 |
ZVW30..LHD SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 71074-47390G4 |
ZVW30..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE&BRAZIL SPEC&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA,TRIM6# |
1 | ||
| 71074-47390G4 |
ZVW30..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL NAME PLATE & ADR & ID PLATE&TAIWAN SPEC&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA,TRIM6# |
1 | ||
| 71074-47390G6 |
ZVW30..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE&BRAZIL SPEC&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA/AQUA/ECRU,TRIM6# |
1 | ||
| 71074-47380C3 |
ZVW30..LHD EXPORT UPPER PACKAGE&PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 71074-47360C1 |
ZVW30..EUR EXPORT SIMPLE PACKAGE&SEAT COVER MATERIAL-FABRIC,BLACK,TRIM2# |
1 | ||
| 71074-47390G6 |
ZVW30..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL NAME PLATE & ADR & ID PLATE&TAIWAN SPEC&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA/AQUA/ECRU,TRIM6# |
1 | ||
| 71074-47380C5 |
ZVW30..LHD PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71074-47380G5 |
ZVW30..LHD PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA/AQUA/ECRU,TRIM6# |
1 | ||
| 71074-47240Q0 |
ZVW30..EUR AQUA/AQUA/ECRU,TRIM6# |
1 | ||
| 71074-47380G5 |
ZVW30..EUR SEAT COVER MATERIAL-NATURAL LEATHER,AQUA/AQUA/ECRU,TRIM6# |
1 | ||
| 71074-47380C5 |
ZVW30..EUR SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71074-47390C6 |
ZVW30..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL NAME PLATE & ADR & ID PLATE&TAIWAN SPEC&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71074-47381C5 |
ZVW30..EUR SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71074-47390C6 |
ZVW30..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE&BRAZIL SPEC&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71074-47241C9 |
ZVW30..EUR BLACK/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71074-47241Q0 |
ZVW30..EUR AQUA/AQUA/ECRU,TRIM6# |
1 | ||
| 71074-47382G6 |
ZVW30..LHD SEAT COVER MATERIAL-NATURAL LEATHER,AQUA/AQUA/ECRU,TRIM6# |
1 | ||
| 71074-47360G3 |
ZVW30..EUR EXPORT SIMPLE PACKAGE&SEAT COVER MATERIAL-FABRIC,AQUA,TRIM6# |
1 | ||
| 71074-47360C4 |
ZVW30..EUR EXPORT SIMPLE PACKAGE&SEAT COVER MATERIAL-FABRIC,BLACK,TRIM2# |
1 | ||
| 71074-47391G6 |
ZVW30..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE&BRAZIL SPEC&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA/AQUA/ECRU,TRIM6# |
1 | ||
| 71074-47381G5 |
ZVW30..EUR SEAT COVER MATERIAL-NATURAL LEATHER,AQUA/AQUA/ECRU,TRIM6# |
1 | ||
| 71074-47391G6 |
ZVW30..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL NAME PLATE & ADR & ID PLATE&TAIWAN SPEC&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA/AQUA/ECRU,TRIM6# |
1 | ||
| 71074-47381G5 |
ZVW30..LHD PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA/AQUA/ECRU,TRIM6# |
1 | ||
| 71074-47390C4 |
ZVW30..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL NAME PLATE & ADR & ID PLATE&TAIWAN SPEC&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 71074-47391C6 |
ZVW30..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE&BRAZIL SPEC&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71074-47382C6 |
ZVW30..LHD SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71074-47392C7 |
ZVW30..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL NAME PLATE & ADR & ID PLATE&TAIWAN SPEC&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71074-47391C6 |
ZVW30..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL NAME PLATE & ADR & ID PLATE&TAIWAN SPEC&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71074-47361G4 |
ZVW30..EUR EXPORT SIMPLE PACKAGE&SEAT COVER MATERIAL-FABRIC,AQUA,TRIM6# |
1 | ||
| 71074-4724220 |
ZVW30..EUR BLACK/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71074-47382G6 |
ZVW30..LHD PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA/AQUA/ECRU,TRIM6# |
1 | ||
| 71074-47392G7 |
ZVW30..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE&BRAZIL SPEC&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA/AQUA/ECRU,TRIM6# |
1 | ||
| 71074-47392C7 |
ZVW30..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE&BRAZIL SPEC&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71074-47242Q1 |
ZVW30..EUR AQUA/AQUA/ECRU,TRIM6# |
1 | ||
| 71074-47382C6 |
ZVW30..LHD EXPORT UPPER PACKAGE&PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71074-47392G7 |
ZVW30..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL NAME PLATE & ADR & ID PLATE&TAIWAN SPEC&EXPORT UPPER PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA/AQUA/ECRU,TRIM6# |
1 | ||
| 71074-47382G6 |
ZVW30..LHD EXPORT UPPER PACKAGE&PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA/AQUA/ECRU,TRIM6# |
1 | ||
| 71074-47382G6 |
ZVW30..LHD EXPORT UPPER PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA/AQUA/ECRU,TRIM6# |
1 | ||
| 71074-47361C5 |
ZVW30..EUR EXPORT SIMPLE PACKAGE&SEAT COVER MATERIAL-FABRIC,BLACK,TRIM2# |
1 | ||
| 71074-47392G7 |
ZVW30..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL NAME PLATE & ADR & ID PLATE&TAIWAN SPEC&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA/AQUA/ECRU,TRIM6# |
1 | ||
| 71074-47382C6 |
ZVW30..LHD PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71074-47382C6 |
ZVW30..LHD EXPORT UPPER PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71074-47381C5 |
ZVW30..LHD PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71074-47392C7 |
ZVW30..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL NAME PLATE & ADR & ID PLATE&TAIWAN SPEC&EXPORT UPPER PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71122 - BRACKET, FRONT SEAT CUSHION, LH | ||||
| 71122-47010 |
ZVW30..LHD |
1 | ||
| 71122-47010 |
ZVW30..LHD |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-47100B1 |
ZVW30..LHD MD.GRAY,TRIM1# |
1 | ||
| 71440-47100G1 |
ZVW30..LHD AQUA,TRIM6# |
1 | ||
| 71440-47090G1 |
ZVW30..LHD SEAT COVER MATERIAL-FABRIC,AQUA,TRIM6# |
1 | ||
| 71440-47090B1 |
ZVW30..LHD SEAT COVER MATERIAL-FABRIC,MD.GRAY,TRIM1# |
1 | ||
| 71440-47150B0 |
ZVW30..LHD SEAT COVER MATERIAL-NATURAL LEATHER,MD.GRAY,TRIM1# |
1 | ||
| 71440-47150B0 |
ZVW30..LHD PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&SEAT COVER MATERIAL-NATURAL LEATHER,MD.GRAY,TRIM1# |
1 | ||
| 71440-47150G0 |
ZVW30..LHD PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA,TRIM6# |
1 | ||
| 71440-47150G0 |
ZVW30..LHD SEAT COVER MATERIAL-NATURAL LEATHER,AQUA,TRIM6# |
1 | ||
| 71440-47630C3 |
ZVW30..LHD EXPORT UPPER PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 71440-47640G3 |
ZVW30..LHD TAIWAN SPEC&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA,TRIM6# |
1 | ||
| 71440-47640C3 |
ZVW30..LHD TAIWAN SPEC&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 71440-47630C3 |
ZVW30..LHD EXPORT UPPER PACKAGE&PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 71440-47640C3 |
ZVW30..LHD TAIWAN SPEC&EXPORT UPPER PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 71440-47640G3 |
ZVW30..LHD TAIWAN SPEC&EXPORT UPPER PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA,TRIM6# |
1 | ||
| 71440-47630G3 |
ZVW30..LHD EXPORT UPPER PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA,TRIM6# |
1 | ||
| 71440-47630G3 |
ZVW30..LHD EXPORT UPPER PACKAGE&PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA,TRIM6# |
1 | ||
| 71440-47340G6 |
ZVW30..LHD AQUA,TRIM6# |
1 | ||
| 71440-47340C4 |
ZVW30..LHD BLACK,TRIM2# |
1 | ||
| 71440-47630C3 |
ZVW30..LHD PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 71440-47630G3 |
ZVW30..LHD PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA,TRIM6# |
1 | ||
| 71440-47630C3 |
ZVW30..LHD SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 71440-47620C1 |
ZVW30..LHD EXPORT SIMPLE PACKAGE&SEAT COVER MATERIAL-FABRIC,BLACK,TRIM2# |
1 | ||
| 71440-47640C3 |
ZVW30..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL NAME PLATE & ADR & ID PLATE&TAIWAN SPEC&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 71440-47630G3 |
ZVW30..LHD SEAT COVER MATERIAL-NATURAL LEATHER,AQUA,TRIM6# |
1 | ||
| 71440-47640G3 |
ZVW30..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL NAME PLATE & ADR & ID PLATE&TAIWAN SPEC&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA,TRIM6# |
1 | ||
| 71440-47340C6 |
ZVW30..LHD BLACK/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71440-47640G3 |
ZVW30..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE&BRAZIL SPEC&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA,TRIM6# |
1 | ||
| 71440-47340G8 |
ZVW30..LHD AQUA/AQUA/ECRU,TRIM6# |
1 | ||
| 71440-47640C3 |
ZVW30..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE&BRAZIL SPEC&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 71440-47630C5 |
ZVW30..LHD SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71440-47630C5 |
ZVW30..LHD PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71440-47640C5 |
ZVW30..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL NAME PLATE & ADR & ID PLATE&TAIWAN SPEC&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71440-47630G5 |
ZVW30..LHD PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA/AQUA/ECRU,TRIM6# |
1 | ||
| 71440-47640C5 |
ZVW30..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE&BRAZIL SPEC&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71440-47620G1 |
ZVW30..LHD EXPORT SIMPLE PACKAGE&SEAT COVER MATERIAL-FABRIC,GREGE,TRIM6# |
1 | ||
| 71440-47640G5 |
ZVW30..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL NAME PLATE & ADR & ID PLATE&TAIWAN SPEC&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA/AQUA/ECRU,TRIM6# |
1 | ||
| 71440-47640G5 |
ZVW30..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE&BRAZIL SPEC&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA/AQUA/ECRU,TRIM6# |
1 | ||
| 71440-47620C2 |
ZVW30..LHD EXPORT SIMPLE PACKAGE&SEAT COVER MATERIAL-FABRIC,BLACK,TRIM2# |
1 | ||
| 71440-47630G5 |
ZVW30..LHD SEAT COVER MATERIAL-NATURAL LEATHER,AQUA/AQUA/ECRU,TRIM6# |
1 | ||
| 71440-47641C0 |
ZVW30..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE&BRAZIL SPEC&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71440-47631C0 |
ZVW30..LHD SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71440-47620G2 |
ZVW30..LHD EXPORT SIMPLE PACKAGE&SEAT COVER MATERIAL-FABRIC,GREGE,TRIM6# |
1 | ||
| 71440-47341G0 |
ZVW30..LHD AQUA/AQUA/ECRU,TRIM6# |
1 | ||
| 71440-47631G0 |
ZVW30..LHD PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA/AQUA/ECRU,TRIM6# |
1 | ||
| 71440-47631G0 |
ZVW30..LHD SEAT COVER MATERIAL-NATURAL LEATHER,AQUA/AQUA/ECRU,TRIM6# |
1 | ||
| 71440-47631C0 |
ZVW30..LHD PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71440-47341C0 |
ZVW30..LHD BLACK/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71440-47632C0 |
ZVW30..LHD SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71440-47641G0 |
ZVW30..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE&BRAZIL SPEC&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA/AQUA/ECRU,TRIM6# |
1 | ||
| 71440-47632G0 |
ZVW30..LHD SEAT COVER MATERIAL-NATURAL LEATHER,AQUA/AQUA/ECRU,TRIM6# |
1 | ||
| 71440-47342G0 |
ZVW30..LHD AQUA/AQUA/ECRU,TRIM6# |
1 | ||
| 71440-47641G0 |
ZVW30..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL NAME PLATE & ADR & ID PLATE&TAIWAN SPEC&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA/AQUA/ECRU,TRIM6# |
1 | ||
| 71440-47641C0 |
ZVW30..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL NAME PLATE & ADR & ID PLATE&TAIWAN SPEC&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71440-47621C0 |
ZVW30..LHD EXPORT SIMPLE PACKAGE&SEAT COVER MATERIAL-FABRIC,BLACK,TRIM2# |
1 | ||
| 71440-47632C0 |
ZVW30..LHD PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71440-47632C0 |
ZVW30..LHD EXPORT UPPER PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71440-47642C0 |
ZVW30..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE&BRAZIL SPEC&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71440-47632C0 |
ZVW30..LHD EXPORT UPPER PACKAGE&PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71440-47342C0 |
ZVW30..LHD BLACK/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71440-47642G0 |
ZVW30..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL NAME PLATE & ADR & ID PLATE&TAIWAN SPEC&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA/AQUA/ECRU,TRIM6# |
1 | ||
| 71440-47632G0 |
ZVW30..LHD PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA/AQUA/ECRU,TRIM6# |
1 | ||
| 71440-47621G0 |
ZVW30..LHD EXPORT SIMPLE PACKAGE&SEAT COVER MATERIAL-FABRIC,AQUA,TRIM6# |
1 | ||
| 71440-47632G0 |
ZVW30..LHD EXPORT UPPER PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA/AQUA/ECRU,TRIM6# |
1 | ||
| 71440-47632G0 |
ZVW30..LHD EXPORT UPPER PACKAGE&PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA/AQUA/ECRU,TRIM6# |
1 | ||
| 71440-47642C0 |
ZVW30..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL NAME PLATE & ADR & ID PLATE&TAIWAN SPEC&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71440-47642C0 |
ZVW30..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL NAME PLATE & ADR & ID PLATE&TAIWAN SPEC&EXPORT UPPER PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71440-47642G0 |
ZVW30..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE&BRAZIL SPEC&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA/AQUA/ECRU,TRIM6# |
1 | ||
| 71440-47642G0 |
ZVW30..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL NAME PLATE & ADR & ID PLATE&TAIWAN SPEC&EXPORT UPPER PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA/AQUA/ECRU,TRIM6# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-47070 |
ZVW30..LHD |
1 | ||
| 71512-47070 |
ZVW30..LHD |
1 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-47040 |
ZVW30..ARL,EUR |
1 | ||
| 71537E - PROTECTOR, FRONT SEAT CUSHION, NO.1 | ||||
| 71537-47010G0 |
ZVW30..LHD AQUA,TRIM6# |
1 | ||
| 71537-47010B0 |
ZVW30..LHD MD.GRAY,TRIM1# |
1 | ||
| 71537-47010C0 |
ZVW30..LHD BLACK,TRIM2# |
1 | ||
| 71537-47010G0 |
ZVW30..LHD AQUA,TRIM6# |
1 | ||
| 71537F - PROTECTOR, FRONT SEAT CUSHION, NO.2 | ||||
| 71538-47010B0 |
ZVW30..LHD MD.GRAY,TRIM1# |
1 | ||
| 71538-47010G0 |
ZVW30..LHD AQUA,TRIM6# |
1 | ||
| 71538-47010G0 |
ZVW30..LHD AQUA,TRIM6# |
1 | ||
| 71538-47010C0 |
ZVW30..LHD BLACK,TRIM2# |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-47180 |
ZVW30..ARL,EUR |
1 | ||
| 71552-47110 |
ZVW30..ARL,EUR |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-47030 |
ZVW30..LHD |
1 | ||
| 71620-47120 |
ZVW30..LHD |
1 | ||
| 71620-47121 |
ZVW30..LHD |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-47050 |
ZVW30..LHD |
1 | ||
| 71640-47050 |
ZVW30..LHD |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-47070B0 |
ZVW30..LHD MD.GRAY,TRIM1# |
1 | ||
| 71812-47070G0 |
ZVW30..LHD AQUA,TRIM6# |
1 | ||
| 71812-47070C0 |
ZVW30..LHD BLACK,TRIM2# |
1 | ||
| 71812-47070G0 |
ZVW30..LHD AQUA,TRIM6# |
1 | ||
| 71849 - CAP, SEAT ADJUSTER COVER, LH | ||||
| 71848-47010 |
ZVW30..ARL,EUR |
2 | ||
| 71848-47010 |
ZVW30..ARL,EUR |
2 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-47040G0 |
ZVW30..LHD AQUA,TRIM6# |
1 | ||
| 71862-47040G0 |
ZVW30..LHD AQUA,TRIM6# |
1 | ||
| 71862-47040C0 |
ZVW30..LHD BLACK,TRIM2# |
1 | ||
| 71862-47040B0 |
ZVW30..LHD MD.GRAY,TRIM1# |
1 | ||
| 71862B - CLIP(FOR FRONT SEAT SHIELD, LH) | ||||
| 71769-47020 |
ZVW30..ARL,EUR |
1 | ||
| 62217-12050 |
ZVW30 |
1 | ||
| 71873A - SHIELD, FRONT SEAT CUSHION, LOWER | ||||
| 71873-47040 |
ZVW30..LHD |
1 | ||
| 71873-47040 |
ZVW30..LHD |
1 | ||
| 71874A - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-47040 |
ZVW30..LHD |
1 | ||
| 71874-47040 |
ZVW30..LHD |
1 | ||
| 71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) | ||||
| 71875-47030C0 |
ZVW30..ARL,EUR BLACK,TRIM2# |
1 | ||
| 71875-47030B0 |
ZVW30..ARL,EUR MD.GRAY,TRIM1# |
1 | ||
| 71875-47030G0 |
ZVW30..ARL,EUR AQUA,TRIM6# |
1 | ||
| 71875-47030G0 |
ZVW30..ARL,EUR AQUA,TRIM6# |
1 | ||
| 71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) | ||||
| 71876-47030G0 |
ZVW30..ARL,EUR AQUA,TRIM6# |
1 | ||
| 71876-47030B0 |
ZVW30..ARL,EUR MD.GRAY,TRIM1# |
1 | ||
| 71876-47030C0 |
ZVW30..ARL,EUR BLACK,TRIM2# |
1 | ||
| 71876-47030G0 |
ZVW30..ARL,EUR AQUA,TRIM6# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-47120G0 |
ZVW30..EUR AQUA,TRIM6# |
2 | ||
| 71910-47110B0 |
ZVW30..EUR SEAT COVER MATERIAL-FABRIC,MD.GRAY,TRIM1# |
2 | ||
| 71910-47130B0 |
ZVW30..ARL,EUR PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&SEAT COVER MATERIAL-NATURAL LEATHER,MD.GRAY,TRIM1# |
2 | ||
| 71910-47120B0 |
ZVW30..EUR MD.GRAY,TRIM1# |
2 | ||
| 71910-47130G0 |
ZVW30..ARL,EUR PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA,TRIM6# |
2 | ||
| 71910-47130B0 |
ZVW30..EUR SEAT COVER MATERIAL-NATURAL LEATHER,MD.GRAY,TRIM1# |
2 | ||
| 71910-47130C4 |
ZVW30..LHD EXPORT UPPER PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
2 | ||
| 71910-47130G0 |
ZVW30..EUR SEAT COVER MATERIAL-NATURAL LEATHER,AQUA,TRIM6# |
2 | ||
| 71910-47130C4 |
ZVW30..LHD TAIWAN SPEC&EXPORT UPPER PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
2 | ||
| 71910-47110G0 |
ZVW30..EUR SEAT COVER MATERIAL-FABRIC,AQUA,TRIM6# |
2 | ||
| 71910-47130G5 |
ZVW30..LHD TAIWAN SPEC&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA,TRIM6# |
2 | ||
| 71910-47130G5 |
ZVW30..LHD EXPORT UPPER PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA,TRIM6# |
2 | ||
| 71910-47130C4 |
ZVW30..LHD TAIWAN SPEC&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
2 | ||
| 71910-47130G5 |
ZVW30..LHD EXPORT UPPER PACKAGE&PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA,TRIM6# |
2 | ||
| 71910-47130C4 |
ZVW30..LHD PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
2 | ||
| 71910-47130G5 |
ZVW30..LHD SEAT COVER MATERIAL-NATURAL LEATHER,AQUA,TRIM6# |
2 | ||
| 71910-47130C4 |
ZVW30..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE&BRAZIL SPEC&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
2 | ||
| 71910-47110G2 |
ZVW30..EUR EXPORT SIMPLE PACKAGE&SEAT COVER MATERIAL-FABRIC,AQUA,TRIM6# |
2 | ||
| 71910-47130C4 |
ZVW30..LHD SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
2 | ||
| 71910-47130G5 |
ZVW30..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL NAME PLATE & ADR & ID PLATE&TAIWAN SPEC&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA,TRIM6# |
2 | ||
| 71910-47200G8 |
ZVW30..EUR AQUA,TRIM6# |
2 | ||
| 71910-47130C4 |
ZVW30..LHD EXPORT UPPER PACKAGE&PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
2 | ||
| 71910-47130G5 |
ZVW30..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE&BRAZIL SPEC&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA,TRIM6# |
2 | ||
| 71910-47130G5 |
ZVW30..LHD PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA,TRIM6# |
2 | ||
| 71910-47200C6 |
ZVW30..EUR BLACK/LT.GRAY,TRIM2# |
2 | ||
| 71910-47110C1 |
ZVW30..EUR EXPORT SIMPLE PACKAGE&SEAT COVER MATERIAL-FABRIC,BLACK,TRIM2# |
2 | ||
| 71910-47130G5 |
ZVW30..LHD EXPORT UPPER PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA,TRIM6# |
2 | ||
| 71910-47130G5 |
ZVW30..LHD TAIWAN SPEC&EXPORT UPPER PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA,TRIM6# |
2 | ||
| 71910-47130C4 |
ZVW30..LHD EXPORT UPPER PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
2 | ||
| 71910-47130C4 |
ZVW30..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL NAME PLATE & ADR & ID PLATE&TAIWAN SPEC&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
2 | ||
| 71910-47130C4 |
ZVW30..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL NAME PLATE & ADR & ID PLATE&TAIWAN SPEC&EXPORT UPPER PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
2 | ||
| 71910-47130C4 |
ZVW30..LHD EXPORT UPPER PACKAGE&PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
2 | ||
| 71910-47130G5 |
ZVW30..LHD EXPORT UPPER PACKAGE&PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA,TRIM6# |
2 | ||
| 71910-47130G5 |
ZVW30..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL NAME PLATE & ADR & ID PLATE&TAIWAN SPEC&EXPORT UPPER PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA,TRIM6# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47020G0 |
ZVW30..ARL,EUR W(LOCK),AQUA,TRIM6# |
2 | ||
| 71931-47020G0 |
ZVW30..ARL,EUR W/O(LOCK),AQUA,TRIM6# |
2 | ||
| 71930-47020B0 |
ZVW30..ARL,EUR W(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71930-47020G0 |
ZVW30..ARL,EUR W(LOCK),AQUA,TRIM6# |
2 | ||
| 71931-47020B0 |
ZVW30..ARL,EUR W/O(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71931-47020C0 |
ZVW30..ARL,EUR W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-47020C0 |
ZVW30..ARL,EUR W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-47020G0 |
ZVW30..ARL,EUR W/O(LOCK),AQUA,TRIM6# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47020G0 |
ZVW30..ARL,EUR W(LOCK),AQUA,TRIM6# |
2 | ||
| 71931-47020G0 |
ZVW30..ARL,EUR W/O(LOCK),AQUA,TRIM6# |
2 | ||
| 71930-47020B0 |
ZVW30..ARL,EUR W(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71930-47020G0 |
ZVW30..ARL,EUR W(LOCK),AQUA,TRIM6# |
2 | ||
| 71931-47020B0 |
ZVW30..ARL,EUR W/O(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71931-47020C0 |
ZVW30..ARL,EUR W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-47020C0 |
ZVW30..ARL,EUR W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-47020G0 |
ZVW30..ARL,EUR W/O(LOCK),AQUA,TRIM6# |
2 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72138-47040G0 |
ZVW30..ARL,EUR AQUA,TRIM6# |
1 | ||
| 72138-47040B0 |
ZVW30..ARL,EUR MD.GRAY,TRIM1# |
1 | ||
| 72138-47040C0 |
ZVW30..ARL,EUR BLACK,TRIM2#,6# |
1 | ||
| 72138-47040B0 |
ZVW30..ARL,EUR MD.GRAY,TRIM1# |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-47040B0 |
ZVW30..ARL,EUR MD.GRAY,TRIM1# |
1 | ||
| 72158-47040B0 |
ZVW30..ARL,EUR MD.GRAY,TRIM1# |
1 | ||
| 72158-47040G0 |
ZVW30..ARL,EUR AQUA,TRIM6# |
1 | ||
| 72158-47040C0 |
ZVW30..ARL,EUR BLACK,TRIM2#,6# |
1 | ||
| 72211C - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-47020 |
ZVW30..ARL,EUR |
1 | ||
| 72211-47020 |
ZVW30..ARL,EUR |
1 | ||
| 72495 - HANDLE, VERTICAL ADJUSTING, LH | ||||
| 72495-47010C0 |
ZVW30..LHD BLACK,TRIM2# |
1 | ||
| 72495-47010G0 |
ZVW30..LHD AQUA,TRIM6# |
1 | ||
| 72495-47010G0 |
ZVW30..LHD AQUA,TRIM6# |
1 | ||
| 72495-47010B0 |
ZVW30..LHD MD.GRAY,TRIM1# |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-47010G0 |
ZVW30..ARL,EUR AQUA,TRIM6# |
1 | ||
| 72526-47010B0 |
ZVW30..ARL,EUR MD.GRAY,TRIM1# |
1 | ||
| 72526-47010C0 |
ZVW30..ARL,EUR BLACK,TRIM2# |
1 | ||
| 72526-47010G0 |
ZVW30..ARL,EUR AQUA,TRIM6# |
1 | ||
| 73920A - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-47050 |
ZVW30..ARL,EUR |
1 | ||
| 73920-47050 |
ZVW30..ARL,EUR |
1 | ||
| 82711G - CLAMP, WIRING HARNESS | ||||
| 82711-12120 |
ZVW30..LHD |
1 | ||
| 82711-12120 |
ZVW30..ARL,EUR |
1 | ||
| 82711-12120 |
ZVW30..LHD EXPORT SIMPLE PACKAGE&SEAT COVER MATERIAL-FABRIC |
1 | ||
| 82711-12120 |
ZVW30..LHD |
1 | ||
| Common parts | ||||
| 72265-47030 | ||||
| 90119-10601 | ||||
| 90119-10966 | ||||
| 90167-40044 | ||||
| 90168-50078 | ||||
| 94170-60600 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8202 | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
