ZVW30L-AHXEBW (2011)

Toyota Prius

Production Dec 2011 - Nov 2015
Engine 2ZRFXE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0904- )

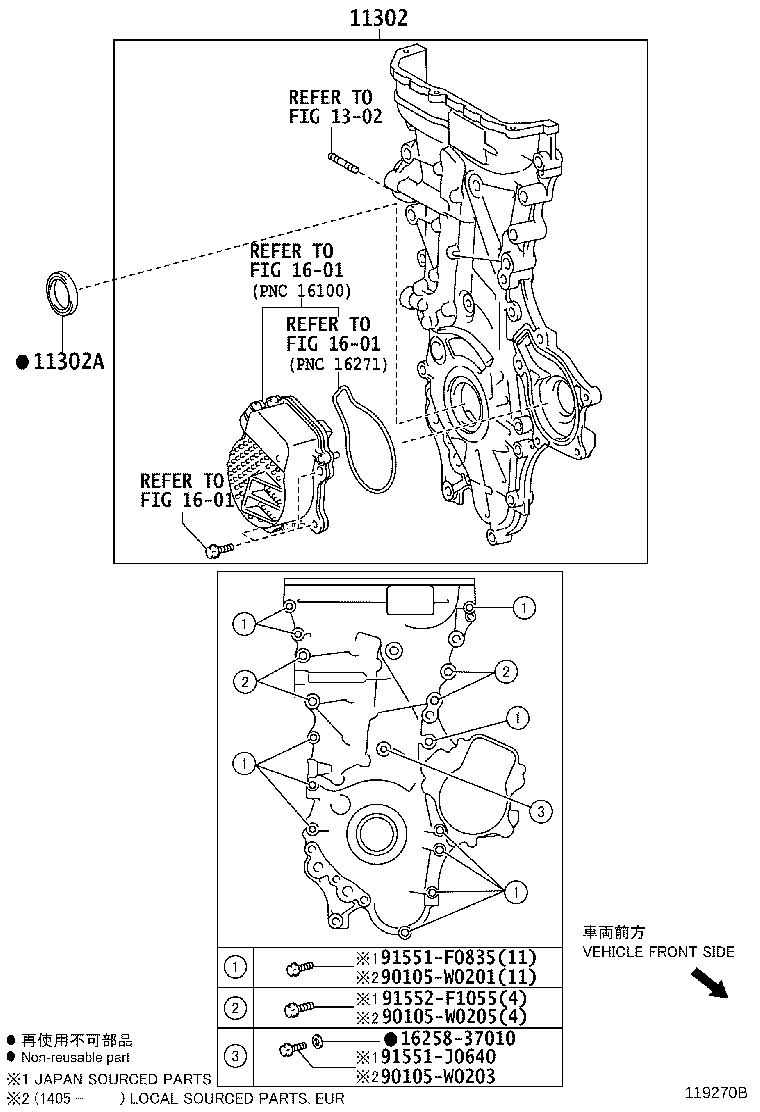

Click highlighted areas on diagram

diagram 11302 11302A 1302 1601 1601 1601 1625837010 90105W0201 90105W0203 90105W0205 91551F0835 91551J0640 91552F1055
Part # Description Qty Price
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11310-37060

2ZRFXE..ZVW30..ARL,EUR

 1
11310-37062

2ZRFXE..ZVW30..ARL,EUR

 1
11310-0T100

2ZRFXE..ZVW30..EUR

ENGINE-2ZR-FXE(MADE IN UK),(L)

 1
11310-37062

2ZRFXE..ZVW30..EUR

ENGINE-2ZR-FXE(MADE IN UK),(J)

 1
11310-37060

2ZRFXE..ZVW30..ARL,EUR

 1
11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
90311-38089

2ZRFXE..ZVW30..EUR

ENGINE-2ZR-FXE(MADE IN UK),(J)

 1
90311-W0012

2ZRFXE..ZVW30..EUR

ENGINE-2ZR-FXE(MADE IN UK),(L)

 1
90311-38096

2ZRFXE..ZVW30..ARL,EUR

 1
90311-38089

2ZRFXE..ZVW30..ARL,EUR

 1
Common parts
16258-37010
90105-W0201
90105-W0203
90105-W0205
91551-F0835
91551-J0640
91552-F1055
Linked diagrams
1302
1601
