NHW20R-AHEEBW (2005)

Toyota Prius

Production Nov 2005 - Mar 2009
Engine 1NZFXE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

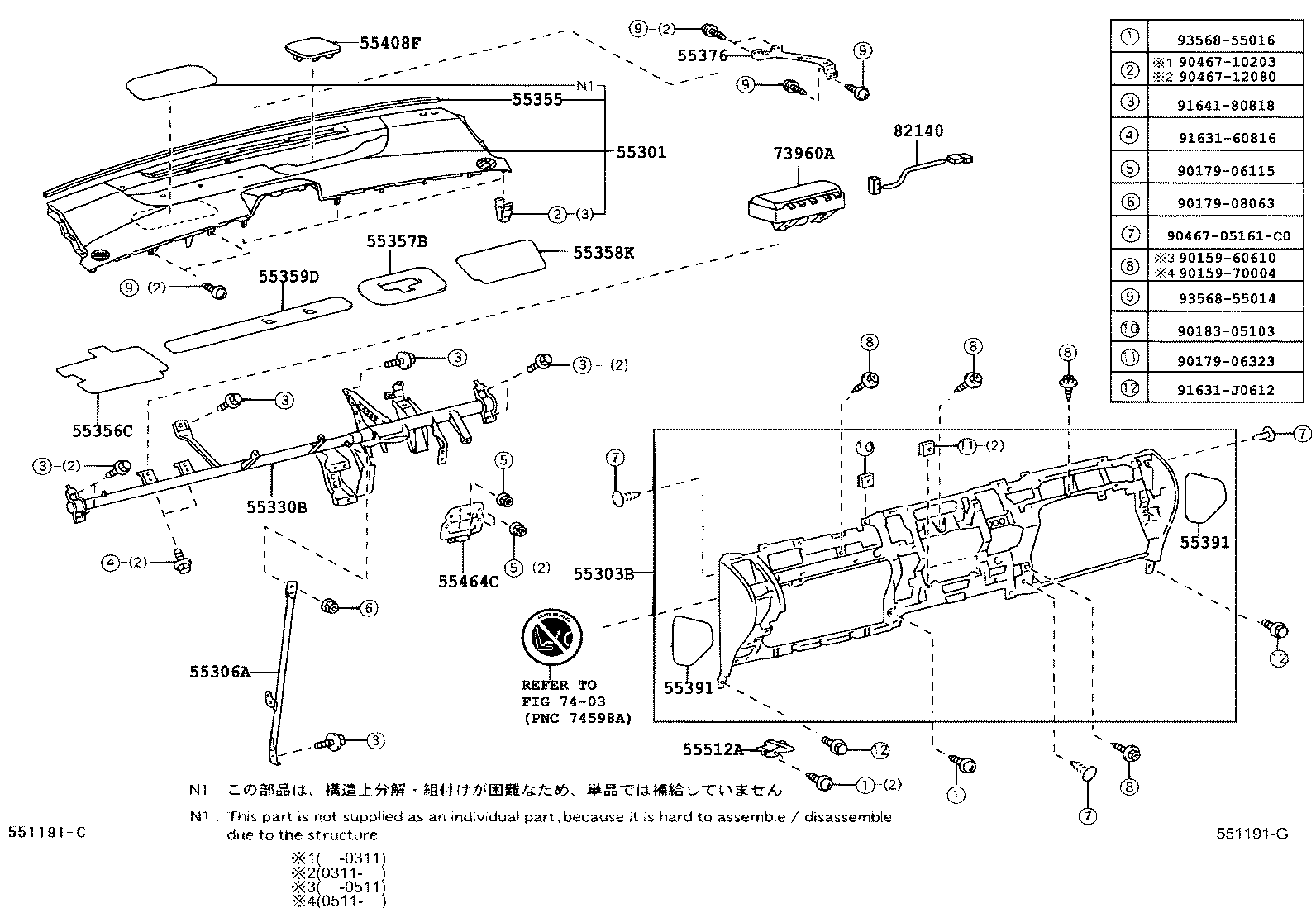

ILLUST NO. 1 OF 2(0308-0705)RHD

Click highlighted areas on diagram

diagram 55301 55303B 55306A 55330B 55355 55356C 55357B 55358K 55359D 55376 55391 55391 55408F 55464C 55512A 73960A 7403 82140 9015960610 9015970004 9017906115 9017906323 9017908063 9018305103 9046705161C0 9046710203 9046712080 9163160816 91631J0612 9164180818 9356855014 9356855016
Part # Description Qty Price
55301 - PANEL SUB-ASSY, INSTRUMENT
55300-47020C0

NHW20..RHD..EUR

AUDIO-AM/FM,CST,CD-JBL-9SP,BLACK,TRIM1#

 1
55300-47010C0

NHW20..RHD..EUR

BLACK,TRIM1#

 1
55300-47010C0

NHW20..RHD

BLACK,TRIM1#,4#

 1
55300-47020C0

NHW20..RHD..EUR

AUDIO-05AM/FM+CD-CHANGER JBL 9 SPEAKER,BLACK,TRIM1#,4#

 1
55300-47020C0

NHW20..RHD..EUR

AUDIO-05AM/FM+CD-CHANGER JBL RDS 9 SPEAKER,BLACK,TRIM1#,4#

 1
55303B - PANEL SUB-ASSY, INSTRUMENT, LOWER
55303-47010

NHW20..RHD

 1
55303-47010

NHW20..RHD

 1
55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55306-47030

NHW20..RHD

 1
55306-47030

NHW20..RHD

 1
55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL
55330-47030

NHW20..RHD

 1
55330-47031

NHW20..RHD

 1
55355 - CUSHION, INSTRUMENT PANEL, NO.1
55355-68010

NHW20..EUR

AUDIO-05AM/FM+CD-CHANGER JBL 9 SPEAKER

 1
55355-68010

NHW20

 1
55355-68010

NHW20..EUR

AUDIO-05AM/FM+CD-CHANGER JBL RDS 9 SPEAKER

 1
55355-68010

NHW20

 1
55356C - CUSHION, INSTRUMENT PANEL, NO.2
55356-47020

NHW20

 1
55356-47040

NHW20

 1
55356-47020

NHW20

 1
55357B - CUSHION, INSTRUMENT PANEL, NO.3
55357-47020

NHW20

 1
55357-47020

NHW20

 1
55358K - CUSHION, INSTRUMENT PANEL, NO.4
55358-47030

NHW20

 1
55358-47060

NHW20

 1
55358-47030

NHW20

 1
55359D - CUSHION, INSTRUMENT PANEL, NO.5
55359-47010

NHW20

 1
55359-47010

NHW20

 1
55376 - BRACKET, INSTRUMENT PANEL MOUNTING, NO.1
55376-47010

NHW20..RHD

 1
55376-47010

NHW20..RHD

 1
55391 - CUSHION, INSTRUMENT PANEL, LOWER NO.1
55391-47010

NHW20

 2
55391-47010

NHW20

 2
55391 - CUSHION, INSTRUMENT PANEL, LOWER NO.1
55391-47010

NHW20

 2
55391-47010

NHW20

 2
55408F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1
55408-47010C0

NHW20..RHD..EUR

AUDIO-AM/FM,CST,CD-JBL-9SP,BLACK,TRIM1#

 1
55408-47010C0

NHW20..EUR

AUDIO-05AM/FM+CD-CHANGER JBL RDS 9 SPEAKER,BLACK,TRIM1#,4#

 1
55408-47010C0

NHW20..EUR

AUDIO-05AM/FM+CD-CHANGER JBL 9 SPEAKER,BLACK,TRIM1#,4#

 1
55464C - INSERT, INSTRUMENT PANEL LOWER PAD, RH
55464-47010

NHW20

 1
55464-47010

NHW20

 1
55512A - PLATE, GLOVE COMPARTMENT
55512-47010

NHW20..RHD

 1
55512-47010

NHW20..RHD

 1
73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR
73960-47020

NHW20..RHD

 1
73960-47020

NHW20..RHD

 1
82140 - WIRE ASSY, INSTRUMENT PANEL
82140-47020

NHW20

 1
82140-47020

NHW20

 1
Common parts
90159-60610
90159-70004
90179-06115
90179-06323
90179-08063
90183-05103
90467-05161C0
90467-10203
90467-12080
91631-60816
91631-J0612
91641-80818
93568-55014
93568-55016
Linked diagrams
7403

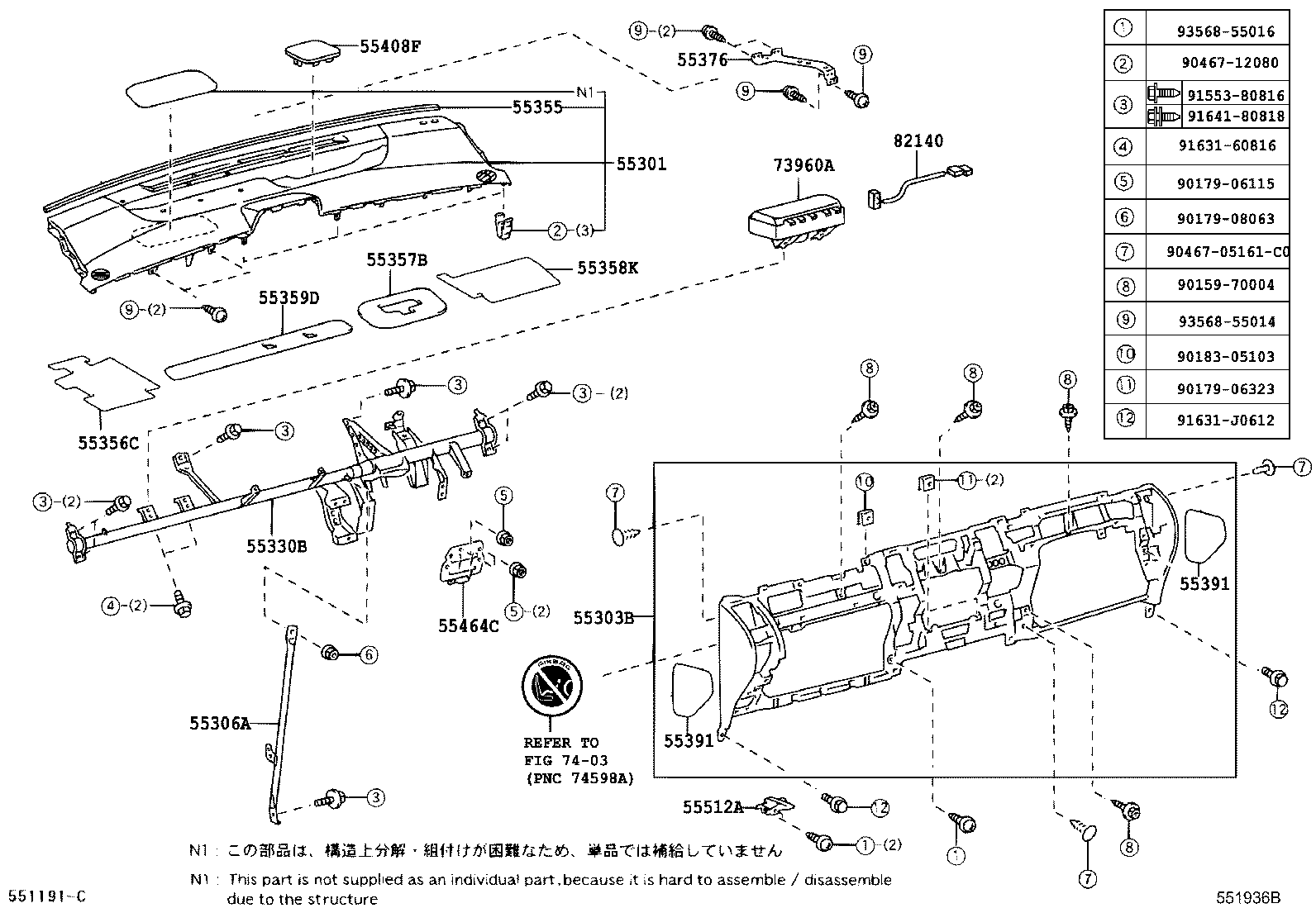

ILLUST NO. 1 OF 2(0705- )RHD

Click highlighted areas on diagram

diagram 55301 55303B 55306A 55330B 55355 55356C 55357B 55358K 55359D 55376 55391 55391 55408F 55464C 55512A 73960A 7403 82140 9015970004 9017906115 9017906323 9017908063 9018305103 9046705161C0 9046712080 9155380816 9163160816 91631J0612 9164180818 9356855014 9356855016
Part # Description Qty Price
55301 - PANEL SUB-ASSY, INSTRUMENT
55300-47020C0

NHW20..RHD..EUR

AUDIO-AM/FM,CST,CD-JBL-9SP,BLACK,TRIM1#

 1
55300-47010C0

NHW20..RHD..EUR

BLACK,TRIM1#

 1
55300-47010C0

NHW20..RHD

BLACK,TRIM1#,4#

 1
55300-47020C0

NHW20..RHD..EUR

AUDIO-05AM/FM+CD-CHANGER JBL 9 SPEAKER,BLACK,TRIM1#,4#

 1
55300-47020C0

NHW20..RHD..EUR

AUDIO-05AM/FM+CD-CHANGER JBL RDS 9 SPEAKER,BLACK,TRIM1#,4#

 1
55303B - PANEL SUB-ASSY, INSTRUMENT, LOWER
55303-47010

NHW20..RHD

 1
55303-47010

NHW20..RHD

 1
55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55306-47030

NHW20..RHD

 1
55306-47030

NHW20..RHD

 1
55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL
55330-47030

NHW20..RHD

 1
55330-47031

NHW20..RHD

 1
55355 - CUSHION, INSTRUMENT PANEL, NO.1
55355-68010

NHW20..EUR

AUDIO-05AM/FM+CD-CHANGER JBL 9 SPEAKER

 1
55355-68010

NHW20

 1
55355-68010

NHW20..EUR

AUDIO-05AM/FM+CD-CHANGER JBL RDS 9 SPEAKER

 1
55355-68010

NHW20

 1
55356C - CUSHION, INSTRUMENT PANEL, NO.2
55356-47020

NHW20

 1
55356-47040

NHW20

 1
55356-47020

NHW20

 1
55357B - CUSHION, INSTRUMENT PANEL, NO.3
55357-47020

NHW20

 1
55357-47020

NHW20

 1
55358K - CUSHION, INSTRUMENT PANEL, NO.4
55358-47030

NHW20

 1
55358-47060

NHW20

 1
55358-47030

NHW20

 1
55359D - CUSHION, INSTRUMENT PANEL, NO.5
55359-47010

NHW20

 1
55359-47010

NHW20

 1
55376 - BRACKET, INSTRUMENT PANEL MOUNTING, NO.1
55376-47010

NHW20..RHD

 1
55376-47010

NHW20..RHD

 1
55391 - CUSHION, INSTRUMENT PANEL, LOWER NO.1
55391-47010

NHW20

 2
55391-47010

NHW20

 2
55391 - CUSHION, INSTRUMENT PANEL, LOWER NO.1
55391-47010

NHW20

 2
55391-47010

NHW20

 2
55408F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1
55408-47010C0

NHW20..RHD..EUR

AUDIO-AM/FM,CST,CD-JBL-9SP,BLACK,TRIM1#

 1
55408-47010C0

NHW20..EUR

AUDIO-05AM/FM+CD-CHANGER JBL RDS 9 SPEAKER,BLACK,TRIM1#,4#

 1
55408-47010C0

NHW20..EUR

AUDIO-05AM/FM+CD-CHANGER JBL 9 SPEAKER,BLACK,TRIM1#,4#

 1
55464C - INSERT, INSTRUMENT PANEL LOWER PAD, RH
55464-47010

NHW20

 1
55464-47010

NHW20

 1
55512A - PLATE, GLOVE COMPARTMENT
55512-47010

NHW20..RHD

 1
55512-47010

NHW20..RHD

 1
73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR
73960-47020

NHW20..RHD

 1
73960-47020

NHW20..RHD

 1
82140 - WIRE ASSY, INSTRUMENT PANEL
82140-47020

NHW20

 1
82140-47020

NHW20

 1
Common parts
90159-70004
90179-06115
90179-06323
90179-08063
90183-05103
90467-05161C0
90467-12080
91553-80816
91631-60816
91631-J0612
91641-80818
93568-55014
93568-55016
Linked diagrams
7403
