NHW20R-AHEEBQ (2003)

Toyota Prius

Production Aug 2003 - Nov 2005
Engine 1NZFXE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0308- )

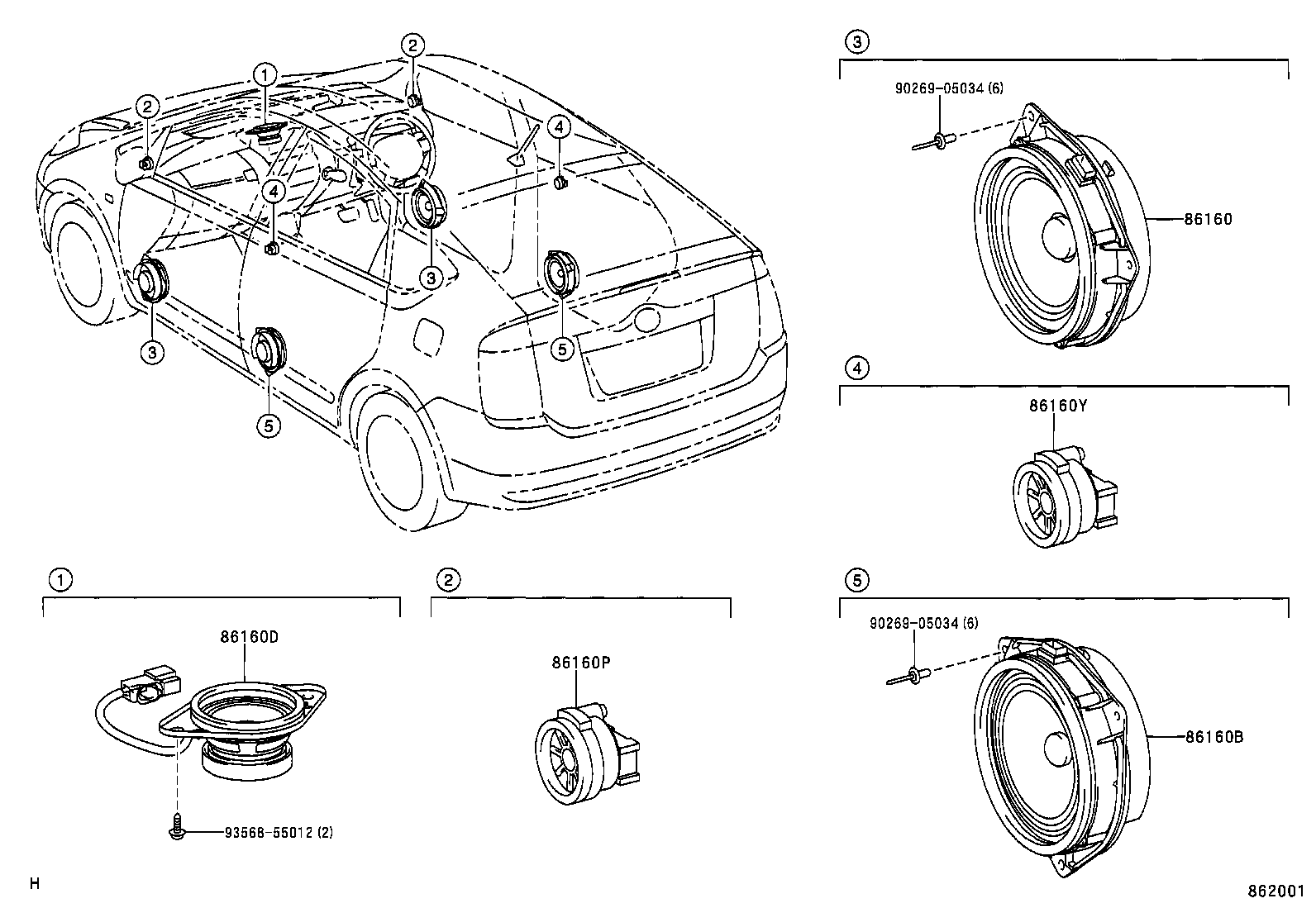

Click highlighted areas on diagram

diagram 86160 86160B 86160D 86160P 86160Y 9026905034 9026905034 9356855012
Part # Description Qty Price
86160 - SPEAKER ASSY, FRONT NO.1
86160-2B560

NHW20

 2
86160-0W880

NHW20..ARL

W(VSC)

 2
86160B - SPEAKER ASSY, REAR
86160-2B560

NHW20

 2
86160-0W620

NHW20..ARL

W(VSC)

 2
86160D - SPEAKER ASSY, STEREO COMPONENT, FRONT
86160-0W890

NHW20..ARL

W(VSC)

 1
86160P - SPEAKER ASSY, FRONT NO.2
86160-0WB40

NHW20..ARL

W(VSC)

 2
86160-68010

NHW20

 2
86160Y - SPEAKER ASSY, REAR NO.2
86160-0WB50

NHW20..ARL

W(VSC)

 2
Common parts
90269-05034
93568-55012
