NHW20R-AHEEBQ (2003)

Toyota Prius

Production Aug 2003 - Nov 2005
Engine 1NZFXE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0308- )ARL

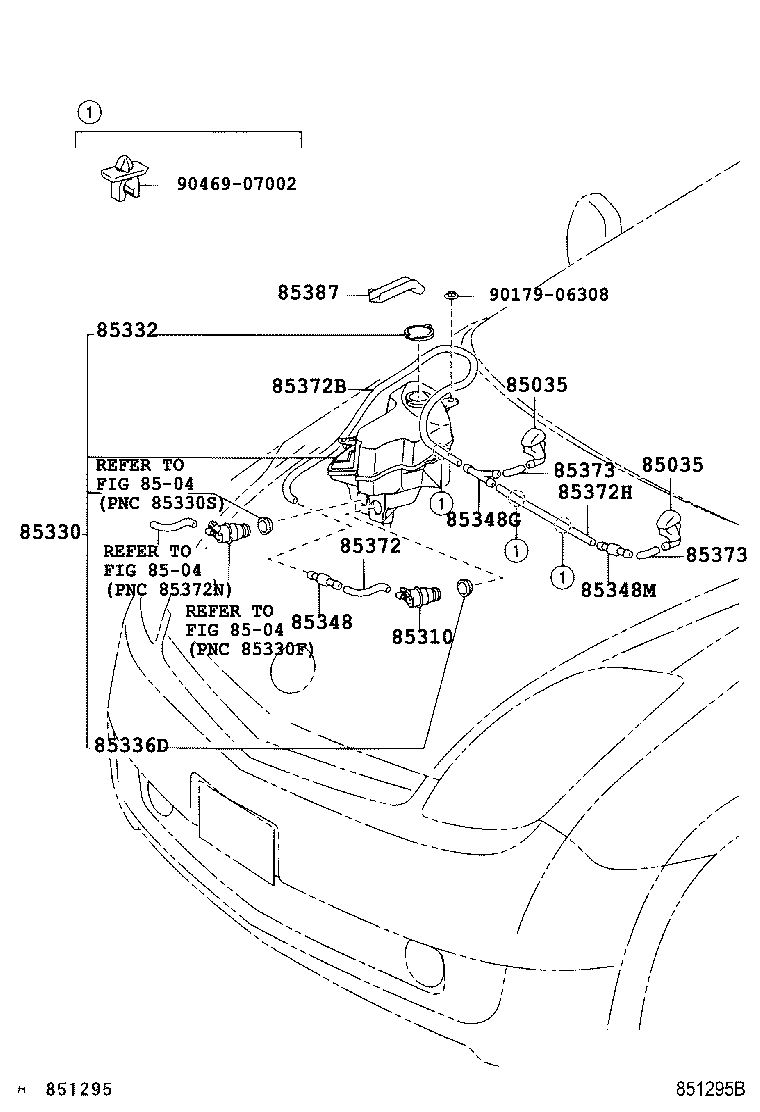

Click highlighted areas on diagram

diagram 85035 85035 8504 8504 8504 85310 85330 85332 85336D 85348 85348G 85348M 85372 85372B 85372H 85373 85373 85387 9017906308 9046907002
Part # Description Qty Price
85035 - NOZZLE SUB-ASSY, WASHER
85381-47040

NHW20..RHD

 2
85035 - NOZZLE SUB-ASSY, WASHER
85381-47040

NHW20..RHD

 2
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330-21010

NHW20..ARL

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85315-47060

NHW20..ARL

WITH(INTERMITTENT REAR WIPER)

 1
85315-47050

NHW20..ARL

 1
85332 - CAP, WINDSHIELD WASHER JAR
85316-12221

NHW20

 1
85336D - PACKING, WINDSHIELD WASHER JAR
85336-60300

NHW20

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85349-89122

NHW20..ARL

 1
85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2
85348-12250

NHW20..ARL

 1
85348M - JOINT, WINDSHIELD WASHER HOSE, NO.3
85349-89122

NHW20..ARL

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90099-33080

NHW20..ARL

*H,L=80

 1
85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
90446-07001

NHW20..ARL

*H,L=1300

 1
90446-07001

NHW20..ARL

*H,L=1280

 1
85372H - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
90446-07001

NHW20..ARL

*H,L=500

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

NHW20

*H,L=100

 2
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

NHW20

*H,L=100

 2
85387 - CLAMP NO.1 (FOR WINDSEIELD WASHER)
85387-13160

NHW20

 1
Common parts
90179-06308
90469-07002
Linked diagrams
8504
