NHW20R-AHEEBQ (2003)
Toyota Prius

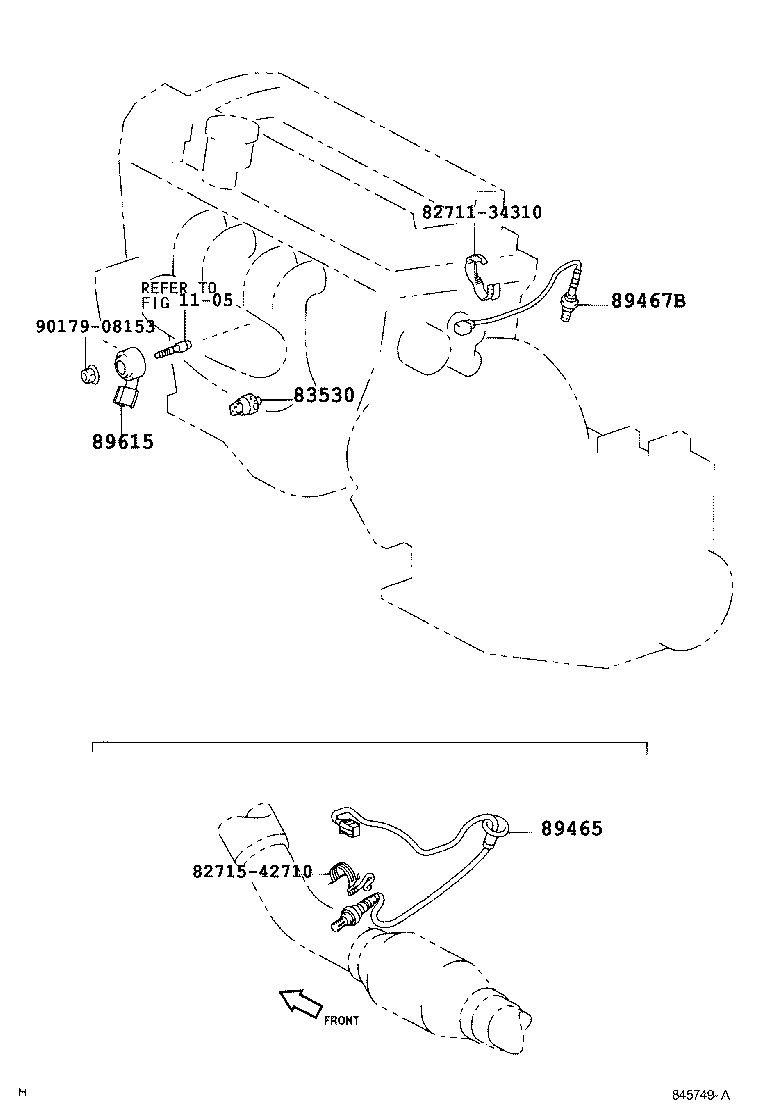

ILLUST NO. 1 OF 6(0308- )
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-28020 |
NHW20 DENSO |
1 | ||
| 83530-60020 |
NHW20 YAZAKI |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-47070 |
NHW20 |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-47010 |
NHW20 |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
NHW20 |
1 | ||
| Common parts | ||||
| 82711-34310 | ||||
| 82715-42710 | ||||
| 90179-08153 | ||||
| Linked diagrams | ||||
| 1105 | ||||

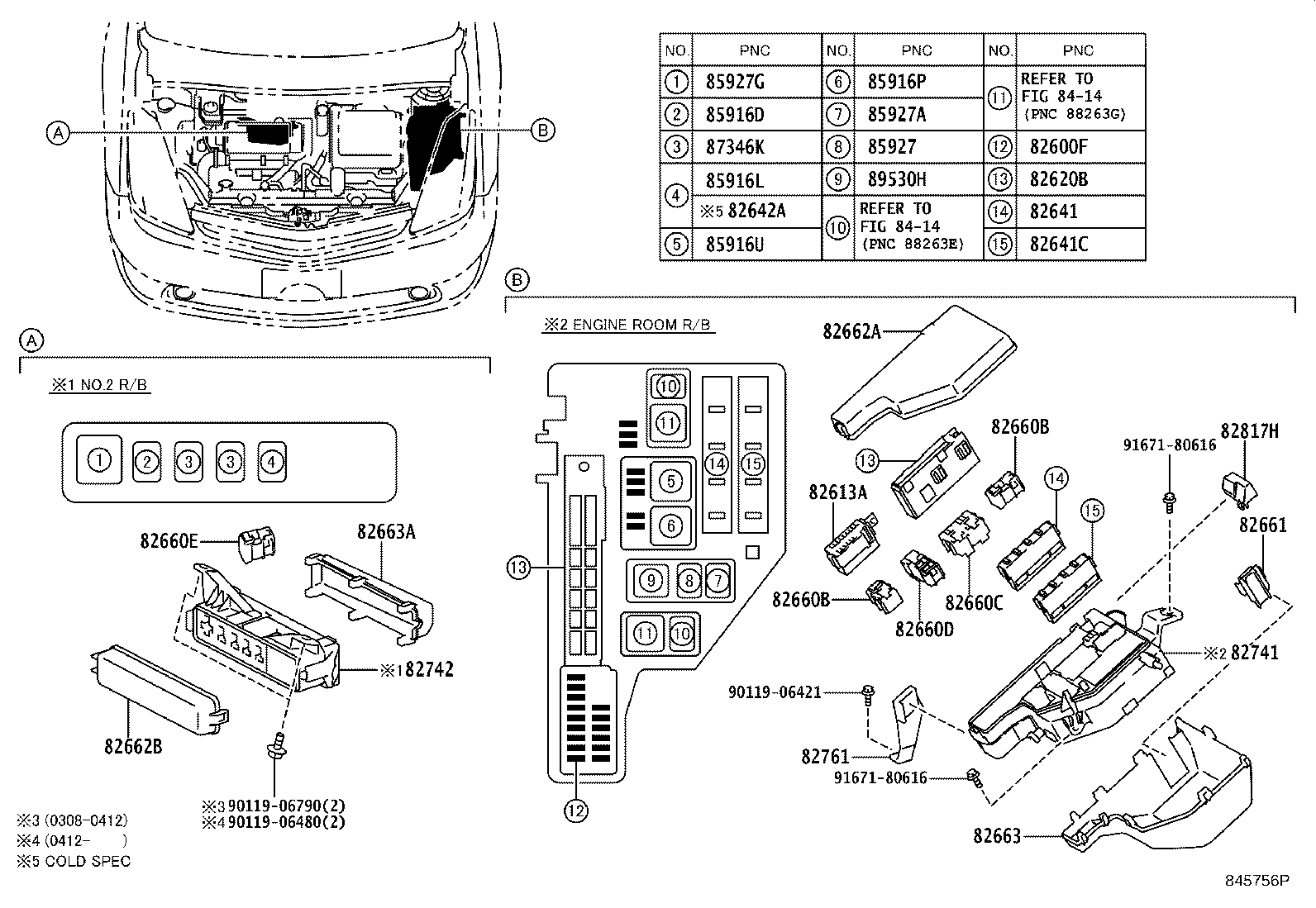

ILLUST NO. 2 OF 6(0308- )
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09023 |
NHW20 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09020 |
NHW20 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09025 |
NHW20 30A,MINI FUSE,GRN |
1 | ||
| 90982-09024 |
NHW20 25A,MINI FUSE |
1 | ||
| 90982-09022 |
NHW20 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09021 |
NHW20 10A,MINI FUSE,RED |
1 | ||
| 90982-09007 |
NHW20 5A,MINI FUSE,TAN |
1 | ||
| 82613A - BLOCK, FUSE BASE | ||||
| 82613-47010 |
NHW20 |
1 | ||
| 82620B - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-47050 |
NHW20 |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-47010 |
NHW20 |
1 | ||
| 82641C - RELAY, INTEGRATION NO.2 | ||||
| 82641-47020 |
NHW20 |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-47010 |
NHW20 |
2 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-47010 |
NHW20 |
2 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-47020 |
NHW20 |
1 | ||
| 82660D - BLOCK ASSY, RELAY | ||||
| 82660-47030 |
NHW20 |
1 | ||
| 82660E - BLOCK ASSY, RELAY | ||||
| 82660-47010 |
NHW20 |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-47010 |
NHW20 |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-47040 |
NHW20 |
1 | ||
| 82662-47041 |
NHW20 |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-47060 |
NHW20 |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-47040 |
NHW20 |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-47050 |
NHW20 |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-47010 |
NHW20 |
1 | ||
| 82742 - BLOCK, ENGINE ROOM RELAY, NO.2 | ||||
| 82742-47020 |
NHW20 |
1 | ||
| 82761 - BRACKET, RELAY BLOCK, NO.1 | ||||
| 82761-47010 |
NHW20 |
1 | ||
| 82817H - PROTECTOR, WIRING HARNESS | ||||
| 82817-47390 |
NHW20 |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02027 |
NHW20..ARL |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02025 |
NHW20 |
1 | ||
| 85916U - RELAY, HEADLAMP, NO.2 | ||||
| 90987-04010 |
NHW20 |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-02027 |
NHW20 |
1 | ||
| 85927A - RELAY, COOLING FAN, NO.2 | ||||
| 90987-04004 |
NHW20 |
1 | ||
| 89530H - RELAY, TRANSAXLE PARKING LOOK CONTROL | ||||
| 90987-02025 |
NHW20 |
1 | ||
| Common parts | ||||
| 90119-06421 | ||||
| 90119-06480 | ||||
| 90119-06790 | ||||
| 91671-80616 | ||||
| Linked diagrams | ||||
| 8414 | ||||

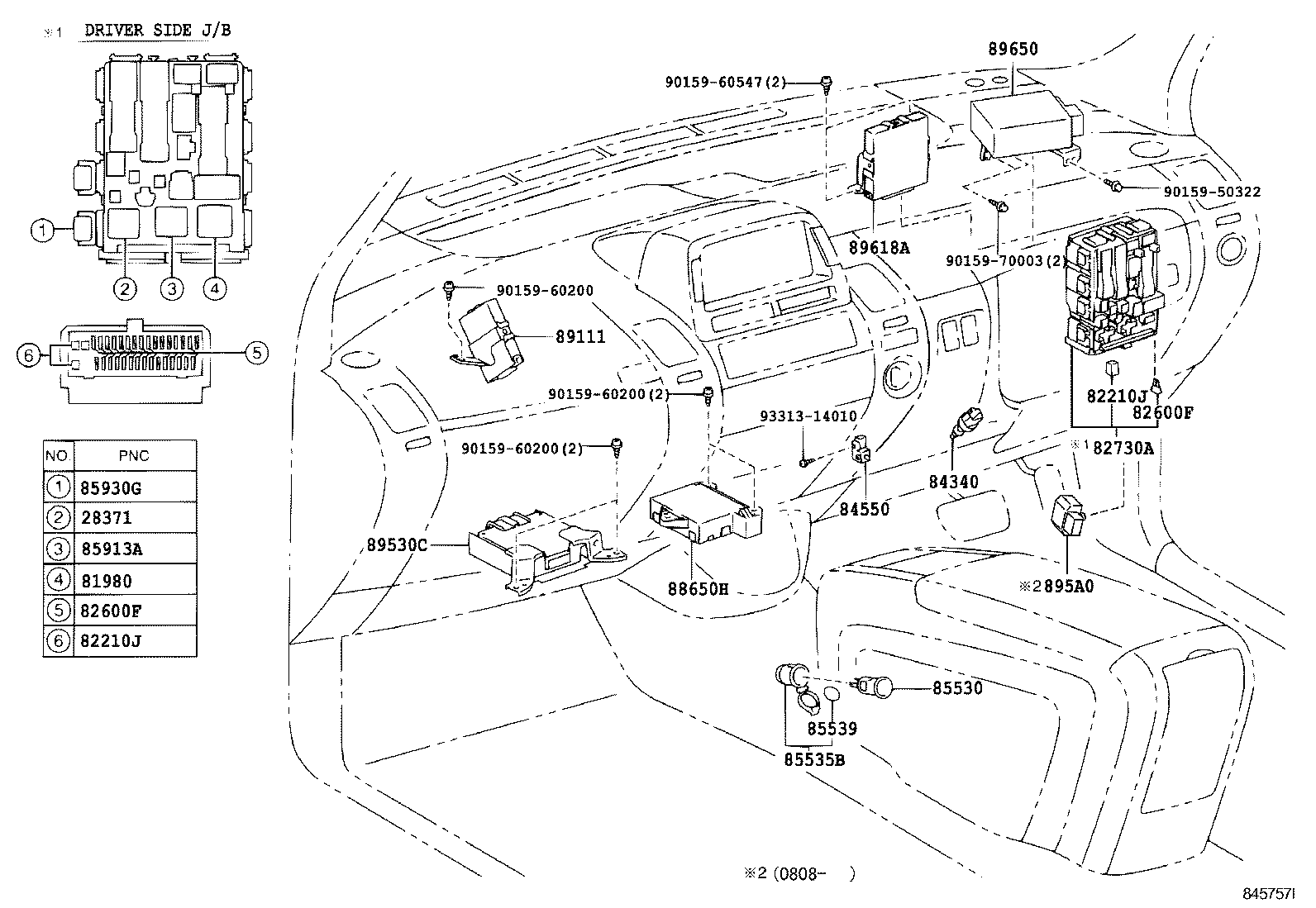

ILLUST NO. 3 OF 6(0308- )RHD
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90987-02025 |
1NZFXE..NHW20 |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-46010 |
NHW20 |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08294 |
NHW20 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08254 |
NHW20 120A,TERM.:MALE,WHT,PACIFIC |
1 | ||
| 90982-08295 |
NHW20 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08274 |
NHW20 120A,TERM.:MALE,WHT,YAZAKI |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08294 |
NHW20 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08254 |
NHW20 120A,TERM.:MALE,WHT,PACIFIC |
1 | ||
| 90982-08295 |
NHW20 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08274 |
NHW20 120A,TERM.:MALE,WHT,YAZAKI |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09023 |
NHW20 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09020 |
NHW20 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09025 |
NHW20 30A,MINI FUSE,GRN |
1 | ||
| 90982-09024 |
NHW20 25A,MINI FUSE |
1 | ||
| 90982-09022 |
NHW20 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09021 |
NHW20 10A,MINI FUSE,RED |
1 | ||
| 90982-09007 |
NHW20 5A,MINI FUSE,TAN |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09023 |
NHW20 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09020 |
NHW20 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09025 |
NHW20 30A,MINI FUSE,GRN |
1 | ||
| 90982-09024 |
NHW20 25A,MINI FUSE |
1 | ||
| 90982-09022 |
NHW20 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09021 |
NHW20 10A,MINI FUSE,RED |
1 | ||
| 90982-09007 |
NHW20 5A,MINI FUSE,TAN |
1 | ||
| 82730A - BLOCK ASSY, DRIVER SIDE JUNCTION | ||||
| 82730-47210 |
NHW20..ARL |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-47020 |
NHW20..ARL |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-16060 |
NHW20 |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-33020 |
NHW20 |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-60100C0 |
NHW20 BLACK,TRIM1# |
1 | ||
| 85539 - LABEL, POWER OUTLET NOTICE | ||||
| 85539-60020 |
NHW20 |
1 | ||
| 85913A - RELAY, HEATER CONTROL | ||||
| 90987-04010 |
NHW20 |
1 | ||
| 85930G - RELAY, ACC | ||||
| 90987-02027 |
NHW20 |
1 | ||
| 88650H - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-47050 |
NHW20 |
1 | ||
| 89111 - COMPUTER, NETWORK GATEWAY | ||||
| 89111-47020 |
NHW20..RHD |
1 | ||
| 89530C - COMPUTER ASSY, TRANSMISSION CONTROL | ||||
| 89535-47010 |
NHW20 |
1 | ||
| 89618A - COMPUTER, POWER SOURCE CONTROL | ||||
| 89618-47020 |
NHW20..RHD |
1 | ||
| 89618-47021 |
NHW20..RHD |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-47091 |
NHW20..RHD |
1 | ||
| 89650-47090 |
NHW20..RHD |
1 | ||
| Common parts | ||||
| 90159-50322 | ||||
| 90159-60200 | ||||
| 90159-60547 | ||||
| 90159-70003 | ||||
| 93313-14010 | ||||

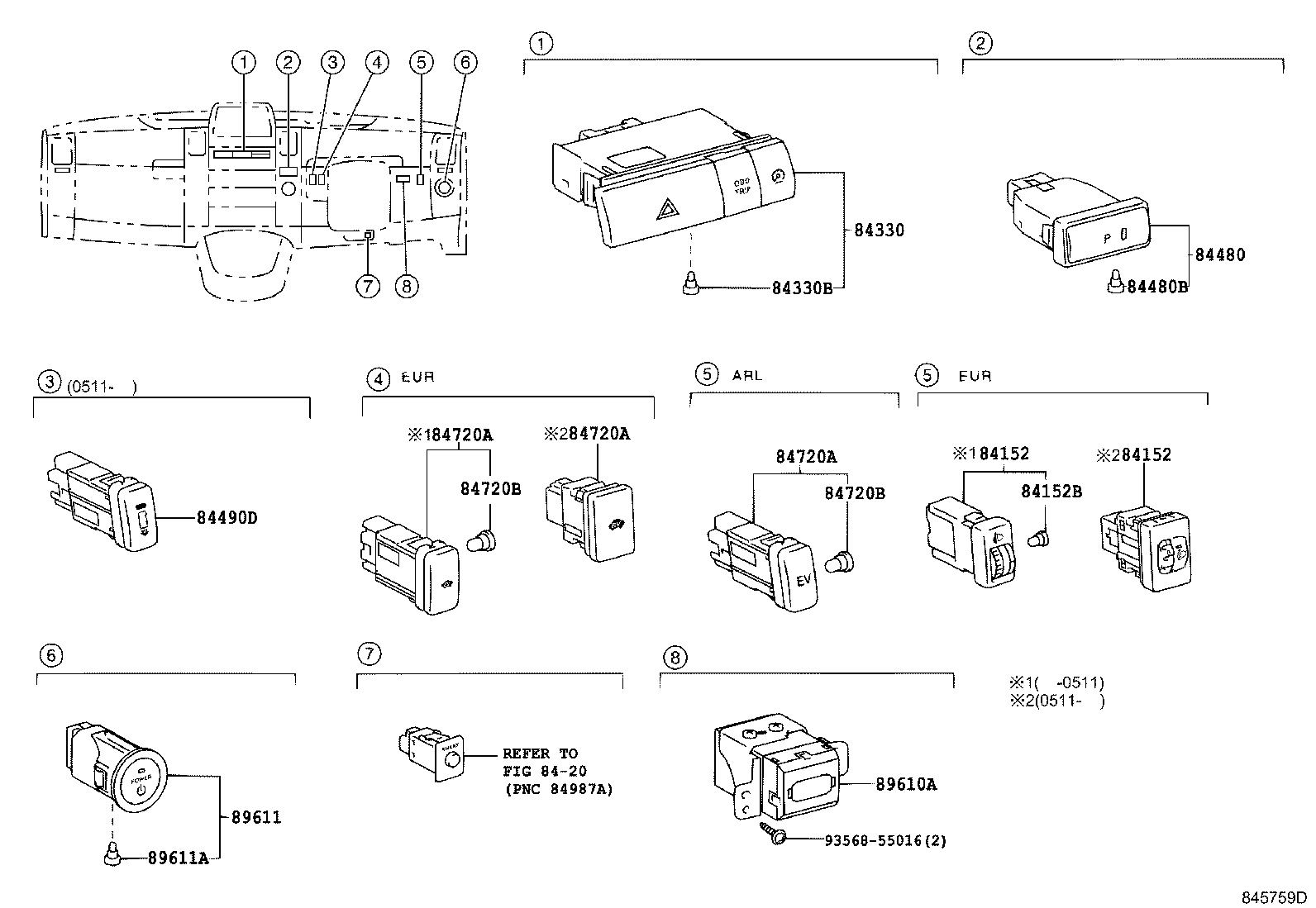

ILLUST NO. 4 OF 6(0308- )RHD
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84330-47010 |
NHW20..ARL;NHW20..LHD |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-10310 |
NHW20 14V 0.91W |
1 | ||
| 84480 - SWITCH ASSY, MAIN | ||||
| 84480-47010 |
NHW20 |
1 | ||
| 84480B - BULB, MAIN SWITCH ASSY | ||||
| 90010-01061 |
NHW20 14V0.84W,W/GREEN CAP |
1 | ||
| 84720A - SWITCH ASSY, PATTERN SELECT, NO.1 | ||||
| 84720-47010 |
NHW20 |
1 | ||
| 84720A - SWITCH ASSY, PATTERN SELECT, NO.1 | ||||
| 84720-47010 |
NHW20 |
1 | ||
| 84720A - SWITCH ASSY, PATTERN SELECT, NO.1 | ||||
| 84720-47010 |
NHW20 |
1 | ||
| 84720B - BULB (FOR PATTERN SELECT SWITCH) | ||||
| 90010-01062 |
NHW20 14V0.63W,W/GREEN CAP |
1 | ||
| 84720B - BULB (FOR PATTERN SELECT SWITCH) | ||||
| 90010-01062 |
NHW20 14V0.63W,W/GREEN CAP |
1 | ||
| 89610A - HOLDER ASSY, ELECTRICAL KEY | ||||
| 89610-47010 |
NHW20..RHD |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-47010 |
NHW20 |
1 | ||
| 89611A - BULB, PUSH START SWITCH | ||||
| 90010-01039 |
NHW20 |
1 | ||
| Common parts | ||||
| 93568-55016 | ||||
| Linked diagrams | ||||
| 8420 | ||||

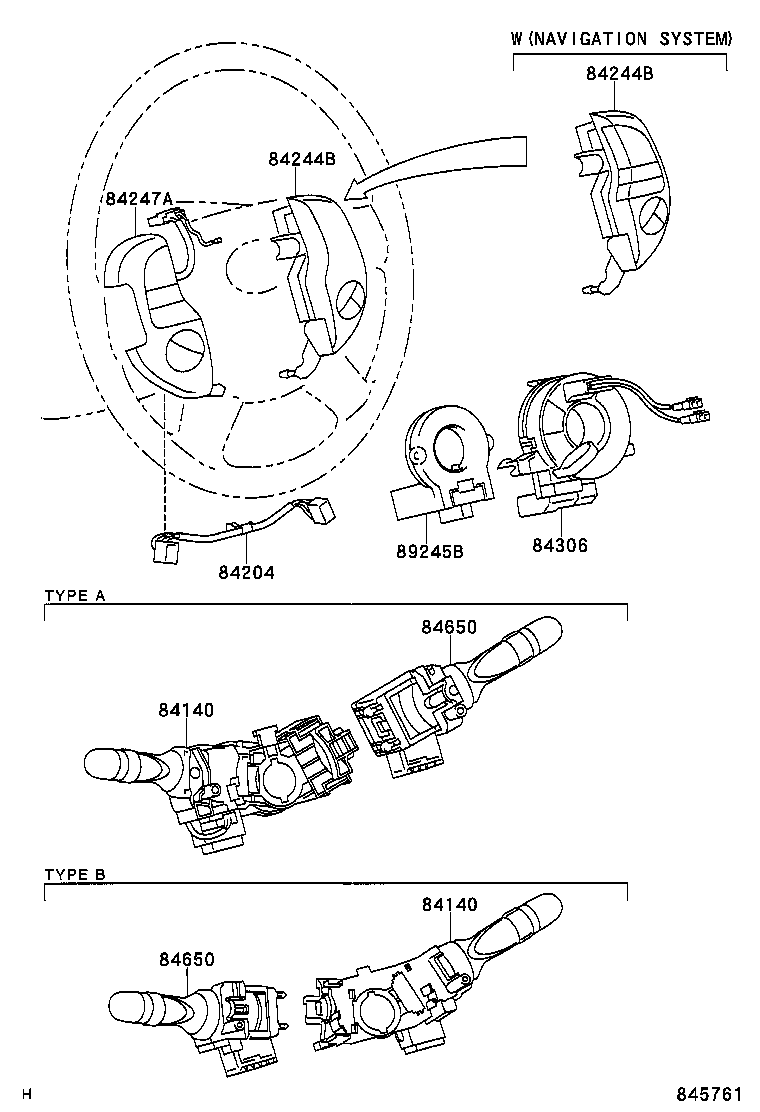

ILLUST NO. 5 OF 6(0308- )
IGNITION & COMBINATION SWITCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-47040 |
NHW20..ARL |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-47040 |
NHW20..ARL |
1 | ||
| 84204 - CABLE SUB-ASSY, STEERING PAD SWITCH | ||||
| 84204-47010 |
NHW20 |
1 | ||
| 84244B - SWITCH, STEERING PAD, RH | ||||
| 84244-47020 |
NHW20 |
1 | ||
| 84244-47010 |
NHW20..ARL W(VSC) |
1 | ||
| 84244B - SWITCH, STEERING PAD, RH | ||||
| 84244-47020 |
NHW20 |
1 | ||
| 84244-47010 |
NHW20..ARL W(VSC) |
1 | ||
| 84247A - SWITCH, STEERING PAD, LH | ||||
| 84247-47010 |
NHW20 |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-48030 |
NHW20 |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-47020 |
NHW20..ARL |
1 | ||
| 84652-48010 |
NHW20..ARL WITH(INTERMITTENT REAR WIPER) |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-47020 |
NHW20..ARL |
1 | ||
| 84652-48010 |
NHW20..ARL WITH(INTERMITTENT REAR WIPER) |
1 | ||
| 89245B - SENSOR, STEERING | ||||
| 89245-48020 |
NHW20..ARL W(VSC) |
1 | ||

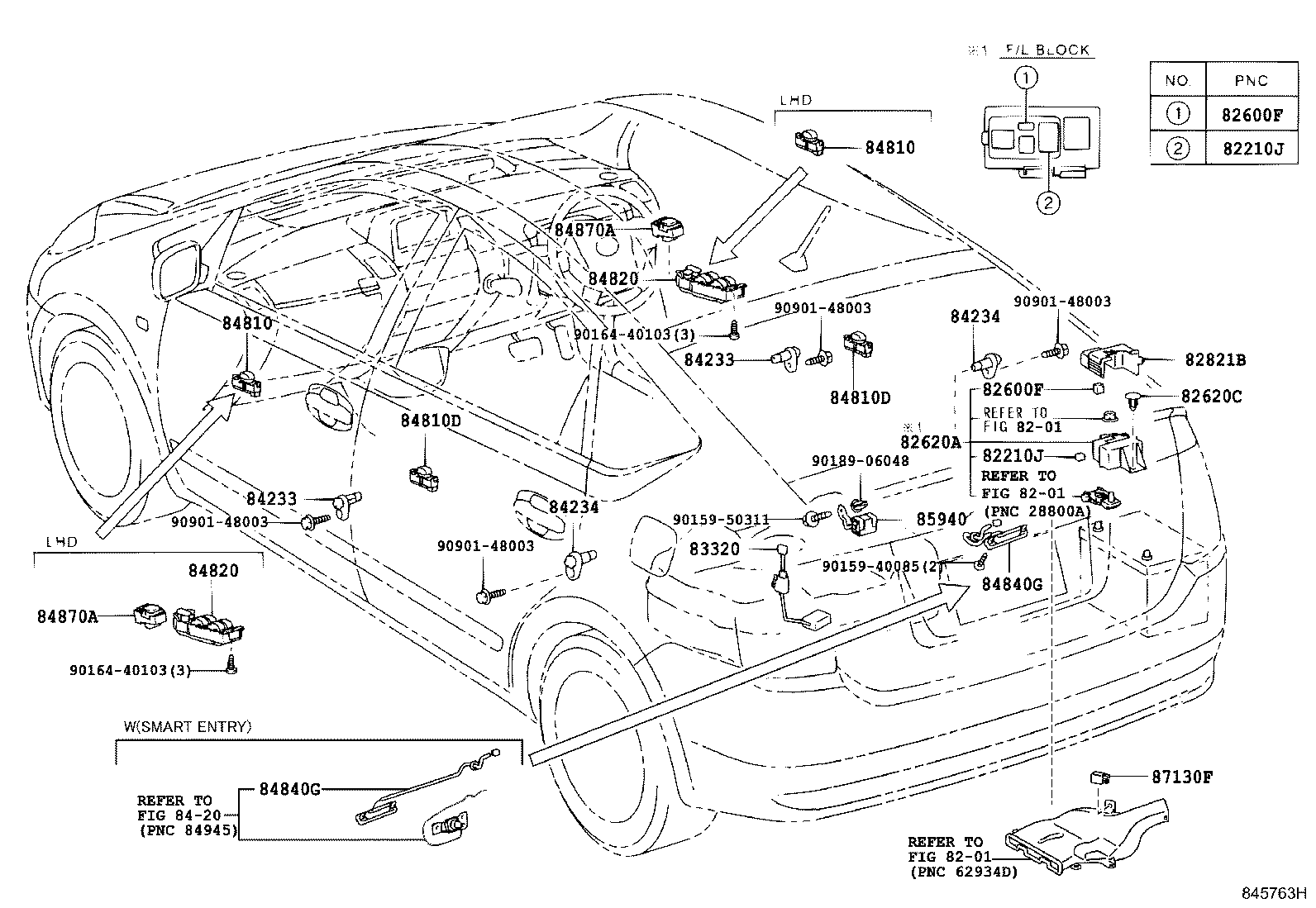

ILLUST NO. 6 OF 6(0308- )
DOOR,ROOF,FLOOR & LUGGAGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210J - FUSIBLE LINK | ||||
| 90982-08254 |
NHW20 120A,TERM.:MALE,WHT,PACIFIC |
1 | ||
| 90982-08294 |
NHW20 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08295 |
NHW20 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08274 |
NHW20 120A,TERM.:MALE,WHT,YAZAKI |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08294 |
NHW20 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08254 |
NHW20 120A,TERM.:MALE,WHT,PACIFIC |
1 | ||
| 90982-08295 |
NHW20 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08274 |
NHW20 120A,TERM.:MALE,WHT,YAZAKI |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09023 |
NHW20 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09020 |
NHW20 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09025 |
NHW20 30A,MINI FUSE,GRN |
1 | ||
| 90982-09024 |
NHW20 25A,MINI FUSE |
1 | ||
| 90982-09022 |
NHW20 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09021 |
NHW20 10A,MINI FUSE,RED |
1 | ||
| 90982-09007 |
NHW20 5A,MINI FUSE,TAN |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09023 |
NHW20 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09020 |
NHW20 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09025 |
NHW20 30A,MINI FUSE,GRN |
1 | ||
| 90982-09024 |
NHW20 25A,MINI FUSE |
1 | ||
| 90982-09022 |
NHW20 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09021 |
NHW20 10A,MINI FUSE,RED |
1 | ||
| 90982-09007 |
NHW20 5A,MINI FUSE,TAN |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-47040 |
NHW20 |
1 | ||
| 82620C - CLIP | ||||
| 90467-05164C0 |
NHW20 BLACK |
1 | ||
| 82821B - COVER, CONNECTOR | ||||
| 82821-47050 |
NHW20 |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-47030 |
NHW20 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-60070 |
NHW20 |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-60070 |
NHW20 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-60070 |
NHW20 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-60070 |
NHW20 |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-12080 |
NHW20 |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-12080 |
NHW20 |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-12080 |
NHW20 |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-12080 |
NHW20 |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-47030 |
NHW20..RHD |
1 | ||
| 84820-47011 |
NHW20..RHD |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-47030 |
NHW20..RHD |
1 | ||
| 84820-47011 |
NHW20..RHD |
1 | ||
| 84840G - SWITCH ASSY, BACK DOOR OPENER | ||||
| 84840-47010 |
NHW20 |
1 | ||
| 84840-47020 |
NHW20..ARL W(VSC) |
1 | ||
| 84840G - SWITCH ASSY, BACK DOOR OPENER | ||||
| 84840-47010 |
NHW20 |
1 | ||
| 84840-47020 |
NHW20..ARL W(VSC) |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84872-52030 |
NHW20 |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84872-52030 |
NHW20 |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-47010 |
NHW20..ARL WITH(INTERMITTENT REAR WIPER) |
1 | ||
| 87130F - RELAY, BATTERY BLOWER, NO.1 | ||||
| 90987-02027 |
NHW20 |
1 | ||
| Common parts | ||||
| 90159-40085 | ||||
| 90159-50311 | ||||
| 90164-40103 | ||||
| 90189-06048 | ||||
| 90901-48003 | ||||
| Linked diagrams | ||||
| 8201 | ||||
| 8420 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
