NHW20R-AHEEBQ (2003)

Toyota Prius

Production Aug 2003 - Nov 2005
Engine 1NZFXE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0308- )

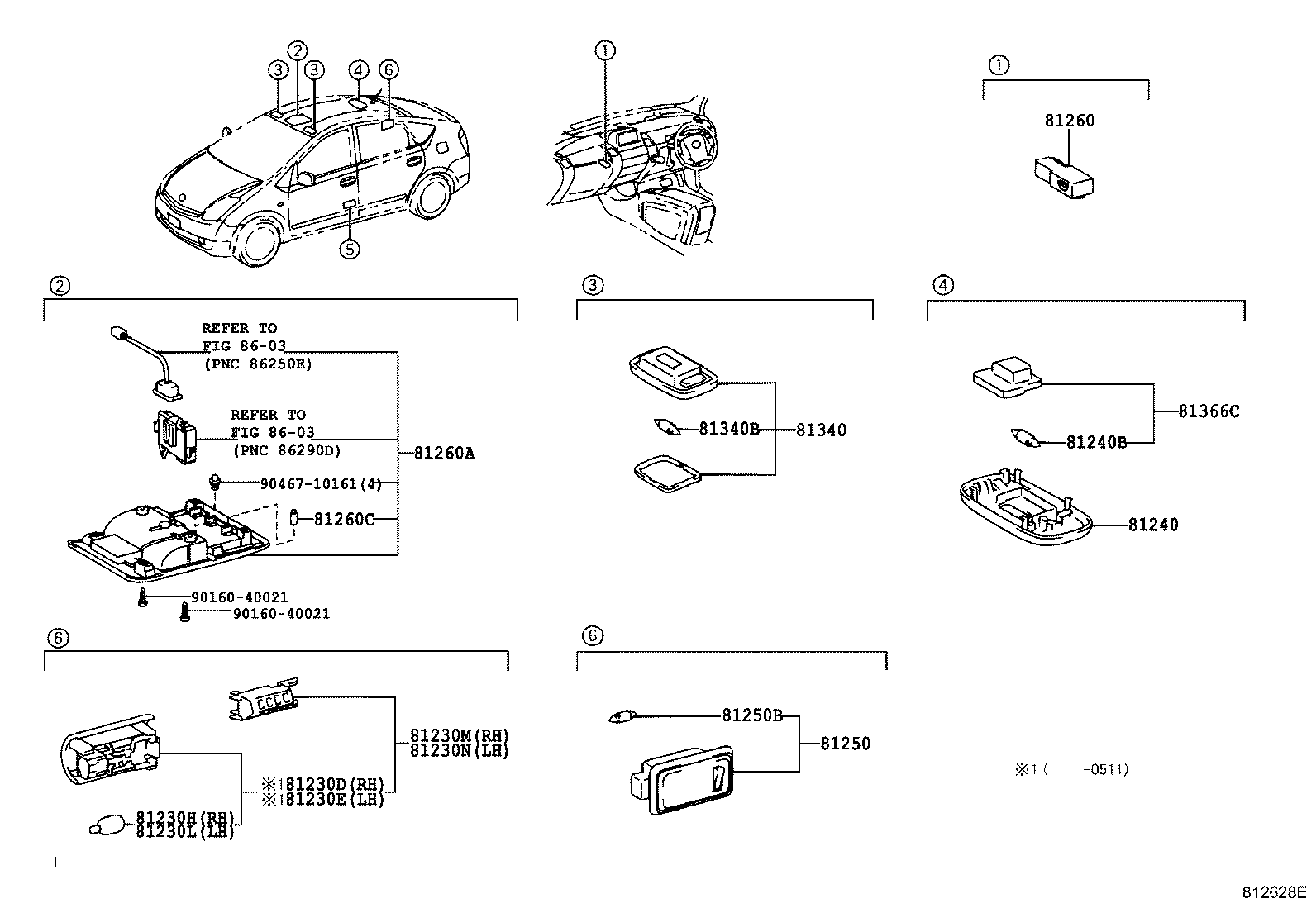

Click highlighted areas on diagram

diagram 81230D 81230E 81230H 81230L 81230M 81230N 81240 81240B 81250 81250B 81260 81260A 81260C 81340 81340B 81366C 8603 8603 9016040021 9016040021 9046710161
Part # Description Qty Price
81230D - LAMP ASSY, FRONT DOOR COURTESY, RH
81230-48020

NHW20

 1
81230E - LAMP ASSY, FRONT DOOR COURTESY, LH
81230-48020

NHW20

 1
81230H - BULB(FOR FRONT DOOR COURTESY LAMP RH)
90981-12010

NHW20

12V 5W

 1
81230L - BULB(FOR FRONT DOOR COURTESY LAMP LH)
90981-12010

NHW20

12V 5W

 1
81230M - LAMP ASSY, COURTESY, RH
81230-47010

NHW20

 1
81230N - LAMP ASSY, COURTESY, LH
81230-47010

NHW20

 1
81240 - LAMP ASSY, ROOM, NO.1
81240-68010B1

NHW20

GRAY,TRIM1#

 1
81240-68010A0

NHW20..ARL

IVORY,TRIM0#

 1
81240B - BULB, ROOM LAMP, NO.1
90981-14011

NHW20

12V 8W

 1
81250 - LAMP ASSY, ROOM, NO.2
81250-48010

NHW20

 1
81250B - BULB, ROOM LAMP, NO.2
99132-13050

NHW20

12V 5W

 1
81260 - LAMP ASSY, GLOVE BOX
81080-48010

NHW20

 1
81260A - LAMP ASSY, MAP
81260-47010A0

NHW20..ARL

IVORY,TRIM0#

 1
81260-47020A0

NHW20..ARL

W(VSC)&EMV(W/NAVIGATION SYSTEM)-WITH,IVORY,TRIM0#

 1
81260-47020B0

NHW20..ARL

W(VSC)&EMV(W/NAVIGATION SYSTEM)-WITH,GRAY,TRIM1#

 1
81260-47010B0

NHW20..ARL;NHW20..LHD

GRAY,TRIM1#

 1
81260C - BULB(FOR MAP LAMP)
99132-12050

NHW20..ARL;NHW20..LHD

12V 5W

 3
81340 - LAMP ASSY, VANITY
81340-33140B2

NHW20

GRAY,TRIM1#

 2
81340-33140A0

NHW20..ARL

IVORY,TRIM0#

 2
81340B - BULB (FOR VANITY LAMP)
99132-13050

NHW20

12V 5W

 2
81366C - BASE, ROOM LAMP SWITCH
81366-68010

NHW20

 1
Common parts
90160-40021
90467-10161
Linked diagrams
8603
