NHW20R-AHEEBQ (2003)

Toyota Prius

Production Aug 2003 - Nov 2005
Engine 1NZFXE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0308-0903)

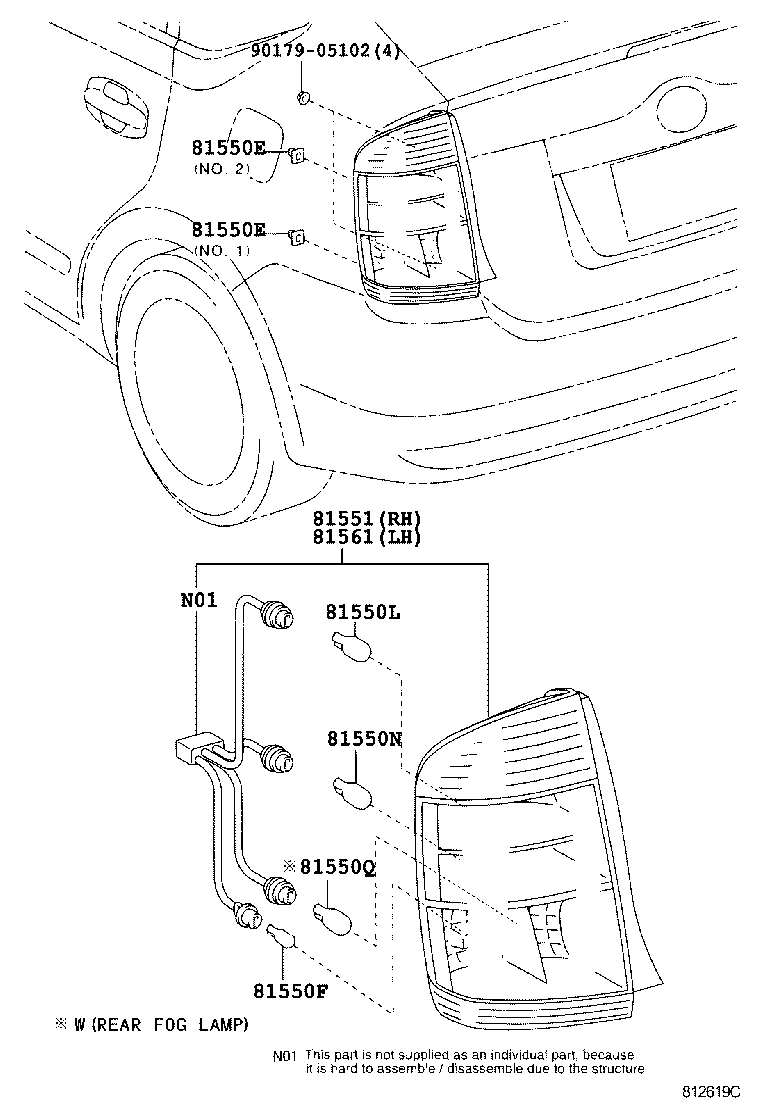

Click highlighted areas on diagram

diagram 81550E 81550E 81550F 81550L 81550N 81550Q 81551 81561 9017905102
Part # Description Qty Price
81550E - CLIP(FOR REAR COMBINATION LAMP)
90467-09075

NHW20

NO.1

 2
90467-09112

NHW20

NO.2

 2
81550E - CLIP(FOR REAR COMBINATION LAMP)
90467-09075

NHW20

NO.1

 2
90467-09112

NHW20

NO.2

 2
81550F - BULB, TAIL LAMP
99132-12050

NHW20

 2
81550L - BULB, REAR TURN SIGNAL LAMP
90981-15011

NHW20

 2
81550N - BULB, BACK UP LAMP
90981-13043

NHW20

 2
81551 - LENS, REAR COMBINATION LAMP, RH
81551-47050

NHW20..ARL

 1
81551-47051

NHW20..ARL

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-47050

NHW20..ARL

 1
81561-47051

NHW20..ARL

 1
Common parts
90179-05102
