NHW20R-AHEEBQ (2003)
Toyota Prius
Production
Aug 2003
-
Nov 2005
Engine
1NZFXE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

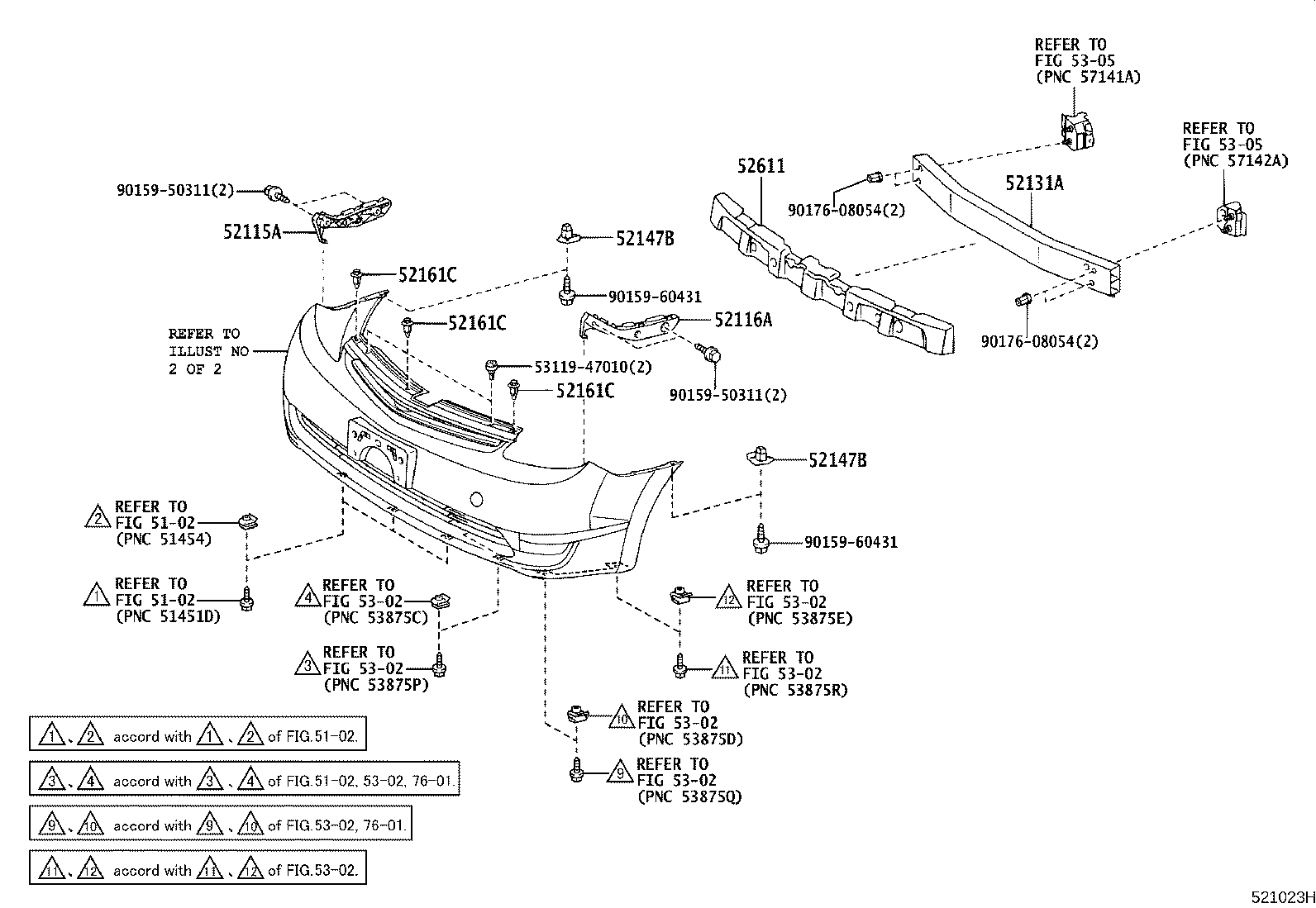

ILLUST NO. 1 OF 2(0308- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-47010 |
NHW20 |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52116-47010 |
NHW20 |
1 | ||
| 52131A - REINFORCEMENT, FRONT BUMPER | ||||
| 52131-47060 |
NHW20 |
1 | ||
| 52147B - BRACKET, FRONT BUMPER MOUNTING | ||||
| 52147-21010 |
NHW20 |
2 | ||
| 52147B - BRACKET, FRONT BUMPER MOUNTING | ||||
| 52147-21010 |
NHW20 |
2 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
NHW20 |
3 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
NHW20 |
3 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
NHW20 |
3 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-47030 |
NHW20 |
1 | ||
| Common parts | ||||
| 53119-47010 | ||||
| 90159-50311 | ||||
| 90159-60431 | ||||
| 90176-08054 | ||||
| Linked diagrams | ||||
| 5102 | ||||
| 5302 | ||||
| 5305 | ||||

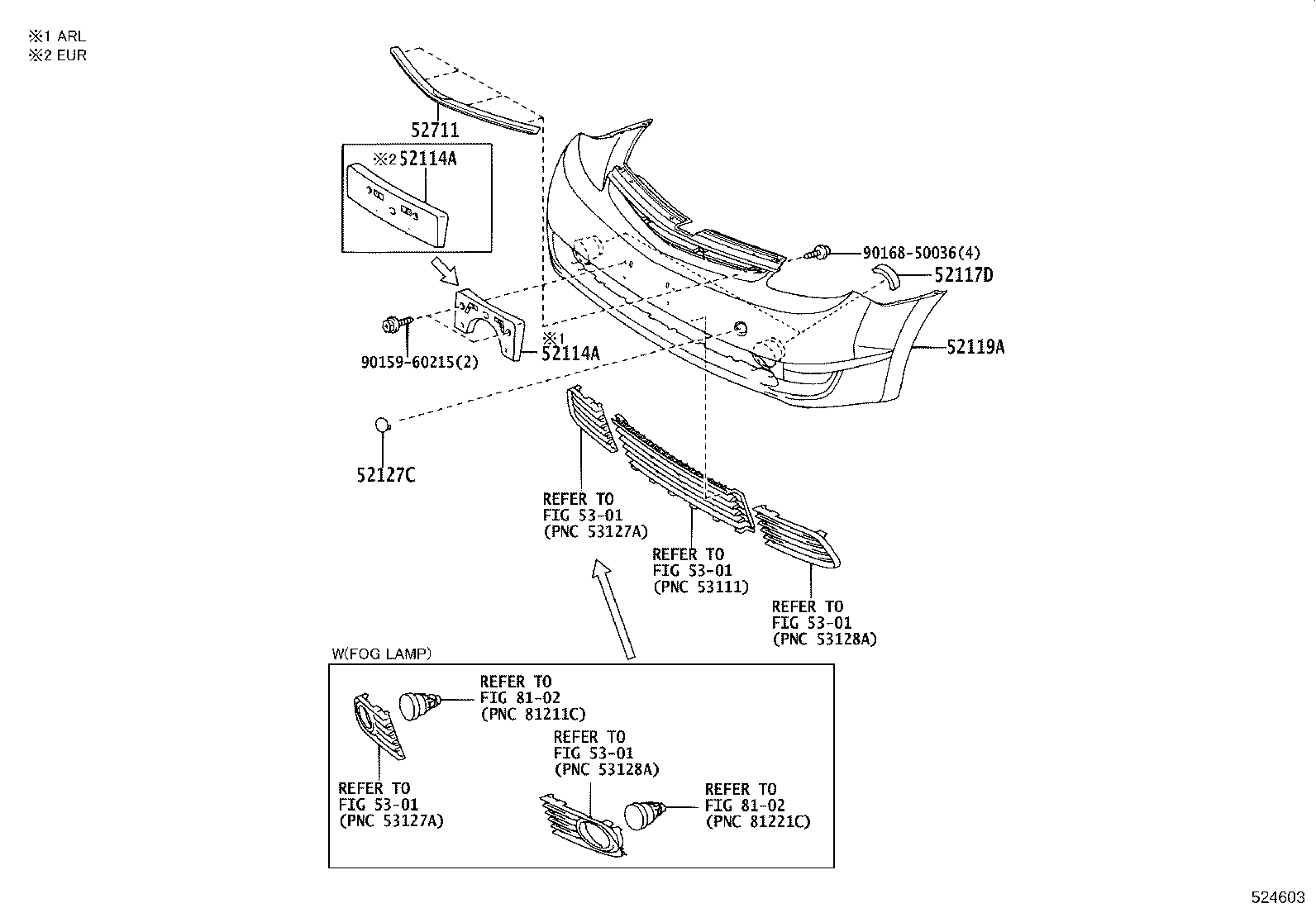

ILLUST NO. 2 OF 2(0308- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52114A - BRACKET, FRONT BUMPER EXTENSION MOUNTING | ||||
| 52114-47030 |
NHW20..ARL |
1 | ||
| 52114A - BRACKET, FRONT BUMPER EXTENSION MOUNTING | ||||
| 52114-47030 |
NHW20..ARL |
1 | ||
| 52117D - SUPPORT, FRONT BUMPER SIDE, LOWER | ||||
| 52117-47010 |
NHW20 |
2 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-47902 |
NHW20..ARL |
1 | ||
| 52127C - COVER, FRONT BUMPER HOLE | ||||
| 52127-47010D0 |
NHW20 DK. RED M.M.,3Q3 |
1 | ||
| 52127-47010G0 |
NHW20 JADE GREEN M.M.,6S9 |
1 | ||
| 52127-47010J1 |
NHW20 BLUE M.M.,8S2 |
1 | ||
| 52127-47010E0 |
NHW20 BRONZE M.M.,4S2 |
1 | ||
| 52127-47010A0 |
NHW20 SUPER WHITE 2,040 |
1 | ||
| 52127-47010B0 |
NHW20 SILVER ME.,1C0 |
1 | ||
| 52127-47010C0 |
NHW20 BLACK,202 |
1 | ||
| 52711 - MOULDING, FRONT BUMPER | ||||
| 52711-47010A0 |
NHW20 SUPER WHITE 2,040 |
1 | ||
| 52711-47010C0 |
NHW20 BLACK,202 |
1 | ||
| 52711-47010B0 |
NHW20 SILVER ME.,1C0 |
1 | ||
| 52711-47010J1 |
NHW20 BLUE M.M.,8S2 |
1 | ||
| 52711-47010D0 |
NHW20 DK. RED M.M.,3Q3 |
1 | ||
| 52711-47010G0 |
NHW20 JADE GREEN M.M.,6S9 |
1 | ||
| 52711-47010E0 |
NHW20 BRONZE M.M.,4S2 |
1 | ||
| Common parts | ||||
| 90159-60215 | ||||
| 90168-50036 | ||||
| Linked diagrams | ||||
| 5301 | ||||
| 8102 | ||||
