NHW20R-AHEEBQ (2003)
Toyota Prius
Production
Aug 2003
-
Nov 2005
Engine
1NZFXE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0308- )RHD

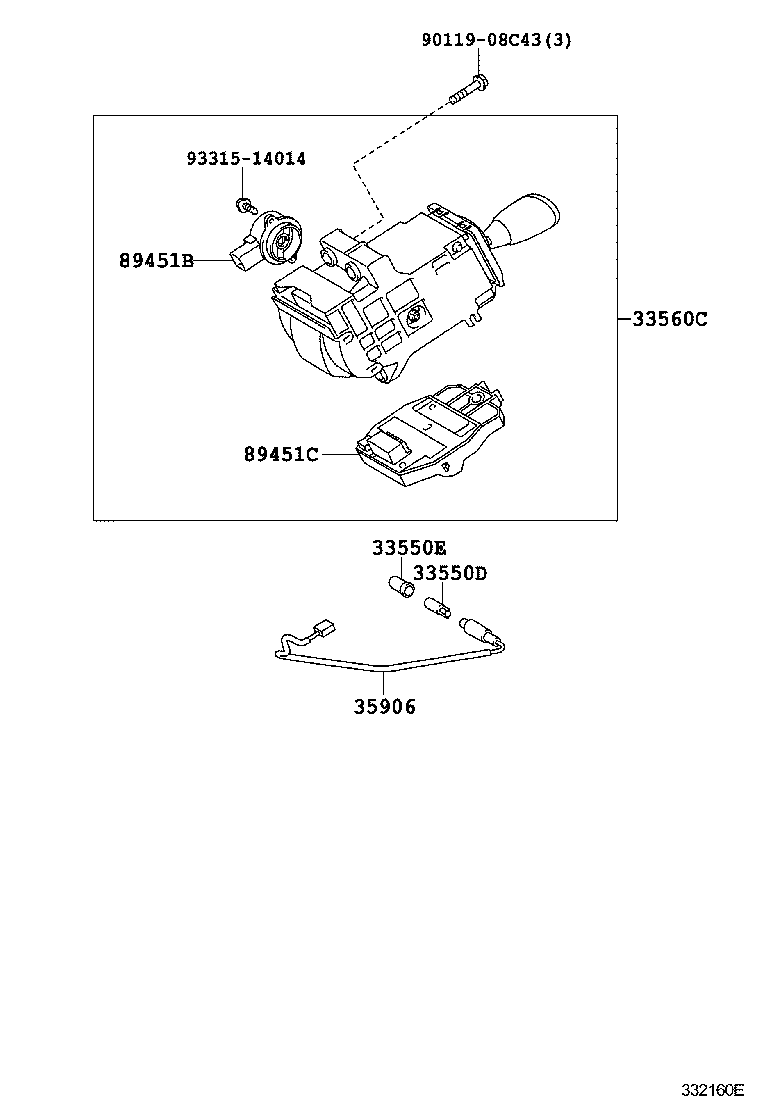

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33550D - BULB, POSITION INDICATOR LAMP | ||||
| 90981-11040 |
NHW20 12V 2W |
1 | ||
| 33550E - CAP, POSITION INDICATOR LAMP | ||||
| 90339-04049 |
NHW20 |
1 | ||
| 33560C - LEVER ASSY, SHIFT, LOWER | ||||
| 33560-47011 |
NHW20..RHD |
1 | ||
| 33560-47012 |
NHW20..RHD |
1 | ||
| 35906 - WIRE SUB-ASSY, INDICATOR LAMP | ||||
| 35906-47010 |
NHW20 |
1 | ||
| 89451B - SENSOR, SHIFT LEVER POSITION | ||||
| 89451-47030 |
NHW20 |
1 | ||
| 89451C - SENSOR, SHIFT LEVER POSITION, NO.2 | ||||
| 89451-47050 |
NHW20..RHD |
1 | ||
| Common parts | ||||
| 90119-08C43 | ||||
| 93315-14014 | ||||
