NHW20L-AHEEBW (2003)
Toyota Prius
Production
Aug 2003
-
Nov 2005
Engine
1NZFXE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0308- )

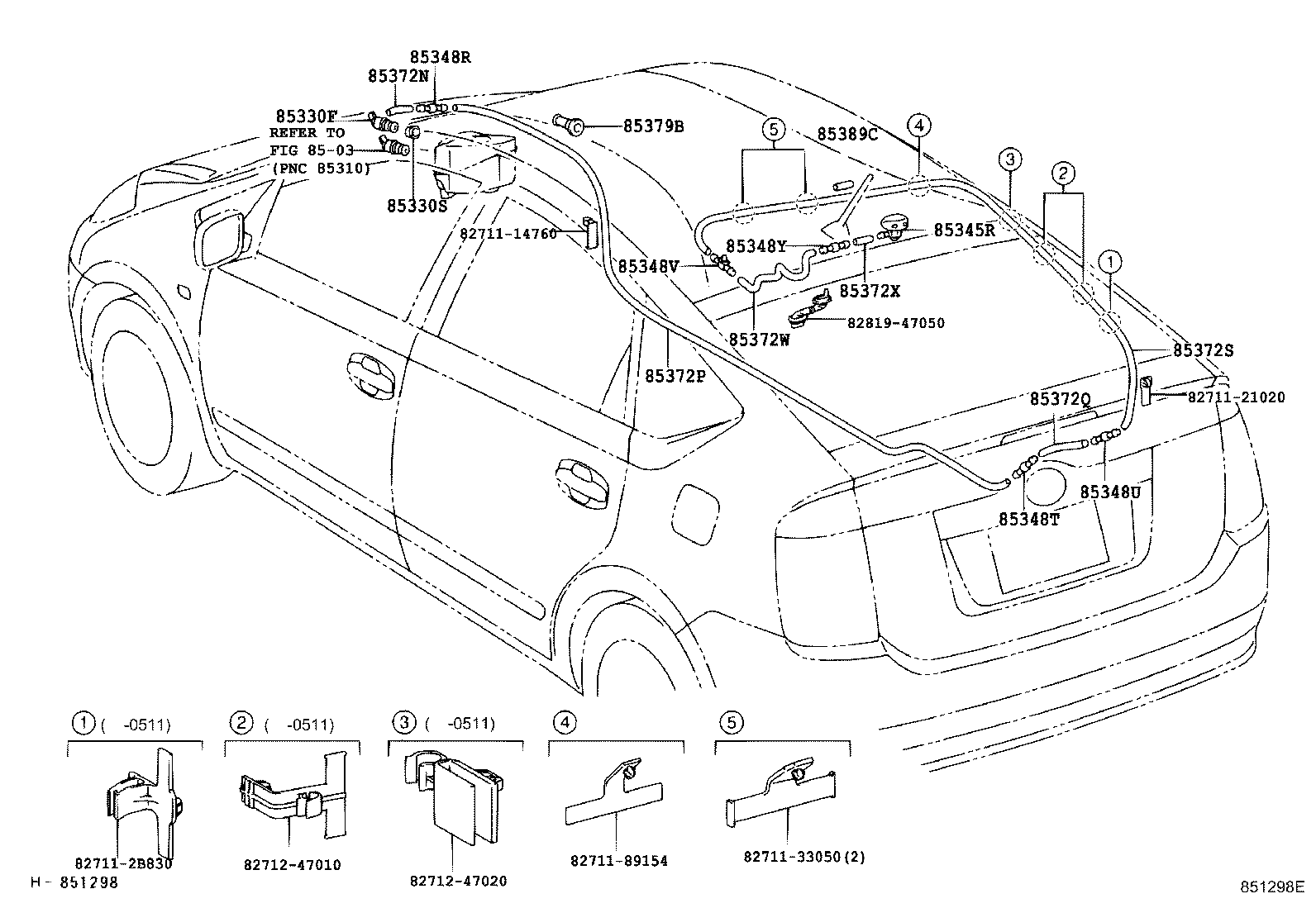

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85330F - MOTOR & PUMP ASSY, RR WASHER | ||||
| 85330-60180 |
NHW20..EUR |
1 | ||
| 85330S - BUSH, REAR WASHER JAR | ||||
| 85336-60300 |
NHW20..EUR |
1 | ||
| 85345R - NOZZLE, REAR WASHER | ||||
| 85391-47010 |
NHW20..EUR |
1 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85375-10260 |
NHW20..EUR |
1 | ||
| 85348T - JOINT, REAR WASHER HOSE, NO.2 | ||||
| 85375-10260 |
NHW20..EUR |
1 | ||
| 85348U - JOINT, REAR WASHER HOSE, NO.3 | ||||
| 85375-10260 |
NHW20..EUR |
1 | ||
| 85348V - JOINT, REAR WASHER HOSE, NO.4 | ||||
| 85375-20800 |
NHW20..EUR |
1 | ||
| 85348Y - JOINT, REAR WASHER HOSE, NO.5 | ||||
| 85375-10260 |
NHW20..EUR |
1 | ||
| 85372N - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90099-33080 |
NHW20..EUR *H,L=60 |
1 | ||
| 85372P - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2 | ||||
| 90099-33589 |
NHW20..LHD *H,L=3000,SRS AIR BAG-DRIVER & PASSENGER |
1 | ||
| 90099-33589 |
NHW20..EUR *H,L=3000 |
1 | ||
| 85372Q - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3 | ||||
| 90099-33299 |
NHW20..EUR *H,L=40 |
1 | ||
| 90099-33299 |
NHW20..LHD *H,L=40,SRS AIR BAG-DRIVER & PASSENGER |
1 | ||
| 85372S - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4 | ||||
| 90099-33589 |
NHW20..LHD *H,L=1810,SRS AIR BAG-DRIVER & PASSENGER |
1 | ||
| 90099-33589 |
NHW20..EUR *H,L=1860 |
1 | ||
| 90099-33589 |
NHW20..EUR *H,L=1810 |
1 | ||
| 90099-33589 |
NHW20..LHD *H,L=1860,SRS AIR BAG-DRIVER & PASSENGER |
1 | ||
| 85372W - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.5 | ||||
| 90099-33299 |
NHW20..EUR *H,L=290 |
1 | ||
| 90099-33299 |
NHW20..LHD *H,L=290,SRS AIR BAG-DRIVER & PASSENGER |
1 | ||
| 85372X - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.6 | ||||
| 90446-07001 |
NHW20..EUR *H,L=60 |
1 | ||
| 90446-07001 |
NHW20..LHD *H,L=60,SRS AIR BAG-DRIVER & PASSENGER |
1 | ||
| 85379B - GROMMET, WASHER, A | ||||
| 85379-16180 |
NHW20..EUR |
1 | ||
| Common parts | ||||
| 82711-14760 | ||||
| 82711-21020 | ||||
| 82711-2B830 | ||||
| 82711-33050 | ||||
| 82711-89154 | ||||
| 82712-47010 | ||||
| 82712-47020 | ||||
| 82819-47050 | ||||
| Linked diagrams | ||||
| 8503 | ||||
