NHW11R-AEEEBQ (2001)

Toyota Prius

Production Aug 2001 - Aug 2003
Engine 1NZFXE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0108- )ARL

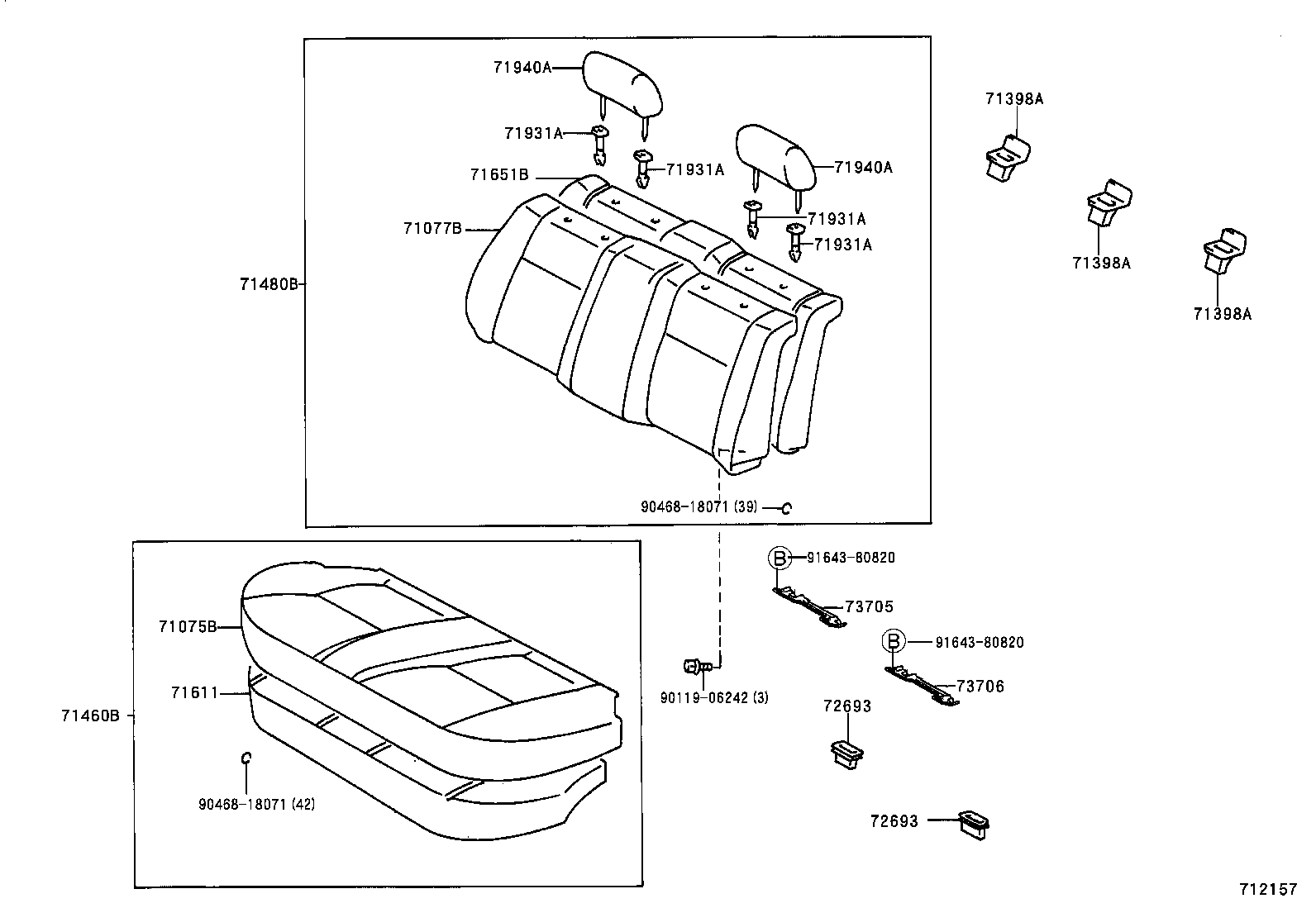

Click highlighted areas on diagram

diagram 71075B 71077B 71398A 71398A 71398A 71460B 71480B 71611 71651B 71931A 71931A 71931A 71931A 71940A 71940A 72693 72693 73705 73706 9011906242 9046818071 9046818071 9164380820 9164380820
Part # Description Qty Price
71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71075-47070B0

NHW11..ARL

AMETHYST,TRIM9#

 1
71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE)
71077-47080B0

NHW11..ARL

AMETHYST,TRIM9#

 1
71398A - HOLDER, REAR SEAT BACK
71398-33010

NHW11..ARL

 3
71398A - HOLDER, REAR SEAT BACK
71398-33010

NHW11..ARL

 3
71398A - HOLDER, REAR SEAT BACK
71398-33010

NHW11..ARL

 3
71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE)
71460-47070K0

NHW11..ARL

AMETHYST,TRIM9#

 1
71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE)
71480-47080K0

NHW11..ARL

AMETHYST,TRIM9#

 1
71611 - PAD, REAR SEAT CUSHION
71503-47010

NHW11..ARL

 1
71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE)
71507-47030

NHW11..ARL

 1
71931A - SUPPORT, REAR SEAT HEADREST
71970-47010B0

NHW11..ARL

W(LOCK),DK.CHARCOAL,TRIM9#

 2
71956-47010B0

NHW11..ARL

W/O(LOCK),DK.CHARCOAL,TRIM9#

 2
71931A - SUPPORT, REAR SEAT HEADREST
71970-47010B0

NHW11..ARL

W(LOCK),DK.CHARCOAL,TRIM9#

 2
71956-47010B0

NHW11..ARL

W/O(LOCK),DK.CHARCOAL,TRIM9#

 2
71931A - SUPPORT, REAR SEAT HEADREST
71970-47010B0

NHW11..ARL

W(LOCK),DK.CHARCOAL,TRIM9#

 2
71956-47010B0

NHW11..ARL

W/O(LOCK),DK.CHARCOAL,TRIM9#

 2
71931A - SUPPORT, REAR SEAT HEADREST
71970-47010B0

NHW11..ARL

W(LOCK),DK.CHARCOAL,TRIM9#

 2
71956-47010B0

NHW11..ARL

W/O(LOCK),DK.CHARCOAL,TRIM9#

 2
71940A - HEADREST ASSY, REAR SEAT
71940-47030B0

NHW11

AMETHYST,TRIM9#

 2
71940A - HEADREST ASSY, REAR SEAT
71940-47030B0

NHW11

AMETHYST,TRIM9#

 2
72693 - HOOK, REAR SEAT CUSHION LOCK
72693-20060

NHW11

 2
72693 - HOOK, REAR SEAT CUSHION LOCK
72693-20060

NHW11

 2
73705 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH
73705-47010

NHW11

 1
73706 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH
73706-47010

NHW11

 1
Common parts
90119-06242
90468-18071
91643-80820
