NHW11R-AEEEBQ (2001)

Toyota Prius

Production Aug 2001 - Aug 2003
Engine 1NZFXE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

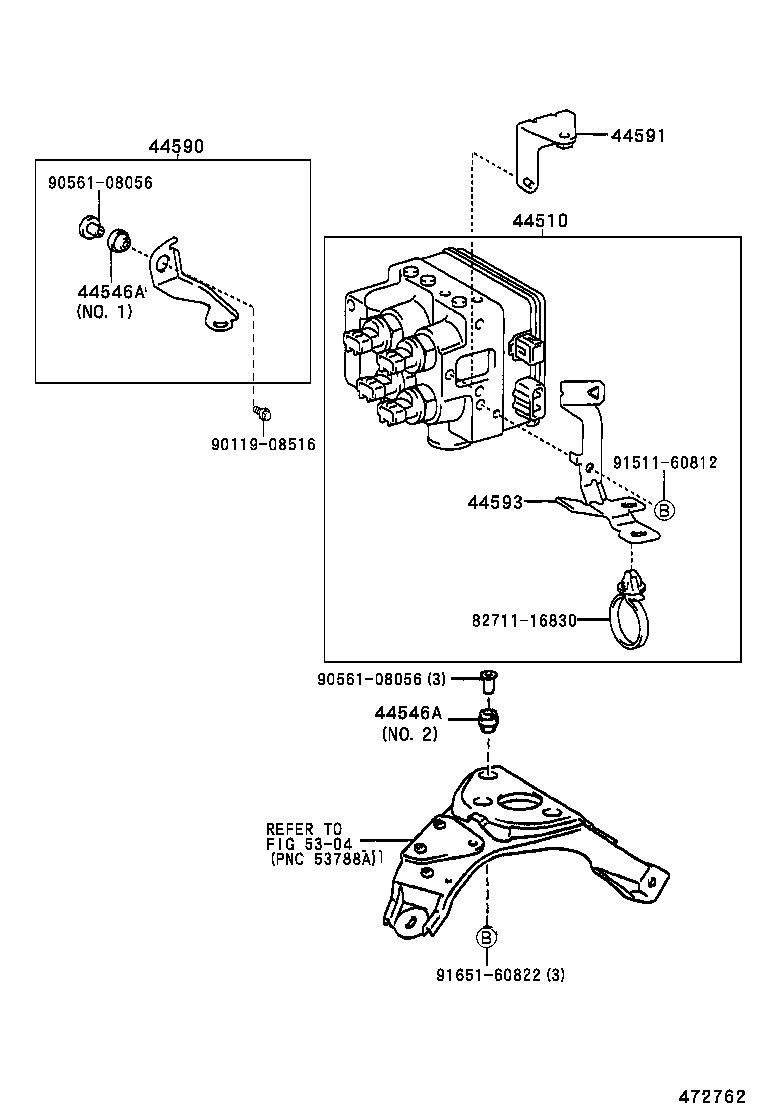

ILLUST NO. 2 OF 2(0108- )ARL

Click highlighted areas on diagram

diagram 44510 44546A 44546A 44590 44591 44593 5304 8271116830 9011908516 9056108056 9056108056 9151160812 9165160822
Part # Description Qty Price
44510 - ACTUATOR ASSY, BRAKE
44050-47020

NHW11

 1
44546A - CUSHION, BRAKE ACTUATOR BOLT
44547-47050

NHW11..ARL

NO.2

 3
44547-47010

NHW11..ARL

NO.1

 1
44546A - CUSHION, BRAKE ACTUATOR BOLT
44547-47050

NHW11..ARL

NO.2

 3
44547-47010

NHW11..ARL

NO.1

 1
44590 - BRACKET ASSY, BRAKE ACTUATOR
44590-47020

NHW11

 1
44591 - BRACKET, BRAKE ACTUATOR, NO.1
44591-47020

NHW11..RHD

 1
44593 - BRACKET, BRAKE ACTUATOR, NO.3
44593-47020

NHW11

 1
Common parts
82711-16830
90119-08516
90561-08056
91511-60812
91651-60822
Linked diagrams
5304
