NHW11R-AEEEBQ (2001)
Toyota Prius
Production
Aug 2001
-
Aug 2003
Engine
1NZFXE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

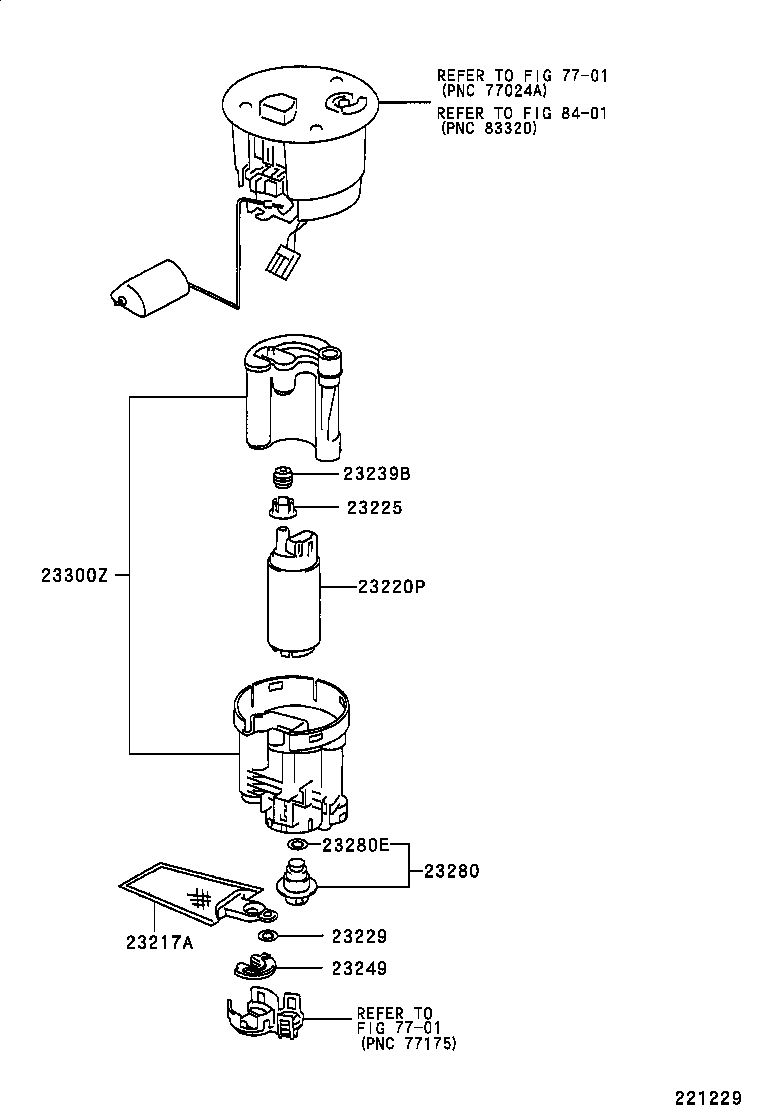

ILLUST NO. 2 OF 2(0005-0109)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23217A - FILTER, FUEL PUMP | ||||
| 23217-74021 |
1NZFXE..NHW11 |
1 | ||
| 23220P - PUMP ASSY, FUEL | ||||
| 23221-22030 |
1NZFXE..NHW11 |
1 | ||
| 23225 - SPACER, FUEL PUMP | ||||
| 23225-21010 |
1NZFXE..NHW11 |
1 | ||
| 23229 - CLIP(FOR FUEL PUMP FILTER) | ||||
| 23229-16010 |
1NZFXE..NHW11 |
1 | ||
| 23239B - SEAL, FUEL PUMP FILTER | ||||
| 23239-21010 |
1NZFXE..NHW11 |
1 | ||
| 23249 - RUBBER, CUSHION(FOR FUEL PUMP) | ||||
| 23249-74610 |
1NZFXE..NHW11 |
1 | ||
| 23249-46180 |
1NZFXE..NHW11 |
1 | ||
| 23280 - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-22010 |
1NZFXE..NHW11 |
1 | ||
| 23280E - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-07020 |
1NZFXE..NHW11 |
1 | ||
| 23300Z - FILTER, FUEL(FOR FUEL TANK) | ||||
| 23300-74330 |
1NZFXE..NHW11 |
1 | ||
| 23300-21010 |
1NZFXE..NHW11 |
1 | ||
| Linked diagrams | ||||
| 7701 | ||||
| 8401 | ||||

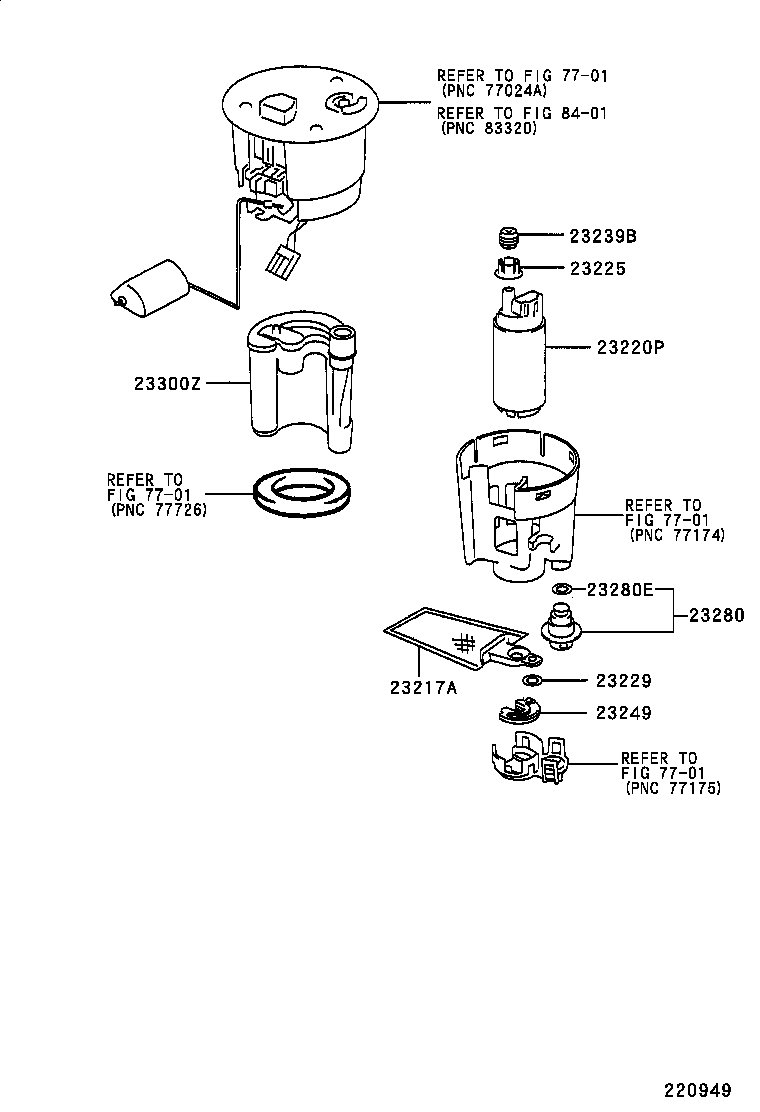

ILLUST NO. 2 OF 2(0109- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23217A - FILTER, FUEL PUMP | ||||
| 23217-74021 |
1NZFXE..NHW11 |
1 | ||
| 23220P - PUMP ASSY, FUEL | ||||
| 23221-22030 |
1NZFXE..NHW11 |
1 | ||
| 23225 - SPACER, FUEL PUMP | ||||
| 23225-21010 |
1NZFXE..NHW11 |
1 | ||
| 23229 - CLIP(FOR FUEL PUMP FILTER) | ||||
| 23229-16010 |
1NZFXE..NHW11 |
1 | ||
| 23239B - SEAL, FUEL PUMP FILTER | ||||
| 23239-21010 |
1NZFXE..NHW11 |
1 | ||
| 23249 - RUBBER, CUSHION(FOR FUEL PUMP) | ||||
| 23249-74610 |
1NZFXE..NHW11 |
1 | ||
| 23249-46180 |
1NZFXE..NHW11 |
1 | ||
| 23280 - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-22010 |
1NZFXE..NHW11 |
1 | ||
| 23280E - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-07020 |
1NZFXE..NHW11 |
1 | ||
| 23300Z - FILTER, FUEL(FOR FUEL TANK) | ||||
| 23300-74330 |
1NZFXE..NHW11 |
1 | ||
| 23300-21010 |
1NZFXE..NHW11 |
1 | ||
| Linked diagrams | ||||
| 7701 | ||||
| 8401 | ||||
