NHW11L-AEEEBW (2000)
Toyota Prius
Production
May 2000
-
Aug 2003
Engine
1NZFXE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0005- )

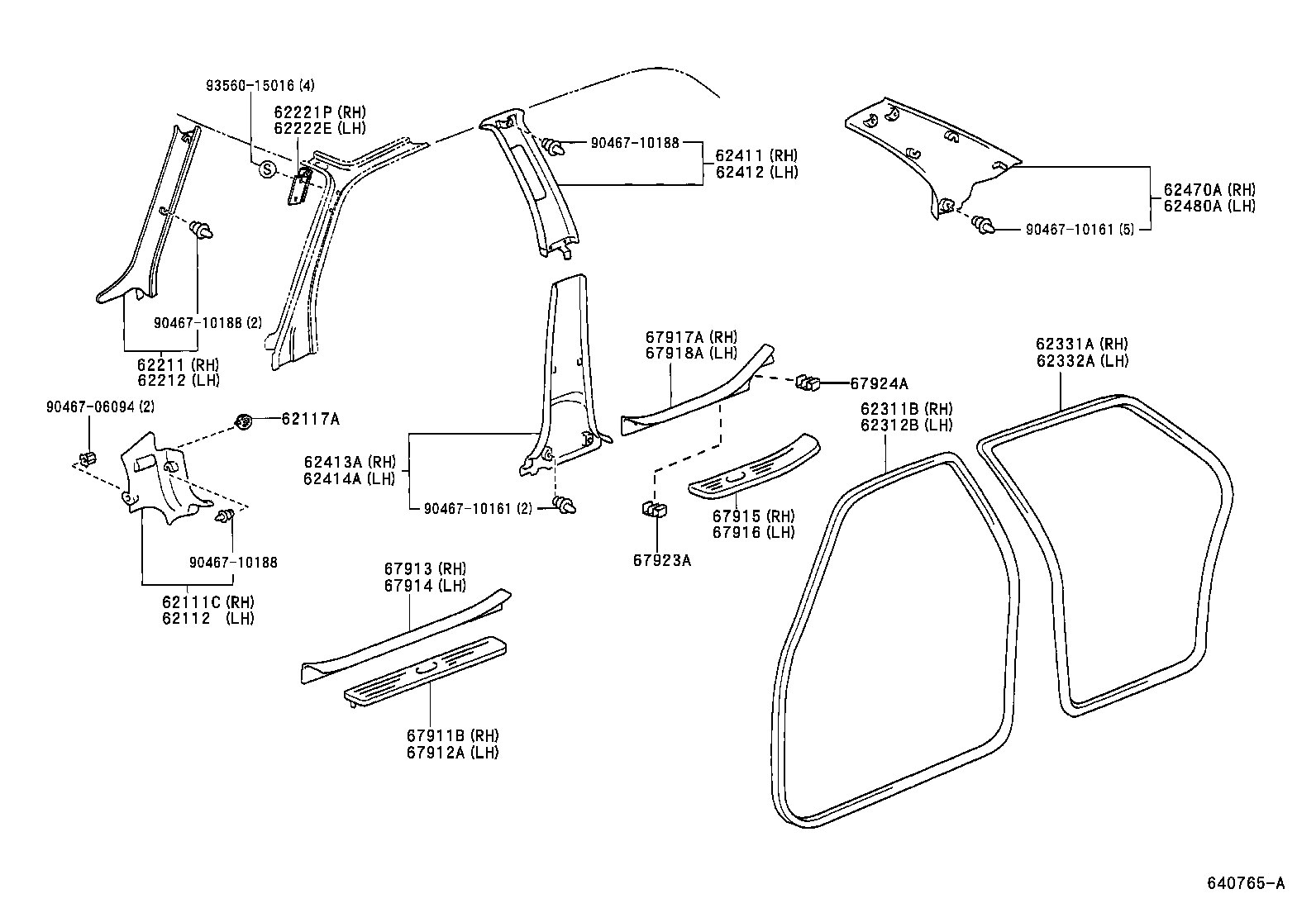

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62111C - BOARD, COWL SIDE TRIM, RH | ||||
| 62111-47020B0 |
NHW11..LHD LT.AMETHYST,TRIM9# |
1 | ||
| 62112 - BOARD, COWL SIDE TRIM, LH | ||||
| 62112-47020B0 |
NHW11..LHD LT.AMETHYST,TRIM9# |
1 | ||
| 62211 - GARNISH, FRONT PILLAR, RH | ||||
| 62211-47020B0 |
NHW11 AMETHYST,TRIM9# |
1 | ||
| 62212 - GARNISH, FRONT PILLAR, LH | ||||
| 62212-47020B0 |
NHW11 AMETHYST,TRIM9# |
1 | ||
| 62221P - SPACER, FRONT PILLAR, NO.1 RH | ||||
| 62221-47020 |
NHW11 |
2 | ||
| 62222E - SPACER, FRONT PILLAR, NO.1 LH | ||||
| 62221-47020 |
NHW11 |
2 | ||
| 62311B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, RH | ||||
| 62311-47010B0 |
NHW11 AMETHYST,TRIM9# |
1 | ||
| 62312B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, LH | ||||
| 62312-47010B0 |
NHW11 AMETHYST,TRIM9# |
1 | ||
| 62331A - WEATHERSTRIP, REAR DOOR OPENING TRIM, RH | ||||
| 62331-47011B0 |
NHW11 AMETHYST,TRIM9# |
1 | ||
| 62332A - WEATHERSTRIP, REAR DOOR OPENING TRIM, LH | ||||
| 62332-47011B0 |
NHW11 AMETHYST,TRIM9# |
1 | ||
| 62411 - GARNISH, CENTER PILLAR, RH | ||||
| 62410-47010B0 |
NHW11 LT.AMETHYST,TRIM9# |
1 | ||
| 62412 - GARNISH, CENTER PILLAR, LH | ||||
| 62420-47010B0 |
NHW11 LT.AMETHYST,TRIM9# |
1 | ||
| 62413A - GARNISH, CENTER PILLAR, LOWER RH | ||||
| 62030-47010B0 |
NHW11 LT.AMETHYST,TRIM9# |
1 | ||
| 62414A - GARNISH, CENTER PILLAR, LOWER LH | ||||
| 62040-47010B0 |
NHW11 LT.AMETHYST,TRIM9# |
1 | ||
| 62470A - GARNISH ASSY, ROOF SIDE, INNER RH | ||||
| 62470-47010B0 |
NHW11 LT.AMETHYST,TRIM9# |
1 | ||
| 62480A - GARNISH ASSY, ROOF SIDE, INNER LH | ||||
| 62480-47010B0 |
NHW11 LT.AMETHYST,TRIM9# |
1 | ||
| 67911B - PLATE, FRONT DOOR SCUFF, OUTSIDE, RH | ||||
| 67911-47010B1 |
NHW11 AMETHYST,TRIM9# |
1 | ||
| 67912A - PLATE, FRONT DOOR SCUFF, OUTSIDE LH | ||||
| 67911-47010B1 |
NHW11 AMETHYST,TRIM9# |
1 | ||
| 67913 - PLATE, FRONT DOOR SCUFF, RH | ||||
| 67913-47010B0 |
NHW11 LT.AMETHYST,TRIM9# |
1 | ||
| 67914 - PLATE, FRONT DOOR SCUFF, LH | ||||
| 67914-47010B0 |
NHW11 LT.AMETHYST,TRIM9# |
1 | ||
| 67915 - PLATE, REAR DOOR SCUFF, OUTSIDE RH | ||||
| 67915-47010B1 |
NHW11 AMETHYST,TRIM9# |
1 | ||
| 67916 - PLATE, REAR DOOR SCUFF, OUTSIDE LH | ||||
| 67916-47010B1 |
NHW11 AMETHYST,TRIM9# |
1 | ||
| 67917A - PLATE, REAR DOOR SCUFF, RH | ||||
| 67917-47010B0 |
NHW11 LT.AMETHYST,TRIM9# |
1 | ||
| 67918A - PLATE, REAR DOOR SCUFF, LH | ||||
| 67918-47010B0 |
NHW11 LT.AMETHYST,TRIM9# |
1 | ||
| 67923A - CLAMP, DOOR SCUFF PLATE, NO.1 | ||||
| 67923-46010 |
NHW11 |
2 | ||
| 67924A - CLAMP, DOOR SCUFF PLATE, NO.2 | ||||
| 67924-46010 |
NHW11 |
2 | ||
| Common parts | ||||
| 90467-06094 | ||||
| 90467-10161 | ||||
| 90467-10188 | ||||
| 93560-15016 | ||||
