ZVW35R-BHXEBW (2009)
Toyota Prius(Plug-In Hbd)
Production
Dec 2009
-
Oct 2010
Engine
2ZRFXE
Transmission
CVFC ATM
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 1 OF11(0912- )RHD
Click highlighted areas on diagram

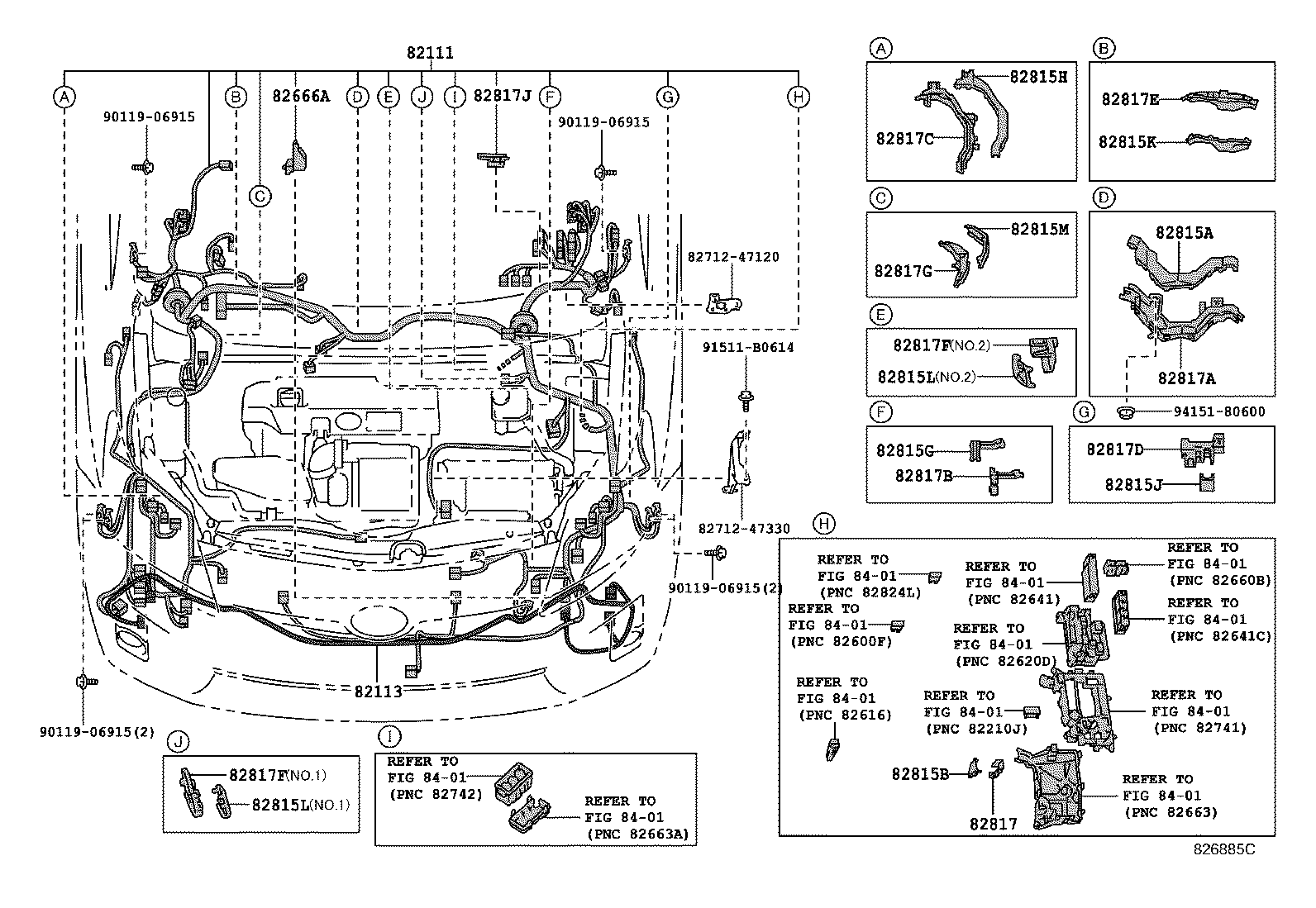

ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-47500 |
ZVW35..RHD |
1 | ||
| 82113 - WIRE, ENGINE ROOM, NO.3 | ||||
| 82113-47050 |
ZVW35 |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-47380 |
ZVW35 |
1 | ||
| 82815A - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-47830 |
ZVW35..RHD |
1 | ||
| 82815B - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-47390 |
ZVW35 |
1 | ||
| 82815G - COVER, WIRING HARNESS PROTECTOR NO.5 | ||||
| 82815-47560 |
ZVW35 |
1 | ||
| 82815H - COVER, WIRING HARNESS PROTECTOR NO.6 | ||||
| 82815-47780 |
ZVW35 |
1 | ||
| 82815J - COVER, WIRING HARNESS PROTECTOR, NO.7 | ||||
| 82815-47810 |
ZVW35 |
1 | ||
| 82815K - COVER, WIRING HARNESS PROTECTOR, NO.8 | ||||
| 82815-47570 |
ZVW35..RHD |
1 | ||
| 82815L - COVER, WIRING HARNESS PROTECTOR, NO.9 | ||||
| 82815-47C10 |
ZVW35..RHD NO.2 |
1 | ||
| 82815-47C00 |
ZVW35..RHD NO.1 |
1 | ||
| 82815L - COVER, WIRING HARNESS PROTECTOR, NO.9 | ||||
| 82815-47C10 |
ZVW35..RHD NO.2 |
1 | ||
| 82815-47C00 |
ZVW35..RHD NO.1 |
1 | ||
| 82815M - COVER, WIRING HARNESS PROTECTOR, NO.10 | ||||
| 82815-47590 |
ZVW35..RHD |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-47620 |
ZVW35 |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-47B90 |
ZVW35..RHD |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-47800 |
ZVW35 |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-47B50 |
ZVW35 |
1 | ||
| 82817D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-47B70 |
ZVW35 |
1 | ||
| 82817E - PROTECTOR, WIRING HARNESS, NO.6 | ||||
| 82817-47810 |
ZVW35..RHD |
1 | ||
| 82817F - PROTECTOR, WIRING HARNESS, NO.7 | ||||
| 82817-47G10 |
ZVW35..RHD NO.1 |
1 | ||
| 82817-47G20 |
ZVW35..RHD NO.2 |
1 | ||
| 82817F - PROTECTOR, WIRING HARNESS, NO.7 | ||||
| 82817-47G10 |
ZVW35..RHD NO.1 |
1 | ||
| 82817-47G20 |
ZVW35..RHD NO.2 |
1 | ||
| 82817G - PROTECTOR, WIRING HARNESS, NO.8 | ||||
| 82817-47830 |
ZVW35..RHD |
1 | ||
| 82817J - PROTECTOR, WIRING HARNESS, NO.9 | ||||
| 82817-47A00 |
ZVW35..RHD |
1 | ||
| Common parts | ||||
| 82712-47120 | ||||
| 82712-47330 | ||||
| 90119-06915 | ||||
| 91511-B0614 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 2 OF11(0912- )
Click highlighted areas on diagram
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-47130 |
ZVW35 |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-47010 |
ZVW35 |
1 | ||
| 82124 - WIRE, ENGINE, NO.4 | ||||
| 82124-02090 |
ZVW35 |
1 | ||
| 82125N - WIRE, ENGINE, NO.5 | ||||
| 82124-47040 |
ZVW35 |
1 | ||
| 82815P - COVER, WIRING HARNESS PROTECTOR, NO.12 | ||||
| 82815-47490 |
ZVW35 |
1 | ||
| 82815Q - COVER, WIRING HARNESS PROTECTOR, NO.13 | ||||
| 82815-47540 |
ZVW35 |
1 | ||
| 82815R - COVER, WIRING HARNESS PROTECTOR, NO.14 | ||||
| 82815-47480 |
ZVW35 |
1 | ||
| 82815S - COVER, WIRING HARNESS PROTECTOR, NO.15 | ||||
| 82815-47840 |
ZVW35 |
1 | ||
| 82815T - COVER, WIRING HARNESS PROTECTOR, NO.16 | ||||
| 82815-47530 |
ZVW35 |
1 | ||
| 82815U - COVER, WIRING HARNESS PROTECTOR, NO.17 | ||||
| 82815-47520 |
ZVW35 |
1 | ||
| 82815V - COVER, WIRING HARNESS PROTECTOR, NO.1 | ||||
| 82815-47510 |
ZVW35 |
1 | ||
| 82815W - COVER, WIRING HARNESS PROTECTOR, NO.2 | ||||
| 82815-47470 |
ZVW35 |
1 | ||
| 82817K - PROTECTOR, WIRING HARNESS, NO.10 | ||||
| 82817-47730 |
ZVW35 |
1 | ||
| 82817L - PROTECTOR, WIRING HARNESS, NO.11 | ||||
| 82817-47780 |
ZVW35 |
1 | ||
| 82817M - PROTECTOR, WIRING HARNESS, NO.12 | ||||
| 82817-47720 |
ZVW35 |
1 | ||
| 82817N - PROTECTOR, WIRING HARNESS, NO.13 | ||||
| 82817-47C10 |
ZVW35 |
1 | ||
| 82817P - PROTECTOR, WIRING HARNESS, NO.14 | ||||
| 82817-47760 |
ZVW35 |
1 | ||
| 82817T - PROTECTOR, WIRING HARNESS, NO.15 | ||||
| 82817-47750 |
ZVW35 |
1 | ||
| 82817U - PROTECTOR, WIRING HARNESS, NO.16 | ||||
| 82817-47700 |
ZVW35 |
1 | ||
| Common parts | ||||
| 82712-47340 | ||||
| 91671-80616 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 3 OF11(0912- )RHD
Click highlighted areas on diagram

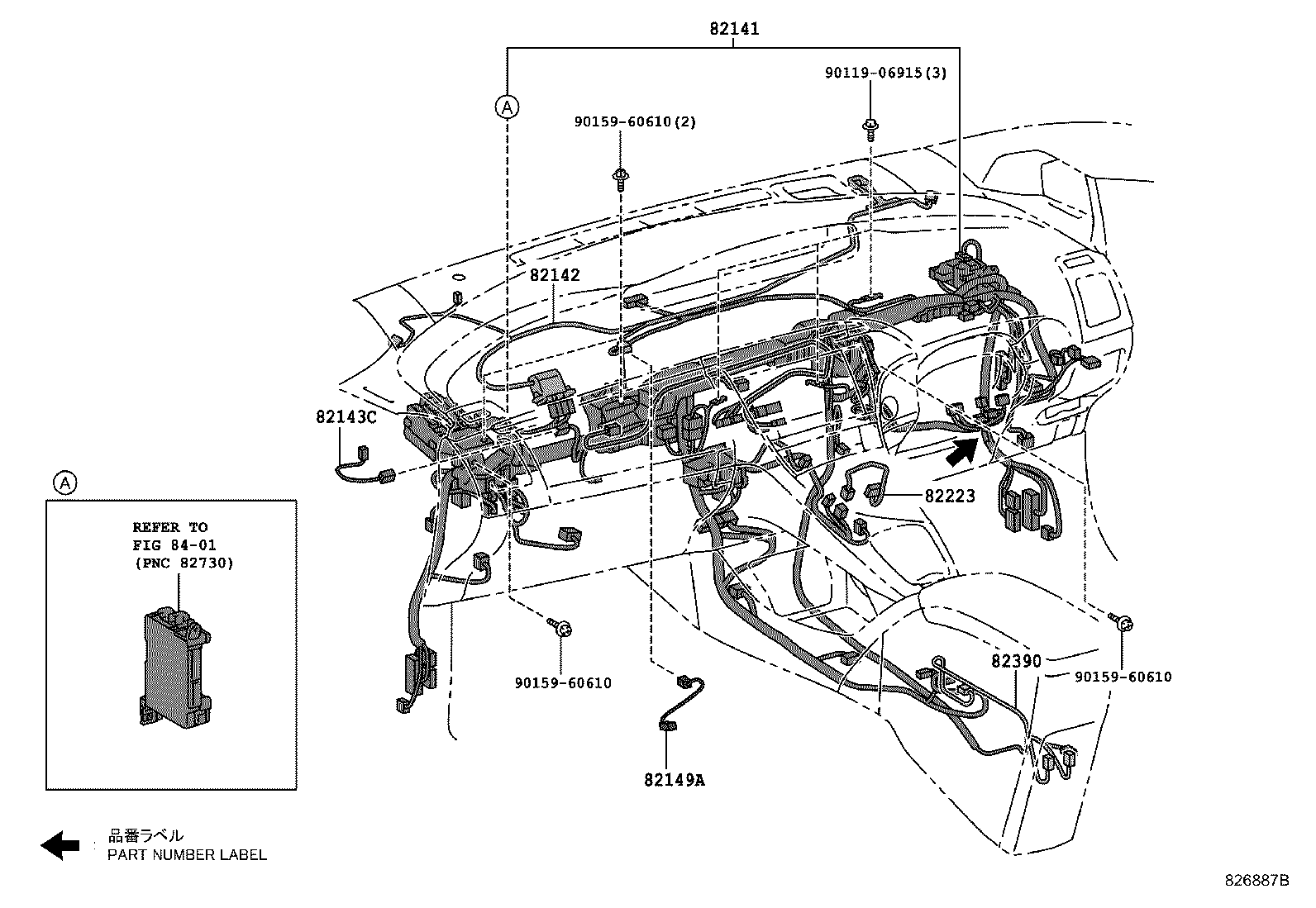

INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82145-47P20 |
ZVW35..RHD AUDIO-AVN,BLUETOOTH,6SPEAKER(EXTRA) |
1 | ||
| 82145-47N40 |
ZVW35..RHD |
1 | ||
| 82145-47P60 |
ZVW35..RHD NEW ZEALAND SPEC |
1 | ||
| 82142 - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82142-47130 |
ZVW35..RHD |
1 | ||
| 82143C - WIRE, INSTRUMENT PANEL, NO.3 | ||||
| 82140-47060 |
ZVW35 |
1 | ||
| 82149A - WIRE, INSTRUMENT PANEL, NO.5 | ||||
| 82149-47010 |
ZVW35..RHD |
1 | ||
| 82149-47030 |
ZVW35..RHD NEW ZEALAND SPEC |
1 | ||
| 82223 - WIRE, SWITCH | ||||
| 82223-47020 |
ZVW35 |
1 | ||
| 82390 - WIRE ASSY, CIGARETTE LIGHTER | ||||
| 82390-47010 |
ZVW35 |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90159-60610 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 4 OF11(0912- )
Click highlighted areas on diagram
DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-47310 |
ZVW35..RHD |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-47310 |
ZVW35..RHD |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-47200 |
ZVW35..RHD |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82154-47200 |
ZVW35..RHD |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-47080 |
ZVW35..RHD ENGLAND SPEC |
1 | ||
| 82184-47170 |
ZVW35 |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 91671-80616 | ||||
| Linked diagrams | ||||
| 8601 | ||||
ILLUST NO. 5 OF11(0912- )
Click highlighted areas on diagram
FLOOR & ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-47040 |
ZVW35 |
1 | ||
| 82161 - WIRE, FLOOR | ||||
| 82161-47760 |
ZVW35 |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-47640 |
ZVW35 |
1 | ||
| 82162-47670 |
ZVW35..RHD ENGLAND SPEC |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-47380 |
ZVW35..RHD |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| Linked diagrams | ||||
| 8121 | ||||
ILLUST NO. 7 OF11(0912- )
Click highlighted areas on diagram
HIGH-TENSION CABLE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82164 - WIRE, FRAME | ||||
| 82164-47090 |
ZVW35..RHD |
1 | ||
| 82817X - PROTECTOR, WIRING HARNESS, NO.17 | ||||
| 82817-47430 |
ZVW35 |
1 | ||
| 82818 - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-47G40 |
ZVW35 NO.2 |
1 | ||
| 82817-47C30 |
ZVW35 NO.1 |
1 | ||
| 82818 - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-47G40 |
ZVW35 NO.2 |
1 | ||
| 82817-47C30 |
ZVW35 NO.1 |
1 | ||
| 82818B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-47C40 |
ZVW35 |
1 | ||
| 82818C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-47C50 |
ZVW35 |
1 | ||
| 82818D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-47C80 |
ZVW35 |
1 | ||
| Common parts | ||||
| 82712-47270 | ||||
| 82712-47640 | ||||
| 90179-06256 | ||||
| 94151-80600 | ||||
ILLUST NO. 9 OF11(0912- )
Click highlighted areas on diagram
CABLE BOND
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07475 |
ZVW35 |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 91671-80612 | ||||
ILLUST NO. 6 OF11(0912- )
Click highlighted areas on diagram
SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82167 - WIRE, SEAT, NO.1 | ||||
| 8219A-47010 |
ZVW35..RHD |
1 | ||
| 82191 - WIRE, FRONT SEAT, RH | ||||
| 82191-47050 |
ZVW35..RHD |
1 | ||
ILLUST NO. 8 OF11(0912- )
Click highlighted areas on diagram
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 53614-12040 | ||||
| 82715-12A01 | ||||
| 82715-12A30 | ||||
| 82715-47420 | ||||
| 82715-47470 | ||||
| 82715-47480 | ||||
| 82715-47510 | ||||
| 82715-47530 | ||||
| 82715-47540 | ||||
| 82715-47550 | ||||
| 82715-6A460 | ||||
| 82715-75190 | ||||
| 82715-75240 | ||||
| 82715-75250 | ||||
| 82715-75260 | ||||
| 82715-75270 | ||||
| 90179-06219 | ||||
| 91511-B0614 | ||||
| 91671-80612 | ||||
| 91671-80616 | ||||
| 91671-80820 | ||||
| 91671-A0816 | ||||
| 91673-80610 | ||||
| 91673-80616 | ||||
| 94151-80600 | ||||
ILLUST NO.10 OF11(0912- )
Click highlighted areas on diagram
CONNECTOR 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-60460 | ||||
| 90980-11011 | ||||
| 90980-11016 | ||||
| 90980-11019 | ||||
| 90980-11070 | ||||
| 90980-11095 | ||||
| 90980-11148 | ||||
| 90980-11245 | ||||
| 90980-12225 | ||||
| 90980-12352 | ||||
| 90980-12490 | ||||
ILLUST NO.11 OF11(0912- )
Click highlighted areas on diagram
CONNECTOR 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-21030 | ||||
| 90980-10619 | ||||
| 90980-10996 | ||||
| 90980-10997 | ||||
| 90980-11909 | ||||
| 90980-12460 | ||||
| 90980-12551 | ||||
