ZVW35R-BHXEBW (2009)
Toyota Prius(Plug-In Hbd)

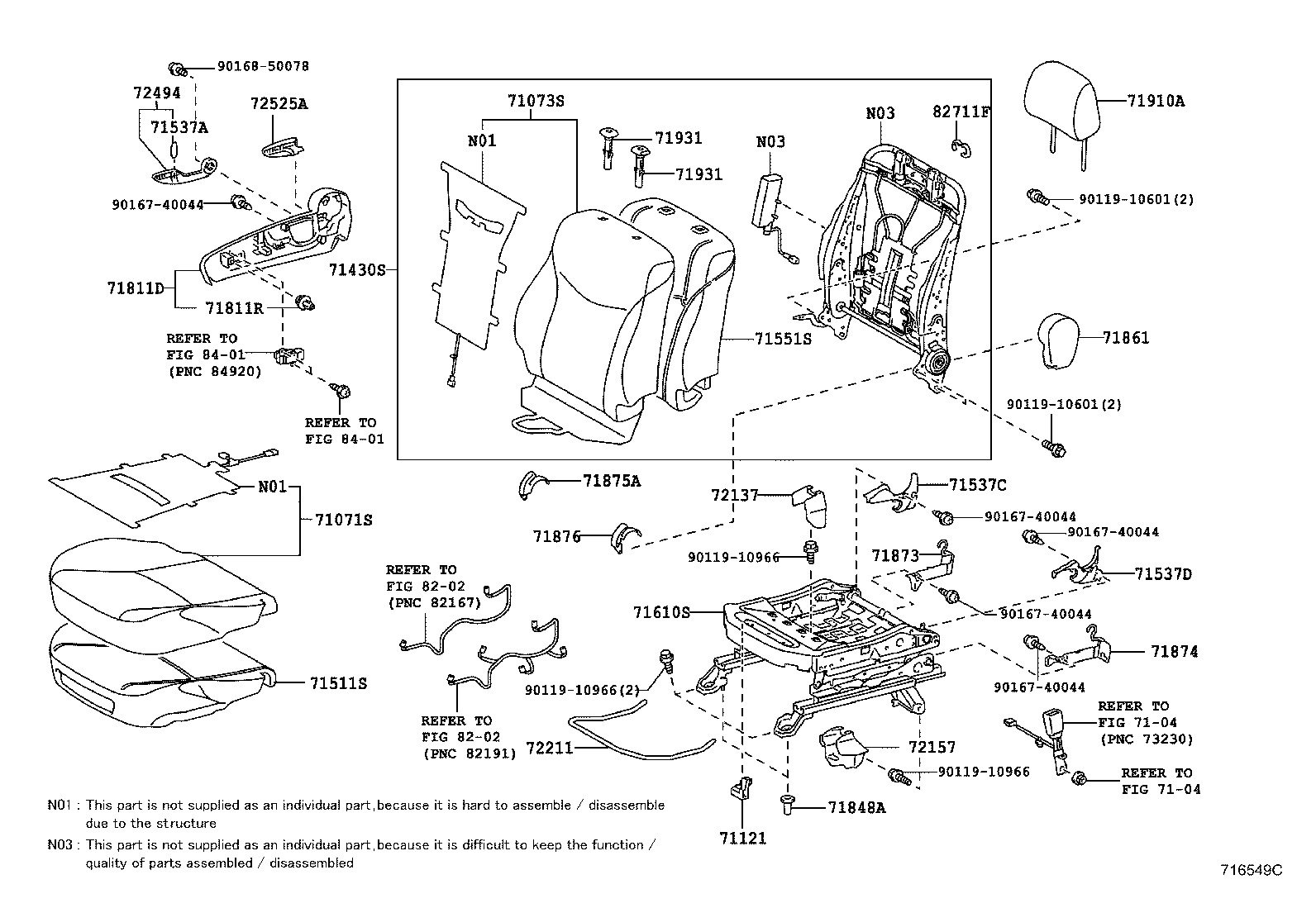

ILLUST NO. 1 OF 2(0912- )RHD
RH SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-47330G0 |
ZVW35..RHD AQUA,TRIM6# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-47260G0 |
ZVW35 AQUA,TRIM6# |
1 | ||
| 71121 - BRACKET, FRONT SEAT CUSHION, RH | ||||
| 71121-47010 |
ZVW35..RHD |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-47250G0 |
ZVW35..RHD AQUA,TRIM6# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-47090 |
ZVW35..RHD |
1 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-47040 |
ZVW35 |
1 | ||
| 71537C - PROTECTOR, FRONT SEAT CUSHION EDGE, RH | ||||
| 71537-47010G0 |
ZVW35..RHD AQUA,TRIM6# |
1 | ||
| 71537D - PROTECTOR, FRONT SEAT CUSHION EDGE, LH | ||||
| 71538-47010G0 |
ZVW35..RHD AQUA,TRIM6# |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-47130 |
ZVW35 |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-47090 |
ZVW35..RHD |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-47100G1 |
ZVW35..RHD AQUA,TRIM6# |
1 | ||
| 71811R - CLIP, FRONT SEAT CUSHION SHIELD, RH | ||||
| 63395-12150 |
ZVW35 |
1 | ||
| 71848A - CAP, SEAT ADJUSTER COVER, RH | ||||
| 71848-47010 |
ZVW35 |
2 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-47040G0 |
ZVW35..RHD AQUA,TRIM6# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-47040 |
ZVW35..RHD |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-47040 |
ZVW35..RHD |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-47030G0 |
ZVW35 AQUA,TRIM6# |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-47030G0 |
ZVW35 AQUA,TRIM6# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-47110G0 |
ZVW35 AQUA,TRIM6# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47020G0 |
ZVW35 W(LOCK),AQUA,TRIM6# |
2 | ||
| 71931-47020G0 |
ZVW35 W/O(LOCK),AQUA,TRIM6# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47020G0 |
ZVW35 W(LOCK),AQUA,TRIM6# |
2 | ||
| 71931-47020G0 |
ZVW35 W/O(LOCK),AQUA,TRIM6# |
2 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-47040G0 |
ZVW35 AQUA,TRIM6# |
1 | ||
| 72157 - COVER, SEAT TRACK BRACKET, INNER | ||||
| 72157-47040G0 |
ZVW35 AQUA,TRIM6# |
1 | ||
| 72211 - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-47020 |
ZVW35 |
1 | ||
| 72494 - HANDLE, VERTICAL ADJUSTING, RH | ||||
| 72494-47020G0 |
ZVW35..RHD AQUA,TRIM6# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-47010G0 |
ZVW35 AQUA,TRIM6# |
1 | ||
| 82711F - CLAMP, WIRING HARNESS | ||||
| 82711-12120 |
ZVW35..RHD |
1 | ||
| Common parts | ||||
| 90119-10601 | ||||
| 90119-10966 | ||||
| 90167-40044 | ||||
| 90168-50078 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8202 | ||||
| 8401 | ||||

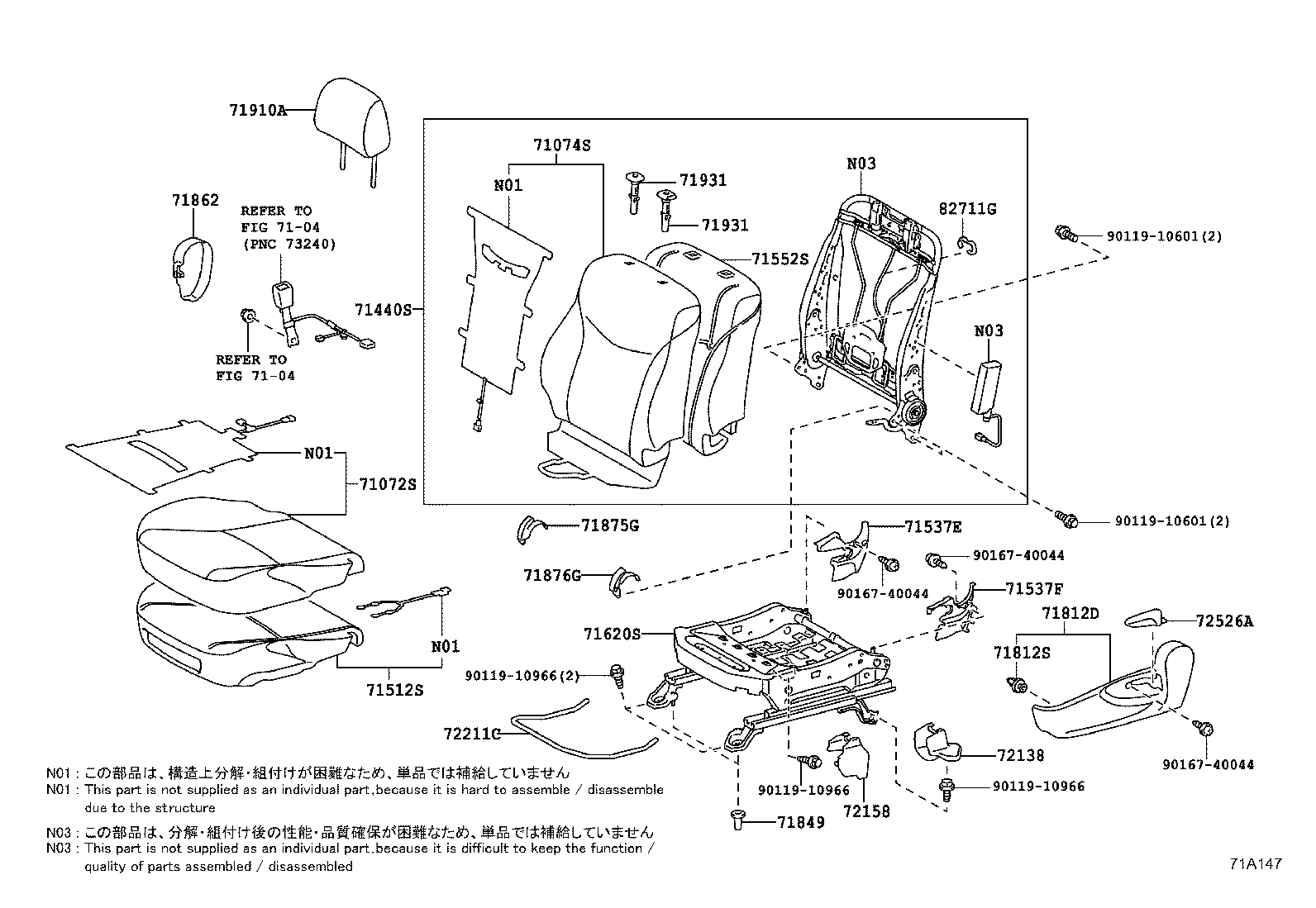

ILLUST NO. 2 OF 2(0912- )RHD
LH SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-47270G0 |
ZVW35..RHD AQUA,TRIM6# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-47160G0 |
ZVW35 AQUA,TRIM6# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-47220G0 |
ZVW35..RHD AQUA,TRIM6# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71502-47010 |
ZVW35..RHD |
1 | ||
| 71537E - PROTECTOR, FRONT SEAT CUSHION, NO.1 | ||||
| 71537-47020G0 |
ZVW35..RHD AQUA,TRIM6# |
1 | ||
| 71537F - PROTECTOR, FRONT SEAT CUSHION, NO.2 | ||||
| 71538-47020G0 |
ZVW35..RHD AQUA,TRIM6# |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-47110 |
ZVW35 |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-47070 |
ZVW35..RHD |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-47090G0 |
ZVW35..RHD AQUA,TRIM6# |
1 | ||
| 71812S - CLIP, FRONT SEAT CUSHION SHIELD, LH | ||||
| 63395-12150 |
ZVW35 |
1 | ||
| 71849 - CAP, SEAT ADJUSTER COVER, LH | ||||
| 71848-47010 |
ZVW35 |
2 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-47070G0 |
ZVW35..RHD AQUA,TRIM6# |
1 | ||
| 71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) | ||||
| 71875-47030G0 |
ZVW35 AQUA,TRIM6# |
1 | ||
| 71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) | ||||
| 71876-47030G0 |
ZVW35 AQUA,TRIM6# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-47110G0 |
ZVW35 AQUA,TRIM6# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47020G0 |
ZVW35 W(LOCK),AQUA,TRIM6# |
2 | ||
| 71931-47020G0 |
ZVW35 W/O(LOCK),AQUA,TRIM6# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47020G0 |
ZVW35 W(LOCK),AQUA,TRIM6# |
2 | ||
| 71931-47020G0 |
ZVW35 W/O(LOCK),AQUA,TRIM6# |
2 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72138-47040G0 |
ZVW35 AQUA,TRIM6# |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-47040G0 |
ZVW35 AQUA,TRIM6# |
1 | ||
| 72211C - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-47020 |
ZVW35 |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-47010G0 |
ZVW35 AQUA,TRIM6# |
1 | ||
| 82711G - CLAMP, WIRING HARNESS | ||||
| 82711-12120 |
ZVW35..RHD |
1 | ||
| Common parts | ||||
| 90119-10601 | ||||
| 90119-10966 | ||||
| 90167-40044 | ||||
| Linked diagrams | ||||
| 7104 | ||||
