ZVW35L-BHXEBW (2009)

Toyota Prius(Plug-In Hbd)

Production Dec 2009 - Oct 2010
Engine 2ZRFXE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(0912- )

Click highlighted areas on diagram

O-RING

diagram 9009914119 9009914120 9009914121
Part # Description Qty Price
Common parts
90099-14119
90099-14120
90099-14121

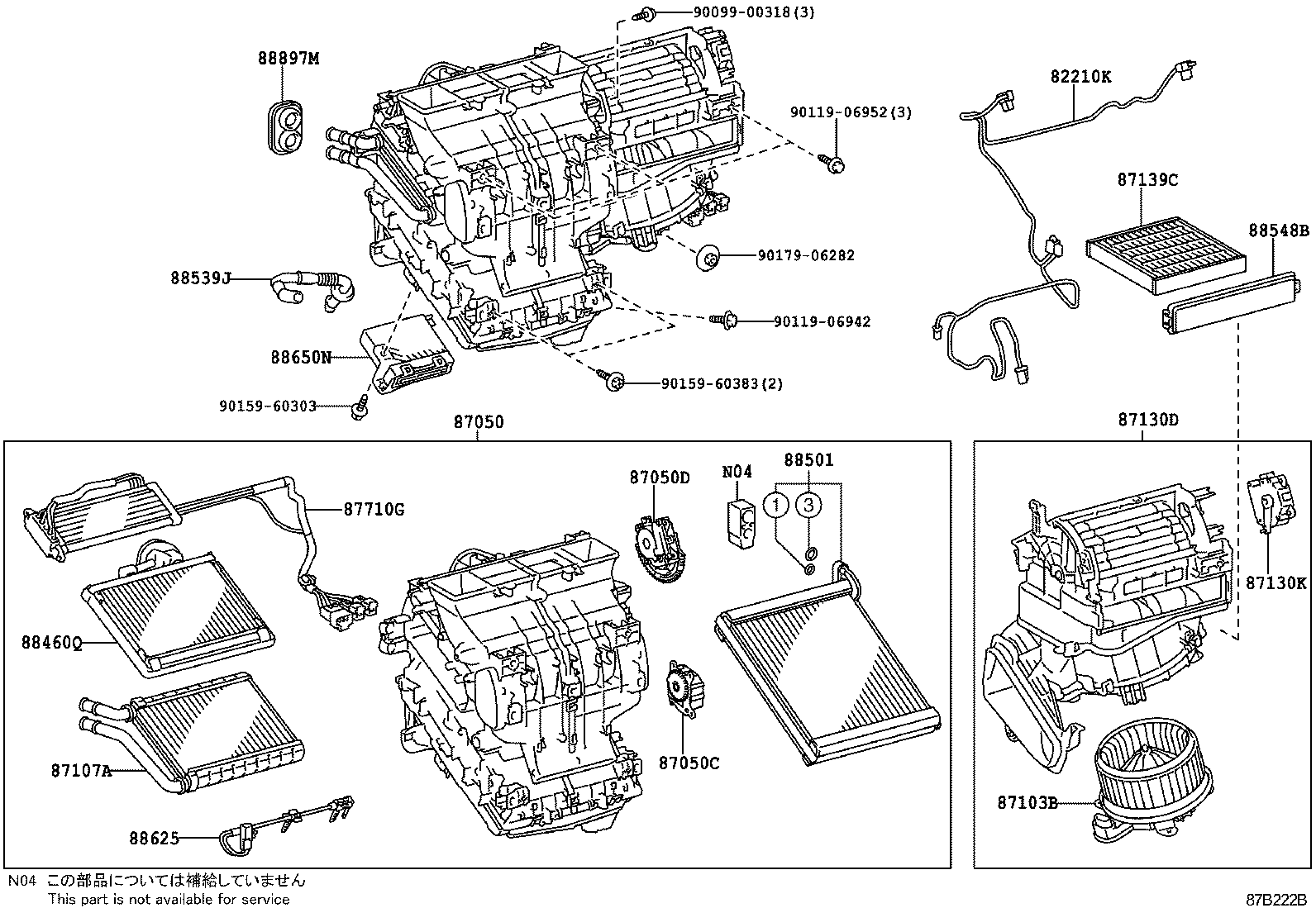

ILLUST NO. 1 OF 2(0912- )LHD

Click highlighted areas on diagram

diagram 82210K 87050 87050C 87050D 87103B 87107A 87130D 87130K 87139C 87710G 88460Q 88501 88539J 88548B 88625 88650N 88897M 9009900318 9011906942 9011906952 9015960303 9015960383 9017906282
Part # Description Qty Price
82210K - HARNESS ASSY, AIR CONDITIONER
82212-47010

ZVW35..LHD

 1
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-47160

ZVW35..LHD

 1
87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1
87106-12170

ZVW35

 1
87050D - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2
87106-47150

ZVW35

 1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-47041

ZVW35..LHD

 1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-42170

ZVW35

 1
87130D - BLOWER ASSY
87130-47150

ZVW35..LHD

 1
87130K - DAMPER SERVO SUB-ASSY, BLOWER, NO.1
87106-47140

ZVW35..LHD

 1
87139C - FILTER, CLEAN AIR
87139-30040

ZVW35

 1
87710G - QUICK HEATER ASSY
87710-47040

ZVW35..LHD

 1
88460Q - CONDENSER ASSY
88460-47160

ZVW35

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-47050

ZVW35

 1
88501-47051

ZVW35

 1
88539J - HOSE, DRAIN COOLER
88539-12200

ZVW35..LHD

 1
88548B - CASE, AIR FILTER
88548-42020

ZVW35..LHD

 1
88625 - THERMISTOR, COOLER, NO.1
88625-71010

ZVW35

 1
88650N - AMPLIFIER ASSY, AIR CONDITIONER
88650-47100

ZVW35

 1
88897M - GROMMET (FOR HEATER PIPE)
87128-42010

ZVW35

 1
Common parts
90099-00318
90119-06942
90119-06952
90159-60303
90159-60383
90179-06282
