ZVW35L-BHXEBW (2009)
Toyota Prius(Plug-In Hbd)
Production
Dec 2009
-
Oct 2010
Engine
2ZRFXE
Transmission
CVFC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0912- )

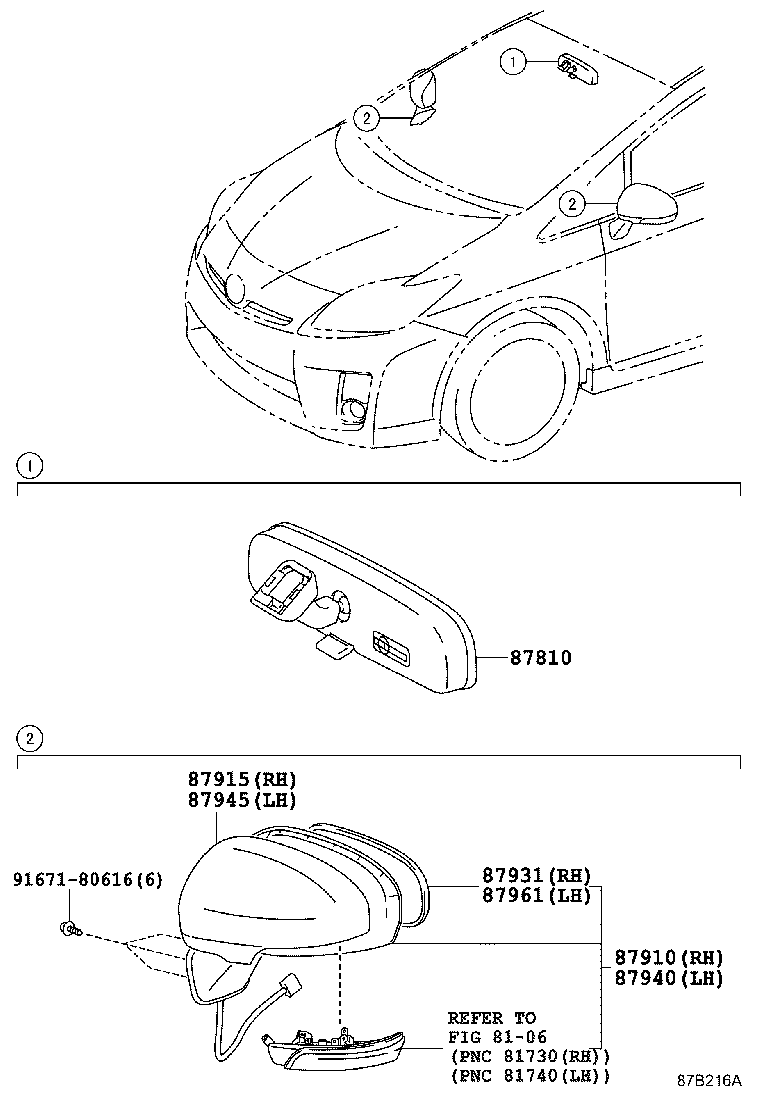

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-60191 |
ZVW35 |
1 | ||
| 87910 - MIRROR ASSY, OUTER REAR VIEW, RH | ||||
| 87910-47190 |
ZVW35..LHD NO PAINT REQ. |
1 | ||
| 87915 - COVER, OUTER MIRROR, RH | ||||
| 87915-74010B4 |
ZVW35 SILVER ME.,8U8 |
1 | ||
| 87931 - OUTER MIRROR, RH | ||||
| 87931-47190 |
ZVW35..LHD |
1 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-47190 |
ZVW35..LHD NO PAINT REQ. |
1 | ||
| 87945 - COVER, OUTER MIRROR, LH | ||||
| 87945-74010B4 |
ZVW35 SILVER ME.,8U8 |
1 | ||
| 87961 - MIRROR OUTER, LH | ||||
| 87961-47190 |
ZVW35..LHD |
1 | ||
| Common parts | ||||
| 91671-80616 | ||||
| Linked diagrams | ||||
| 8106 | ||||
