ZVW35L-BHXEBW (2009)

Toyota Prius(Plug-In Hbd)

Production Dec 2009 - Oct 2010
Engine 2ZRFXE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0912- )

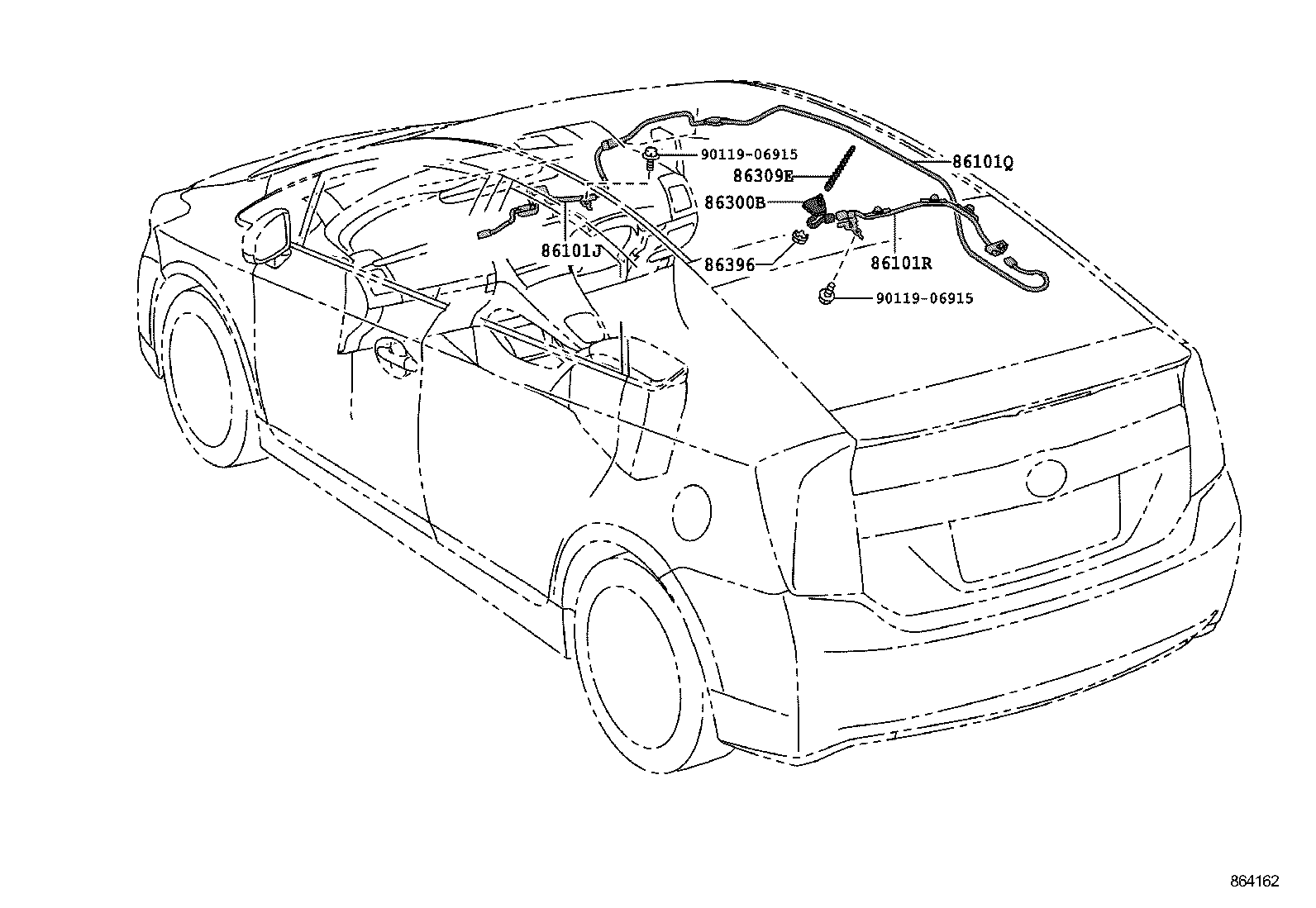

Click highlighted areas on diagram

diagram 86101J 86101Q 86101R 86300B 86309E 86396 9011906915 9011906915
Part # Description Qty Price
86101J - CORD SUB-ASSY, ANTENNA, NO.2
86101-47380

ZVW35..LHD

 1
86101Q - CORD SUB-ASSY, ANTENNA, NO.4
86101-47200

ZVW35

 1
86101R - CORD SUB-ASSY, ANTENNA, NO.5
86101-47320

ZVW35

 1
86300B - ANTENNA ASSY, AMPLIFIER, NO.1
86300-47060

ZVW35

 1
86309E - POLE SUB-ASSY, ROOF ANTENNA
86309-47020

ZVW35

 1
86396 - NUT, ANTENNA
86396-47010

ZVW35

 1
Common parts
90119-06915
