ZVW35L-BHXEBW (2009)

Toyota Prius(Plug-In Hbd)

Production Dec 2009 - Oct 2010
Engine 2ZRFXE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0912- )

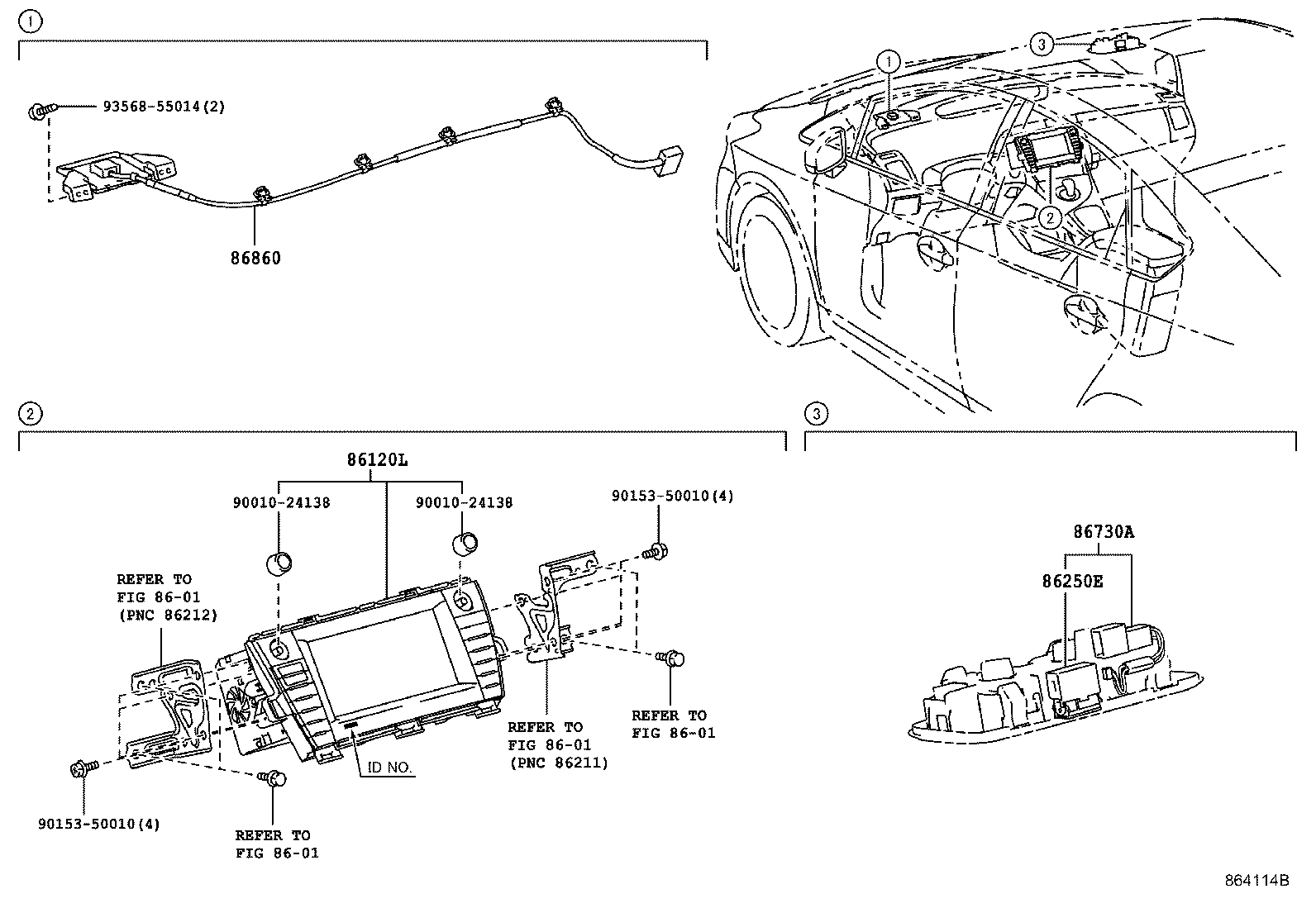

Click highlighted areas on diagram

diagram 8601 8601 8601 8601 86120L 86250E 86730A 86860 9001024138 9001024138 9015350010 9015350010 9356855014
Part # Description Qty Price
86120L - RECEIVER ASSY, NAVIGATION
86100-47160

ZVW35..LHD

AISIN AW,ID=B9025,AUDIO-AVN,BLUETOOTH,6SPEAKER(EXTRA)

 1
86100-47161

ZVW35..LHD

AISIN AW,ID=B9025,AUDIO-AVN,BLUETOOTH,6SPEAKER(EXTRA)

 1
86250E - MICROPHONE ASSY, AMPLIFIER
86250-52030

ZVW35..LHD

AUDIO-AVN,BLUETOOTH,6SPEAKER(EXTRA)

 1
86730A - MICROPHONE ASSY, TELEPHONE
86730-20050

ZVW35..LHD

AUDIO-AVN,BLUETOOTH,6SPEAKER(EXTRA)

 1
86860 - ANTENNA ASSY, NAVIGATION
86860-47070

ZVW35

AUDIO-AVN,BLUETOOTH,6SPEAKER(EXTRA)

 1
Common parts
90010-24138
90153-50010
93568-55014
Linked diagrams
8601
