ZVW35L-BHXEBW (2009)
Toyota Prius(Plug-In Hbd)
Production
Dec 2009
-
Oct 2010
Engine
2ZRFXE
Transmission
CVFC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0912- )

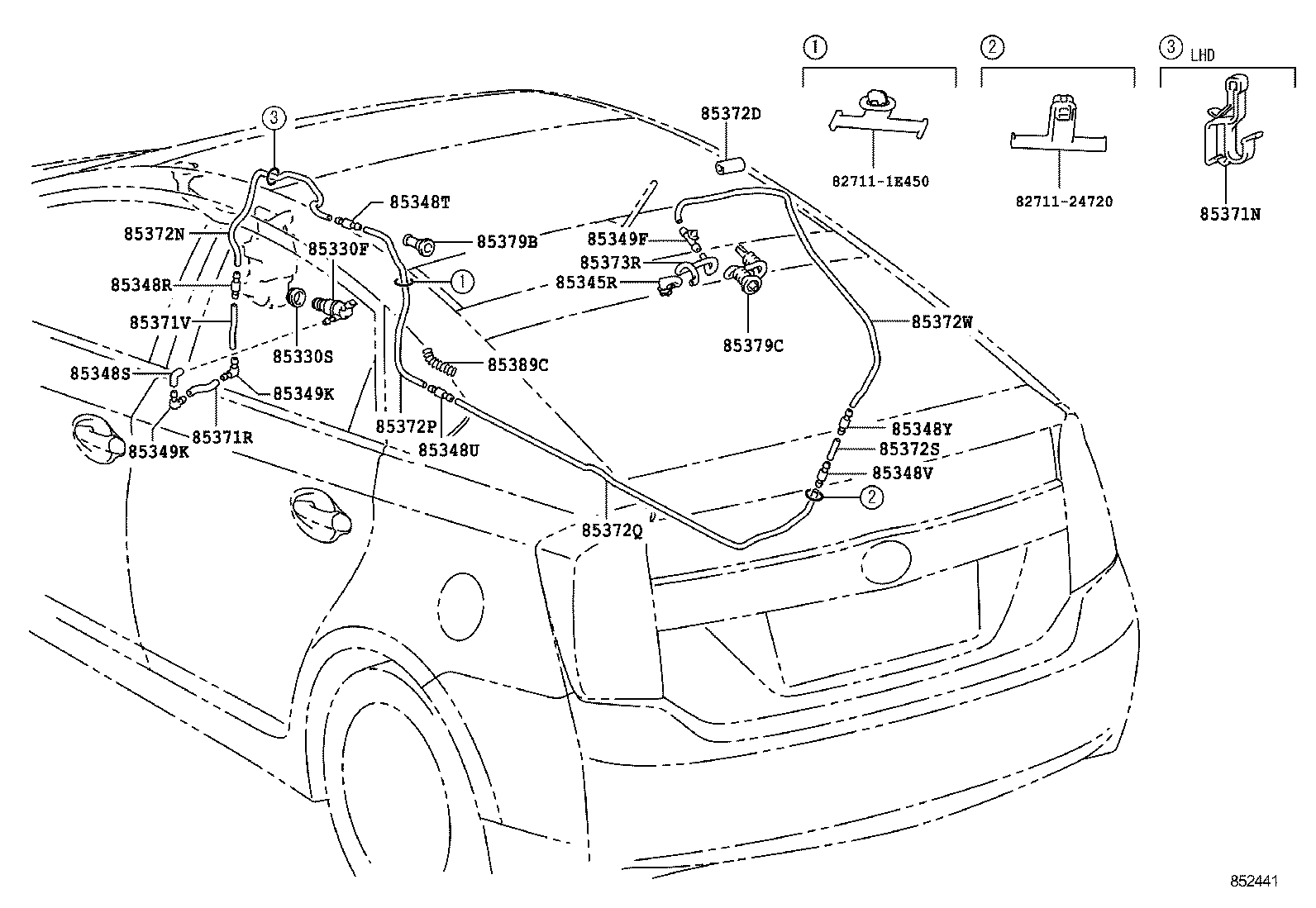

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85330F - MOTOR & PUMP ASSY, RR WASHER | ||||
| 85330-60180 |
ZVW35 |
1 | ||
| 85330S - BUSH, REAR WASHER JAR | ||||
| 85336-60300 |
ZVW35 |
1 | ||
| 85345R - NOZZLE, REAR WASHER | ||||
| 85391-47020 |
ZVW35 |
1 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85349-89122 |
ZVW35 |
1 | ||
| 85348S - JOINT, REAR WASHER ELBOW, NO.1 | ||||
| 85355-14481 |
ZVW35 |
1 | ||
| 85348T - JOINT, REAR WASHER HOSE, NO.2 | ||||
| 85349-89122 |
ZVW35 |
1 | ||
| 85348U - JOINT, REAR WASHER HOSE, NO.3 | ||||
| 85349-89122 |
ZVW35 |
1 | ||
| 85348V - JOINT, REAR WASHER HOSE, NO.4 | ||||
| 85349-89122 |
ZVW35 |
1 | ||
| 85348Y - JOINT, REAR WASHER HOSE, NO.5 | ||||
| 85349-89122 |
ZVW35 |
1 | ||
| 85349F - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85375-20800 |
ZVW35 |
1 | ||
| 85349K - JOINT, REAR WASHER ELBOW, NO.2 | ||||
| 85355-20200 |
ZVW35 |
2 | ||
| 85349K - JOINT, REAR WASHER ELBOW, NO.2 | ||||
| 85355-20200 |
ZVW35 |
2 | ||
| 85371N - CLAMP, REAR WASHER HOSE | ||||
| 53614-47030 |
ZVW35..LHD |
1 | ||
| 85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT) | ||||
| 90099-33080 |
ZVW35 *H,L=65 |
1 | ||
| 85371V - HOSE, REAR WASHER (FROM JOINT TO JOINT) | ||||
| 90099-33080 |
ZVW35 *H,L=110 |
1 | ||
| 85372D - GROMMET, REAR WASHER HOSE | ||||
| 85379-72020 |
ZVW35 |
1 | ||
| 85372N - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90099-62054 |
ZVW35 L=716 |
1 | ||
| 90099-33080 |
ZVW35 *H,L=716 |
1 | ||
| 85372P - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2 | ||||
| 90446-07001 |
ZVW35 *H,L=850 |
1 | ||
| 85372Q - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3 | ||||
| 90099-33589 |
ZVW35 *H,L=2100 |
1 | ||
| 85372S - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4 | ||||
| 90099-33080 |
ZVW35 *H,L=40 |
1 | ||
| 90099-62053 |
ZVW35 L=40 |
1 | ||
| 85372W - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.5 | ||||
| 90446-07001 |
ZVW35 *H,L=1220 |
1 | ||
| 85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33080 |
ZVW35 *H,L=320 |
1 | ||
| 85379B - GROMMET, WASHER, A | ||||
| 85379-12850 |
ZVW35 |
1 | ||
| 85379C - GROMMET, REAR WASHER HOSE NO.1 | ||||
| 85373-47040 |
ZVW35 |
1 | ||
| 85389C - PROTECTOR, WASHER | ||||
| 85389-0C070 |
ZVW35 |
1 | ||
| Common parts | ||||
| 82711-1E450 | ||||
| 82711-24720 | ||||
