ZVW35L-BHXEBW (2009)

Toyota Prius(Plug-In Hbd)

Production Dec 2009 - Oct 2010
Engine 2ZRFXE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0912- )

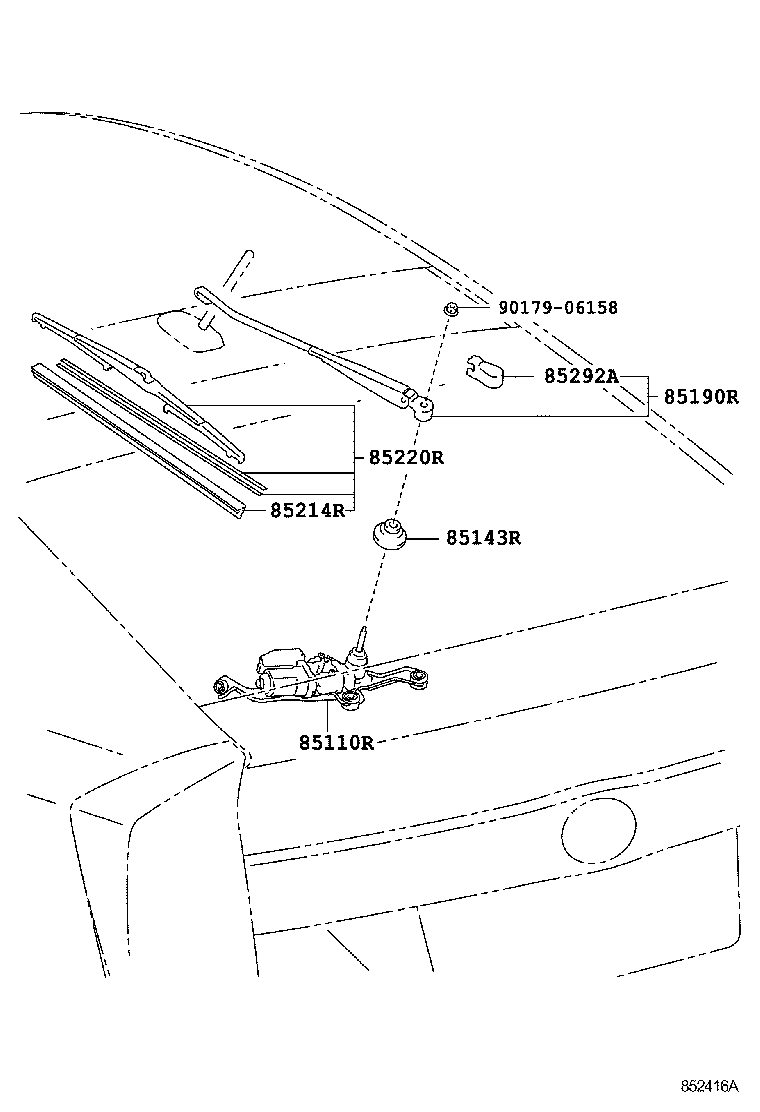

Click highlighted areas on diagram

diagram 85110R 85143R 85190R 85214R 85220R 85292A 9017906158
Part # Description Qty Price
85110R - MOTOR ASSY, REAR WIPER
85130-47021

ZVW35

 1
85143R - GROMMET, REAR WIPER MOTOR
85143-72010

ZVW35

 1
85190R - ARM ASSY, REAR WIPER
85241-47040

ZVW35

 1
85214R - RUBBER, REAR WIPER
85214-50061

ZVW35

 1
85220R - BLADE ASSY, REAR WIPER
85242-47040

ZVW35

 1
85292A - CAP, REAR WIPER ARM HEAD
85192-13060

ZVW35

 1
Common parts
90179-06158
