ZVW35L-BHXEBW (2009)

Toyota Prius(Plug-In Hbd)

Production Dec 2009 - Oct 2010
Engine 2ZRFXE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0912- )

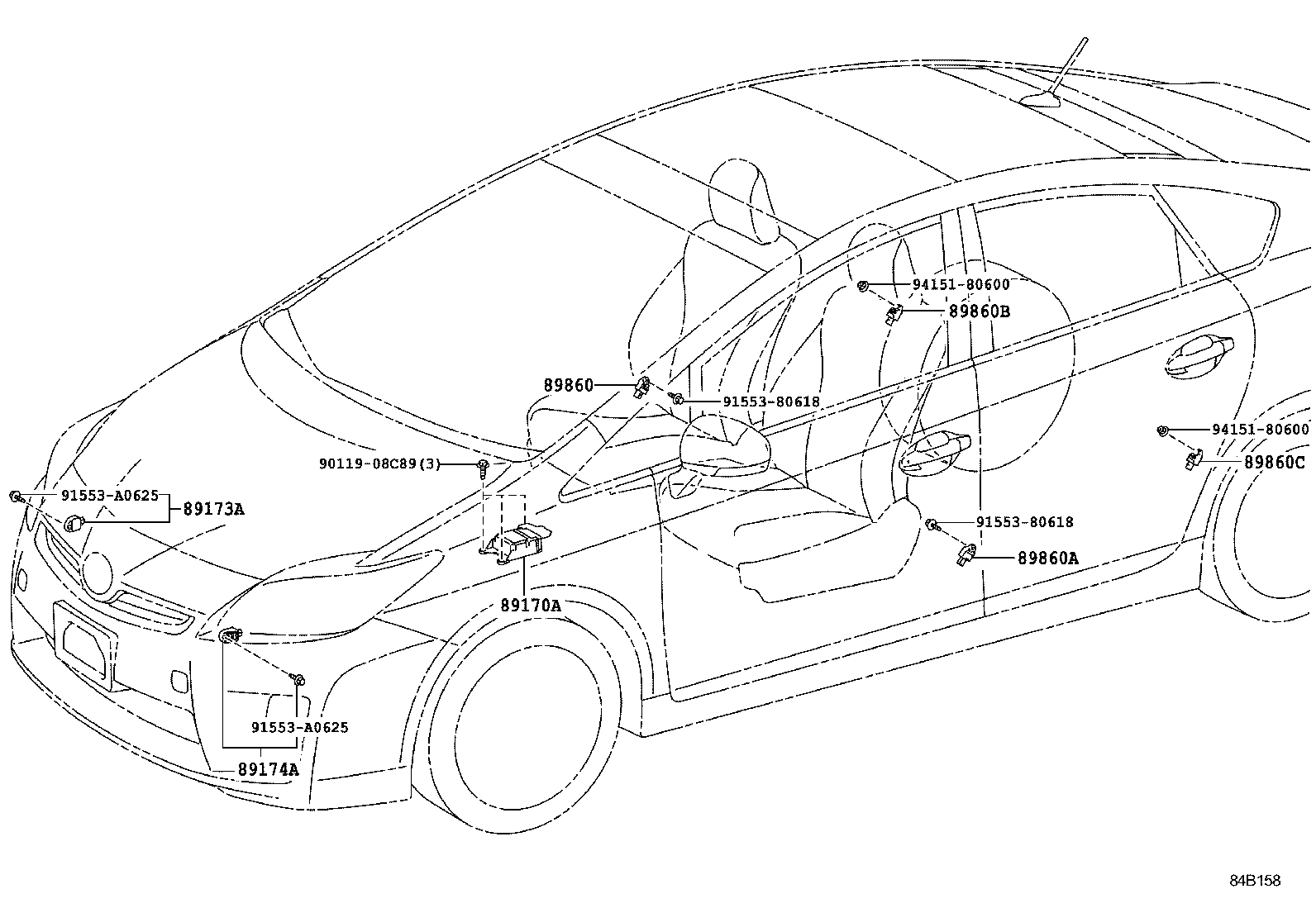

Click highlighted areas on diagram

diagram 89170A 89173A 89174A 89860 89860A 89860B 89860C 9011908C89 9155380618 9155380618 91553A0625 91553A0625 9415180600 9415180600
Part # Description Qty Price
89170A - COMPUTER ASSY, AIR BAG
89170-47150

ZVW35..LHD

 1
89173A - SENSOR, AIR BAG, FRONT RH
89173-79025

ZVW35

 1
89174A - SENSOR, AIR BAG, FRONT LH
89173-79025

ZVW35

 1
89860 - SENSOR ASSY, SIDE AIR BAG, RH
89831-75010

ZVW35

 1
89860A - SENSOR ASSY, SIDE AIR BAG, LH
89831-75010

ZVW35

 1
89860B - SENSOR ASSY, SIDE AIR BAG, RH, NO.2
89831-75020

ZVW35

 1
89860C - SENSOR ASSY, SIDE AIR BAG, LH, NO.2
89831-75020

ZVW35

 1
Common parts
90119-08C89
91553-80618
91553-A0625
94151-80600
