ZVW35L-BHXEBW (2009)

Toyota Prius(Plug-In Hbd)

Production Dec 2009 - Oct 2010
Engine 2ZRFXE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0912- )LHD

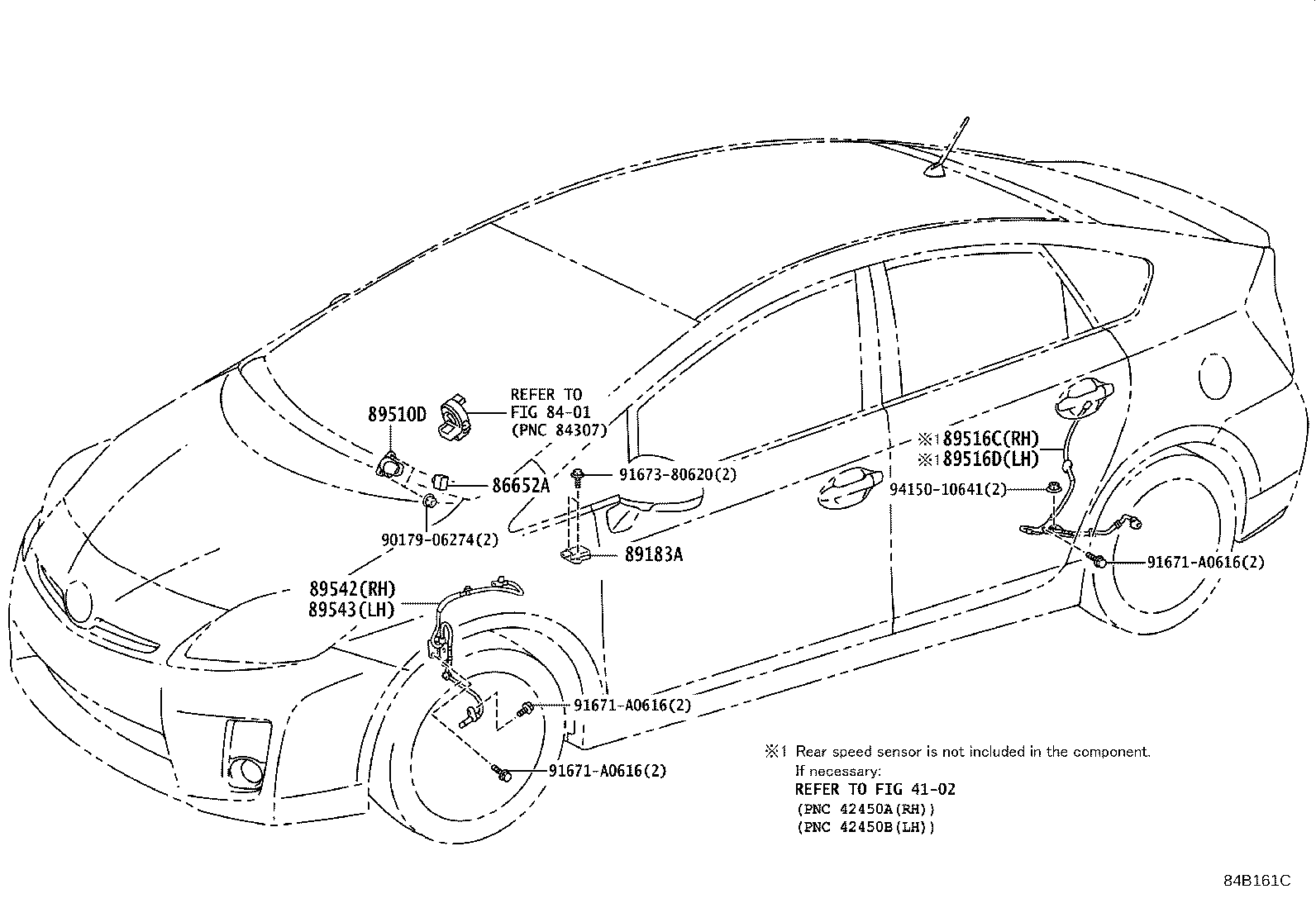

Click highlighted areas on diagram

diagram 4102 8401 86652A 89183A 89510D 89516C 89516D 89542 89543 9017906274 91671A0616 91671A0616 91671A0616 9167380620 9415010641
Part # Description Qty Price
86652A - BUZZER ASSY, SKID CONTROL
86652-50010

ZVW35

 1
89183A - SENSOR, YAWRATE
89183-48030

ZVW35

 1
89510D - SENSOR ASSY, BRAKE PEDAL STROKE
89510-47010

ZVW35..LHD

 1
89516C - WIRE, SKID CONTROL SENSOR, RH
89516-47070

ZVW35

 1
89516D - WIRE, SKID CONTROL SENSOR, LH
89516-47080

ZVW35

 1
89542 - SENSOR, SPEED, FRONT RH
89542-47030

ZVW35

 1
89543 - SENSOR, SPEED, FRONT LH
89543-47030

ZVW35

 1
Common parts
90179-06274
91671-A0616
91673-80620
94150-10641
Linked diagrams
4102
8401
