ZVW35L-BHXEBW (2009)
Toyota Prius(Plug-In Hbd)
ILLUST NO. 5 OF 7(0912- )

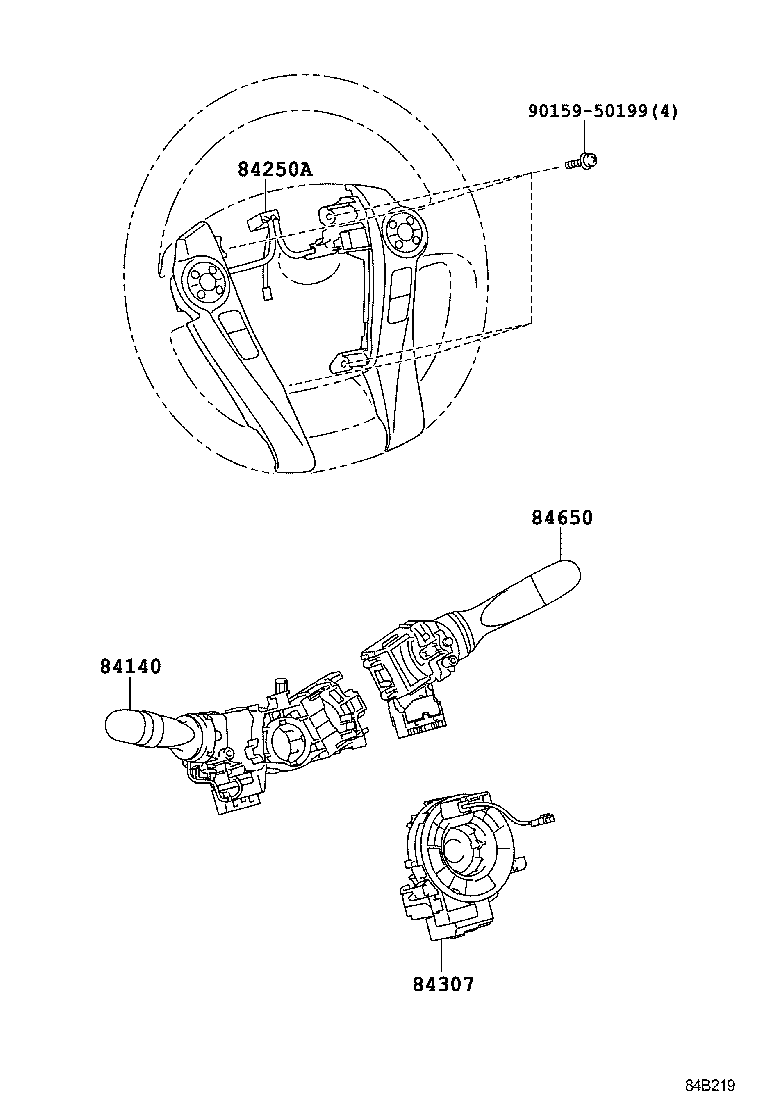

STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-42101 |
ZVW35 |
1 | ||
| 84250A - SWITCH ASSY, STEERING PAD | ||||
| 84250-47030 |
ZVW35 |
1 | ||
| 84250-47040 |
ZVW35 AUDIO-AVN,BLUETOOTH,6SPEAKER(EXTRA) |
1 | ||
| 84307 - CABLE SUB-ASSY, SPIRAL W/SENSOR | ||||
| 84307-74020 |
ZVW35 |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-48180 |
ZVW35 |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||
ILLUST NO. 6 OF 7(0912- )

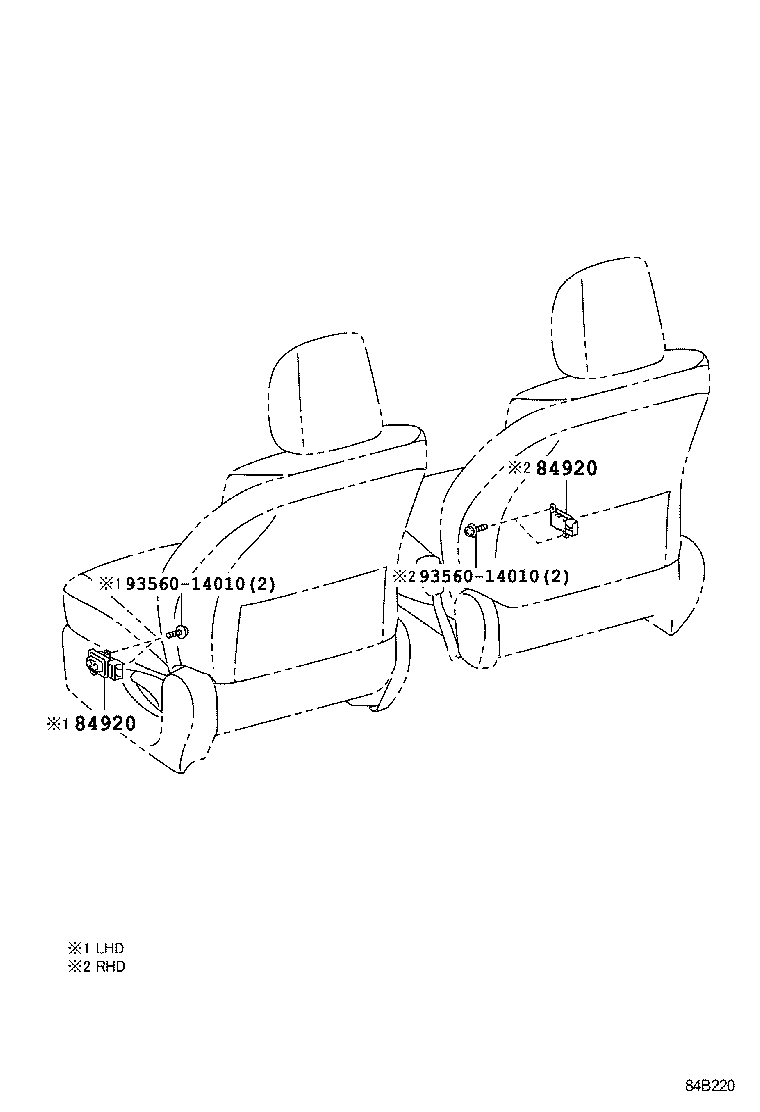

SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84920 - SWITCH ASSY, POWER SEAT | ||||
| 84920-60050G0 |
ZVW35..LHD AQUA,TRIM6# |
1 | ||
| 84920 - SWITCH ASSY, POWER SEAT | ||||
| 84920-60050G0 |
ZVW35..LHD AQUA,TRIM6# |
1 | ||
| Common parts | ||||
| 93560-14010 | ||||
ILLUST NO. 7 OF 7(0912- )

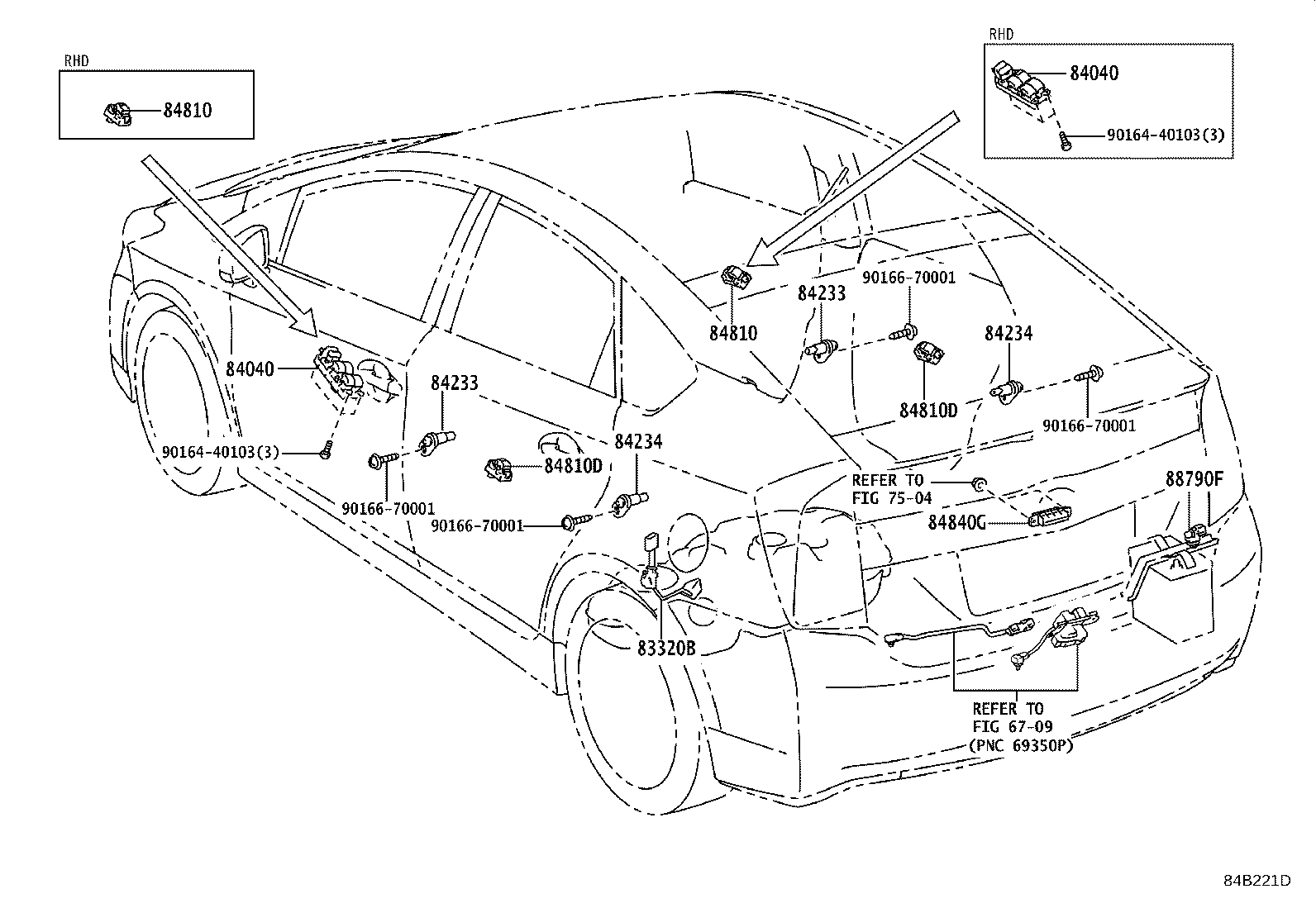

DOOR,ROOF,FLOOR & LUGGAGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320B - GAGE ASSY, FUEL SENDER, NO.2 | ||||
| 83320-47050 |
ZVW35 |
1 | ||
| 84040 - MASTER SWITCH ASSY,MULTIPLEX NETWORK | ||||
| 84040-33100 |
ZVW35..LHD |
1 | ||
| 84040 - MASTER SWITCH ASSY,MULTIPLEX NETWORK | ||||
| 84040-33100 |
ZVW35..LHD |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-60070 |
ZVW35 |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-60070 |
ZVW35 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-60070 |
ZVW35 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-60070 |
ZVW35 |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-33120 |
ZVW35 |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-33120 |
ZVW35 |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-33120 |
ZVW35 |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-33120 |
ZVW35 |
2 | ||
| 84840G - SWITCH ASSY, BACK DOOR OPENER | ||||
| 84840-28040 |
ZVW35 |
1 | ||
| 88790F - THERMISTOR ASSY | ||||
| 88790-22131 |
ZVW35 |
1 | ||
| Common parts | ||||
| 90164-40103 | ||||
| 90166-70001 | ||||
| Linked diagrams | ||||
| 6709 | ||||
| 7504 | ||||
ILLUST NO. 4 OF 7(0912- )LHD

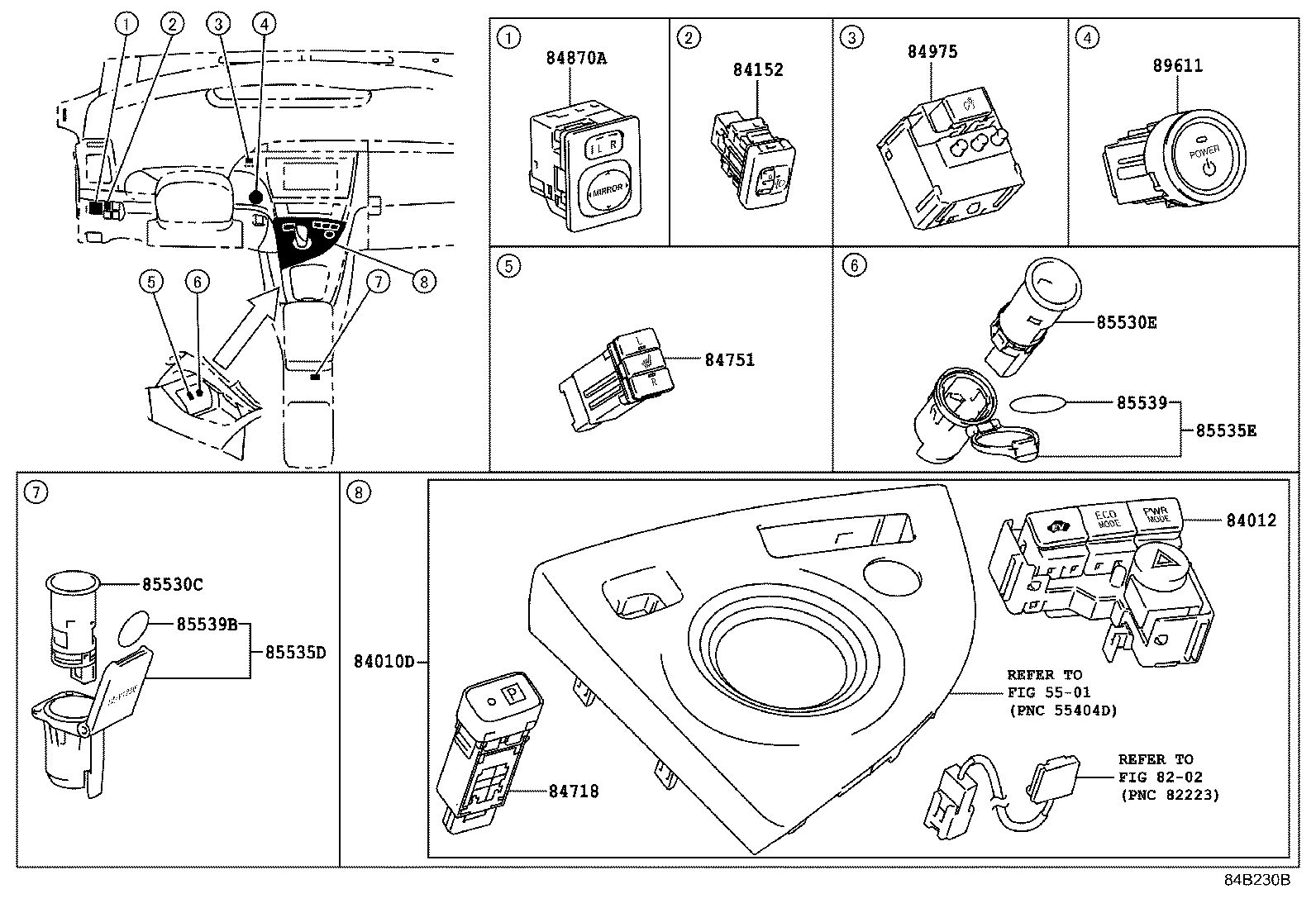

INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84010D - CONTROL & PANEL ASSY, INTEGRATION | ||||
| 84010-47040 |
ZVW35..LHD |
1 | ||
| 84012 - CONTROL & PANEL SUB-ASSY, INTEGRATION | ||||
| 84012-47040 |
ZVW35..LHD |
1 | ||
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-52070 |
ZVW35 |
1 | ||
| 84718 - SWITCH, TRANSMISSION SHIFT MAIN | ||||
| 84718-47020 |
ZVW35..LHD |
1 | ||
| 84751 - SWITCH, SEAT HEATER | ||||
| 84751-52030 |
ZVW35 |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-34010 |
ZVW35 |
1 | ||
| 84975 - SWITCH, TRIP | ||||
| 84975-47060 |
ZVW35..LHD |
1 | ||
| 85530C - SOCKET ASSY, POWER OUTLET, CENTER | ||||
| 85530-42010 |
ZVW35 |
1 | ||
| 85530E - SOCKET ASSY, POWER OUTLET, NO.3 | ||||
| 85530-42010 |
ZVW35 |
1 | ||
| 85535D - COVER, POWER OUTLET SOCKET, CENTER | ||||
| 85535-33060 |
ZVW35 |
1 | ||
| 85535E - COVER, POWER OUTLET SOCKET, NO.2 | ||||
| 85535-60100C0 |
ZVW35 BLACK |
1 | ||
| 85539 - LABEL, POWER OUTLET NOTICE | ||||
| 85539-60020 |
ZVW35 |
1 | ||
| 85539B - LABEL, POWER OUTLET NOTICE, CENTER | ||||
| 85539-60020 |
ZVW35 |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-75041 |
ZVW35 |
1 | ||
| 89611-75040 |
ZVW35 |
1 | ||
| Linked diagrams | ||||
| 5501 | ||||
| 8202 | ||||
ILLUST NO. 3 OF 7(0912- )LHD

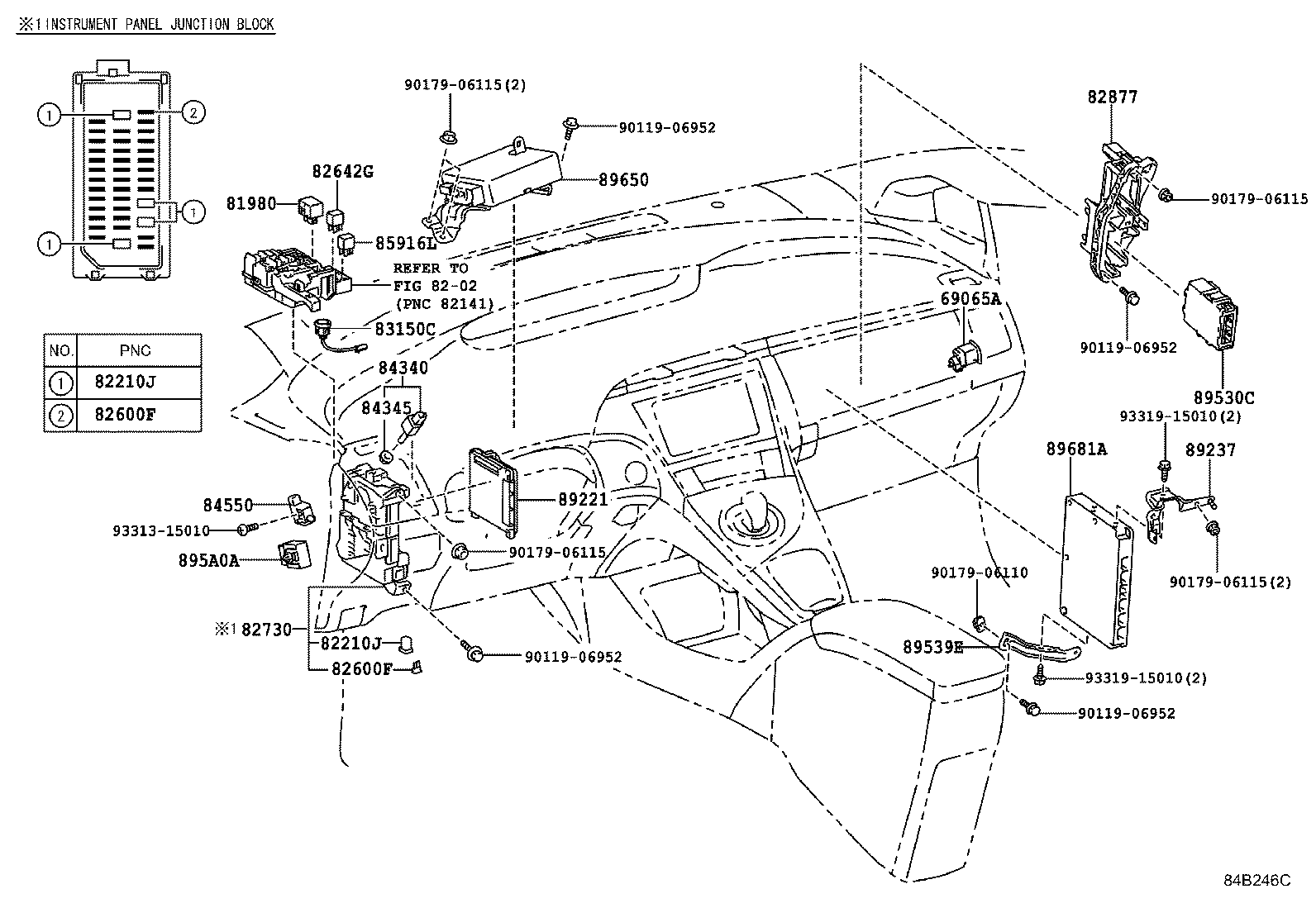

COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69065A - CYLINDER SUB-ASSY, AIR BAG CUT OFF SWITCH | ||||
| 69065-47040 |
ZVW35 |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-46010 |
ZVW35 |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08308 |
ZVW35 40A-30A-30A,FEMALE |
1 | ||
| 90982-08297 |
ZVW35 125A,PINK |
1 | ||
| 90982-08304 |
ZVW35 60A,TERM.:FEMALE,YEL |
1 | ||
| 90982-08306 |
ZVW35 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08301 |
ZVW35 50A-30A-40A,FEMALE |
1 | ||
| 90982-08296 |
ZVW35 50A,TERM.:FEMALE,RED |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08308 |
ZVW35 40A-30A-30A,FEMALE |
1 | ||
| 90982-08297 |
ZVW35 125A,PINK |
1 | ||
| 90982-08304 |
ZVW35 60A,TERM.:FEMALE,YEL |
1 | ||
| 90982-08306 |
ZVW35 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08301 |
ZVW35 50A-30A-40A,FEMALE |
1 | ||
| 90982-08296 |
ZVW35 50A,TERM.:FEMALE,RED |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09020 |
ZVW35 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09022 |
ZVW35 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09021 |
ZVW35 10A,MINI FUSE,RED |
1 | ||
| 90982-09024 |
ZVW35 25A,MINI FUSE |
1 | ||
| 90982-09019 |
ZVW35 5A,MINI FUSE,TAN |
1 | ||
| 90982-09025 |
ZVW35 30A,MINI FUSE,GRN |
1 | ||
| 90982-09023 |
ZVW35 20A,MINI FUSE,YELLOW |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09020 |
ZVW35 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09022 |
ZVW35 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09021 |
ZVW35 10A,MINI FUSE,RED |
1 | ||
| 90982-09024 |
ZVW35 25A,MINI FUSE |
1 | ||
| 90982-09019 |
ZVW35 5A,MINI FUSE,TAN |
1 | ||
| 90982-09025 |
ZVW35 30A,MINI FUSE,GRN |
1 | ||
| 90982-09023 |
ZVW35 20A,MINI FUSE,YELLOW |
1 | ||
| 82642G - RELAY, PANEL | ||||
| 90987-02027 |
ZVW35..LHD DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82730-47450 |
ZVW35..LHD |
1 | ||
| 82877 - BOX, COMPUTER INTEGRATION, RH | ||||
| 82877-47030 |
ZVW35..LHD |
1 | ||
| 83150C - INDICATOR ASSY | ||||
| 83150-47080B0 |
ZVW35 MIST GRAY,TRIM6# |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-69075 |
ZVW35 |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-51010 |
ZVW35 |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-47010 |
ZVW35 |
1 | ||
| 85916L - RELAY, REAR FOG LAMP | ||||
| 90987-02027 |
ZVW35 |
1 | ||
| 89221 - COMPUTER, MULTIPLEX NETWORK BODY | ||||
| 89220-47500 |
ZVW35..LHD DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 89220-47510 |
ZVW35..LHD |
1 | ||
| 89237 - BRACKET, COMPUTER UNIT | ||||
| 896B7-47010 |
ZVW35..LHD |
1 | ||
| 89530C - COMPUTER ASSY, TRANSMISSION CONTROL | ||||
| 89535-47040 |
ZVW35..LHD |
1 | ||
| 89539E - BRACKET, COMPUTER | ||||
| 896B8-47010 |
ZVW35..LHD |
1 | ||
| 895A0A - COMPUTER ASSY, STOP LAMP CONTROL | ||||
| 895A0-30010 |
ZVW35..LHD |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-47300 |
ZVW35..LHD |
1 | ||
| 89681A - COMPUTER, POWER MANAGEMENT CONTROL | ||||
| 89681-47170 |
ZVW35 |
1 | ||
| Common parts | ||||
| 90119-06952 | ||||
| 90179-06110 | ||||
| 90179-06115 | ||||
| 93313-15010 | ||||
| 93319-15010 | ||||
| Linked diagrams | ||||
| 8202 | ||||
ILLUST NO. 1 OF 7(0912- )

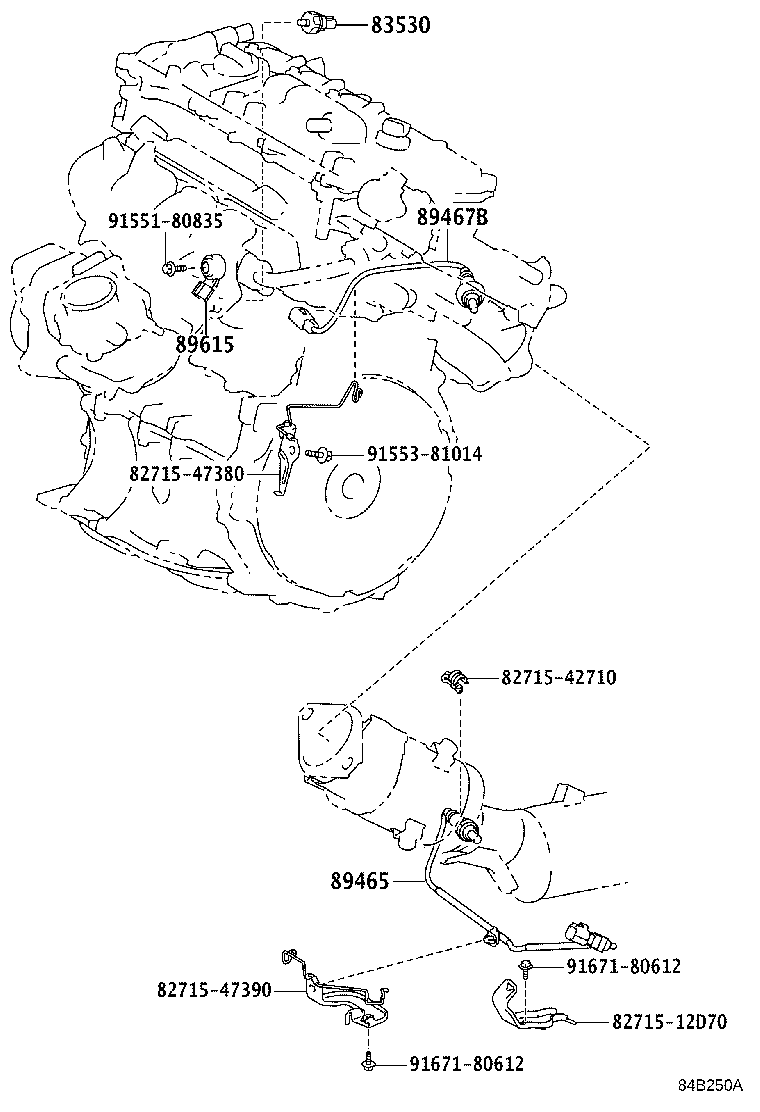

ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-28020 |
ZVW35 |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-47080 |
ZVW35 |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-28090 |
ZVW35 |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
ZVW35 |
1 | ||
| Common parts | ||||
| 82715-12D70 | ||||
| 82715-42710 | ||||
| 82715-47380 | ||||
| 82715-47390 | ||||
| 91551-80835 | ||||
| 91553-81014 | ||||
| 91671-80612 | ||||
ILLUST NO. 2 OF 7(0912- )LHD

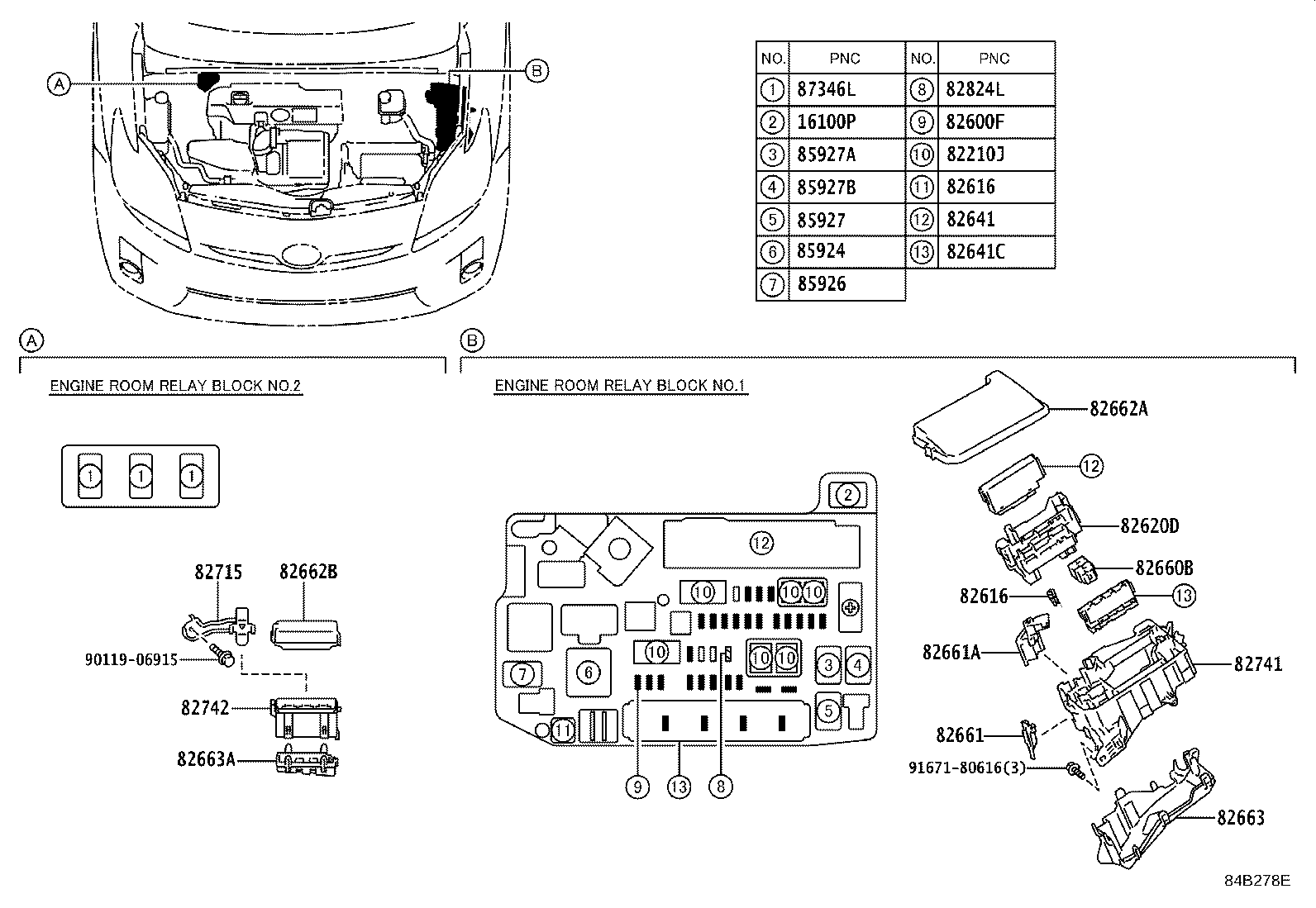

ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16100P - RELAY, WATER PUMP | ||||
| 90987-02027 |
2ZRFXE..ZVW35 |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08308 |
ZVW35 40A-30A-30A,FEMALE |
1 | ||
| 90982-08297 |
ZVW35 125A,PINK |
1 | ||
| 90982-08304 |
ZVW35 60A,TERM.:FEMALE,YEL |
1 | ||
| 90982-08306 |
ZVW35 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08301 |
ZVW35 50A-30A-40A,FEMALE |
1 | ||
| 90982-08296 |
ZVW35 50A,TERM.:FEMALE,RED |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09020 |
ZVW35 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09022 |
ZVW35 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09021 |
ZVW35 10A,MINI FUSE,RED |
1 | ||
| 90982-09024 |
ZVW35 25A,MINI FUSE |
1 | ||
| 90982-09019 |
ZVW35 5A,MINI FUSE,TAN |
1 | ||
| 90982-09025 |
ZVW35 30A,MINI FUSE,GRN |
1 | ||
| 90982-09023 |
ZVW35 20A,MINI FUSE,YELLOW |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
ZVW35 |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
ZVW35 |
1 | ||
| 82620D - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-75010 |
ZVW35 |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-47031 |
ZVW35 |
1 | ||
| 82641C - RELAY, INTEGRATION NO.2 | ||||
| 82641-71010 |
ZVW35 |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-75010 |
ZVW35 |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-47040 |
ZVW35 |
1 | ||
| 82661A - COVER, RELAY BLOCK, NO.2 | ||||
| 82661-75010 |
ZVW35 |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-47110 |
ZVW35 |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-47120 |
ZVW35 |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-75010 |
ZVW35 |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-47060 |
ZVW35 |
1 | ||
| 82715 - BRACKET,WIRING HARNESS CLAMP | ||||
| 82715-47580 |
ZVW35..LHD |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-75010 |
ZVW35 |
1 | ||
| 82742 - BLOCK, ENGINE ROOM RELAY, NO.2 | ||||
| 82742-47030 |
ZVW35 |
1 | ||
| 82824L - PIN, SHORT | ||||
| 82824-41010 |
ZVW35 |
1 | ||
| 85924 - RELAY, IGNITION CONTROL | ||||
| 90987-02025 |
ZVW35 |
1 | ||
| 85926 - RELAY, HEADLAMP DIMMER | ||||
| 90987-04010 |
ZVW35..LHD DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 90987-04010 |
ZVW35 |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-02027 |
ZVW35 |
1 | ||
| 85927A - RELAY, COOLING FAN, NO.2 | ||||
| 90987-04004 |
ZVW35 |
1 | ||
| 85927B - RELAY, COOLING FAN, NO.3 | ||||
| 90987-02027 |
ZVW35 |
1 | ||
| 87346L - RELAY, PTC HEATER | ||||
| 90987-02025 |
ZVW35 |
3 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 91671-80616 | ||||
