ZVW35L-BHXEBW (2009)
Toyota Prius(Plug-In Hbd)
Production
Dec 2009
-
Oct 2010
Engine
2ZRFXE
Transmission
CVFC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0912- )LHD

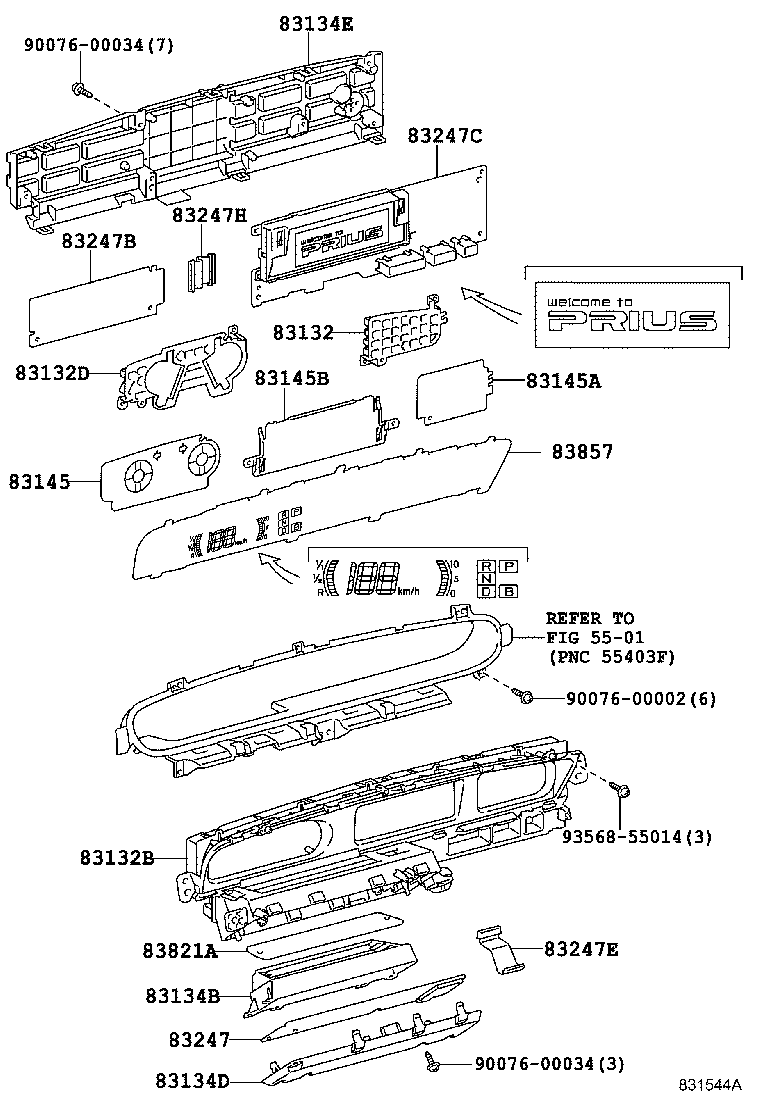

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83132 - CASE, COMBINATION METER | ||||
| 83841-47360 |
ZVW35..LHD |
1 | ||
| 83132B - CASE, COMBINATION METER NO.3 | ||||
| 83843-47360 |
ZVW35..LHD |
1 | ||
| 83132D - CASE, COMBINATION METER, NO.2 | ||||
| 83841-47480 |
ZVW35..LHD |
1 | ||
| 83134B - COVER, COMBINATION METER, NO.2 | ||||
| 83822-47360 |
ZVW35..LHD |
1 | ||
| 83134D - COVER, COMBINATION METER, NO.3 | ||||
| 83821-47360 |
ZVW35..LHD |
1 | ||
| 83134E - COVER, COMBINATION METER, NO.4 | ||||
| 83823-47360 |
ZVW35..LHD |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83832-47480 |
ZVW35..LHD |
1 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83831-47490 |
ZVW35..LHD |
1 | ||
| 83145B - LENS, METER, NO.3 | ||||
| 83833-47340 |
ZVW35 |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83861-47390 |
ZVW35..LHD |
1 | ||
| 83247B - PLATE, METER CIRCUIT, NO.2 | ||||
| 83862-47480 |
ZVW35..LHD |
1 | ||
| 83247C - PLATE, MATER CIRCUIT, NO.3 | ||||
| 83861-47490 |
ZVW35..LHD |
1 | ||
| 83247E - PLATE, MATER CIRCUIT, NO.4 | ||||
| 83864-47340 |
ZVW35 |
1 | ||
| 83247H - PLATE, METER CIRCUIT, NO.5 | ||||
| 83865-47340 |
ZVW35 |
1 | ||
| 83821A - COVER, COMBINATION METER, NO.1 | ||||
| 83821-47340 |
ZVW35 |
1 | ||
| 83857 - REFLECTOR, COMBINATION METER, NO.1 | ||||
| 83857-47480 |
ZVW35..LHD |
1 | ||
| Common parts | ||||
| 90076-00002 | ||||
| 90076-00034 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 5501 | ||||
