ZVW35L-BHXEBW (2009)
Toyota Prius(Plug-In Hbd)

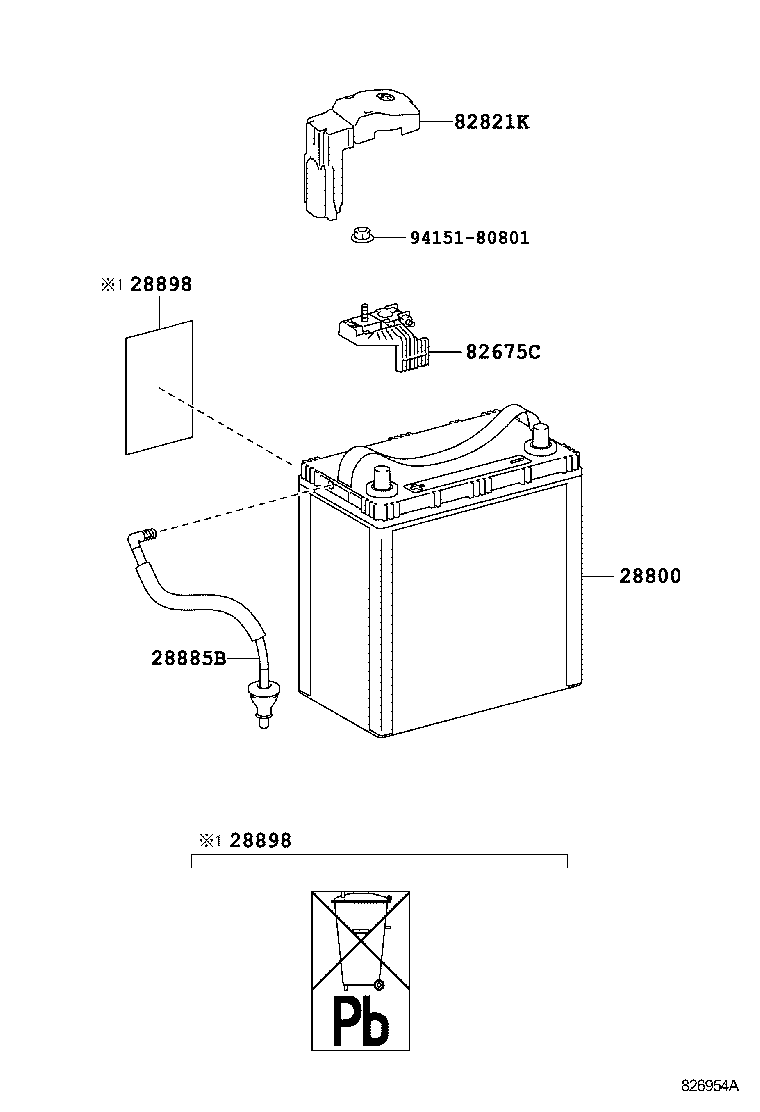

ILLUST NO. 1 OF 4(0912- )
12V BATTERY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28800 - BATTERY | ||||
| 28800-21180 |
2ZRFXE..ZVW35 S34B20R |
1 | ||
| 28885B - HOSE, BATTERY | ||||
| 28885-37010 |
2ZRFXE..ZVW35 |
1 | ||
| 28898 - PLATE, BATTERY | ||||
| 28898-16020 |
2ZRFXE..ZVW35 |
1 | ||
| 28898 - PLATE, BATTERY | ||||
| 28898-16020 |
2ZRFXE..ZVW35 |
1 | ||
| 82675C - TERMINAL, JUNCTION | ||||
| 82675-47160 |
ZVW35 |
1 | ||
| 82821K - COVER, CONNECTOR | ||||
| 82821-47110 |
ZVW35 |
1 | ||
| Common parts | ||||
| 94151-80801 | ||||

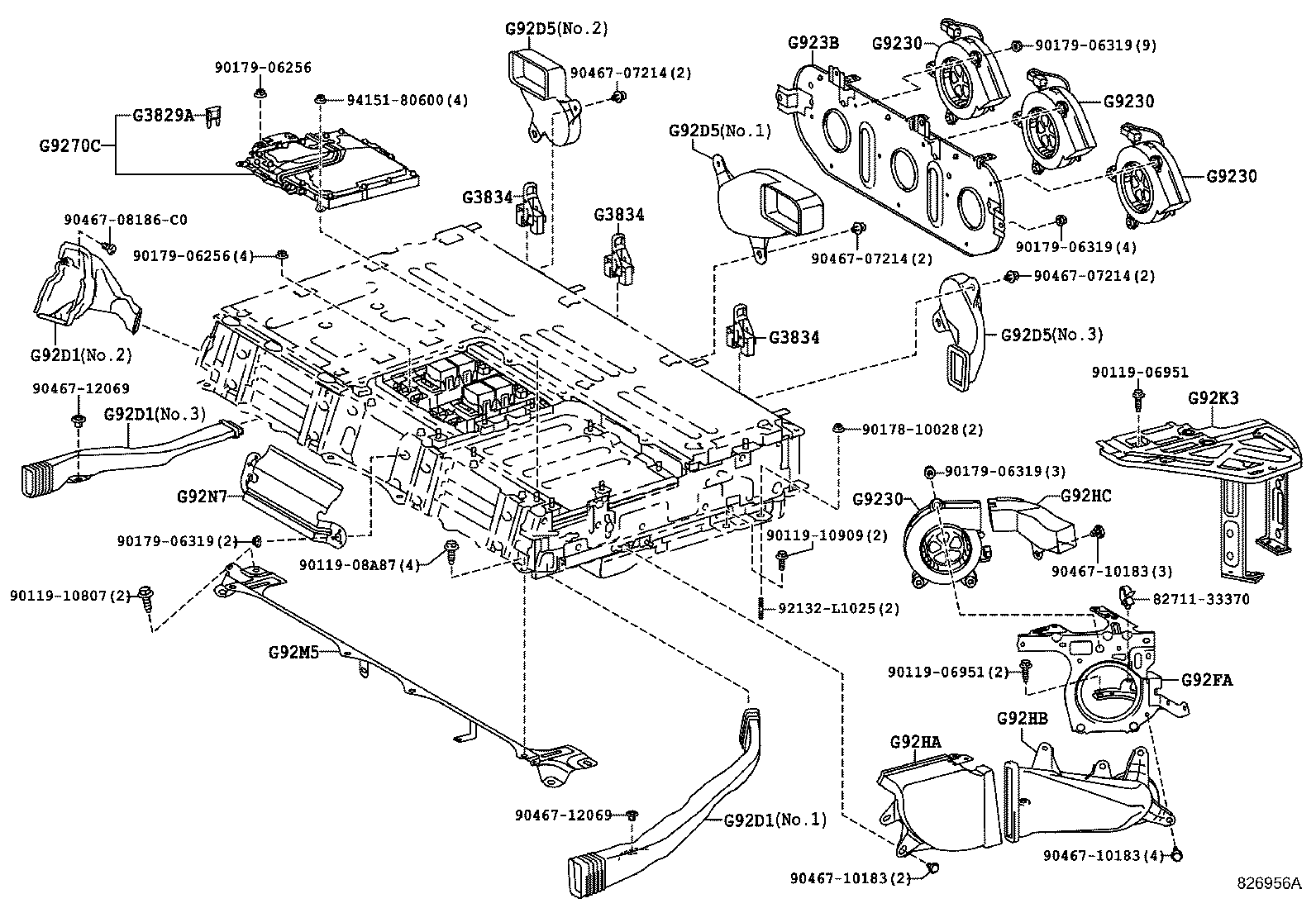

ILLUST NO. 3 OF 4(0912- )
HV BATTERY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| G3829A - FUSE, ELECTRIC VEHICLE | ||||
| 90982-09008 |
ZVW35 7.5A,MINI FUSE,BRN |
1 | ||
| G3834 - GRIP, SERVICE PLUG | ||||
| G3834-48010 |
ZVW35 |
3 | ||
| G3834 - GRIP, SERVICE PLUG | ||||
| G3834-48010 |
ZVW35 |
3 | ||
| G3834 - GRIP, SERVICE PLUG | ||||
| G3834-48010 |
ZVW35 |
3 | ||
| G9230 - BLOWER ASSY, BATTERY COOLING | ||||
| G9230-48040 |
ZVW35 |
3 | ||
| G9230 - BLOWER ASSY, BATTERY COOLING | ||||
| G9230-48040 |
ZVW35 |
3 | ||
| G9230 - BLOWER ASSY, BATTERY COOLING | ||||
| G9230-48040 |
ZVW35 |
3 | ||
| G9230 - BLOWER ASSY, BATTERY COOLING | ||||
| G9230-48040 |
ZVW35 |
3 | ||
| G923B - BRACKET, BATTERY COOLING BLOWER | ||||
| G923B-47010 |
ZVW35 |
1 | ||
| G9270C - CONVERTER, HV | ||||
| G9270-47060 |
ZVW35 |
1 | ||
| G92D1 - DUCT, HYBRID BATTERY INTAKE, NO.1 | ||||
| G92D1-47030 |
ZVW35 NO.2:REFER ILLUST. |
1 | ||
| G92D1-47040 |
ZVW35 NO.3:REFER ILLUST. |
1 | ||
| G92D1-47020 |
ZVW35 NO.1:REFER ILLUST. |
1 | ||
| G92D1 - DUCT, HYBRID BATTERY INTAKE, NO.1 | ||||
| G92D1-47030 |
ZVW35 NO.2:REFER ILLUST. |
1 | ||
| G92D1-47040 |
ZVW35 NO.3:REFER ILLUST. |
1 | ||
| G92D1-47020 |
ZVW35 NO.1:REFER ILLUST. |
1 | ||
| G92D1 - DUCT, HYBRID BATTERY INTAKE, NO.1 | ||||
| G92D1-47030 |
ZVW35 NO.2:REFER ILLUST. |
1 | ||
| G92D1-47040 |
ZVW35 NO.3:REFER ILLUST. |
1 | ||
| G92D1-47020 |
ZVW35 NO.1:REFER ILLUST. |
1 | ||
| G92D5 - DUCT, HYBRID BATTERY INTAKE, NO.5 | ||||
| G92D5-47020 |
ZVW35 NO.2:REFER ILLUST. |
1 | ||
| G92D5-47010 |
ZVW35 NO.1:REFER ILLUST. |
1 | ||
| G92D5-47030 |
ZVW35 NO.3:REFER ILLUST. |
1 | ||
| G92D5 - DUCT, HYBRID BATTERY INTAKE, NO.5 | ||||
| G92D5-47020 |
ZVW35 NO.2:REFER ILLUST. |
1 | ||
| G92D5-47010 |
ZVW35 NO.1:REFER ILLUST. |
1 | ||
| G92D5-47030 |
ZVW35 NO.3:REFER ILLUST. |
1 | ||
| G92D5 - DUCT, HYBRID BATTERY INTAKE, NO.5 | ||||
| G92D5-47020 |
ZVW35 NO.2:REFER ILLUST. |
1 | ||
| G92D5-47010 |
ZVW35 NO.1:REFER ILLUST. |
1 | ||
| G92D5-47030 |
ZVW35 NO.3:REFER ILLUST. |
1 | ||
| G92FA - BRACKET, CONVERTER COOLING BLOWER | ||||
| G92FA-47010 |
ZVW35 |
1 | ||
| G92HA - DUCT, CONVERTER COOLING EXHAUST | ||||
| G92HA-47010 |
ZVW35 |
1 | ||
| G92HB - DUCT, CONVERTER COOLING EXHAUST, NO.2 | ||||
| G92HB-47010 |
ZVW35 |
1 | ||
| G92HC - DUCT, CONVERTER COOLING EXHAUST, NO.3 | ||||
| G92HC-47010 |
ZVW35 |
1 | ||
| G92K3 - BRACKET, HYBRID BATTERY CARRIER, NO.1 | ||||
| 61622-47040 |
ZVW35 |
1 | ||
| G92M5 - REINFORCEMENT, HV BATTERY CARRIER | ||||
| G92M5-47010 |
ZVW35 |
1 | ||
| G92N7 - PANEL, HYBRID BATTERY FRONT COVER | ||||
| G92N7-47020 |
ZVW35 |
1 | ||
| Common parts | ||||
| 82711-33370 | ||||
| 90119-06951 | ||||
| 90119-08A87 | ||||
| 90119-10807 | ||||
| 90119-10909 | ||||
| 90178-10028 | ||||
| 90179-06256 | ||||
| 90179-06319 | ||||
| 90467-07214 | ||||
| 90467-08186C0 | ||||
| 90467-10183 | ||||
| 90467-12069 | ||||
| 92132-L1025 | ||||
| 94151-80600 | ||||

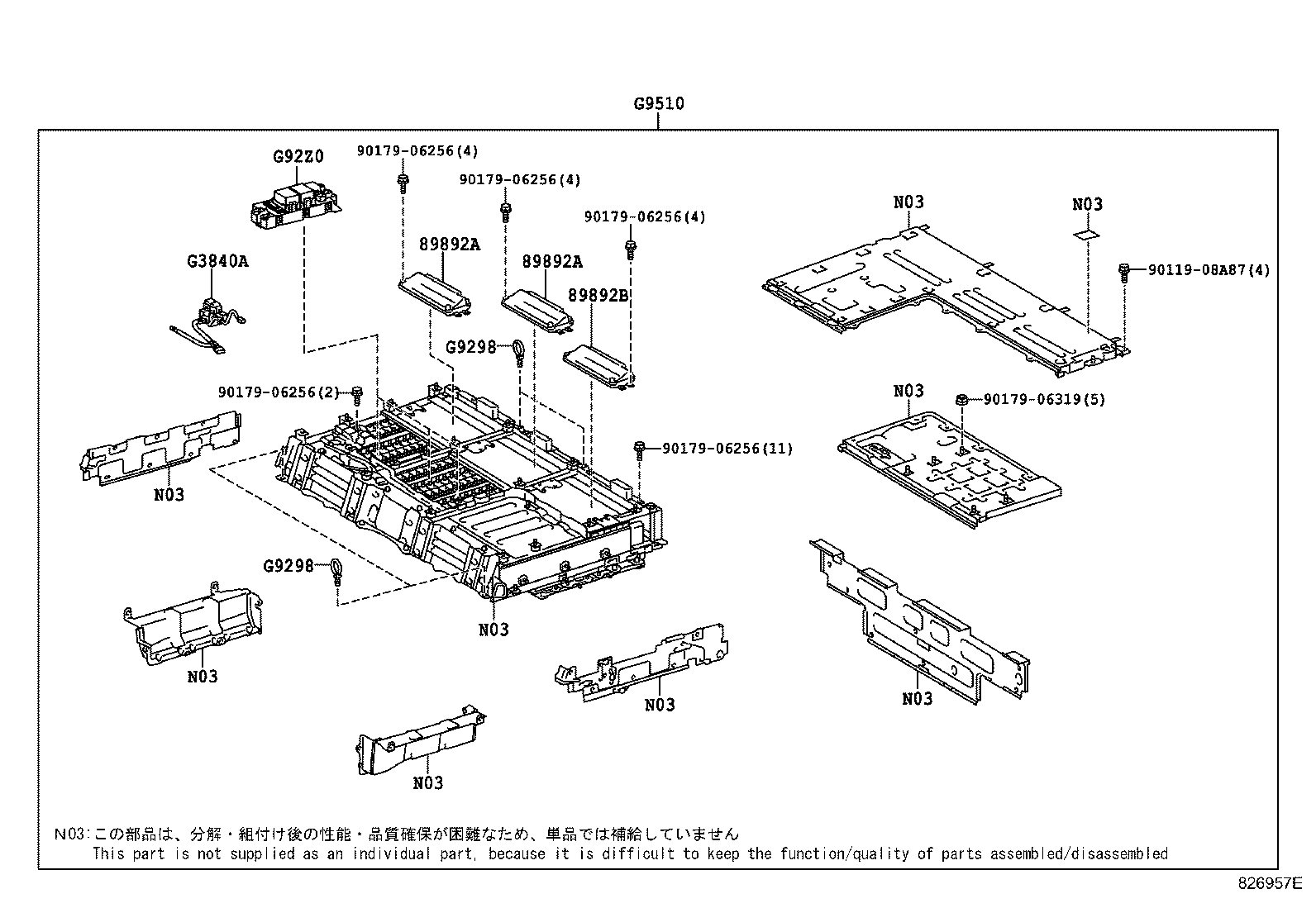

ILLUST NO. 4 OF 4(0912- )
HV BATTERY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89892A - SENSOR, BATTERY VOLTAGE | ||||
| 89892-47040 |
ZVW35 |
2 | ||
| 89892A - SENSOR, BATTERY VOLTAGE | ||||
| 89892-47040 |
ZVW35 |
2 | ||
| 89892B - SENSOR, BATTERY VOLTAGE, NO.2 | ||||
| 89892-47030 |
ZVW35 |
1 | ||
| G3840A - RELAY ASSY, HYBRID VEHICLE | ||||
| G3840-47021 |
ZVW35 |
1 | ||
| G9298 - CLAMP, HV BATTERY | ||||
| G9298-47060 |
ZVW35 |
4 | ||
| G9298 - CLAMP, HV BATTERY | ||||
| G9298-47060 |
ZVW35 |
4 | ||
| G92Z0 - BLOCK ASSY, HV BATTERY JUNCTION | ||||
| G92Z0-47020 |
ZVW35 |
3 | ||
| G92Z0-47021 |
ZVW35 |
3 | ||
| G9510 - BATTERY ASSY, HV SUPPLY | ||||
| G9510-47070 |
ZVW35 |
1 | ||
| Common parts | ||||
| 90119-08A87 | ||||
| 90179-06256 | ||||
| 90179-06319 | ||||
ILLUST NO. 2 OF 4(0912- )
HV BATTERY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 09120B - BAG, TOOL | ||||
| 09120-47010 |
ZVW35 |
1 | ||
| 58409D - LID SUB-ASSY, BATTERY CHARGER CONNECTOR OPENING | ||||
| 58409-47010 |
ZVW35 |
1 | ||
| 58446D - PROTECTOR, BATTERY SERVICE OPENING LID | ||||
| 58446-47010 |
ZVW35 |
1 | ||
| 64169C - PROTECTOR, FUEL INLET, NO.1 | ||||
| 64169-47020 |
ZVW35 |
1 | ||
| 89612 - BRACKET, PUSH SWITCH | ||||
| 89612-47010 |
ZVW35 |
1 | ||
| G9060 - CABLE ASSY, ELECTRIC VEHICLE CHARGER | ||||
| G9060-47090 |
ZVW35 BATTERRY CHARGE CABLE-EUROPE IEC |
1 | ||
| G9060-47160 |
ZVW35 TYPE B:REFER ILLUST. |
1 | ||
| G9060-47070 |
ZVW35 TYPE A:REFER ILLUST. |
1 | ||
| G9081A - CABLE, ELECTRIC VEHICLE CHARGER | ||||
| G9081-47010 |
ZVW35 |
1 | ||
| G9090 - CHARGER ASSY, ELECTRIC VEHICLE | ||||
| G9090-47020 |
ZVW35 |
1 | ||
| G9094A - COVER, ELECTRIC VEHICLE CHARGER | ||||
| G9094-47010G0 |
ZVW35 AQUA,TRIM6# |
1 | ||
| Common parts | ||||
| 90109-06379 | ||||
| 90119-06915 | ||||
| 90119-06989 | ||||
| 90119-08718 | ||||
| 91671-80612 | ||||
