ZVW35L-BHXEBW (2009)

Toyota Prius(Plug-In Hbd)

Production Dec 2009 - Oct 2010
Engine 2ZRFXE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

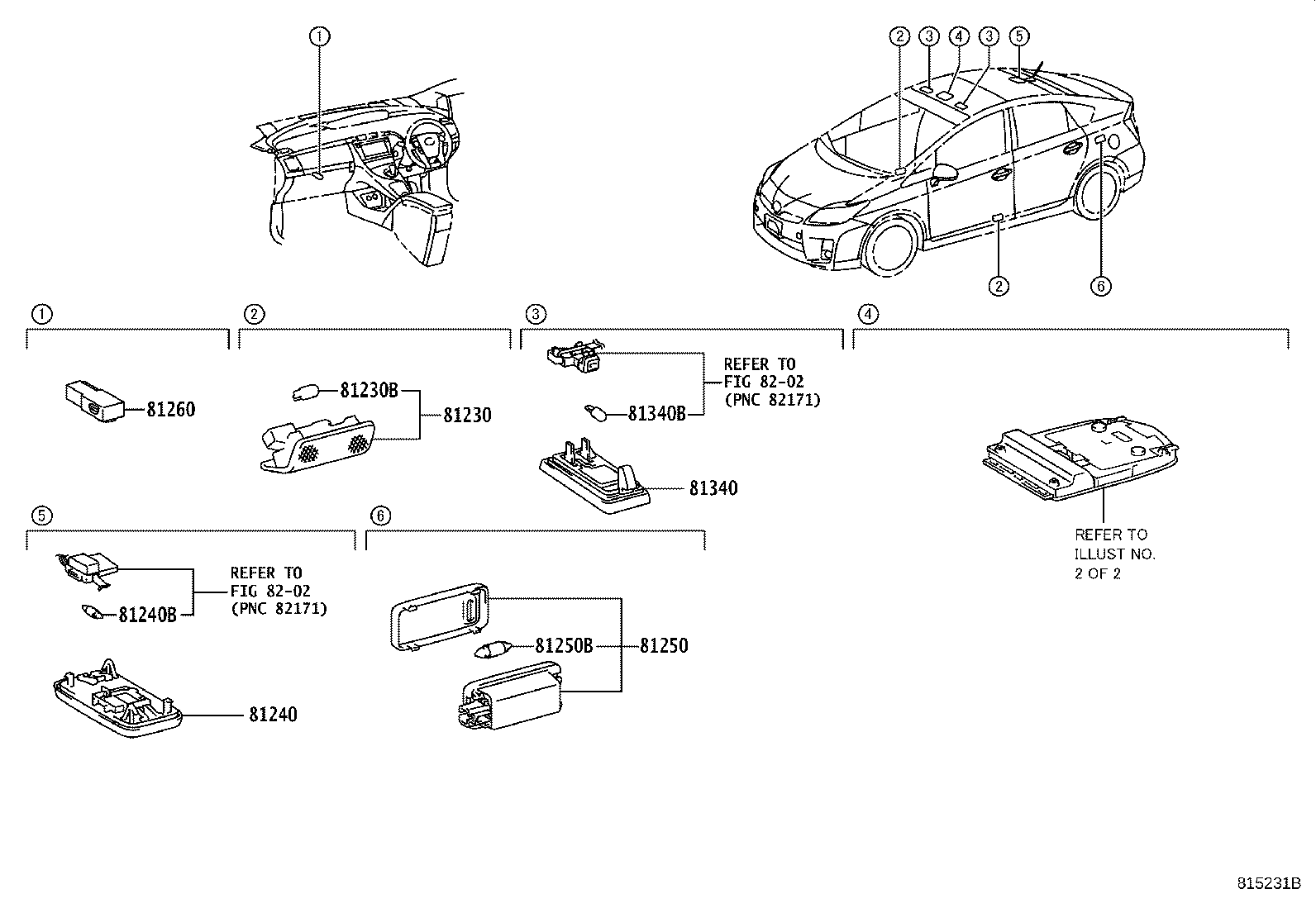

ILLUST NO. 1 OF 2(0912- )

Click highlighted areas on diagram

diagram 81230 81230B 81240 81240B 81250 81250B 81260 81340 81340B 8202 8202
Part # Description Qty Price
81230 - LAMP ASSY, COURTESY
81230-47010

ZVW35

 2
81230B - BULB(FOR COURTESY LAMP)
90981-12010

ZVW35

12V 5W

 2
81240 - LAMP ASSY, ROOM, NO.1
81240-60060B0

ZVW35

LT.GRAY,TRIM6#

 1
81240B - BULB, ROOM LAMP, NO.1
90981-14011

ZVW35

12V 8W

 1
81250 - LAMP ASSY, ROOM, NO.2
81250-48010

ZVW35

 1
81250B - BULB, ROOM LAMP, NO.2
99132-13050

ZVW35

12V 5W

 1
81260 - LAMP ASSY, GLOVE BOX
81080-48010

ZVW35

 1
81340 - LAMP ASSY, VANITY
81340-30100B0

ZVW35

LT.GRAY,TRIM6#

 2
81340B - BULB (FOR VANITY LAMP)
90981-11062

ZVW35

12V 8W

 2
Linked diagrams
8202

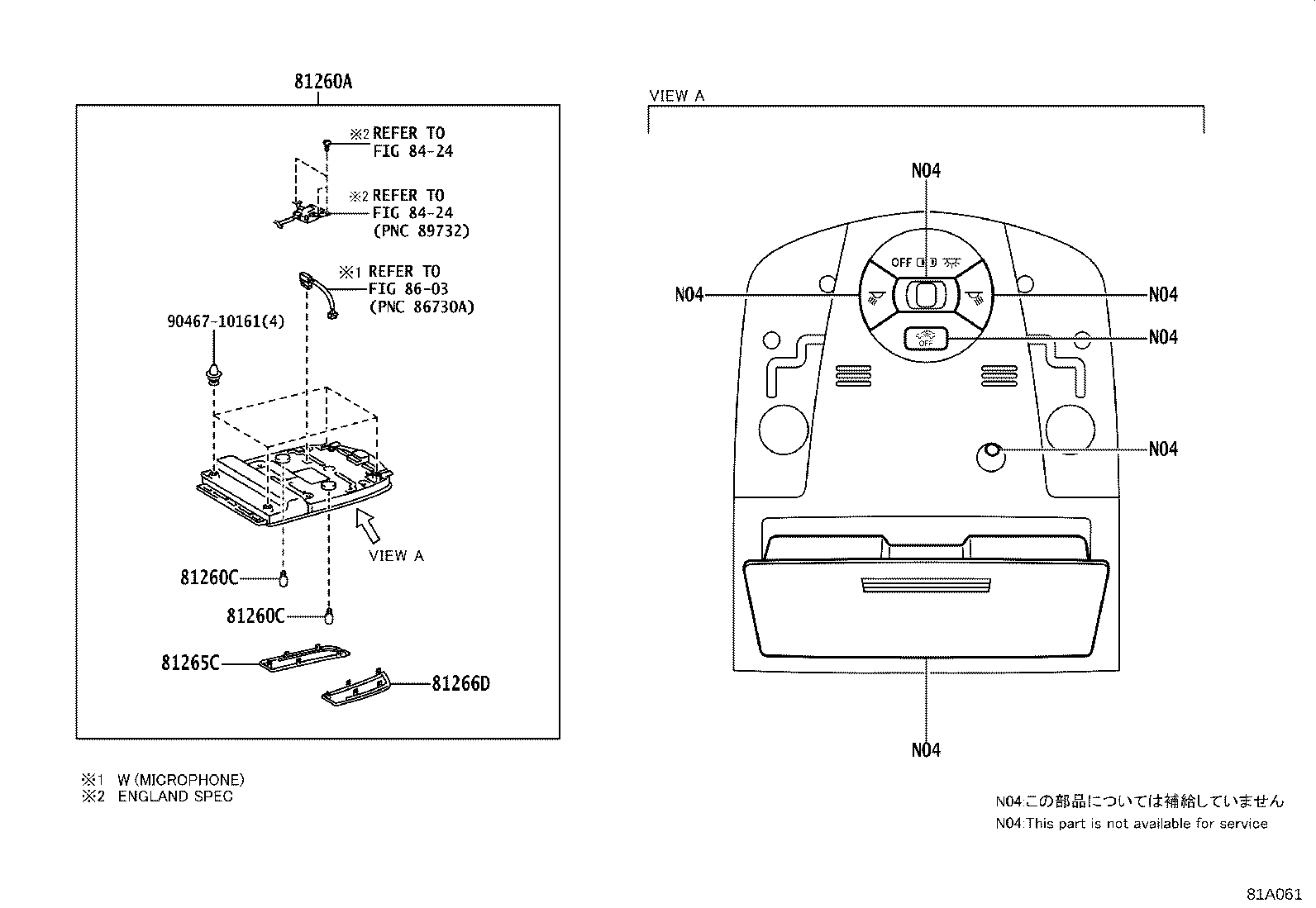

ILLUST NO. 2 OF 2(0912- )

Click highlighted areas on diagram

diagram 81260A 81260C 81260C 81265C 81266D 8424 8424 8603 9046710161
Part # Description Qty Price
81260A - LAMP ASSY, MAP
81260-47090B0

ZVW35

LT.GRAY,TRIM6#

 1
81260-47150B0

ZVW35..LHD

AUDIO-AVN,BLUETOOTH,6SPEAKER(EXTRA),LT.GRAY,TRIM6#

 1
81260C - BULB(FOR MAP LAMP)
99132-12050

ZVW35

12V 5W

 2
81260C - BULB(FOR MAP LAMP)
99132-12050

ZVW35

12V 5W

 2
81265C - LENS, MAP LAMP, NO.1
81265-47070

ZVW35

 1
81266D - LENS, MAP LAMP, NO.2
81266-47070

ZVW35

 1
Common parts
90467-10161
Linked diagrams
8424
8603
