ZVW35L-BHXEBW (2009)
Toyota Prius(Plug-In Hbd)
Production
Dec 2009
-
Oct 2010
Engine
2ZRFXE
Transmission
CVFC ATM
Displacement
2500cc
Power
168 HP (125 kW)

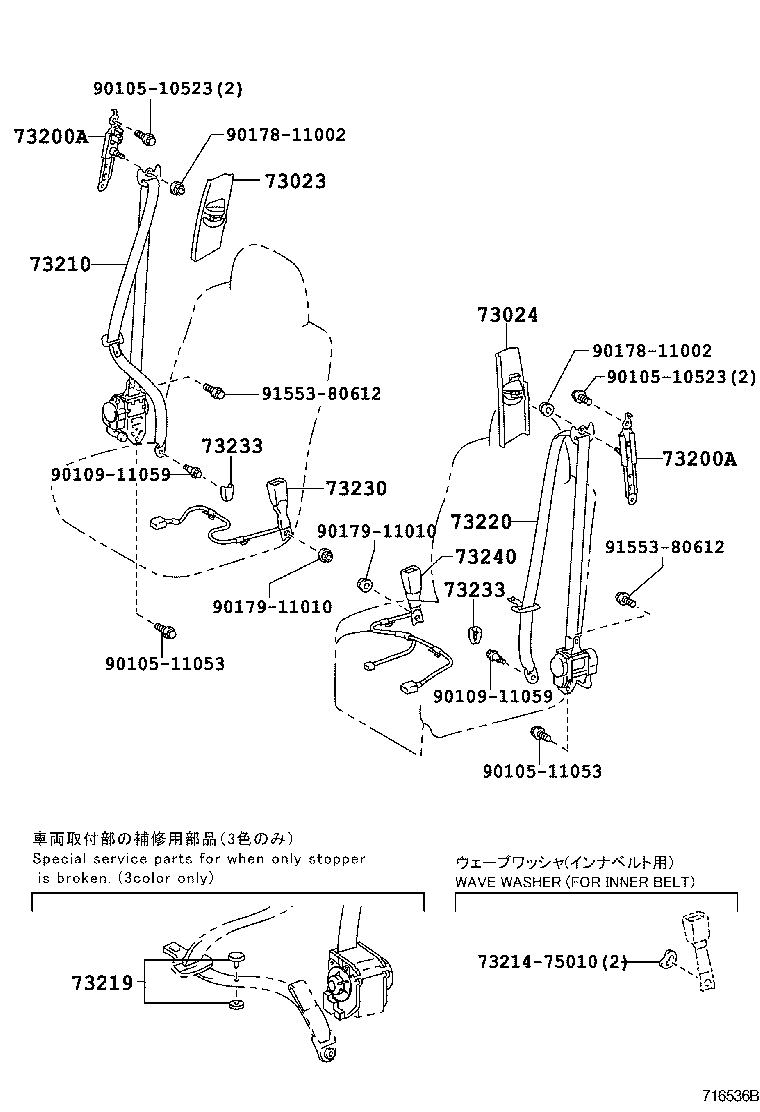

ILLUST NO. 1 OF 2(0912- )
Click highlighted areas on diagram
FRONT SEAT BELT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73023 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH | ||||
| 73023-53020B0 |
ZVW35 LT.GRAY,TRIM1#,6# |
1 | ||
| 73024 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH | ||||
| 73024-53020B0 |
ZVW35 LT.GRAY,TRIM1#,6# |
1 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-53010 |
ZVW35 |
2 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-53010 |
ZVW35 |
2 | ||
| 73210 - BELT ASSY, FRONT SEAT OUTER, RH | ||||
| 73210-47140B2 |
ZVW35 AQUA,TRIM6# |
1 | ||
| 73210-47141B2 |
ZVW35 AQUA,TRIM6# |
1 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33020 |
ZVW35 GRAY |
1 | ||
| 73219-33030 |
ZVW35 BEIGE |
1 | ||
| 73219-33010 |
ZVW35 BLACK |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73220-47110B1 |
ZVW35 AQUA,TRIM6# |
1 | ||
| 73220-47111B1 |
ZVW35 AQUA,TRIM6# |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73240-47090G0 |
ZVW35..LHD AQUA,TRIM6# |
1 | ||
| 73233 - COVER, LAP BELT OUTER ANCHOR | ||||
| 73233-60020B0 |
ZVW35 MD.GRAY,TRIM1#,6# |
2 | ||
| 73233 - COVER, LAP BELT OUTER ANCHOR | ||||
| 73233-60020B0 |
ZVW35 MD.GRAY,TRIM1#,6# |
2 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73230-47170G0 |
ZVW35..LHD AQUA,TRIM6# |
1 | ||
| Common parts | ||||
| 73214-75010 | ||||
| 90105-10523 | ||||
| 90105-11053 | ||||
| 90109-11059 | ||||
| 90178-11002 | ||||
| 90179-11010 | ||||
| 91553-80612 | ||||

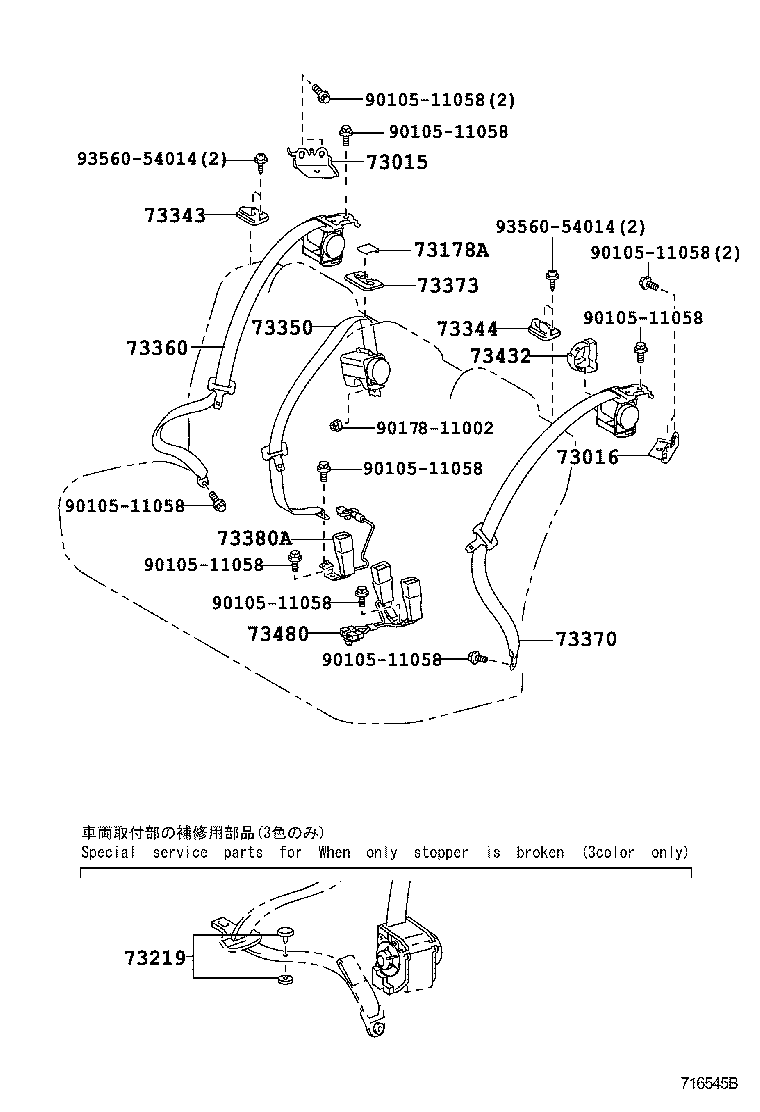

ILLUST NO. 2 OF 2(0912- )
Click highlighted areas on diagram
REAR SEAT BELT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73015 - BRACKET SUB-ASSY, BELT OUTER ANCHOR, RH | ||||
| 73015-47030 |
ZVW35 |
1 | ||
| 73016 - BRACKET SUB-ASSY, BELT OUTER ANCHOR, LH | ||||
| 73016-47020 |
ZVW35 |
1 | ||
| 73178A - CAP, SEAT BELT ANCHOR COVER | ||||
| 73178-12060G0 |
ZVW35 AQUA,TRIM6# |
1 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33020 |
ZVW35 GRAY |
1 | ||
| 73219-33030 |
ZVW35 BEIGE |
1 | ||
| 73219-33010 |
ZVW35 BLACK |
1 | ||
| 73343 - GUIDE, REAR SEAT SHOULDER BELT, RH | ||||
| 73343-47010G0 |
ZVW35 AQUA,TRIM6# |
1 | ||
| 73344 - GUIDE, REAR SEAT SHOULDER BELT, LH | ||||
| 73344-47010G0 |
ZVW35 AQUA,TRIM6# |
1 | ||
| 73350 - BELT ASSY, REAR SEAT LAP TYPE, CENTER | ||||
| 73350-47040G0 |
ZVW35 AQUA,TRIM6# |
1 | ||
| 73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH | ||||
| 73360-47060G0 |
ZVW35 AQUA,TRIM6# |
1 | ||
| 73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH | ||||
| 73360-47060G0 |
ZVW35 AQUA,TRIM6# |
1 | ||
| 73373 - COVER, REAR SEAT SHOULDER BELT | ||||
| 73373-12020G0 |
ZVW35 AQUA,TRIM6# |
1 | ||
| 73380A - BELT ASSY, REAR SEAT, INNER | ||||
| 73380-47030G1 |
ZVW35 AQUA,TRIM6# |
1 | ||
| 73432 - COVER, REAR SEAT BELT RETRACTOR, LH | ||||
| 73431-47010 |
ZVW35 |
1 | ||
| 73480 - BELT ASSY, REAR SEAT INNER W/CENTER, LH | ||||
| 73480-47060G1 |
ZVW35 AQUA,TRIM6# |
1 | ||
| Common parts | ||||
| 90105-11058 | ||||
| 90178-11002 | ||||
| 93560-54014 | ||||
