ZVW35L-BHXEBW (2009)
Toyota Prius(Plug-In Hbd)
Production
Dec 2009
-
Oct 2010
Engine
2ZRFXE
Transmission
CVFC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0912- )

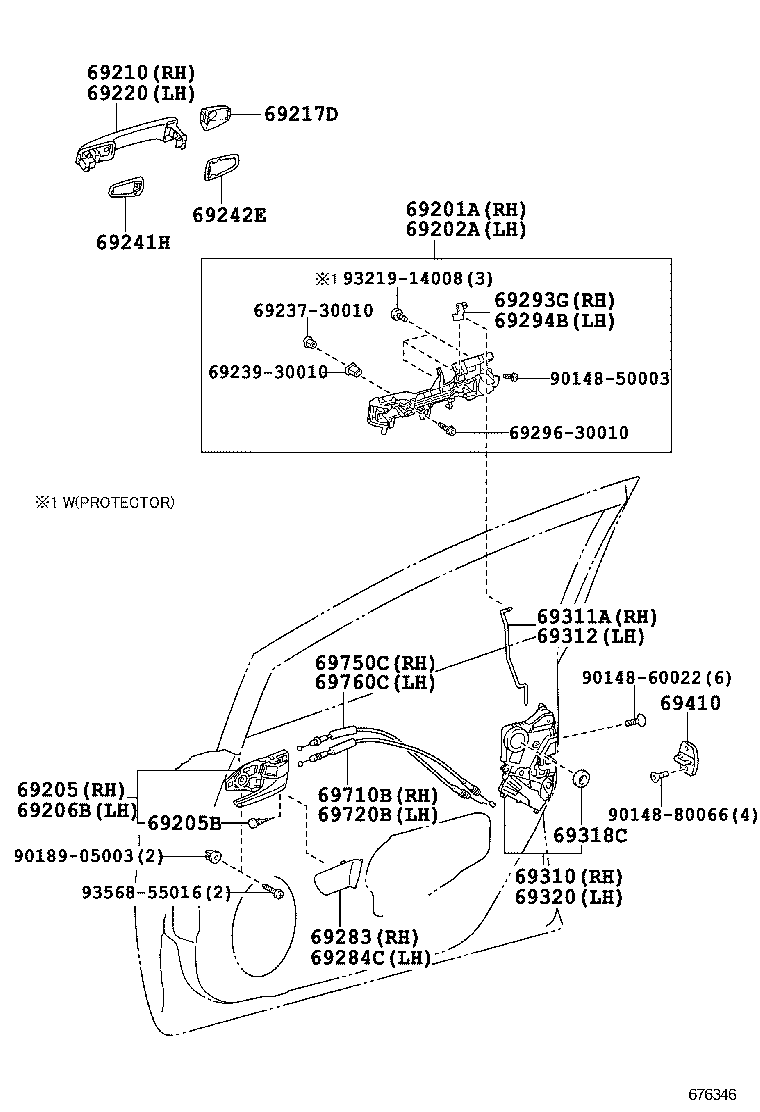

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69201A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69201-30071 |
ZVW35..LHD |
1 | ||
| 69202A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69202-30061 |
ZVW35 |
1 | ||
| 69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH | ||||
| 69205-47040C0 |
ZVW35 BLACK,TRIM6# |
1 | ||
| 69205B - CUSHION(FOR FRONT DOOR INSIDE HANDLE) | ||||
| 90541-04014 |
ZVW35 |
4 | ||
| 69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH | ||||
| 69206-47040C0 |
ZVW35 BLACK,TRIM6# |
1 | ||
| 69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH | ||||
| 69210-74030B5 |
ZVW35 SILVER ME.,8U8 |
1 | ||
| 69217D - COVER, FRONT DOOR OUTSIDE HANDLE | ||||
| 69217-74010B6 |
ZVW35 SILVER ME.,8U8,DRIVER SIDE |
1 | ||
| 69250-74010B6 |
ZVW35 SILVER ME.,8U8,PASSENGER SIDE |
1 | ||
| 69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH | ||||
| 69210-74030B5 |
ZVW35 SILVER ME.,8U8 |
1 | ||
| 69241H - PAD, FRONT DOOR OUTSIDE HANDLE, FRONT | ||||
| 69241-30111 |
ZVW35 |
2 | ||
| 69242E - PAD, FRONT DOOR OUTSIDE HANDLE, REAR | ||||
| 69242-30091 |
ZVW35 |
2 | ||
| 69242-47020 |
ZVW35 |
2 | ||
| 69283 - PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH | ||||
| 69283-47010B2 |
ZVW35 DK.GRAY,TRIM6# |
1 | ||
| 69284C - PLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH | ||||
| 69284-47010B2 |
ZVW35 DK.GRAY,TRIM6# |
1 | ||
| 69293G - SNAP, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69293-12030 |
ZVW35 |
1 | ||
| 69294B - SNAP, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69293-12040 |
ZVW35 |
1 | ||
| 69310 - LOCK ASSY, FRONT DOOR, RH | ||||
| 69030-47081 |
ZVW35..LHD |
1 | ||
| 69311A - ROD, FRONT DOOR LOCK OPEN, RH | ||||
| 69311-47040 |
ZVW35 |
1 | ||
| 69312 - ROD, FRONT DOOR LOCK OPEN, LH | ||||
| 69312-47040 |
ZVW35 |
1 | ||
| 69318C - SEAL, DOOR LOCK WIRING HARNESS | ||||
| 69318-47010 |
ZVW35 |
2 | ||
| 69320 - LOCK ASSY, FRONT DOOR, LH | ||||
| 69040-52340 |
ZVW35..LHD |
1 | ||
| 69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER | ||||
| 69410-33010 |
ZVW35 |
2 | ||
| 69710B - CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH | ||||
| 69710-47030 |
ZVW35 |
1 | ||
| 69720B - CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH | ||||
| 69710-47030 |
ZVW35 |
1 | ||
| 69750C - CABLE ASSY, FRONT DOOR INSIDE LOCKING, RH | ||||
| 69750-47040 |
ZVW35 |
1 | ||
| 69760C - CABLE ASSY, FRONT DOOR INSIDE LOCKING LH | ||||
| 69750-47040 |
ZVW35 |
1 | ||
| Common parts | ||||
| 69237-30010 | ||||
| 69239-30010 | ||||
| 69296-30010 | ||||
| 90148-50003 | ||||
| 90148-60022 | ||||
| 90148-80066 | ||||
| 90189-05003 | ||||
| 93219-14008 | ||||
| 93568-55016 | ||||
