ZVW35L-BHXEBW (2009)
Toyota Prius(Plug-In Hbd)
Production
Dec 2009
-
Oct 2010
Engine
2ZRFXE
Transmission
CVFC ATM
Displacement
2500cc
Power
168 HP (125 kW)

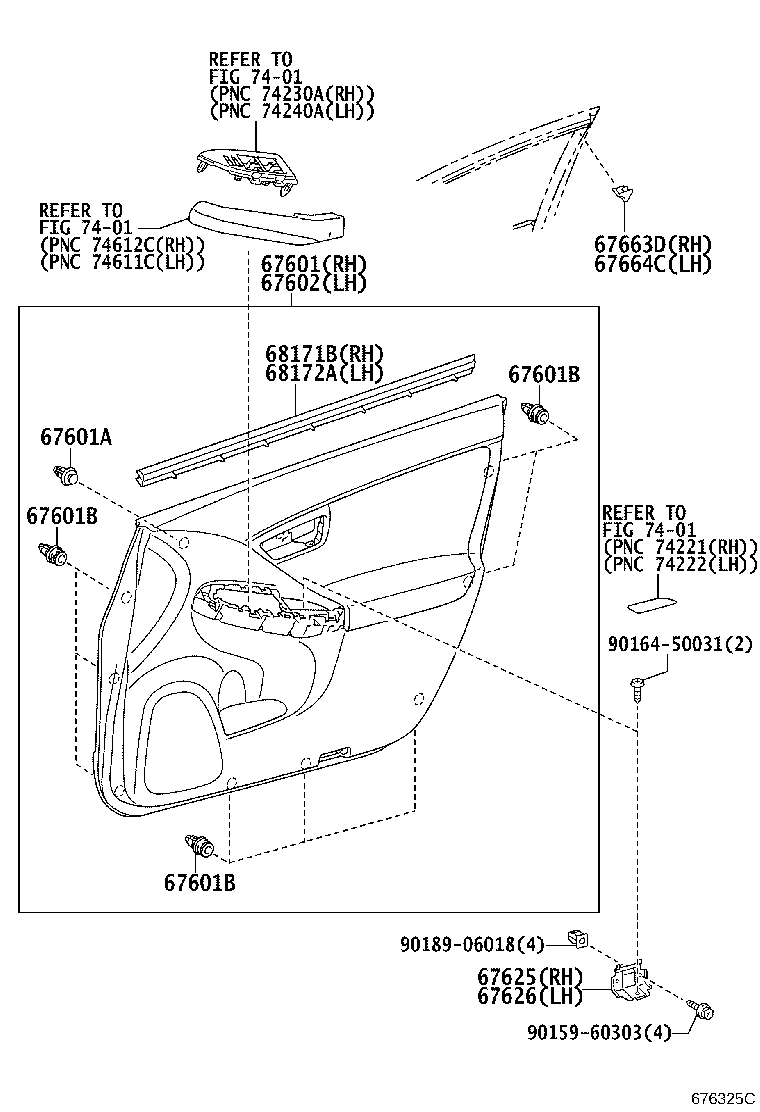

ILLUST NO. 2 OF 2(0912- )
Click highlighted areas on diagram
DOOR TRIM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-47380G0 |
ZVW35 AQUA/MIST GRAY,TRIM6# |
1 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-47010 |
ZVW35 |
2 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-09206 |
ZVW35 |
16 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-09206 |
ZVW35 |
16 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-09206 |
ZVW35 |
16 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-47380G0 |
ZVW35 AQUA/MIST GRAY,TRIM6# |
1 | ||
| 67625 - BRACKET, FRONT DOOR TRIM, RH | ||||
| 67625-47020 |
ZVW35 |
1 | ||
| 67626 - BRACKET, FRONT DOOR TRIM, LH | ||||
| 67625-47020 |
ZVW35 |
1 | ||
| 67663D - GARNISH, DOOR FRAME, RH | ||||
| 67663-48010 |
ZVW35 |
1 | ||
| 67664C - GARNISH, DOOR FRAME, LH | ||||
| 67664-48010 |
ZVW35 |
1 | ||
| 68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH | ||||
| 68171-47040 |
ZVW35 |
1 | ||
| 68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH | ||||
| 68172-47040 |
ZVW35 |
1 | ||
| Common parts | ||||
| 90159-60303 | ||||
| 90164-50031 | ||||
| 90189-06018 | ||||
| Linked diagrams | ||||
| 7401 | ||||
ILLUST NO. 1 OF 2(0912- )
Click highlighted areas on diagram
DOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-47070 |
ZVW35 |
1 | ||
| 67001A - CUSHION, FRONT DOOR PANEL | ||||
| 90541-09124 |
ZVW35 |
4 | ||
| 90541-09138 |
ZVW35 |
4 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-47070 |
ZVW35 |
1 | ||
| 67111 - PANEL, FRONT DOOR, OUTER RH | ||||
| 67111-47030 |
ZVW35 |
1 | ||
| 67112 - PANEL, FRONT DOOR, OUTER LH | ||||
| 67112-47030 |
ZVW35 |
1 | ||
| 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-47030 |
ZVW35 |
1 | ||
| 67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-47030 |
ZVW35 |
1 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-47130 |
ZVW35 |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-47110 |
ZVW35 |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-47030 |
ZVW35 |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-47030 |
ZVW35 |
1 | ||
| 67867A - CLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR) | ||||
| 90467-04034 |
ZVW35 |
2 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
ZVW35 |
13 | ||
| 67867G - RETAINER, DOOR WEATHERSTRIP, RH | ||||
| 67867-52030 |
ZVW35 |
2 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
ZVW35 |
13 | ||
| 67868L - RETAINER, DOOR WEATHERSTRIP, LH | ||||
| 67867-52030 |
ZVW35 |
2 | ||
| 67869B - CLIP, FRONT DOOR WEATHERSTRIP | ||||
| 90467-05017C0 |
ZVW35 BLACK |
4 | ||
| 67923 - CUSHION, FRONT DOOR STIFFENER, NO.1 | ||||
| 67923-47040 |
ZVW35 |
1 | ||
| 67924 - CUSHION, FRONT DOOR STIFFENER, NO.2 | ||||
| 67924-47030 |
ZVW35 |
1 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68101-47071 |
ZVW35 *UVCT,T=3.5,GREEN |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68102-47071 |
ZVW35 *UVCT,T=3.5,GREEN |
1 | ||
| 68141C - RUN, FRONT DOOR GLASS, RH | ||||
| 68141-47030 |
ZVW35 |
1 | ||
| 68151D - RUN, FRONT DOOR GLASS, LH | ||||
| 68151-47030 |
ZVW35 |
1 | ||
| 68610B - CHECK ASSY, FRONT DOOR, RH | ||||
| 68610-47020 |
ZVW35 |
1 | ||
| 68620 - CHECK ASSY, FRONT DOOR, LH | ||||
| 68610-47020 |
ZVW35 |
1 | ||
| 75921C - TAPE, BLACK OUT, NO.1 RH | ||||
| 75921-47020 |
ZVW35 |
1 | ||
| 75922M - TAPE, BLACK OUT, NO.1 LH | ||||
| 75922-47020 |
ZVW35 |
1 | ||
| 75965B - STRIPE, FRONT DOOR NO.4 RH | ||||
| 75965-47010 |
ZVW35 |
1 | ||
| 75966B - STRIPE, FRONT DOOR NO.4 LH | ||||
| 75966-47010 |
ZVW35 |
1 | ||
| 75975G - STRIPE, FRONT DOOR, NO.2 RH | ||||
| 75975-47020 |
ZVW35 |
1 | ||
| 75976G - STRIPE, FRONT DOOR, NO.2 LH | ||||
| 75976-47020 |
ZVW35 |
1 | ||
| 75985G - STRIPE, FRONT DOOR OUTSIDE, RH | ||||
| 75985-47020 |
ZVW35 |
1 | ||
| 75986G - STRIPE, FRONT DOOR OUTSIDE, LH | ||||
| 75986-47020 |
ZVW35 |
1 | ||
| 87912A - PROTECTOR, OUTER MIRROR | ||||
| 87912-47020 |
ZVW35 LH |
1 | ||
| 87912-47010 |
ZVW35 RH |
1 | ||
| 87963 - COVER, OUTER MIRROR INSTALL HOLE, RH | ||||
| 87963-47010 |
ZVW35 |
1 | ||
| 87964 - COVER, OUTER MIRROR INSTALL HOLE, LH | ||||
| 87964-47010 |
ZVW35 |
1 | ||
| Common parts | ||||
| 90109-08295 | ||||
| 90119-06983 | ||||
| 90159-50138 | ||||
| 90189-06227 | ||||
| 90387-08171 | ||||
| 91673-80616 | ||||
| 91673-A0620 | ||||
| Linked diagrams | ||||
| 7503 | ||||
