ZVW35L-BHXEBW (2009)
Toyota Prius(Plug-In Hbd)
Production
Dec 2009
-
Oct 2010
Engine
2ZRFXE
Transmission
CVFC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0912- )

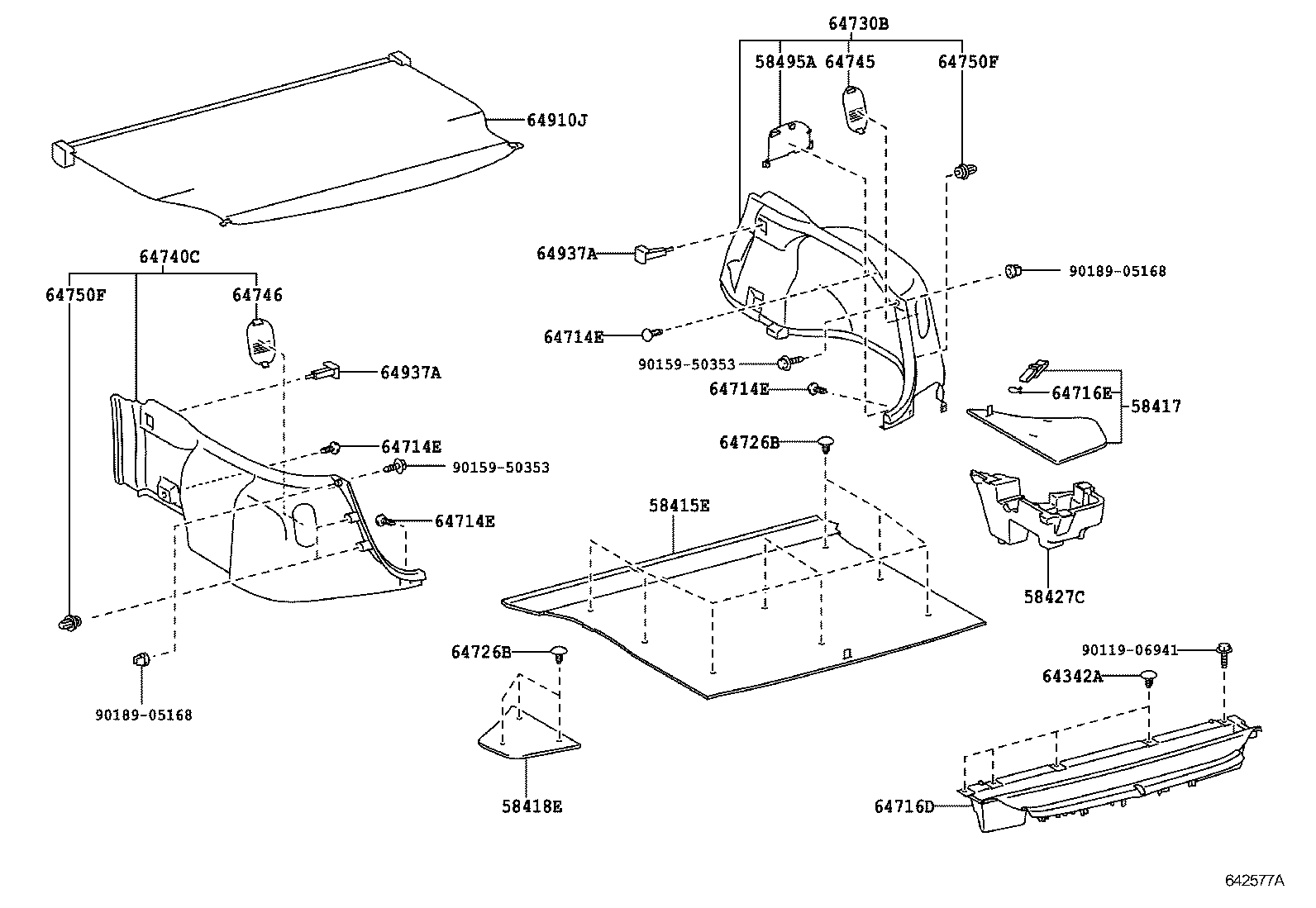

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58415E - BOARD, REAR FLOOR, NO.1 | ||||
| 58415-47050B2 |
ZVW35 AQUA,TRIM6# |
1 | ||
| 58417 - BOARD, REAR FLOOR, NO.3 | ||||
| 58417-47050B3 |
ZVW35 AQUA,TRIM6# |
1 | ||
| 58418E - BOARD, REAR FLOOR, NO.4 | ||||
| 58418-47050B2 |
ZVW35 AQUA,TRIM6# |
1 | ||
| 58427C - SPACER, REAR FLOOR BOARD | ||||
| 58427-47020 |
ZVW35 |
1 | ||
| 58495A - PLATE, REAR FLOOR BOARD, UPPER NO.3 | ||||
| 58495-47020B0 |
ZVW35 LT.GRAY,TRIM6# |
1 | ||
| 64342A - CLIP | ||||
| 63399-60060B0 |
ZVW35 LT.GRAY,TRIM6# |
4 | ||
| 64714E - CLIP(FOR DECK TRIM SIDE COVER) | ||||
| 63399-60060B0 |
ZVW35 LT.GRAY,TRIM6# |
4 | ||
| 64714E - CLIP(FOR DECK TRIM SIDE COVER) | ||||
| 63399-60060B0 |
ZVW35 LT.GRAY,TRIM6# |
4 | ||
| 64714E - CLIP(FOR DECK TRIM SIDE COVER) | ||||
| 63399-60060B0 |
ZVW35 LT.GRAY,TRIM6# |
4 | ||
| 64714E - CLIP(FOR DECK TRIM SIDE COVER) | ||||
| 63399-60060B0 |
ZVW35 LT.GRAY,TRIM6# |
4 | ||
| 64716D - COVER, DECK TRIM, REAR | ||||
| 64716-47050B0 |
ZVW35 LT.GRAY,TRIM6# |
1 | ||
| 64716E - CLIP(FOR DECK TRIM REAR COVER) | ||||
| 90464-00562 |
ZVW35 |
1 | ||
| 64726B - CLIP, DECK REAR TRIM | ||||
| 90467-05146B3 |
ZVW35 AQUA,TRIM6# |
11 | ||
| 64726B - CLIP, DECK REAR TRIM | ||||
| 90467-05146B3 |
ZVW35 AQUA,TRIM6# |
11 | ||
| 64730B - PANEL ASSY, DECK TRIM SIDE, RH | ||||
| 64730-47060B1 |
ZVW35 AQUA,TRIM6# |
1 | ||
| 64740C - PANEL ASSY, DECK TRIM SIDE, LH | ||||
| 64740-47060B1 |
ZVW35 AQUA,TRIM6# |
1 | ||
| 64745 - COVER, REAR COMBINATION LAMP SERVICE, RH | ||||
| 64745-47030B0 |
ZVW35 LT.GRAY,TRIM1#,6# |
1 | ||
| 64746 - COVER, REAR COMBINATION LAMP SERVICE, LH | ||||
| 64745-47030B0 |
ZVW35 LT.GRAY,TRIM1#,6# |
1 | ||
| 64750F - CLIP(FOR DECK SIDE TRIM PANEL) | ||||
| 90467-10161 |
ZVW35 |
4 | ||
| 64750F - CLIP(FOR DECK SIDE TRIM PANEL) | ||||
| 90467-10161 |
ZVW35 |
4 | ||
| 64910J - COVER ASSY, TONNEAU | ||||
| 64910-47020B0 |
ZVW35 LT.GRAY,TRIM6# |
1 | ||
| 64937A - CAP, TONNEAU COVER HOLDER, NO.1 | ||||
| 64937-47010B0 |
ZVW35 LT.GRAY,TRIM1#,6# |
2 | ||
| 64937A - CAP, TONNEAU COVER HOLDER, NO.1 | ||||
| 64937-47010B0 |
ZVW35 LT.GRAY,TRIM1#,6# |
2 | ||
| Common parts | ||||
| 90119-06941 | ||||
| 90159-50353 | ||||
| 90189-05168 | ||||
