ZVW35L-BHXEBW (2009)

Toyota Prius(Plug-In Hbd)

Production Dec 2009 - Oct 2010
Engine 2ZRFXE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0912- )

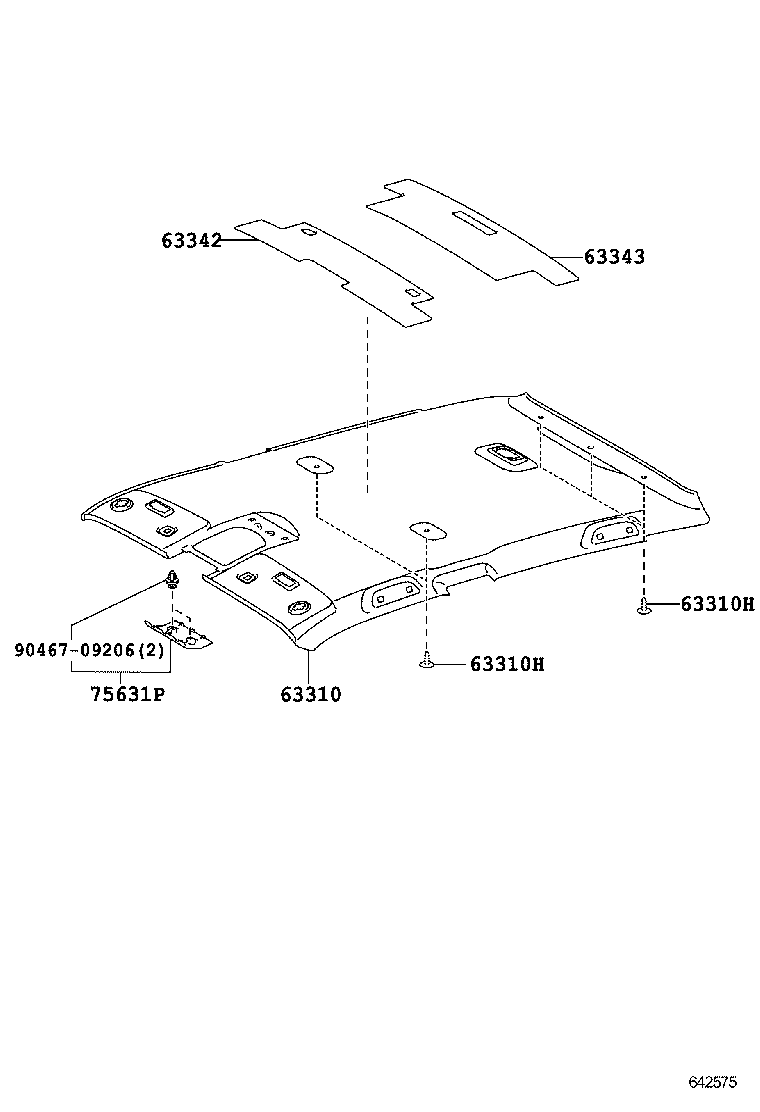

Click highlighted areas on diagram

diagram 63310 63310H 63310H 63342 63343 75631P 9046709206
Part # Description Qty Price
63310 - HEADLINING ASSY, ROOF
63310-47080B0

ZVW35

LT.GRAY,TRIM6#

 1
63310H - CLIP(FOR ROOF HEADLINING)
90467-05164B0

ZVW35

LT.GRAY,TRIM6#

 5
63310H - CLIP(FOR ROOF HEADLINING)
90467-05164B0

ZVW35

LT.GRAY,TRIM6#

 5
63342 - PAD, ROOF SILENCER, NO.2
63342-47050

ZVW35

 1
63343 - PAD, ROOF SILENCER, NO.3
63343-47040

ZVW35

 1
75631P - MOULDING, ROOF TOP
75631-47010B0

ZVW35

LT.GRAY,TRIM6#

 1
Common parts
90467-09206
