ZVW35L-BHXEBW (2009)

Toyota Prius(Plug-In Hbd)

Production Dec 2009 - Oct 2010
Engine 2ZRFXE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0912- )

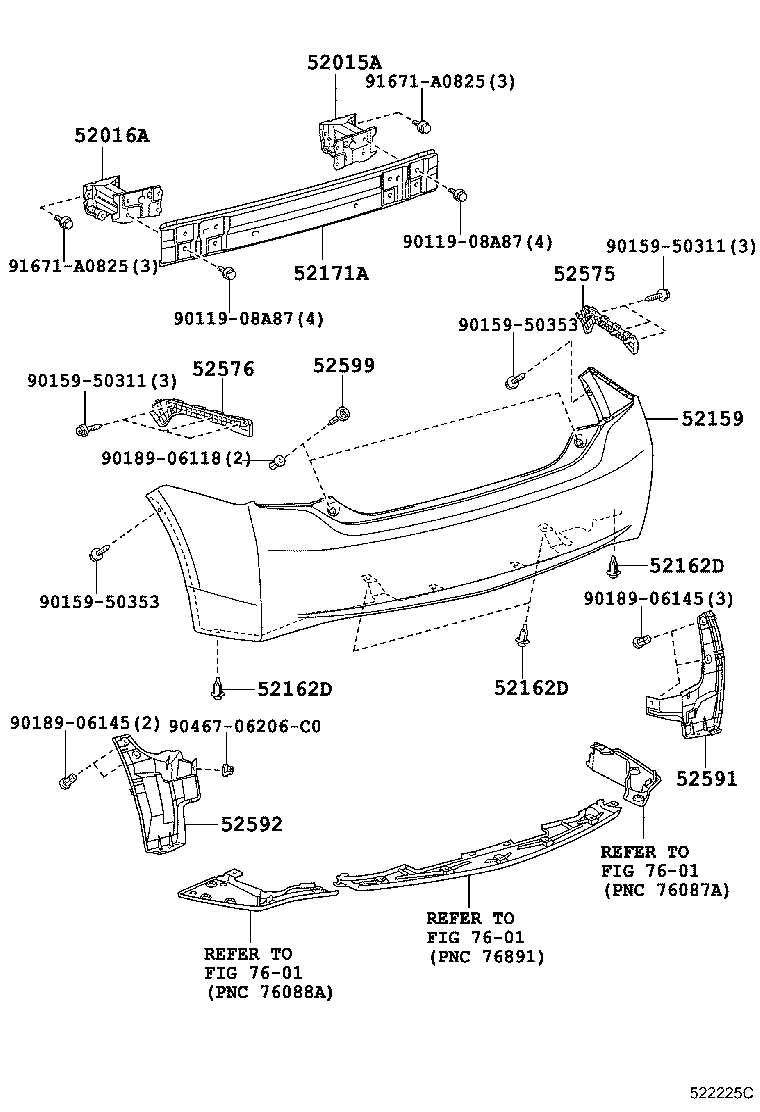

Click highlighted areas on diagram

diagram 52015A 52016A 52159 52162D 52162D 52162D 52171A 52575 52576 52591 52592 52599 7601 7601 7601 9011908A87 9011908A87 9015950311 9015950311 9015950353 9015950353 9018906118 9018906145 9018906145 9046706206C0 91671A0825 91671A0825
Part # Description Qty Price
52015A - ARM SUB-ASSY, REAR BUMPER, RH
52015-47050

ZVW35

 1
52016A - ARM SUB-ASSY, REAR BUMPER, LH
52016-47030

ZVW35

 1
52159 - COVER, REAR BUMPER
52159-47905

ZVW35

PAINT REQ.

 1
52162D - PIECE, REAR BUMPER
52161-16010

ZVW35

 4
52162D - PIECE, REAR BUMPER
52161-16010

ZVW35

 4
52162D - PIECE, REAR BUMPER
52161-16010

ZVW35

 4
52171A - REINFORCEMENT, REAR BUMPER, NO.1
52023-12240

ZVW35

 1
52575 - RETAINER, REAR BUMPER SIDE, RH
52575-47020

ZVW35

 1
52576 - RETAINER, REAR BUMPER SIDE, LH
52576-47020

ZVW35

 1
52591 - SEAL, REAR BUMPER SIDE, RH
52591-47021

ZVW35

 1
52592 - SEAL, REAR BUMPER SIDE, LH
52592-47021

ZVW35

 1
52599 - STOPPER, REAR BUMPER, UPPER
52599-68030

ZVW35

 2
Common parts
90119-08A87
90159-50311
90159-50353
90189-06118
90189-06145
90467-06206C0
91671-A0825
Linked diagrams
7601
