ZVW35L-BHXEBW (2009)
Toyota Prius(Plug-In Hbd)
Production
Dec 2009
-
Oct 2010
Engine
2ZRFXE
Transmission
CVFC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0912- )

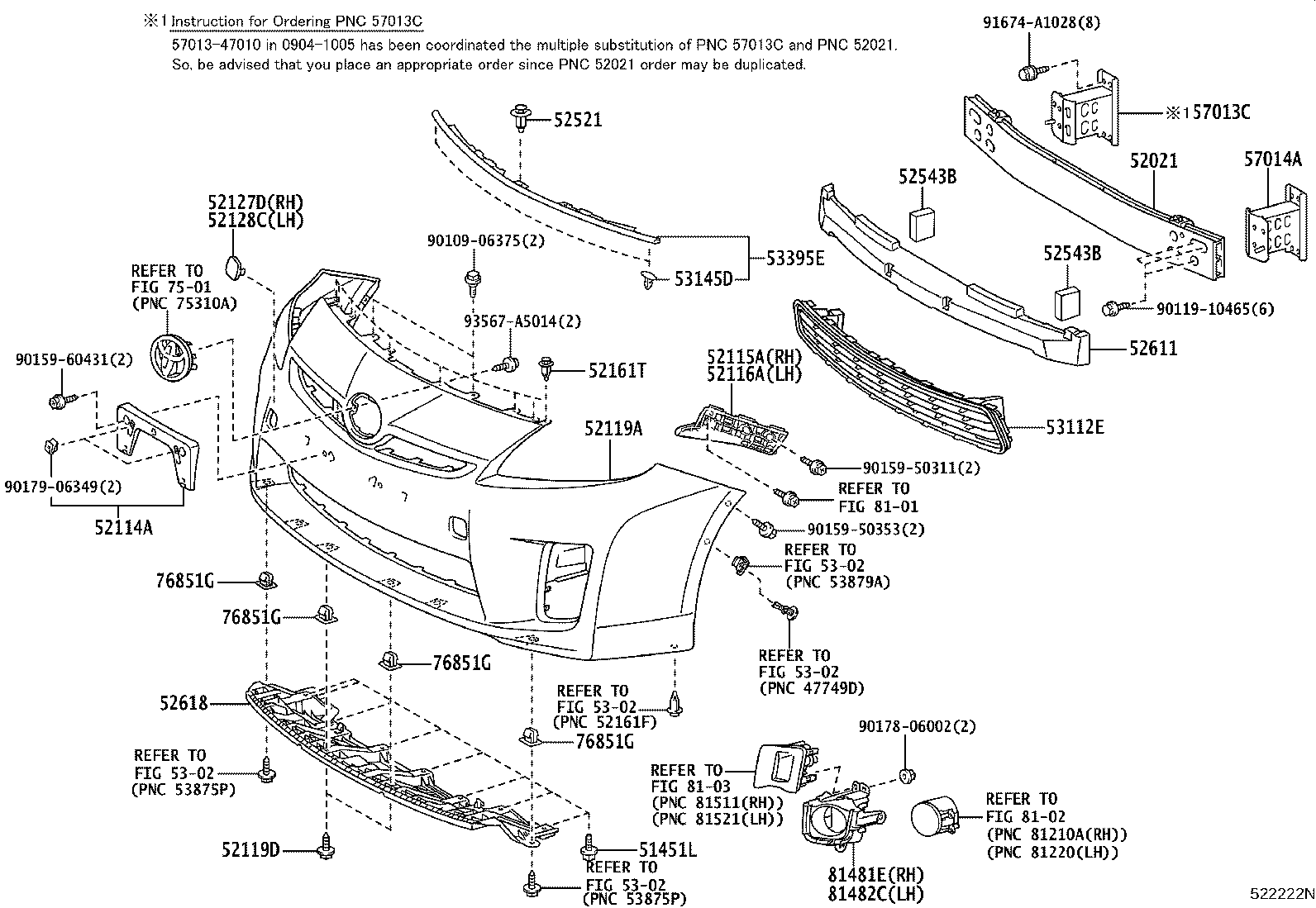

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51451L - BOLT, NO.1 | ||||
| 90119-06767 |
ZVW35 |
8 | ||
| 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER | ||||
| 52021-47023 |
ZVW35 |
1 | ||
| 52021-47022 |
ZVW35 |
1 | ||
| 52021-47021 |
ZVW35 |
1 | ||
| 52114A - BRACKET, FRONT BUMPER EXTENSION MOUNTING | ||||
| 52114-47080 |
ZVW35 |
1 | ||
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-47020 |
ZVW35 |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52116-47020 |
ZVW35 |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-47913 |
ZVW35 PAINT REQ. |
1 | ||
| 52119D - SCREW, NO.1 | ||||
| 90159-60488 |
ZVW35 |
2 | ||
| 52127D - COVER, FRONT BUMPER HOLE, RH | ||||
| 52127-47900 |
ZVW35 |
1 | ||
| 52128C - COVER, FRONT BUMPER HOLE, LH | ||||
| 52128-47900 |
ZVW35 |
1 | ||
| 52161T - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
ZVW35 |
8 | ||
| 52521 - RETAINER, FRONT BUMPER, UPPER CENTER | ||||
| 90467-05063C0 |
ZVW35 BLACK |
1 | ||
| 52543B - SEAL, FRONT BUMPER | ||||
| 52543-47020 |
ZVW35 |
2 | ||
| 52543B - SEAL, FRONT BUMPER | ||||
| 52543-47020 |
ZVW35 |
2 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-47040 |
ZVW35 |
1 | ||
| 52618 - ABSORBER, FRONT BUMPER, LOWER | ||||
| 52618-47010 |
ZVW35 |
1 | ||
| 53112E - GRILLE, RADIATOR, LOWER NO.1 | ||||
| 53112-47040 |
ZVW35 NO PAINT REQ. |
1 | ||
| 53145D - CLIP, RADIATOR GRILLE | ||||
| 53145-60030 |
ZVW35 |
2 | ||
| 53395E - SEAL, HOOD TO FRONT END PANEL | ||||
| 53395-47020 |
ZVW35 |
1 | ||
| 57013C - BRACKET SUB-ASSY, FRONT SIDE MEMBER, RH | ||||
| 57013-47030 |
ZVW35 |
1 | ||
| 57013-47010 |
ZVW35 |
1 | ||
| 57014A - BRACKET SUB-ASSY, FRONT SIDE MEMBER, LH | ||||
| 57014-47030 |
ZVW35 |
1 | ||
| 76851G - GROMMET, SCREW, NO.1 | ||||
| 90189-06193 |
ZVW35 |
4 | ||
| 76851G - GROMMET, SCREW, NO.1 | ||||
| 90189-06193 |
ZVW35 |
4 | ||
| 76851G - GROMMET, SCREW, NO.1 | ||||
| 90189-06193 |
ZVW35 |
4 | ||
| 76851G - GROMMET, SCREW, NO.1 | ||||
| 90189-06193 |
ZVW35 |
4 | ||
| 81481E - COVER, FOG LAMP, RH | ||||
| 81481-47020 |
ZVW35 |
1 | ||
| 81482C - COVER, FOG LAMP, LH | ||||
| 81482-47020 |
ZVW35 |
1 | ||
| Common parts | ||||
| 90109-06375 | ||||
| 90119-10465 | ||||
| 90159-50311 | ||||
| 90159-50353 | ||||
| 90159-60431 | ||||
| 90178-06002 | ||||
| 90179-06349 | ||||
| 91674-A1028 | ||||
| 93567-A5014 | ||||
| Linked diagrams | ||||
| 5302 | ||||
| 7501 | ||||
| 8101 | ||||
| 8102 | ||||
| 8103 | ||||
