ZVW35L-BHXEBW (2009)
Toyota Prius(Plug-In Hbd)
Production
Dec 2009
-
Oct 2010
Engine
2ZRFXE
Transmission
CVFC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0912- )LHD

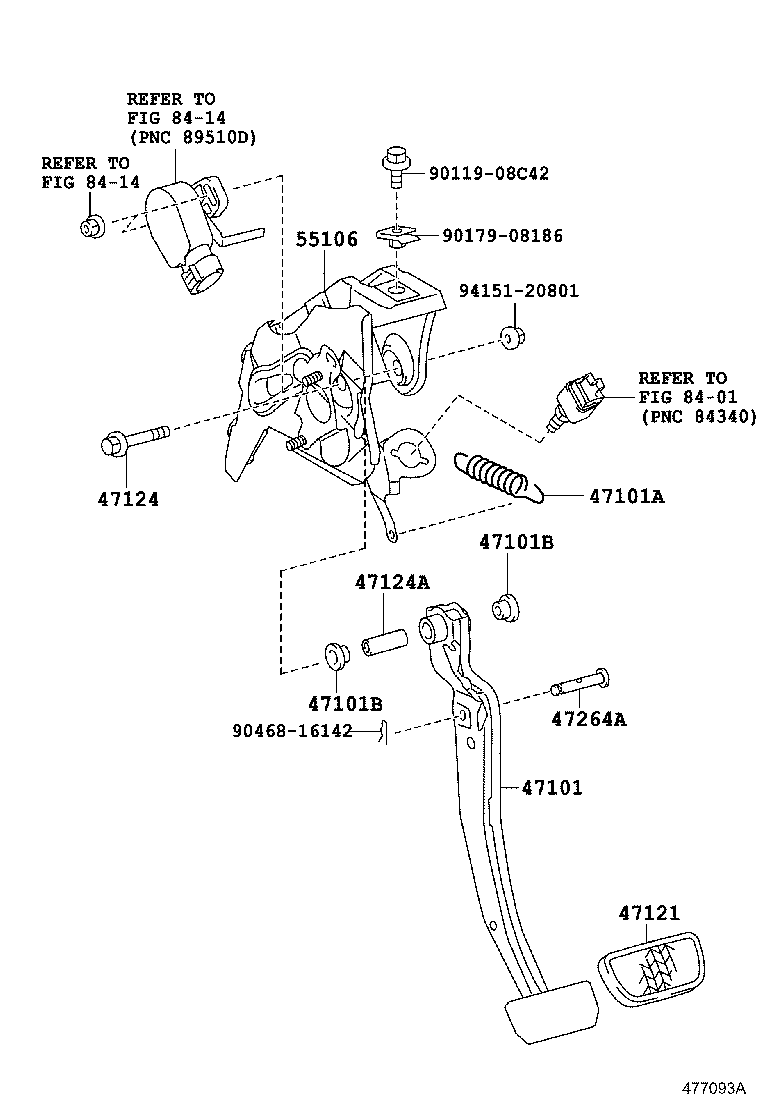

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47101 - PEDAL SUB-ASSY, BRAKE | ||||
| 47101-75021 |
ZVW35..LHD |
1 | ||
| 47101A - SPRING(FOR BRAKE PEDAL RETURN) | ||||
| 90507-14050 |
ZVW35 |
1 | ||
| 47101B - BUSH(FOR BRAKE PEDAL) | ||||
| 90386-13015 |
ZVW35 |
2 | ||
| 47101B - BUSH(FOR BRAKE PEDAL) | ||||
| 90386-13015 |
ZVW35 |
2 | ||
| 47121 - PAD, BRAKE PEDAL | ||||
| 47121-42010 |
ZVW35 |
1 | ||
| 47124 - SHAFT, BRAKE PEDAL | ||||
| 47124-47010 |
ZVW35 |
1 | ||
| 47124A - COLLAR(FOR BRAKE PEDAL SHAFT) | ||||
| 47144-47010 |
ZVW35 |
1 | ||
| 47264A - PIN(FOR PUSH ROD) | ||||
| 47148-47020 |
ZVW35 |
1 | ||
| 55106 - SUPPORT SUB-ASSY, BRAKE PEDAL | ||||
| 55106-75021 |
ZVW35..LHD |
1 | ||
| Common parts | ||||
| 90119-08C42 | ||||
| 90179-08186 | ||||
| 90468-16142 | ||||
| 94151-20801 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8414 | ||||
