TCR21L-RFMGKW (1990)
Toyota Previa
(9005-9401)

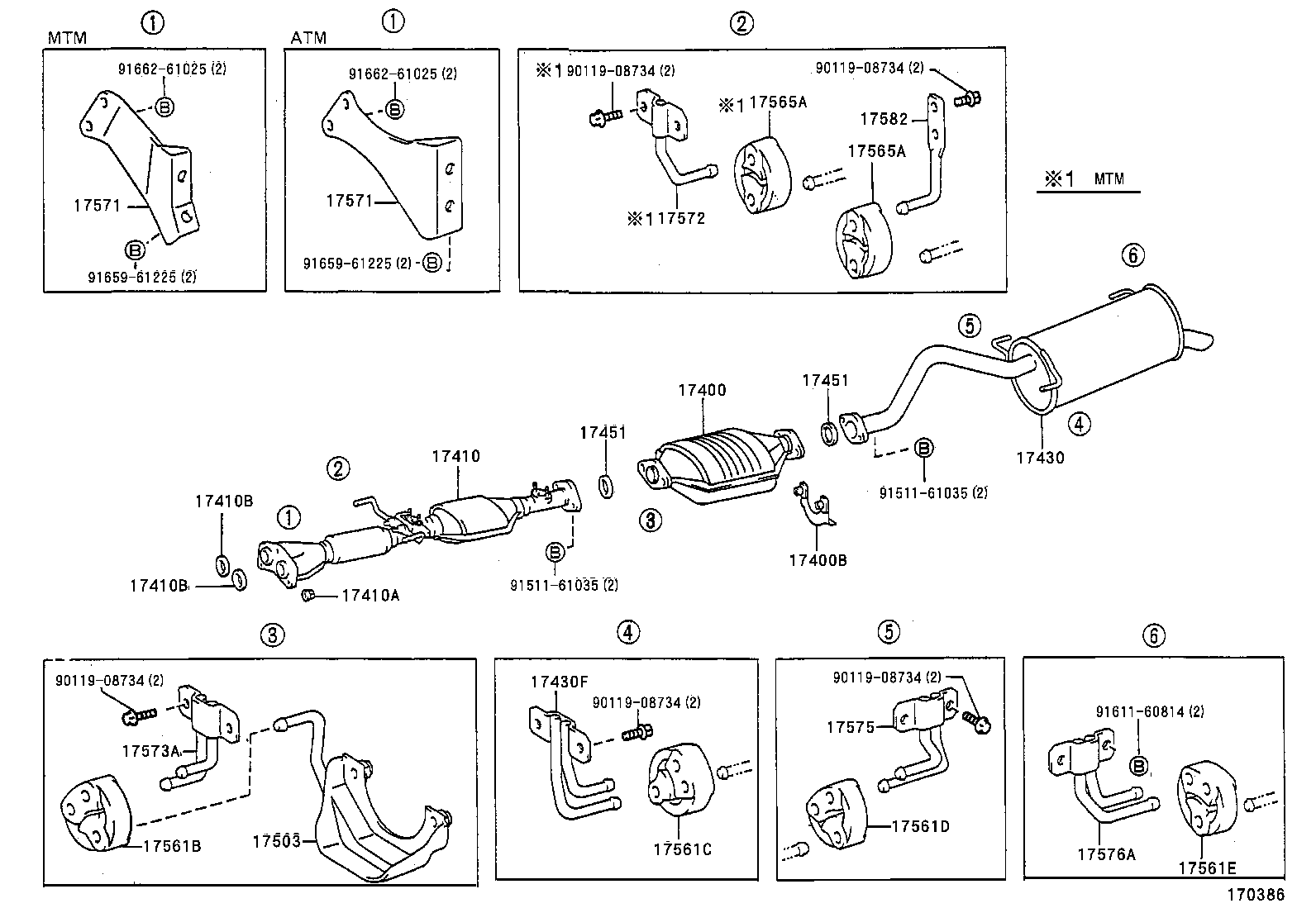

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-76020 |
2TZFE..TCR1#,2#..W |
1 | ||
| 17410-76030 |
2TZFE..TCR1#,2#..LHD..W W(CONVERTER) |
1 | ||
| 17410-76152 |
2TZFE..TCR1#,2#..W |
1 | ||
| 17410-76151 |
2TZFE..TCR1#,2#..W |
1 | ||
| 17410-76201 |
2TZFE..TCR1#,2#..W |
1 | ||
| 17410-76202 |
2TZFE..TCR1#,2#..W |
1 | ||
| 17410-76150 |
2TZFE..TCR1#,2#..W |
1 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90179-10070 |
2TZFE..TCR1#,2# |
3 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06039 |
2TZFE..TCR1#,2# |
2 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06039 |
2TZFE..TCR1#,2# |
2 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-76071 |
2TZFE..TCR1#,2#..LHD..W W(CONVERTER) |
1 | ||
| 17430-76060 |
2TZFE..TCR1#,2#..W |
1 | ||
| 17430-76110 |
2TZFE..TCR1#,2#..W |
1 | ||
| 17430-76070 |
2TZFE..TCR1#,2#..LHD W(CONVERTER) |
1 | ||
| 17430-76061 |
2TZFE..TCR1#,2#..W |
1 | ||
| 17405-76071 |
2TZFE..TCR1#,2#..W |
1 | ||
| 17405-76072 |
2TZFE..TCR1#,2#..W |
1 | ||
| 17430-76120 |
2TZFE..TCR1#,2#..LHD..W W(CONVERTER) |
1 | ||
| 17405-76070 |
2TZFE..TCR1#,2#..W |
1 | ||
| 17430F - BRACKET, EXHAUST TAIL PIPE(FOR CENTER) | ||||
| 17574-76030 |
2TZFE..TCR11,21 |
1 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 90917-06057 |
2TZFE..TCR1#,2#..LHD..W W(CONVERTER),RR |
1 | ||
| 90917-06043 |
2TZFE..TCR1#,2#..LHD..W W(CONVERTER),FR |
1 | ||
| 90917-06057 |
2TZFE..TCR1#,2# |
2 | ||
| 90917-06057 |
2TZFE..TCR1#,2# |
1 | ||
| 17503 - BRACKET SUB-ASSY, CATALYTIC CONVERTER, REAR | ||||
| 17503-76010 |
2TZFE..TCR1#,2# |
1 | ||
| 17503-76010 |
2TZFE..TCR1#,2#..W |
1 | ||
| 17561B - SUPPORT, EXHAUST PIPE, NO.1 | ||||
| 17561-74110 |
2TZFE..TCR1#,2# |
1 | ||
| 17561C - SUPPORT, EXHAUST PIPE, NO.1 | ||||
| 17561-74110 |
2TZFE..TCR1#,2# |
1 | ||
| 17561D - SUPPORT, EXHAUST PIPE, NO.1 | ||||
| 17561-74110 |
2TZFE..TCR1#,2# |
1 | ||
| 17561E - SUPPORT, EXHAUST PIPE, NO.1 | ||||
| 17561-74110 |
2TZFE..TCR1#,2# |
1 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17565-76030 |
2TZFE..TCR1#,2# |
2 | ||
| 17565-11160 |
2TZFE..TCR1#,2#..MTM |
2 | ||
| 17565-76030 |
2TZFE..TCR1#,2#..MTM |
2 | ||
| 17565-11160 |
2TZFE..TCR1#,2# |
3 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17565-76030 |
2TZFE..TCR1#,2# |
2 | ||
| 17565-11160 |
2TZFE..TCR1#,2#..MTM |
2 | ||
| 17565-76030 |
2TZFE..TCR1#,2#..MTM |
2 | ||
| 17565-11160 |
2TZFE..TCR1#,2# |
3 | ||
| 17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1 | ||||
| 17571-76050 |
2TZFE..TCR1#,2#..MTM |
1 | ||
| 17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1 | ||||
| 17571-76050 |
2TZFE..TCR1#,2#..MTM |
1 | ||
| 17572 - BRACKET, EXHAUST PIPE NO.1 SUPPORT | ||||
| 17583-76010 |
2TZFE..TCR1#,2#..MTM |
1 | ||
| 17583-76010 |
2TZFE..TCR1#,2# |
1 | ||
| 17573A - BRACKET, EXHAUST PIPE SUPPORT, NO.3 | ||||
| 17573-76030 |
2TZFE..TCR1#,2# |
1 | ||
| 17575 - BRACKET, EXHAUST PIPE SUPPORT, NO.5 | ||||
| 17575-76020 |
2TZFE..TCR1#,2# |
1 | ||
| 17576A - BRACKET, EXHAUST PIPE SUPPORT, NO.6 | ||||
| 17576-76030 |
2TZFE..TCR1#,2# |
1 | ||
| 17582 - BRACKET, CATALYTIC CONVERTER SUPPORT, UPPER | ||||
| 17582-76010 |
2TZFE..TCR1#,2# |
1 | ||
| Common parts | ||||
| 90119-08734 | ||||
| 91512-61035 | ||||
| 91611-60814 | ||||
| 91659-61225 | ||||
| 91662-61025 | ||||
(9401- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17400B - RETAINER, EXHAUST PIPE | ||||
| 18495-76010 |
2TZFE..TCR1#,2#..GEN,V,W |
1 | ||
| 18495-76010 |
2TZFE..TCR1#,2#..LHD..W |
1 | ||
| 18495-76010 |
2TZFE..TCR1#,2#..LHD..W W(CONVERTER) |
2 | ||
| 17400B - RETAINER, EXHAUST PIPE | ||||
| 18495-76010 |
2TZFE..TCR1#,2#..GEN,V,W |
1 | ||
| 18495-76010 |
2TZFE..TCR1#,2#..LHD..W |
1 | ||
| 18495-76010 |
2TZFE..TCR1#,2#..LHD..W W(CONVERTER) |
2 | ||
| 17400B - RETAINER, EXHAUST PIPE | ||||
| 18495-76010 |
2TZFE..TCR1#,2#..GEN,V,W |
1 | ||
| 18495-76010 |
2TZFE..TCR1#,2#..LHD..W |
1 | ||
| 18495-76010 |
2TZFE..TCR1#,2#..LHD..W W(CONVERTER) |
2 | ||
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-76020 |
2TZFE..TCR1#,2#..W |
1 | ||
| 17410-76030 |
2TZFE..TCR1#,2#..LHD..W W(CONVERTER) |
1 | ||
| 17410-76152 |
2TZFE..TCR1#,2#..W |
1 | ||
| 17410-76151 |
2TZFE..TCR1#,2#..W |
1 | ||
| 17410-76201 |
2TZFE..TCR1#,2#..W |
1 | ||
| 17410-76202 |
2TZFE..TCR1#,2#..W |
1 | ||
| 17410-76150 |
2TZFE..TCR1#,2#..W |
1 | ||
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-76020 |
2TZFE..TCR1#,2#..W |
1 | ||
| 17410-76030 |
2TZFE..TCR1#,2#..LHD..W W(CONVERTER) |
1 | ||
| 17410-76152 |
2TZFE..TCR1#,2#..W |
1 | ||
| 17410-76151 |
2TZFE..TCR1#,2#..W |
1 | ||
| 17410-76201 |
2TZFE..TCR1#,2#..W |
1 | ||
| 17410-76202 |
2TZFE..TCR1#,2#..W |
1 | ||
| 17410-76150 |
2TZFE..TCR1#,2#..W |
1 | ||
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-76020 |
2TZFE..TCR1#,2#..W |
1 | ||
| 17410-76030 |
2TZFE..TCR1#,2#..LHD..W W(CONVERTER) |
1 | ||
| 17410-76152 |
2TZFE..TCR1#,2#..W |
1 | ||
| 17410-76151 |
2TZFE..TCR1#,2#..W |
1 | ||
| 17410-76201 |
2TZFE..TCR1#,2#..W |
1 | ||
| 17410-76202 |
2TZFE..TCR1#,2#..W |
1 | ||
| 17410-76150 |
2TZFE..TCR1#,2#..W |
1 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90179-10070 |
2TZFE..TCR1#,2# |
3 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90179-10070 |
2TZFE..TCR1#,2# |
3 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90179-10070 |
2TZFE..TCR1#,2# |
3 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06039 |
2TZFE..TCR1#,2# |
2 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06039 |
2TZFE..TCR1#,2# |
2 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06039 |
2TZFE..TCR1#,2# |
2 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06039 |
2TZFE..TCR1#,2# |
2 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06039 |
2TZFE..TCR1#,2# |
2 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06039 |
2TZFE..TCR1#,2# |
2 | ||
| 17420 - PIPE ASSY, EXHAUST, CENTER | ||||
| 17420-76011 |
2TZFE..TCR1#,2#..W |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-76071 |
2TZFE..TCR1#,2#..LHD..W W(CONVERTER) |
1 | ||
| 17430-76060 |
2TZFE..TCR1#,2#..W |
1 | ||
| 17430-76110 |
2TZFE..TCR1#,2#..W |
1 | ||
| 17430-76070 |
2TZFE..TCR1#,2#..LHD W(CONVERTER) |
1 | ||
| 17430-76061 |
2TZFE..TCR1#,2#..W |
1 | ||
| 17405-76071 |
2TZFE..TCR1#,2#..W |
1 | ||
| 17405-76072 |
2TZFE..TCR1#,2#..W |
1 | ||
| 17430-76120 |
2TZFE..TCR1#,2#..LHD..W W(CONVERTER) |
1 | ||
| 17405-76070 |
2TZFE..TCR1#,2#..W |
1 | ||
| 17430F - BRACKET, EXHAUST TAIL PIPE(FOR CENTER) | ||||
| 17574-76030 |
2TZFE..TCR11,21 |
1 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 90917-06057 |
2TZFE..TCR1#,2#..LHD..W W(CONVERTER),RR |
1 | ||
| 90917-06043 |
2TZFE..TCR1#,2#..LHD..W W(CONVERTER),FR |
1 | ||
| 90917-06057 |
2TZFE..TCR1#,2# |
2 | ||
| 90917-06057 |
2TZFE..TCR1#,2# |
1 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 90917-06057 |
2TZFE..TCR1#,2#..LHD..W W(CONVERTER),RR |
1 | ||
| 90917-06043 |
2TZFE..TCR1#,2#..LHD..W W(CONVERTER),FR |
1 | ||
| 90917-06057 |
2TZFE..TCR1#,2# |
2 | ||
| 90917-06057 |
2TZFE..TCR1#,2# |
1 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 90917-06057 |
2TZFE..TCR1#,2#..LHD..W W(CONVERTER),RR |
1 | ||
| 90917-06043 |
2TZFE..TCR1#,2#..LHD..W W(CONVERTER),FR |
1 | ||
| 90917-06057 |
2TZFE..TCR1#,2# |
2 | ||
| 90917-06057 |
2TZFE..TCR1#,2# |
1 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 90917-06057 |
2TZFE..TCR1#,2#..LHD..W W(CONVERTER),RR |
1 | ||
| 90917-06043 |
2TZFE..TCR1#,2#..LHD..W W(CONVERTER),FR |
1 | ||
| 90917-06057 |
2TZFE..TCR1#,2# |
2 | ||
| 90917-06057 |
2TZFE..TCR1#,2# |
1 | ||
| 17503 - BRACKET SUB-ASSY, CATALYTIC CONVERTER, REAR | ||||
| 17503-76010 |
2TZFE..TCR1#,2# |
1 | ||
| 17503-76010 |
2TZFE..TCR1#,2#..W |
1 | ||
| 17561C - SUPPORT, EXHAUST PIPE, NO.1 | ||||
| 17561-74110 |
2TZFE..TCR1#,2# |
1 | ||
| 17561D - SUPPORT, EXHAUST PIPE, NO.1 | ||||
| 17561-74110 |
2TZFE..TCR1#,2# |
1 | ||
| 17561E - SUPPORT, EXHAUST PIPE, NO.1 | ||||
| 17561-74110 |
2TZFE..TCR1#,2# |
1 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17565-76030 |
2TZFE..TCR1#,2# |
2 | ||
| 17565-11160 |
2TZFE..TCR1#,2#..MTM |
2 | ||
| 17565-76030 |
2TZFE..TCR1#,2#..MTM |
2 | ||
| 17565-11160 |
2TZFE..TCR1#,2# |
3 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17565-76030 |
2TZFE..TCR1#,2# |
2 | ||
| 17565-11160 |
2TZFE..TCR1#,2#..MTM |
2 | ||
| 17565-76030 |
2TZFE..TCR1#,2#..MTM |
2 | ||
| 17565-11160 |
2TZFE..TCR1#,2# |
3 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17565-76030 |
2TZFE..TCR1#,2# |
2 | ||
| 17565-11160 |
2TZFE..TCR1#,2#..MTM |
2 | ||
| 17565-76030 |
2TZFE..TCR1#,2#..MTM |
2 | ||
| 17565-11160 |
2TZFE..TCR1#,2# |
3 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17565-76030 |
2TZFE..TCR1#,2# |
2 | ||
| 17565-11160 |
2TZFE..TCR1#,2#..MTM |
2 | ||
| 17565-76030 |
2TZFE..TCR1#,2#..MTM |
2 | ||
| 17565-11160 |
2TZFE..TCR1#,2# |
3 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17565-76030 |
2TZFE..TCR1#,2# |
2 | ||
| 17565-11160 |
2TZFE..TCR1#,2#..MTM |
2 | ||
| 17565-76030 |
2TZFE..TCR1#,2#..MTM |
2 | ||
| 17565-11160 |
2TZFE..TCR1#,2# |
3 | ||
| 17575 - BRACKET, EXHAUST PIPE SUPPORT, NO.5 | ||||
| 17575-76020 |
2TZFE..TCR1#,2# |
1 | ||
| 17576A - BRACKET, EXHAUST PIPE SUPPORT, NO.6 | ||||
| 17576-76030 |
2TZFE..TCR1#,2# |
1 | ||
| Common parts | ||||
| 90119-08734 | ||||
| 91512-61035 | ||||
| 91611-60814 | ||||
| Linked diagrams | ||||
| 5852 | ||||
(9005-9401)2TZFE..LHD..W
W(CONVERTER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17400 - CONVERTER ASSY, W/CATALYST | ||||
| 18450-74210 |
2TZFE..TCR1#,2#..LHD..W |
1 | ||
| 18450-03080 |
2TZFE..TCR1#,2#..LHD..W (L) |
1 | ||
| 17420-76020 |
2TZFE..TCR11..ARL;2TZFE..TCR11..LHD;2TZFE..TCR10,2#..ARL,W |
1 | ||
| 17403-76060 |
2TZFE..TCR1#,2#..LHD..W |
1 | ||
| 18450-74440 |
2TZFE..TCR1#,2#..LHD..W (J) |
1 | ||
| 17420-76020 |
2TZFE..TCR1#,2#..LHD..W |
1 | ||
| 17400B - RETAINER, EXHAUST PIPE | ||||
| 18495-76010 |
2TZFE..TCR1#,2#..GEN,V,W |
1 | ||
| 18495-76010 |
2TZFE..TCR1#,2#..LHD..W |
1 | ||
| 18495-76010 |
2TZFE..TCR1#,2#..LHD..W W(CONVERTER) |
2 | ||
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-76020 |
2TZFE..TCR1#,2#..W |
1 | ||
| 17410-76030 |
2TZFE..TCR1#,2#..LHD..W W(CONVERTER) |
1 | ||
| 17410-76152 |
2TZFE..TCR1#,2#..W |
1 | ||
| 17410-76151 |
2TZFE..TCR1#,2#..W |
1 | ||
| 17410-76201 |
2TZFE..TCR1#,2#..W |
1 | ||
| 17410-76202 |
2TZFE..TCR1#,2#..W |
1 | ||
| 17410-76150 |
2TZFE..TCR1#,2#..W |
1 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90179-10070 |
2TZFE..TCR1#,2# |
3 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06039 |
2TZFE..TCR1#,2# |
2 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06039 |
2TZFE..TCR1#,2# |
2 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-76071 |
2TZFE..TCR1#,2#..LHD..W W(CONVERTER) |
1 | ||
| 17430-76060 |
2TZFE..TCR1#,2#..W |
1 | ||
| 17430-76110 |
2TZFE..TCR1#,2#..W |
1 | ||
| 17430-76070 |
2TZFE..TCR1#,2#..LHD W(CONVERTER) |
1 | ||
| 17430-76061 |
2TZFE..TCR1#,2#..W |
1 | ||
| 17405-76071 |
2TZFE..TCR1#,2#..W |
1 | ||
| 17405-76072 |
2TZFE..TCR1#,2#..W |
1 | ||
| 17430-76120 |
2TZFE..TCR1#,2#..LHD..W W(CONVERTER) |
1 | ||
| 17405-76070 |
2TZFE..TCR1#,2#..W |
1 | ||
| 17430F - BRACKET, EXHAUST TAIL PIPE(FOR CENTER) | ||||
| 17574-76030 |
2TZFE..TCR11,21 |
1 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 90917-06057 |
2TZFE..TCR1#,2#..LHD..W W(CONVERTER),RR |
1 | ||
| 90917-06043 |
2TZFE..TCR1#,2#..LHD..W W(CONVERTER),FR |
1 | ||
| 90917-06057 |
2TZFE..TCR1#,2# |
2 | ||
| 90917-06057 |
2TZFE..TCR1#,2# |
1 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 90917-06057 |
2TZFE..TCR1#,2#..LHD..W W(CONVERTER),RR |
1 | ||
| 90917-06043 |
2TZFE..TCR1#,2#..LHD..W W(CONVERTER),FR |
1 | ||
| 90917-06057 |
2TZFE..TCR1#,2# |
2 | ||
| 90917-06057 |
2TZFE..TCR1#,2# |
1 | ||
| 17503 - BRACKET SUB-ASSY, CATALYTIC CONVERTER, REAR | ||||
| 17503-76010 |
2TZFE..TCR1#,2# |
1 | ||
| 17503-76010 |
2TZFE..TCR1#,2#..W |
1 | ||
| 17561B - SUPPORT, EXHAUST PIPE, NO.1 | ||||
| 17561-74110 |
2TZFE..TCR1#,2# |
1 | ||
| 17561C - SUPPORT, EXHAUST PIPE, NO.1 | ||||
| 17561-74110 |
2TZFE..TCR1#,2# |
1 | ||
| 17561D - SUPPORT, EXHAUST PIPE, NO.1 | ||||
| 17561-74110 |
2TZFE..TCR1#,2# |
1 | ||
| 17561E - SUPPORT, EXHAUST PIPE, NO.1 | ||||
| 17561-74110 |
2TZFE..TCR1#,2# |
1 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17565-76030 |
2TZFE..TCR1#,2# |
2 | ||
| 17565-11160 |
2TZFE..TCR1#,2#..MTM |
2 | ||
| 17565-76030 |
2TZFE..TCR1#,2#..MTM |
2 | ||
| 17565-11160 |
2TZFE..TCR1#,2# |
3 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17565-76030 |
2TZFE..TCR1#,2# |
2 | ||
| 17565-11160 |
2TZFE..TCR1#,2#..MTM |
2 | ||
| 17565-76030 |
2TZFE..TCR1#,2#..MTM |
2 | ||
| 17565-11160 |
2TZFE..TCR1#,2# |
3 | ||
| 17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1 | ||||
| 17571-76050 |
2TZFE..TCR1#,2#..MTM |
1 | ||
| 17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1 | ||||
| 17571-76050 |
2TZFE..TCR1#,2#..MTM |
1 | ||
| 17572 - BRACKET, EXHAUST PIPE NO.1 SUPPORT | ||||
| 17583-76010 |
2TZFE..TCR1#,2#..MTM |
1 | ||
| 17583-76010 |
2TZFE..TCR1#,2# |
1 | ||
| 17573A - BRACKET, EXHAUST PIPE SUPPORT, NO.3 | ||||
| 17573-76030 |
2TZFE..TCR1#,2# |
1 | ||
| 17575 - BRACKET, EXHAUST PIPE SUPPORT, NO.5 | ||||
| 17575-76020 |
2TZFE..TCR1#,2# |
1 | ||
| 17576A - BRACKET, EXHAUST PIPE SUPPORT, NO.6 | ||||
| 17576-76030 |
2TZFE..TCR1#,2# |
1 | ||
| 17582 - BRACKET, CATALYTIC CONVERTER SUPPORT, UPPER | ||||
| 17582-76010 |
2TZFE..TCR1#,2# |
1 | ||
| Common parts | ||||
| 90119-08734 | ||||
| 91511-61035 | ||||
| 91611-60814 | ||||
| 91659-61225 | ||||
| 91662-61025 | ||||
(9401- )2TZFE..W ; (9810- )2TZFE..TCR1#..ARL
W(CONVERTER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17400 - CONVERTER ASSY, W/CATALYST | ||||
| 18450-74210 |
2TZFE..TCR1#,2#..LHD..W |
1 | ||
| 18450-03080 |
2TZFE..TCR1#,2#..LHD..W (L) |
1 | ||
| 17420-76020 |
2TZFE..TCR11..ARL;2TZFE..TCR11..LHD;2TZFE..TCR10,2#..ARL,W |
1 | ||
| 17403-76060 |
2TZFE..TCR1#,2#..LHD..W |
1 | ||
| 18450-74440 |
2TZFE..TCR1#,2#..LHD..W (J) |
1 | ||
| 17420-76020 |
2TZFE..TCR1#,2#..LHD..W |
1 | ||
| 17400B - RETAINER, EXHAUST PIPE | ||||
| 18495-76010 |
2TZFE..TCR1#,2#..GEN,V,W |
1 | ||
| 18495-76010 |
2TZFE..TCR1#,2#..LHD..W |
1 | ||
| 18495-76010 |
2TZFE..TCR1#,2#..LHD..W W(CONVERTER) |
2 | ||
| 17400B - RETAINER, EXHAUST PIPE | ||||
| 18495-76010 |
2TZFE..TCR1#,2#..GEN,V,W |
1 | ||
| 18495-76010 |
2TZFE..TCR1#,2#..LHD..W |
1 | ||
| 18495-76010 |
2TZFE..TCR1#,2#..LHD..W W(CONVERTER) |
2 | ||
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-76020 |
2TZFE..TCR1#,2#..W |
1 | ||
| 17410-76030 |
2TZFE..TCR1#,2#..LHD..W W(CONVERTER) |
1 | ||
| 17410-76152 |
2TZFE..TCR1#,2#..W |
1 | ||
| 17410-76151 |
2TZFE..TCR1#,2#..W |
1 | ||
| 17410-76201 |
2TZFE..TCR1#,2#..W |
1 | ||
| 17410-76202 |
2TZFE..TCR1#,2#..W |
1 | ||
| 17410-76150 |
2TZFE..TCR1#,2#..W |
1 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90179-10070 |
2TZFE..TCR1#,2# |
3 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06039 |
2TZFE..TCR1#,2# |
2 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06039 |
2TZFE..TCR1#,2# |
2 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-76071 |
2TZFE..TCR1#,2#..LHD..W W(CONVERTER) |
1 | ||
| 17430-76060 |
2TZFE..TCR1#,2#..W |
1 | ||
| 17430-76110 |
2TZFE..TCR1#,2#..W |
1 | ||
| 17430-76070 |
2TZFE..TCR1#,2#..LHD W(CONVERTER) |
1 | ||
| 17430-76061 |
2TZFE..TCR1#,2#..W |
1 | ||
| 17405-76071 |
2TZFE..TCR1#,2#..W |
1 | ||
| 17405-76072 |
2TZFE..TCR1#,2#..W |
1 | ||
| 17430-76120 |
2TZFE..TCR1#,2#..LHD..W W(CONVERTER) |
1 | ||
| 17405-76070 |
2TZFE..TCR1#,2#..W |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-76071 |
2TZFE..TCR1#,2#..LHD..W W(CONVERTER) |
1 | ||
| 17430-76060 |
2TZFE..TCR1#,2#..W |
1 | ||
| 17430-76110 |
2TZFE..TCR1#,2#..W |
1 | ||
| 17430-76070 |
2TZFE..TCR1#,2#..LHD W(CONVERTER) |
1 | ||
| 17430-76061 |
2TZFE..TCR1#,2#..W |
1 | ||
| 17405-76071 |
2TZFE..TCR1#,2#..W |
1 | ||
| 17405-76072 |
2TZFE..TCR1#,2#..W |
1 | ||
| 17430-76120 |
2TZFE..TCR1#,2#..LHD..W W(CONVERTER) |
1 | ||
| 17405-76070 |
2TZFE..TCR1#,2#..W |
1 | ||
| 17430F - BRACKET, EXHAUST TAIL PIPE(FOR CENTER) | ||||
| 17574-76030 |
2TZFE..TCR11,21 |
1 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 90917-06057 |
2TZFE..TCR1#,2#..LHD..W W(CONVERTER),RR |
1 | ||
| 90917-06043 |
2TZFE..TCR1#,2#..LHD..W W(CONVERTER),FR |
1 | ||
| 90917-06057 |
2TZFE..TCR1#,2# |
2 | ||
| 90917-06057 |
2TZFE..TCR1#,2# |
1 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 90917-06057 |
2TZFE..TCR1#,2#..LHD..W W(CONVERTER),RR |
1 | ||
| 90917-06043 |
2TZFE..TCR1#,2#..LHD..W W(CONVERTER),FR |
1 | ||
| 90917-06057 |
2TZFE..TCR1#,2# |
2 | ||
| 90917-06057 |
2TZFE..TCR1#,2# |
1 | ||
| 17561C - SUPPORT, EXHAUST PIPE, NO.1 | ||||
| 17561-74110 |
2TZFE..TCR1#,2# |
1 | ||
| 17561C - SUPPORT, EXHAUST PIPE, NO.1 | ||||
| 17561-74110 |
2TZFE..TCR1#,2# |
1 | ||
| 17561D - SUPPORT, EXHAUST PIPE, NO.1 | ||||
| 17561-74110 |
2TZFE..TCR1#,2# |
1 | ||
| 17561D - SUPPORT, EXHAUST PIPE, NO.1 | ||||
| 17561-74110 |
2TZFE..TCR1#,2# |
1 | ||
| 17561E - SUPPORT, EXHAUST PIPE, NO.1 | ||||
| 17561-74110 |
2TZFE..TCR1#,2# |
1 | ||
| 17561E - SUPPORT, EXHAUST PIPE, NO.1 | ||||
| 17561-74110 |
2TZFE..TCR1#,2# |
1 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17565-76030 |
2TZFE..TCR1#,2# |
2 | ||
| 17565-11160 |
2TZFE..TCR1#,2#..MTM |
2 | ||
| 17565-76030 |
2TZFE..TCR1#,2#..MTM |
2 | ||
| 17565-11160 |
2TZFE..TCR1#,2# |
3 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17565-76030 |
2TZFE..TCR1#,2# |
2 | ||
| 17565-11160 |
2TZFE..TCR1#,2#..MTM |
2 | ||
| 17565-76030 |
2TZFE..TCR1#,2#..MTM |
2 | ||
| 17565-11160 |
2TZFE..TCR1#,2# |
3 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17565-76030 |
2TZFE..TCR1#,2# |
2 | ||
| 17565-11160 |
2TZFE..TCR1#,2#..MTM |
2 | ||
| 17565-76030 |
2TZFE..TCR1#,2#..MTM |
2 | ||
| 17565-11160 |
2TZFE..TCR1#,2# |
3 | ||
| 17575 - BRACKET, EXHAUST PIPE SUPPORT, NO.5 | ||||
| 17575-76020 |
2TZFE..TCR1#,2# |
1 | ||
| 17576A - BRACKET, EXHAUST PIPE SUPPORT, NO.6 | ||||
| 17576-76030 |
2TZFE..TCR1#,2# |
1 | ||
| Common parts | ||||
| 90119-08734 | ||||
| 91512-61035 | ||||
| 91611-60814 | ||||
| Linked diagrams | ||||
| 5852 | ||||
| 5853 | ||||
(9001-9608)2TZFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-76020 |
2TZFE..TCR1#,2#..W |
1 | ||
| 17410-76030 |
2TZFE..TCR1#,2#..LHD..W W(CONVERTER) |
1 | ||
| 17410-76152 |
2TZFE..TCR1#,2#..W |
1 | ||
| 17410-76151 |
2TZFE..TCR1#,2#..W |
1 | ||
| 17410-76201 |
2TZFE..TCR1#,2#..W |
1 | ||
| 17410-76202 |
2TZFE..TCR1#,2#..W |
1 | ||
| 17410-76150 |
2TZFE..TCR1#,2#..W |
1 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90179-10070 |
2TZFE..TCR1#,2# |
3 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06039 |
2TZFE..TCR1#,2# |
2 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06039 |
2TZFE..TCR1#,2# |
2 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-76071 |
2TZFE..TCR1#,2#..LHD..W W(CONVERTER) |
1 | ||
| 17430-76060 |
2TZFE..TCR1#,2#..W |
1 | ||
| 17430-76110 |
2TZFE..TCR1#,2#..W |
1 | ||
| 17430-76070 |
2TZFE..TCR1#,2#..LHD W(CONVERTER) |
1 | ||
| 17430-76061 |
2TZFE..TCR1#,2#..W |
1 | ||
| 17405-76071 |
2TZFE..TCR1#,2#..W |
1 | ||
| 17405-76072 |
2TZFE..TCR1#,2#..W |
1 | ||
| 17430-76120 |
2TZFE..TCR1#,2#..LHD..W W(CONVERTER) |
1 | ||
| 17405-76070 |
2TZFE..TCR1#,2#..W |
1 | ||
| 17430F - BRACKET, EXHAUST TAIL PIPE(FOR CENTER) | ||||
| 17574-76030 |
2TZFE..TCR11,21 |
1 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 90917-06057 |
2TZFE..TCR1#,2#..LHD..W W(CONVERTER),RR |
1 | ||
| 90917-06043 |
2TZFE..TCR1#,2#..LHD..W W(CONVERTER),FR |
1 | ||
| 90917-06057 |
2TZFE..TCR1#,2# |
2 | ||
| 90917-06057 |
2TZFE..TCR1#,2# |
1 | ||
| 17503 - BRACKET SUB-ASSY, CATALYTIC CONVERTER, REAR | ||||
| 17503-76010 |
2TZFE..TCR1#,2# |
1 | ||
| 17503-76010 |
2TZFE..TCR1#,2#..W |
1 | ||
| 17561B - SUPPORT, EXHAUST PIPE, NO.1 | ||||
| 17561-74110 |
2TZFE..TCR1#,2# |
1 | ||
| 17561C - SUPPORT, EXHAUST PIPE, NO.1 | ||||
| 17561-74110 |
2TZFE..TCR1#,2# |
1 | ||
| 17561D - SUPPORT, EXHAUST PIPE, NO.1 | ||||
| 17561-74110 |
2TZFE..TCR1#,2# |
1 | ||
| 17561E - SUPPORT, EXHAUST PIPE, NO.1 | ||||
| 17561-74110 |
2TZFE..TCR1#,2# |
1 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17565-76030 |
2TZFE..TCR1#,2# |
2 | ||
| 17565-11160 |
2TZFE..TCR1#,2#..MTM |
2 | ||
| 17565-76030 |
2TZFE..TCR1#,2#..MTM |
2 | ||
| 17565-11160 |
2TZFE..TCR1#,2# |
3 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17565-76030 |
2TZFE..TCR1#,2# |
2 | ||
| 17565-11160 |
2TZFE..TCR1#,2#..MTM |
2 | ||
| 17565-76030 |
2TZFE..TCR1#,2#..MTM |
2 | ||
| 17565-11160 |
2TZFE..TCR1#,2# |
3 | ||
| 17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1 | ||||
| 17571-76050 |
2TZFE..TCR1#,2#..MTM |
1 | ||
| 17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1 | ||||
| 17571-76050 |
2TZFE..TCR1#,2#..MTM |
1 | ||
| 17572 - BRACKET, EXHAUST PIPE NO.1 SUPPORT | ||||
| 17583-76010 |
2TZFE..TCR1#,2#..MTM |
1 | ||
| 17583-76010 |
2TZFE..TCR1#,2# |
1 | ||
| 17573A - BRACKET, EXHAUST PIPE SUPPORT, NO.3 | ||||
| 17573-76030 |
2TZFE..TCR1#,2# |
1 | ||
| 17575 - BRACKET, EXHAUST PIPE SUPPORT, NO.5 | ||||
| 17575-76020 |
2TZFE..TCR1#,2# |
1 | ||
| 17576A - BRACKET, EXHAUST PIPE SUPPORT, NO.6 | ||||
| 17576-76030 |
2TZFE..TCR1#,2# |
1 | ||
| 17582 - BRACKET, CATALYTIC CONVERTER SUPPORT, UPPER | ||||
| 17582-76010 |
2TZFE..TCR1#,2# |
1 | ||
| Common parts | ||||
| 90119-08734 | ||||
| 91512-61035 | ||||
| 91611-60814 | ||||
| 91659-61225 | ||||
| 91662-61025 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
