TCR21L-RFMGKW (1990)

Toyota Previa

Production May 1990 - Dec 1999
Engine 2TZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9005-9312)

Click highlighted areas on diagram

diagram 12180 12180A 12204 12204A 12205 12216A 12229 12255 12261 12261A 12261A 12262 12262A 12262A 12282A 9011910640 9017906026 9017906045 9017906194 9164280612 9164280612 9164280612 9212240610 9671119009
Part # Description Qty Price
12180 - CAP ASSY, OIL FILLER
12180-76010

2TZFE..TCR1#,2#

 1
12180-76011

2TZFE..TCR1#,2#

 1
12180-75010

2TZFE..TCR1#,2#

 1
12180-73011

2TZFE..TCR1#,2#

 1
12180A - GASKET, OIL FILLER CAP
12195-73010

2TZFE..TCR1#,2#

 1
12195-70010

2TZFE..TCR1#,2#

 1
12204 - VALVE SUB-ASSY, VENTILATION
12204-15022

2TZFE..TCR1#,2#

 1
12204-75010

2TZFE..TCR1#,2#

 1
12204A - GROMMET(FOR VENTILATION SYSTEM)
90480-18001

2TZFE..TCR1#,2#

 1
12205 - CASE SUB-ASSY, VENTILATION
12205-76020

2TZFE..TCR1#,2#

 1
12205-76010

2TZFE..TCR1#,2#

 1
12216A - PLATE, OIL BAFFLE
12216-76010

2TZFE..TCR1#,2#

 1
12216-76020

2TZFE..TCR1#,2#

 1
12229 - PIPE, VENTILATION
12229-76010

2TZFE..TCR1#,2#

 1
12255 - GASKET, VENTILATION
12255-76010

2TZFE..TCR1#,2#

 1
12261 - HOSE, VENTILATION
12261-76010

2TZFE..TCR1#,2#

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-14001

2TZFE..TCR1#,2#

 2
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-14001

2TZFE..TCR1#,2#

 2
12262 - HOSE, VENTILATION, NO.2
12262-76011

2TZFE..TCR1#,2#

 1
12262-76010

2TZFE..TCR1#,2#

 1
12262-76012

2TZFE..TCR1#,2#

 1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-17011

2TZFE..TCR1#,2#

 2
90467-17011

2TZFE..TCR1#,2#

AIR CLEANER SIDE

 1
96134-41700

2TZFE..TCR1#,2#

AIR CLEANER SIDE

 1
90467-17018

2TZFE..TCR1#,2#

ENGINE SIDE

 1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-17011

2TZFE..TCR1#,2#

 2
90467-17011

2TZFE..TCR1#,2#

AIR CLEANER SIDE

 1
96134-41700

2TZFE..TCR1#,2#

AIR CLEANER SIDE

 1
90467-17018

2TZFE..TCR1#,2#

ENGINE SIDE

 1
12282A - HANGER, ENGINE, NO.2
12282-76030

2TZFE..TCR1#,2#

 1
12282-76020

2TZFE..TCR1#,2#

 1
Common parts
90119-10640
90179-06026
90179-06045
90179-06194
91642-80612
92122-40610
96711-19009

(9312- )

Click highlighted areas on diagram

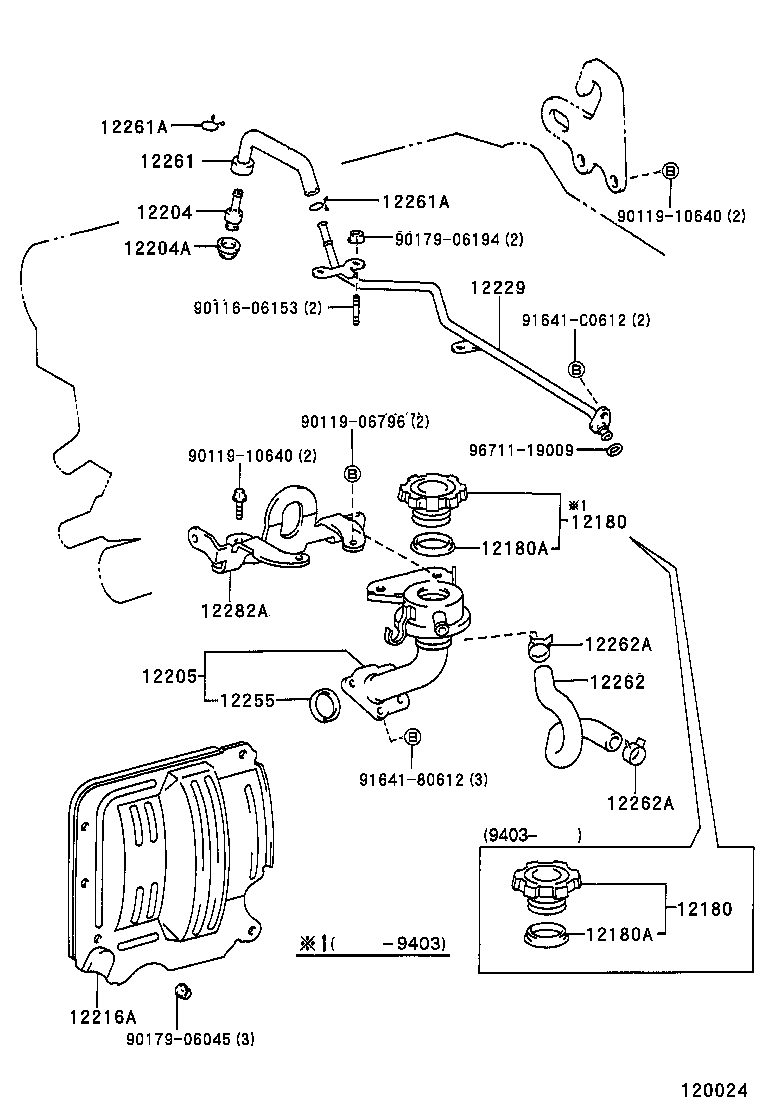

diagram 12180 12180 12180A 12180A 12204 12204A 12205 12216A 12229 12255 12261 12261A 12261A 12262 12262A 12262A 12282A 9011606153 9011906796 9011910640 9011910640 9017906045 9017906194 9164180612 91641C0612 9671119009
Part # Description Qty Price
12180 - CAP ASSY, OIL FILLER
12180-76010

2TZFE..TCR1#,2#

 1
12180-76011

2TZFE..TCR1#,2#

 1
12180-75010

2TZFE..TCR1#,2#

 1
12180-73011

2TZFE..TCR1#,2#

 1
12180 - CAP ASSY, OIL FILLER
12180-76010

2TZFE..TCR1#,2#

 1
12180-76011

2TZFE..TCR1#,2#

 1
12180-75010

2TZFE..TCR1#,2#

 1
12180-73011

2TZFE..TCR1#,2#

 1
12180A - GASKET, OIL FILLER CAP
12195-73010

2TZFE..TCR1#,2#

 1
12195-70010

2TZFE..TCR1#,2#

 1
12180A - GASKET, OIL FILLER CAP
12195-73010

2TZFE..TCR1#,2#

 1
12195-70010

2TZFE..TCR1#,2#

 1
12204 - VALVE SUB-ASSY, VENTILATION
12204-15022

2TZFE..TCR1#,2#

 1
12204-75010

2TZFE..TCR1#,2#

 1
12204A - GROMMET(FOR VENTILATION SYSTEM)
90480-18001

2TZFE..TCR1#,2#

 1
12205 - CASE SUB-ASSY, VENTILATION
12205-76020

2TZFE..TCR1#,2#

 1
12205-76010

2TZFE..TCR1#,2#

 1
12216A - PLATE, OIL BAFFLE
12216-76010

2TZFE..TCR1#,2#

 1
12216-76020

2TZFE..TCR1#,2#

 1
12229 - PIPE, VENTILATION
12229-76010

2TZFE..TCR1#,2#

 1
12255 - GASKET, VENTILATION
12255-76010

2TZFE..TCR1#,2#

 1
12261 - HOSE, VENTILATION
12261-76010

2TZFE..TCR1#,2#

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-14001

2TZFE..TCR1#,2#

 2
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-14001

2TZFE..TCR1#,2#

 2
12262 - HOSE, VENTILATION, NO.2
12262-76011

2TZFE..TCR1#,2#

 1
12262-76010

2TZFE..TCR1#,2#

 1
12262-76012

2TZFE..TCR1#,2#

 1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-17011

2TZFE..TCR1#,2#

 2
90467-17011

2TZFE..TCR1#,2#

AIR CLEANER SIDE

 1
96134-41700

2TZFE..TCR1#,2#

AIR CLEANER SIDE

 1
90467-17018

2TZFE..TCR1#,2#

ENGINE SIDE

 1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-17011

2TZFE..TCR1#,2#

 2
90467-17011

2TZFE..TCR1#,2#

AIR CLEANER SIDE

 1
96134-41700

2TZFE..TCR1#,2#

AIR CLEANER SIDE

 1
90467-17018

2TZFE..TCR1#,2#

ENGINE SIDE

 1
12282A - HANGER, ENGINE, NO.2
12282-76030

2TZFE..TCR1#,2#

 1
12282-76020

2TZFE..TCR1#,2#

 1
Common parts
90116-06153
90119-06796
90119-10640
90179-06045
90179-06194
91641-80612
91641-C0612
96711-19009

(9001-9312)

Click highlighted areas on diagram

diagram 12180 12180A 12204 12204A 12205 12216A 12229 12255 12261 12261A 12261A 12262 12262A 12262A 12282A 9011910640 9017906026 9017906045 9017906194 9164280612 9164280612 9164280612 9212240610 9671119009
Part # Description Qty Price
12180 - CAP ASSY, OIL FILLER
12180-76010

2TZFE..TCR1#,2#

 1
12180-76011

2TZFE..TCR1#,2#

 1
12180-75010

2TZFE..TCR1#,2#

 1
12180-73011

2TZFE..TCR1#,2#

 1
12180A - GASKET, OIL FILLER CAP
12195-73010

2TZFE..TCR1#,2#

 1
12195-70010

2TZFE..TCR1#,2#

 1
12204 - VALVE SUB-ASSY, VENTILATION
12204-15022

2TZFE..TCR1#,2#

 1
12204-75010

2TZFE..TCR1#,2#

 1
12204A - GROMMET(FOR VENTILATION SYSTEM)
90480-18001

2TZFE..TCR1#,2#

 1
12205 - CASE SUB-ASSY, VENTILATION
12205-76020

2TZFE..TCR1#,2#

 1
12205-76010

2TZFE..TCR1#,2#

 1
12216A - PLATE, OIL BAFFLE
12216-76010

2TZFE..TCR1#,2#

 1
12216-76020

2TZFE..TCR1#,2#

 1
12229 - PIPE, VENTILATION
12229-76010

2TZFE..TCR1#,2#

 1
12255 - GASKET, VENTILATION
12255-76010

2TZFE..TCR1#,2#

 1
12261 - HOSE, VENTILATION
12261-76010

2TZFE..TCR1#,2#

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-14001

2TZFE..TCR1#,2#

 2
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-14001

2TZFE..TCR1#,2#

 2
12262 - HOSE, VENTILATION, NO.2
12262-76011

2TZFE..TCR1#,2#

 1
12262-76010

2TZFE..TCR1#,2#

 1
12262-76012

2TZFE..TCR1#,2#

 1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-17011

2TZFE..TCR1#,2#

 2
90467-17011

2TZFE..TCR1#,2#

AIR CLEANER SIDE

 1
96134-41700

2TZFE..TCR1#,2#

AIR CLEANER SIDE

 1
90467-17018

2TZFE..TCR1#,2#

ENGINE SIDE

 1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-17011

2TZFE..TCR1#,2#

 2
90467-17011

2TZFE..TCR1#,2#

AIR CLEANER SIDE

 1
96134-41700

2TZFE..TCR1#,2#

AIR CLEANER SIDE

 1
90467-17018

2TZFE..TCR1#,2#

ENGINE SIDE

 1
12282A - HANGER, ENGINE, NO.2
12282-76030

2TZFE..TCR1#,2#

 1
12282-76020

2TZFE..TCR1#,2#

 1
Common parts
90119-10640
90179-06026
90179-06045
90179-06194
91642-80612
92122-40610
96711-19009

(9312- )2TZFE

Click highlighted areas on diagram

diagram 12180 12180 12180A 12180A 12204 12204A 12205 12216A 12229 12255 12261 12261A 12261A 12262 12262A 12262A 12282A 9011606153 9011906796 9011910640 9011910640 9017906045 9017906194 9164180612 91641C0612 9671119009
Part # Description Qty Price
12180 - CAP ASSY, OIL FILLER
12180-76010

2TZFE..TCR1#,2#

 1
12180-76011

2TZFE..TCR1#,2#

 1
12180-75010

2TZFE..TCR1#,2#

 1
12180-73011

2TZFE..TCR1#,2#

 1
12180 - CAP ASSY, OIL FILLER
12180-76010

2TZFE..TCR1#,2#

 1
12180-76011

2TZFE..TCR1#,2#

 1
12180-75010

2TZFE..TCR1#,2#

 1
12180-73011

2TZFE..TCR1#,2#

 1
12180A - GASKET, OIL FILLER CAP
12195-73010

2TZFE..TCR1#,2#

 1
12195-70010

2TZFE..TCR1#,2#

 1
12180A - GASKET, OIL FILLER CAP
12195-73010

2TZFE..TCR1#,2#

 1
12195-70010

2TZFE..TCR1#,2#

 1
12204 - VALVE SUB-ASSY, VENTILATION
12204-15022

2TZFE..TCR1#,2#

 1
12204-75010

2TZFE..TCR1#,2#

 1
12204A - GROMMET(FOR VENTILATION SYSTEM)
90480-18001

2TZFE..TCR1#,2#

 1
12205 - CASE SUB-ASSY, VENTILATION
12205-76020

2TZFE..TCR1#,2#

 1
12205-76010

2TZFE..TCR1#,2#

 1
12216A - PLATE, OIL BAFFLE
12216-76010

2TZFE..TCR1#,2#

 1
12216-76020

2TZFE..TCR1#,2#

 1
12229 - PIPE, VENTILATION
12229-76010

2TZFE..TCR1#,2#

 1
12255 - GASKET, VENTILATION
12255-76010

2TZFE..TCR1#,2#

 1
12261 - HOSE, VENTILATION
12261-76010

2TZFE..TCR1#,2#

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-14001

2TZFE..TCR1#,2#

 2
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-14001

2TZFE..TCR1#,2#

 2
12262 - HOSE, VENTILATION, NO.2
12262-76011

2TZFE..TCR1#,2#

 1
12262-76010

2TZFE..TCR1#,2#

 1
12262-76012

2TZFE..TCR1#,2#

 1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-17011

2TZFE..TCR1#,2#

 2
90467-17011

2TZFE..TCR1#,2#

AIR CLEANER SIDE

 1
96134-41700

2TZFE..TCR1#,2#

AIR CLEANER SIDE

 1
90467-17018

2TZFE..TCR1#,2#

ENGINE SIDE

 1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-17011

2TZFE..TCR1#,2#

 2
90467-17011

2TZFE..TCR1#,2#

AIR CLEANER SIDE

 1
96134-41700

2TZFE..TCR1#,2#

AIR CLEANER SIDE

 1
90467-17018

2TZFE..TCR1#,2#

ENGINE SIDE

 1
12282A - HANGER, ENGINE, NO.2
12282-76030

2TZFE..TCR1#,2#

 1
12282-76020

2TZFE..TCR1#,2#

 1
Common parts
90116-06153
90119-06796
90119-10640
90179-06045
90179-06194
91641-80612
91641-C0612
96711-19009
