TCR20L-RFSGKK (1990)

Toyota Previa

Production Jan 1990 - Aug 1994
Engine 2TZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9005- )

Click highlighted areas on diagram

diagram 86101 86300 9015040005 9015740016 9095001729
Part # Description Qty Price
Common parts
90150-40005
90157-40016
90950-01729

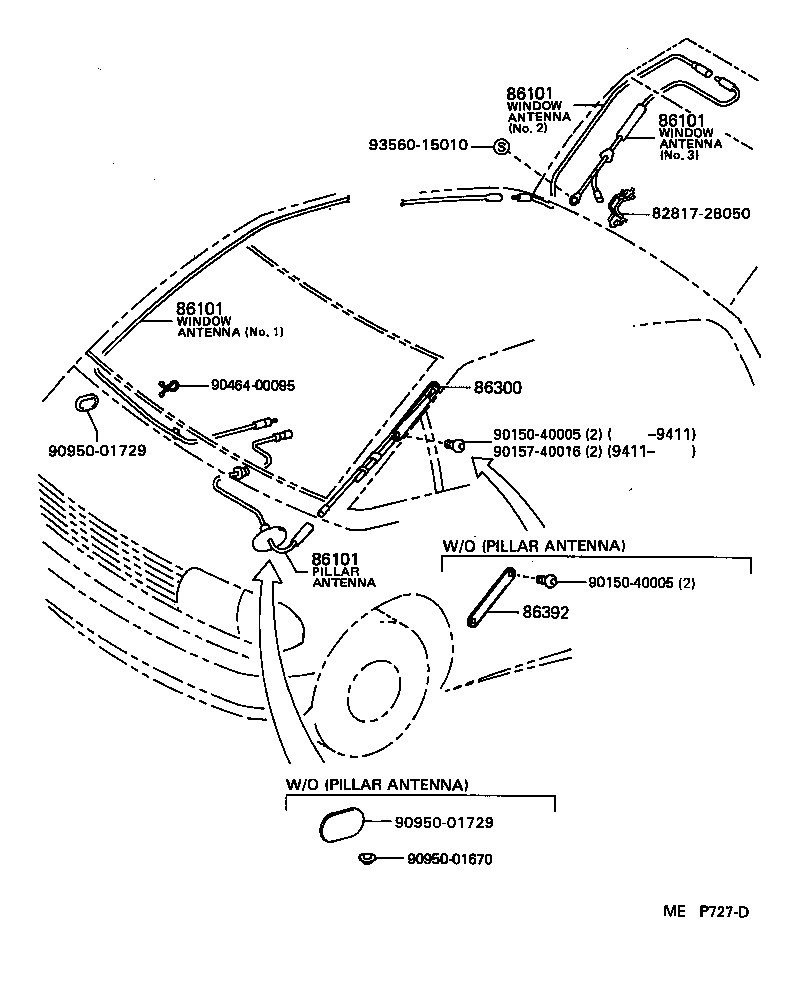

(9001-9308)

Click highlighted areas on diagram

diagram 8281728050 86101 86101 86101 86101 86300 86392 9015040005 9015040005 9015740016 9046400095 9095001670 9095001729 9095001729 9356015010
Part # Description Qty Price
86101 - CORD SUB-ASSY, ANTENNA
86101-95D00

TCR10,20..EFI

 1
86101 - CORD SUB-ASSY, ANTENNA
86101-95D00

TCR10,20..EFI

 1
86101 - CORD SUB-ASSY, ANTENNA
86101-95D00

TCR10,20..EFI

 1
86101 - CORD SUB-ASSY, ANTENNA
86101-95D00

TCR10,20..EFI

 1
86300 - ANTENNA ASSY, W/HOLDER
86300-95D00

TCR10,20

 1
Common parts
82817-28050
90150-40005
90157-40016
90464-00095
90950-01670
90950-01729
93560-15010

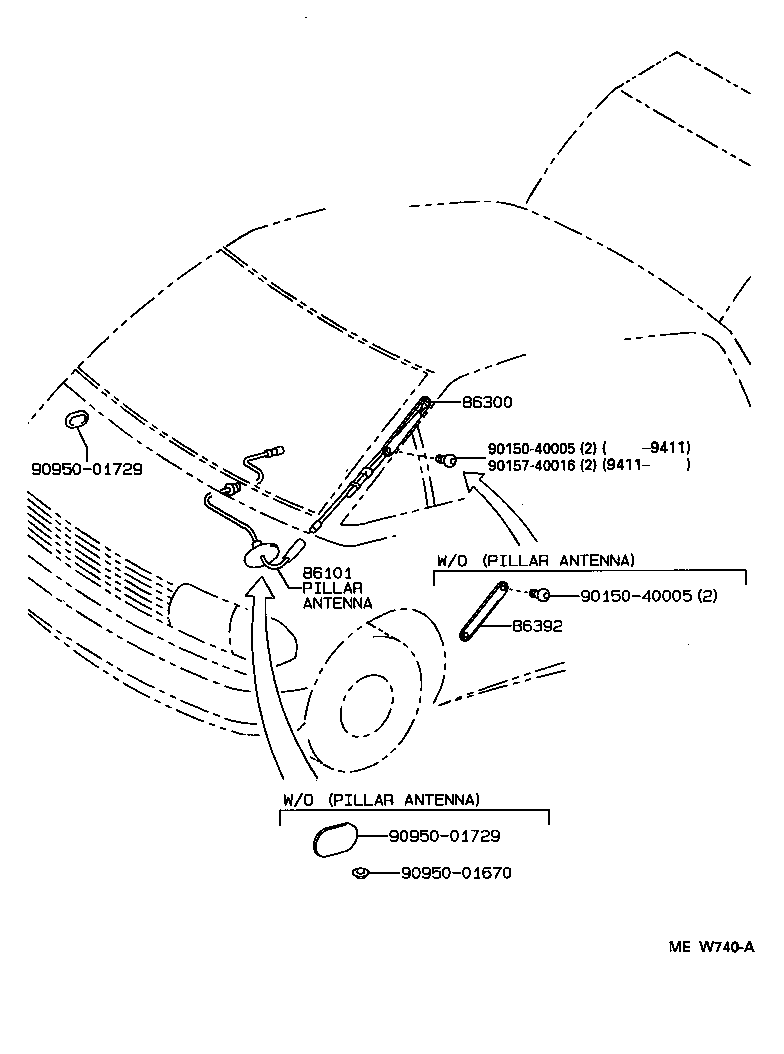

(9001- )

Click highlighted areas on diagram

PILLAR ANTENNA

diagram 86101 86300 86392 9015040005 9015040005 9015740016 9095001670 9095001729 9095001729
Part # Description Qty Price
86101 - CORD SUB-ASSY, ANTENNA
86101-95D00

TCR10,20..EFI

 1
86300 - ANTENNA ASSY, W/HOLDER
86300-95D00

TCR10,20

 1
Common parts
90150-40005
90157-40016
90950-01670
90950-01729

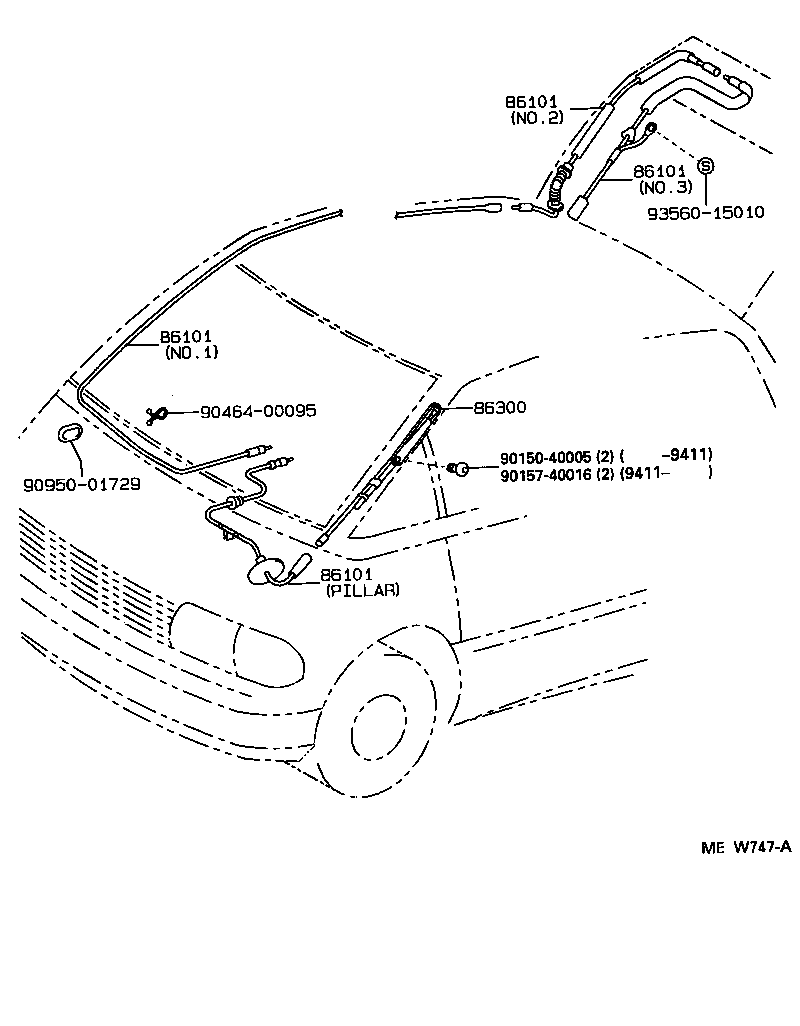

(9308- )

Click highlighted areas on diagram

diagram 86101 86101 86101 86101 86300 9015040005 9015740016 9046400095 9095001729 9356015010
Part # Description Qty Price
86101 - CORD SUB-ASSY, ANTENNA
86101-95D00

TCR10,20..EFI

 1
86101 - CORD SUB-ASSY, ANTENNA
86101-95D00

TCR10,20..EFI

 1
86101 - CORD SUB-ASSY, ANTENNA
86101-95D00

TCR10,20..EFI

 1
86101 - CORD SUB-ASSY, ANTENNA
86101-95D00

TCR10,20..EFI

 1
86300 - ANTENNA ASSY, W/HOLDER
86300-95D00

TCR10,20

 1
Common parts
90150-40005
90157-40016
90464-00095
90950-01729
93560-15010
