TCR20L-RFSGKA (1990)

Toyota Previa

Production Jan 1990 - Aug 1995
Engine 2TZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9005- )

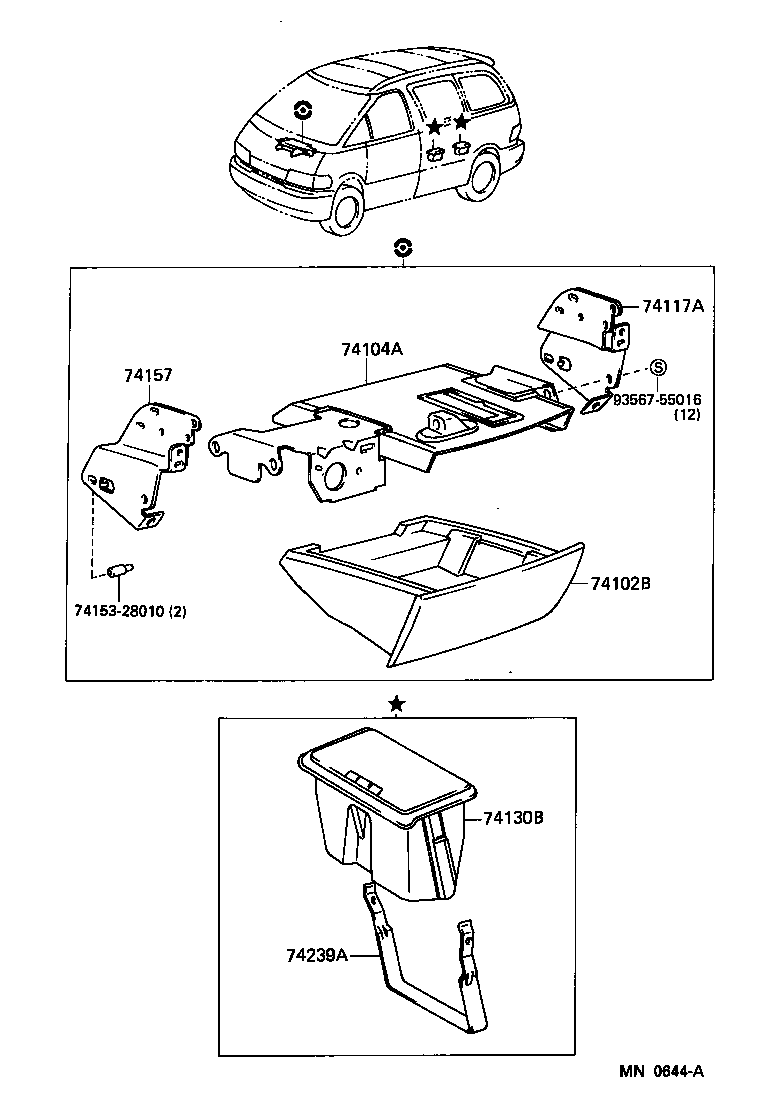

Click highlighted areas on diagram

diagram 74102B 74104A 74117A 74130B 7415328010 74157 74239A 9356755016 9356815012
Part # Description Qty Price
Common parts
74153-28010
93567-55016
93568-15012

(9001- )

Click highlighted areas on diagram

diagram 74102B 74104A 74117A 74130B 7415328010 74157 74239A 9356755016
Part # Description Qty Price
74102B - BOX SUB-ASSY, FRONT ASH RECEPTACLE
74102-95D0003

TCR10,20

GRAY,TRIM1#

 1
74102-95D0006

TCR10,20

TAN,TRIM4#

 1
74102-95D0005

TCR10,20

GREIGE,TRIM4#

 1
74102-95D00J0

TCR10,20

BLUE,TRIM8#

 1
74102-95D0004

TCR10,20

BLUE,TRIM8#

 1
74104A - RETAINER SUB-ASSY, FRONT ASH RECEPTACLE
74104-95D02

TCR10,20

 1
74117A - BRACKET, FRONT ASH RECEPTACLE MOUNTING, RH
74117-95D00

TCR10,20

 1
74130B - RECEPTACLE ASSY, REAR ASH
74130-95D0003

TCR10,20

GRAY,TRIM1#

 2
74130-95D0004

TCR10,20

BLUE,TRIM8#

 2
74130-95D00R9

TCR10,20

BLUE,TRIM8#

 2
74130-95D0006

TCR10,20

TAN,TRIM4#

 2
74130-95D0005

TCR10,20

GREIGE,TRIM4#

 2
74157 - BRACKET, FRONT ASH RECEPTACLE MOUNTING, LH
74157-95D00

TCR10,20

 1
74239A - HOLDER, REAR ASH RECEPTACLE
74239-95D00

TCR10,20

 2
Common parts
74153-28010
93567-55016
