TCR20L-RESDKK (1990)
Toyota Previa
ILLUST NO. 2 OF 2(9005- )
MANUAL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 88467-14070 | ||||
| 90099-32130 | ||||
| 90119-06336 | ||||
| 90179-06026 | ||||
| 90179-06060 | ||||
| 91621-40616 | ||||
| 91651-60614 | ||||
| 93385-16030 | ||||
| Linked diagrams | ||||
| 8715 | ||||
ILLUST NO. 1 OF 2(9005- )
MANUAL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 88897-28140 | ||||
| 90119-08632 | ||||
| 90480-01548 | ||||
| 90480-26014 | ||||

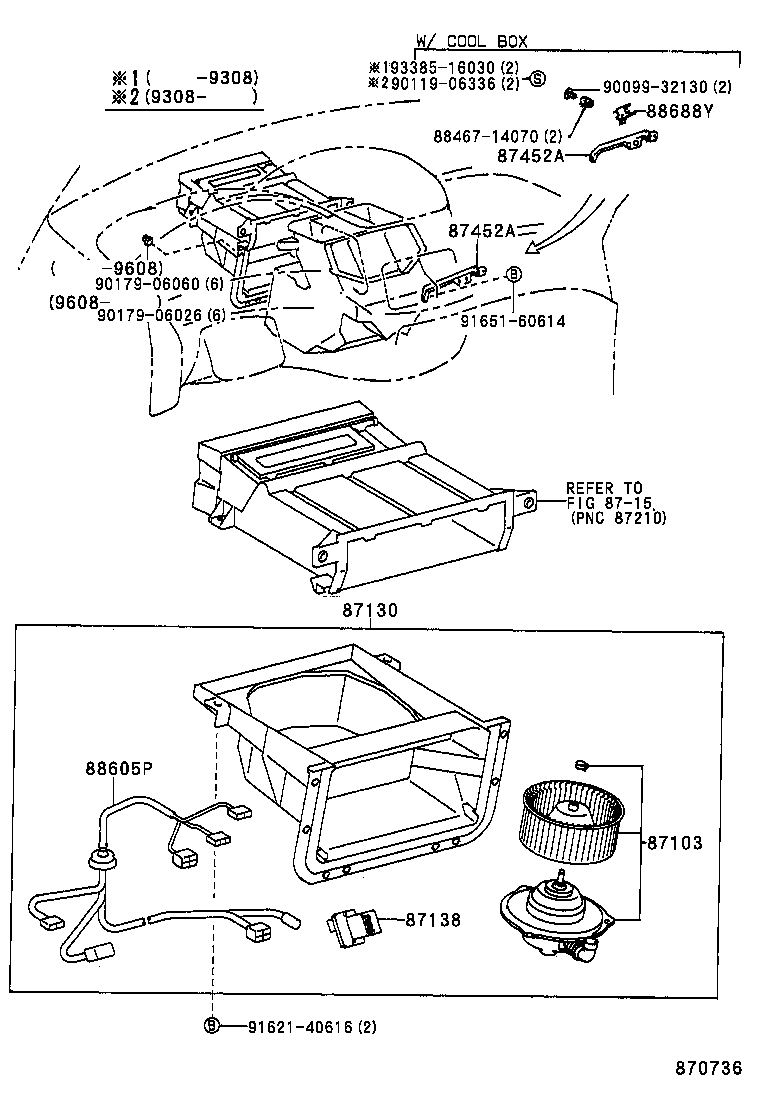

ILLUST NO. 2 OF 2(9001- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87103 - MOTOR SUB-ASSY, HEATER BLOWER, W/FAN | ||||
| 87103-95D00 |
TCR10,20 |
1 | ||
| 87130 - BLOWER ASSY, HEATER, FRONT | ||||
| 87130-28060 |
TCR10,20 W(AIR CONDITIONER) |
1 | ||
| 87130-95D00 |
TCR10,20 |
1 | ||
| 87130-28220 |
TCR10,20..CND;TCR10,20..05S..USA |
1 | ||
| 87130-28250 |
TCR10,20..ATM..CND;TCR10,20..ATM..05S..USA W(AIR CONDITIONER & COOL BOX) |
1 | ||
| 87130-28080 |
TCR10,20 W(AIR CONDITIONETR & COOL BOX) |
1 | ||
| 87130-28270 |
TCR10,20..CND;TCR10,20..05S..USA W(AIR CONDITIONER) |
1 | ||
| 87130-28070 |
TCR10,20 W(AIR CONDITIONER) |
1 | ||
| 87130-28460 |
TCR10,20..CND;TCR10,20..05S..USA |
1 | ||
| 87130-28340 |
TCR10,20..CND;TCR10,20..05S..USA..EFI DUAL |
1 | ||
| 87130-95D01 |
TCR10,20 W(AIR CONDITIONETR & COOL BOX) |
1 | ||
| 87138 - RESISTOR, HEATER BLOWER | ||||
| 87138-95D00 |
TCR10,20 |
1 | ||
| 87452A - BRACKET, HEATER, FRONT | ||||
| 87452-28020 |
TCR10,20..ATM W(COOL BOX) |
1 | ||
| 87452-28100 |
TCR10,20 W(COOL BOX) |
1 | ||
| 87452-28020 |
TCR10,20 W(COOL BOX) |
1 | ||
| 87452-95D00 |
TCR10,20 |
1 | ||
| 87452A - BRACKET, HEATER, FRONT | ||||
| 87452-28020 |
TCR10,20..ATM W(COOL BOX) |
1 | ||
| 87452-28100 |
TCR10,20 W(COOL BOX) |
1 | ||
| 87452-28020 |
TCR10,20 W(COOL BOX) |
1 | ||
| 87452-95D00 |
TCR10,20 |
1 | ||
| 88605P - HARNESS SUB-ASSY, AIR CONDITIONER WIRING | ||||
| 88605-28700 |
TCR10,20..ATM..CND;TCR10,20..ATM..05S..USA W(COOL BOX & AIR CONDITIONER) |
1 | ||
| 88605-28200 |
TCR10,20 W(AIR CONDITIONER) |
1 | ||
| 88605-95D25 |
TCR10,20 |
1 | ||
| 88605-28720 |
TCR10,20..CND;TCR10,20..05S..USA W(AIR CONDITIONER) |
1 | ||
| 88605-2J250 |
TCR10,20..CND;TCR10,20..05S..USA;TCR10,20..07S..SPC |
1 | ||
| 88605-95D26 |
TCR10,20 W(COOL BOX) |
1 | ||
| 88605-28680 |
TCR10,20..CND;TCR10,20..05S..USA |
1 | ||
| 88605-2J260 |
TCR10,20..CND;TCR10,20..05S..USA..EFI W(AIR CONDITIONER) |
1 | ||
| 88688Y - BRACKET, COOLER STABILIZER AMPLIFIER | ||||
| 88688-28121 |
TCR10,20 |
1 | ||
| 88688-28121 |
TCR10,20..ATM |
1 | ||
| 88688-2J080 |
TCR10,20 |
1 | ||
| 88688-28120 |
TCR10,20 |
1 | ||
| Common parts | ||||
| 88467-14070 | ||||
| 90099-32130 | ||||
| 90119-06336 | ||||
| 90179-06026 | ||||
| 90179-06060 | ||||
| 91621-40616 | ||||
| 91651-60614 | ||||
| 93385-16030 | ||||
| Linked diagrams | ||||
| 8715 | ||||

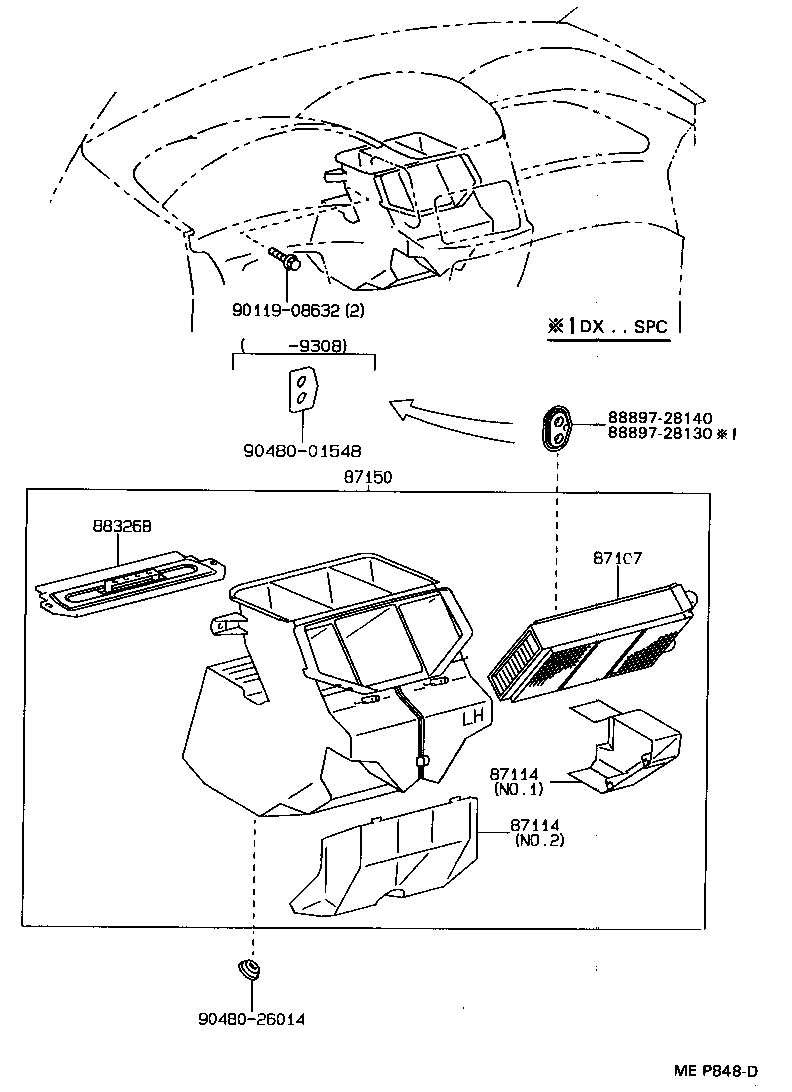

ILLUST NO. 1 OF 2(9001- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87107 - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-95D02 |
TCR10,20..CND |
1 | ||
| 87107-28130 |
TCR10,20..CND;TCR10,20..05S..USA |
1 | ||
| 87107-95D02 |
TCR10,20..CND;TCR10,20..05S..USA |
1 | ||
| 87114 - COVER, HEATER | ||||
| 87114-95D00 |
TCR10,20..CND NO.1 |
1 | ||
| 87114-95D00 |
TCR10,20..CND;TCR10,20..05S..USA NO.1 |
1 | ||
| 87114-95D04 |
TCR10,20..CND NO.2 |
1 | ||
| 87114-95D00 |
TCR10,20 NO.1 |
1 | ||
| 87114-95D00 |
TCR10,20..CND;TCR10,20..05S..USA NO.2 |
1 | ||
| 87114-95D04 |
TCR10,20..CND;TCR10,20..05S..USA NO.2 |
1 | ||
| 87114-95D04 |
TCR10,20..CND;TCR10,20..05S..USA NO.1 |
1 | ||
| 87114 - COVER, HEATER | ||||
| 87114-95D00 |
TCR10,20..CND NO.1 |
1 | ||
| 87114-95D00 |
TCR10,20..CND;TCR10,20..05S..USA NO.1 |
1 | ||
| 87114-95D04 |
TCR10,20..CND NO.2 |
1 | ||
| 87114-95D00 |
TCR10,20 NO.1 |
1 | ||
| 87114-95D00 |
TCR10,20..CND;TCR10,20..05S..USA NO.2 |
1 | ||
| 87114-95D04 |
TCR10,20..CND;TCR10,20..05S..USA NO.2 |
1 | ||
| 87114-95D04 |
TCR10,20..CND;TCR10,20..05S..USA NO.1 |
1 | ||
| 87150 - RADIATOR ASSY, HEATER | ||||
| 87150-28320 |
TCR10,20..CND;TCR10,20..05S..USA |
1 | ||
| 87150-95D10 |
TCR10,20..CND |
1 | ||
| 87150-95D10 |
TCR10,20..CND;TCR10,20..05S..USA |
1 | ||
| 88326B - PLATE, COVER | ||||
| 88326-95D00 |
TCR10,20 |
1 | ||
| 88326-95D00 |
TCR10,20..CND;TCR10,20..05S..USA |
1 | ||
| Common parts | ||||
| 88897-28130 | ||||
| 88897-28140 | ||||
| 90119-08632 | ||||
| 90480-01548 | ||||
| 90480-26014 | ||||
