TCR20L-RESDKK (1990)

Toyota Previa

Production Jan 1990 - Aug 1994
Engine 2TZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9005- )

Click highlighted areas on diagram

diagram 58426F 58780 58781 58796 75203 75204B 75209A 75209A 75212 8202 8281728090 9010908169 9012208014 9012208018 9020507002 9054110006 9111150820 9111150820 9165140814 9165140814 9165140814 9165141020
Part # Description Qty Price
Common parts
82817-28090
90109-08169
90122-08014
90122-08018
90205-07002
90541-10006
91111-50820
91651-40814
91651-41020
Linked diagrams
8202

(9001- )

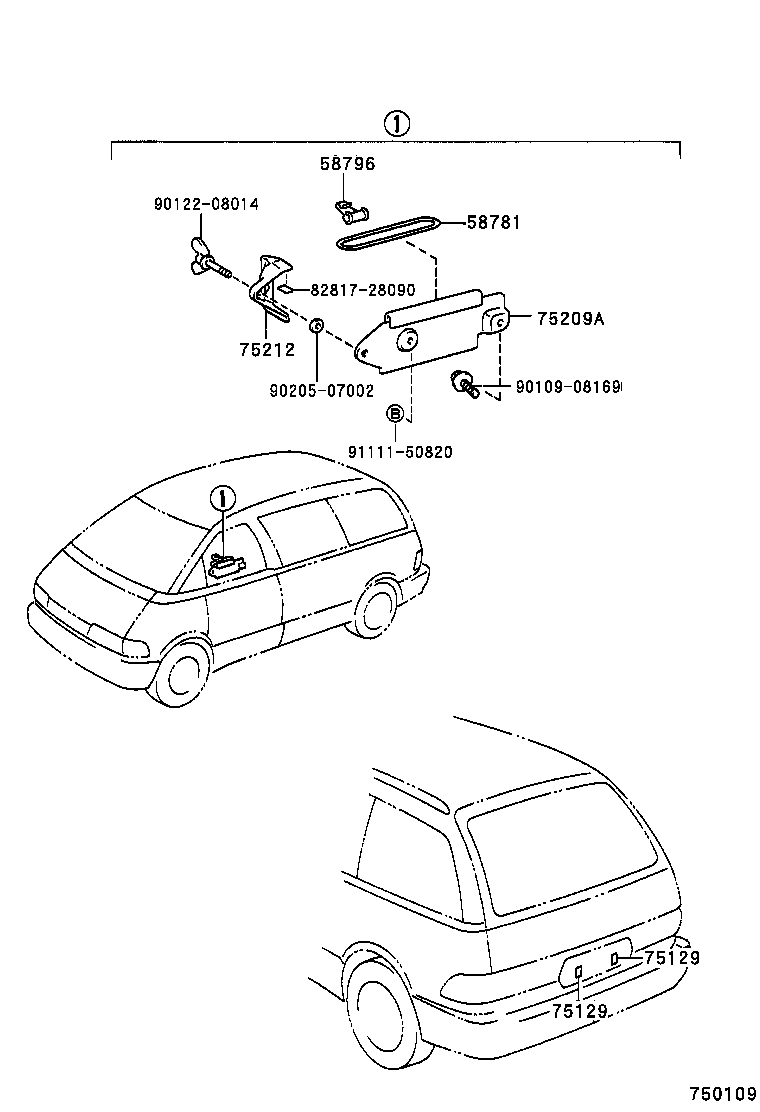

Click highlighted areas on diagram

diagram 58781 58796 75129 75129 75209A 75212 8281728090 9010908169 9012208014 9020507002 9111150820
Part # Description Qty Price
58781 - BAND, TOOL BAG
58781-95D00

TCR10,20

 1
58796 - HOOK, JACK CLAMP
58796-20012

TCR10,20

 1
75129 - CUSHION, REAR LICENSE PLATE
75129-22010

TCR10,20

 2
75129 - CUSHION, REAR LICENSE PLATE
75129-22010

TCR10,20

 2
75209A - BASE SUB ASSY, JACK HOLDER
75209-95D00

TCR10,20

 1
75212 - PANEL,TOOL BOX, LOWER
75212-95D00

TCR10,20

 1
Common parts
82817-28090
90109-08169
90122-08014
90205-07002
91111-50820
