TCR20L-RESDKK (1990)
Toyota Previa
ILLUST NO. 2 OF 2(9005- )TCR10,20
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04412 - GASKET KIT, REAR DIFFERENTIAL CARRIER | ||||
| 04412-30030 |
TCR20;TCR10..CND;TCR10..05S..USA W(RR DISC BRAKE) |
1 | ||
| 04412-30030 |
TCR10,20 W(RR DISC BRAKE) |
1 | ||
| 04412-30030 |
TCR10,20 W(RR DISC BRAKE) |
1 | ||
| 04412-30020 |
TCR10,20 |
1 | ||
| 41110A - BOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET) | ||||
| 90116-08235 |
TCR10,20 S=12 & 15,L=34 |
10 | ||
| 42110 - HOUSING ASSY, REAR AXLE | ||||
| 42110-28190 |
TCR10,20 |
1 | ||
| 42110-28210 |
TCR10,20 W(RR DISC BRAKE) |
1 | ||
| 42110-28200 |
TCR10,20 W(*66 & RR DISC BRAKE) |
1 | ||
| 42110A - PLUG (FOR REAR AXLE HOUSING FILLER) | ||||
| 90341-18006 |
TCR10,20 |
1 | ||
| 42110B - GASKET (FOR REAR AXLE HOUSING FILLER PLUG) | ||||
| 12157-10010 |
TCR10,20 |
1 | ||
| 42110C - PLUG, BREATHER (FOR REAR AXLE HOUSING) | ||||
| 90930-03031 |
TCR10,20 |
1 | ||
| 42110D - GASKET (FOR REAR AXLE HOUSING DRAIN PLUG) | ||||
| 12157-10010 |
TCR10,20 |
1 | ||
| 42110E - PLUG (FOR REAR AXLE HOUSING DRAIN) | ||||
| 90341-18057 |
TCR10,20 |
1 | ||
| 42139 - DEFLECTOR, REAR AXLE HOUSING OIL | ||||
| 42108-30010 |
TCR10,20 |
2 | ||
| 42139 - DEFLECTOR, REAR AXLE HOUSING OIL | ||||
| 42108-30010 |
TCR10,20 |
2 | ||
| 42181 - GASKET, REAR DIFFERENTIAL CARRIER | ||||
| 42181-30020 |
TCR10,20 |
1 | ||
| Common parts | ||||
| 90170-08204 | ||||
| 94512-00800 | ||||
ILLUST NO. 1 OF 2(9005- )TCR10,20
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-12131 | ||||
| 91111-60814 | ||||
| 94512-00800 | ||||
| 94531-01200 | ||||
ILLUST NO. 2 OF 2(9001- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04412 - GASKET KIT, REAR DIFFERENTIAL CARRIER | ||||
| 04412-30030 |
TCR20;TCR10..CND;TCR10..05S..USA W(RR DISC BRAKE) |
1 | ||
| 04412-30030 |
TCR10,20 W(RR DISC BRAKE) |
1 | ||
| 04412-30030 |
TCR10,20 W(RR DISC BRAKE) |
1 | ||
| 04412-30020 |
TCR10,20 |
1 | ||
| 41110A - BOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET) | ||||
| 90116-08235 |
TCR10,20 S=12 & 15,L=34 |
10 | ||
| 42110 - HOUSING ASSY, REAR AXLE | ||||
| 42110-28190 |
TCR10,20 |
1 | ||
| 42110-28210 |
TCR10,20 W(RR DISC BRAKE) |
1 | ||
| 42110-28200 |
TCR10,20 W(*66 & RR DISC BRAKE) |
1 | ||
| 42110A - PLUG (FOR REAR AXLE HOUSING FILLER) | ||||
| 90341-18006 |
TCR10,20 |
1 | ||
| 42110B - GASKET (FOR REAR AXLE HOUSING FILLER PLUG) | ||||
| 12157-10010 |
TCR10,20 |
1 | ||
| 42110C - PLUG, BREATHER (FOR REAR AXLE HOUSING) | ||||
| 90930-03031 |
TCR10,20 |
1 | ||
| 42110D - GASKET (FOR REAR AXLE HOUSING DRAIN PLUG) | ||||
| 12157-10010 |
TCR10,20 |
1 | ||
| 42110E - PLUG (FOR REAR AXLE HOUSING DRAIN) | ||||
| 90341-18057 |
TCR10,20 |
1 | ||
| 42139 - DEFLECTOR, REAR AXLE HOUSING OIL | ||||
| 42108-30010 |
TCR10,20 |
2 | ||
| 42139 - DEFLECTOR, REAR AXLE HOUSING OIL | ||||
| 42108-30010 |
TCR10,20 |
2 | ||
| 42181 - GASKET, REAR DIFFERENTIAL CARRIER | ||||
| 42181-30020 |
TCR10,20 |
1 | ||
| Common parts | ||||
| 90170-08204 | ||||
| 94512-00800 | ||||

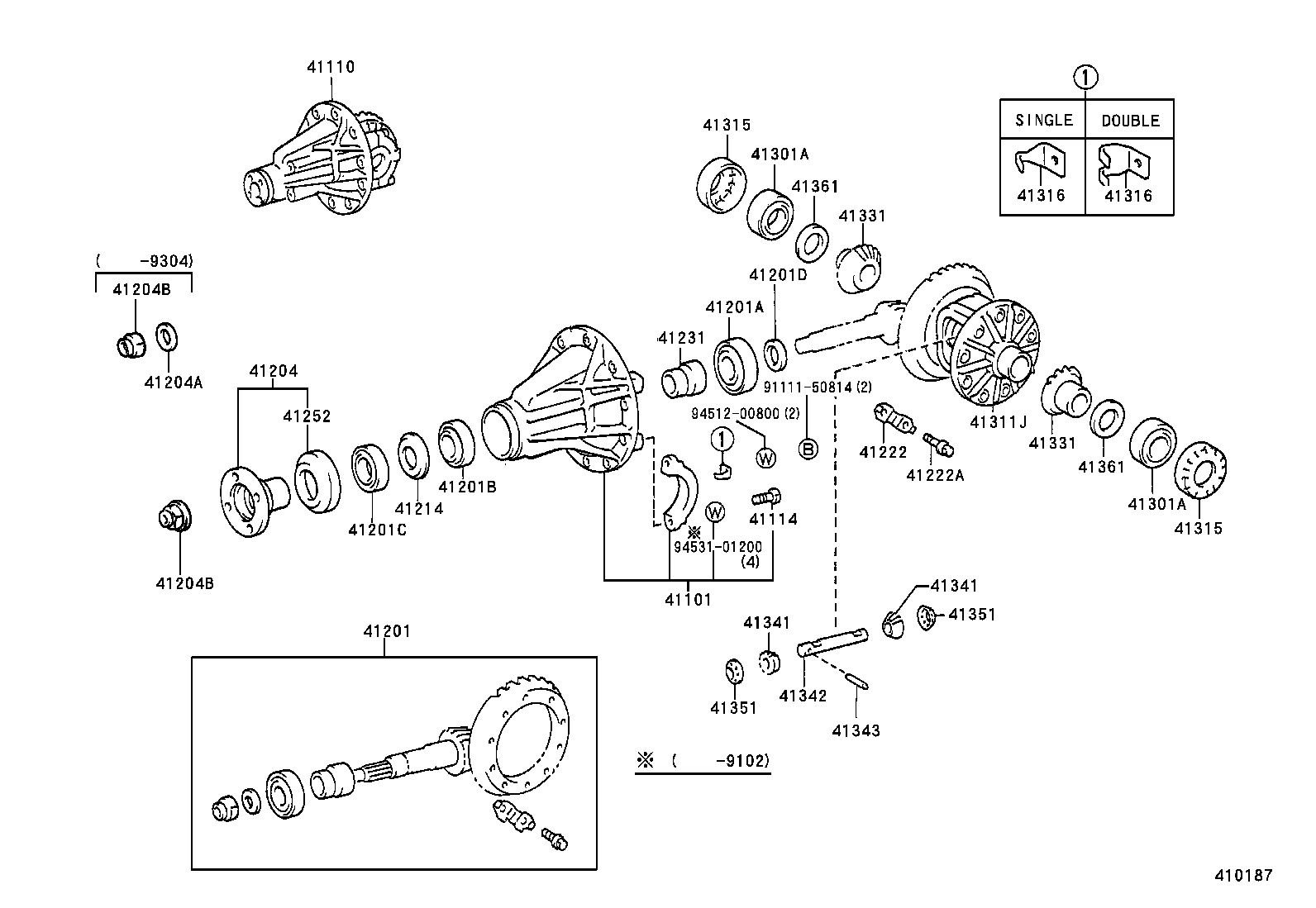

ILLUST NO. 1 OF 2(9001- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-30031 |
TCR10,20 |
1 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-28070 |
TCR10,20..EFI *FGR=43:10=4.300 |
1 | ||
| 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP | ||||
| 90101-12376 |
TCR10,20 |
4 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-80004 |
TCR10,20..EFI *FGR=43:10=4.300 |
1 | ||
| 41201A - BEARING (FOR REAR DRIVE PINION REAR) | ||||
| 90366-35023 |
TCR10,20 |
1 | ||
| 90366-35073 |
TCR10,20 |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 90366-30055 |
TCR10,20 |
1 | ||
| 90366-30022 |
TCR10,20 |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90311-38133 |
TCR10,20 |
1 | ||
| 41201D - WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) | ||||
| 90201-35434 |
TCR10,20 T=2.24,MARK 01 |
1 | ||
| 90201-35397 |
TCR10,20 T=2.39,MARK 06 |
1 | ||
| 90201-35437 |
TCR10,20 T=2.33,MARK 04 |
1 | ||
| 90201-35399 |
TCR10,20 T=2.43,MARK 08 |
1 | ||
| 90201-35401 |
TCR10,20 T=2.51,MARK 10 |
1 | ||
| 90201-35402 |
TCR10,20 T=2.54,MARK 11 |
1 | ||
| 90201-35398 |
TCR10,20 T=2.42,MARK 07 |
1 | ||
| 90201-35403 |
TCR10,20 T=2.57,MARK 12 |
1 | ||
| 90201-35400 |
TCR10,20 T=2.48,MARK 09 |
1 | ||
| 90201-35436 |
TCR10,20 T=2.30,MARK 03 |
1 | ||
| 90201-35435 |
TCR10,20 T=2.27,MARK 02 |
1 | ||
| 90201-35396 |
TCR10,20 T=2.36,MARK 05 |
1 | ||
| 90201-35440 |
TCR10,20 T=2.69,MARK 16 |
1 | ||
| 90201-35441 |
TCR10,20 T=2.72,MARK 17 |
1 | ||
| 90201-35404 |
TCR10,20 T=2.60,MARK 13 |
1 | ||
| 90201-35438 |
TCR10,20 T=2.63,MARK 14 |
1 | ||
| 90201-35439 |
TCR10,20 T=2.66,MARK 15 |
1 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-35050 |
TCR10,20 |
1 | ||
| 41204A - WASHER, PLATE (FOR REAR DRIVE PINION) | ||||
| 90201-18485 |
TCR10,20 |
1 | ||
| 41204B - NUT (FOR REAR DRIVE PINION) | ||||
| 90179-18001 |
TCR10,20 |
1 | ||
| 41204B - NUT (FOR REAR DRIVE PINION) | ||||
| 90179-18001 |
TCR10,20 |
1 | ||
| 41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-30021 |
TCR10,20 |
1 | ||
| 41222 - PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK | ||||
| 41222-35030 |
TCR10,20 |
5 | ||
| 41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET) | ||||
| 90101-11353 |
TCR10,20 |
10 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-22010 |
TCR10,20 |
1 | ||
| 41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL) | ||||
| 41252-30010 |
TCR10,20 |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90368-45066 |
TCR10,20 |
2 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90368-45066 |
TCR10,20 |
2 | ||
| 41311J - CASE, REAR DIFFERENTIAL | ||||
| 41311-30050 |
TCR10,20 |
1 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-35010 |
TCR10,20 |
2 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-35010 |
TCR10,20 |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41317-30010 |
TCR10,20 DOUBLE TYPE |
2 | ||
| 41316-30010 |
TCR10,20 SINGLE TYPE |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41317-30010 |
TCR10,20 DOUBLE TYPE |
2 | ||
| 41316-30010 |
TCR10,20 SINGLE TYPE |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-30030 |
TCR10,20 |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-30030 |
TCR10,20 |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-30020 |
TCR10,20 |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-30020 |
TCR10,20 |
2 | ||
| 41342 - SHAFT, REAR DIFFERENTIAL PINION | ||||
| 41342-22020 |
TCR10,20 |
1 | ||
| 41343 - PIN, REAR DIFFERENTIAL PINION SHAFT | ||||
| 90250-06058 |
TCR10,20 |
1 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-30060 |
TCR10,20 |
2 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-30060 |
TCR10,20 |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-30050 |
TCR10,20 T=1.1 |
2 | ||
| 41361-30060 |
TCR10,20 T=1.2 |
2 | ||
| 41361-30070 |
TCR10,20 T=1.3 |
2 | ||
| 41361-30040 |
TCR10,20 T=1.0 |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-30050 |
TCR10,20 T=1.1 |
2 | ||
| 41361-30060 |
TCR10,20 T=1.2 |
2 | ||
| 41361-30070 |
TCR10,20 T=1.3 |
2 | ||
| 41361-30040 |
TCR10,20 T=1.0 |
2 | ||
| Common parts | ||||
| 91111-50814 | ||||
| 94512-00800 | ||||
| 94531-01200 | ||||
