TCR20L-RESDKK (1990)

Toyota Previa

Production Jan 1990 - Aug 1994
Engine 2TZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9308- )ATM

Click highlighted areas on diagram

A46DE

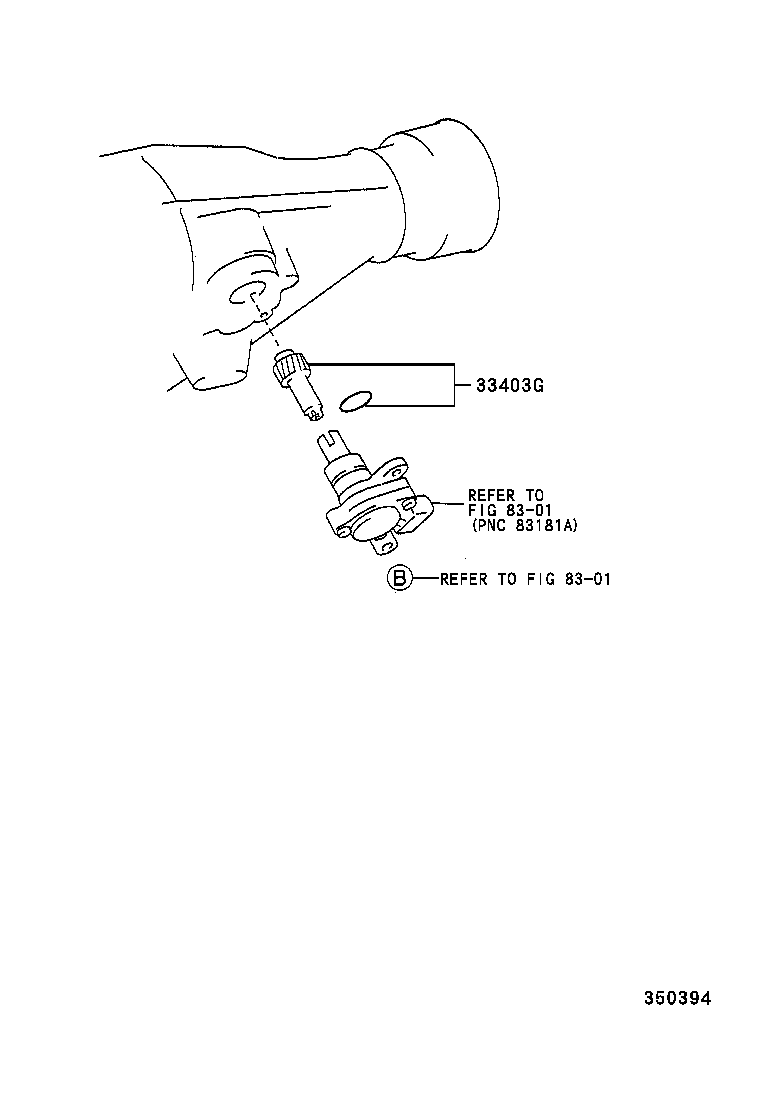

diagram 33403G 8301 8301
Part # Description Qty Price
33403G - GEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)
33482-29186

TCR20

N=20,MARK 20:6

 1
33403-29445

TCR20..CND;TCR20..07S..USA..EFI

N=20,MARK 20:6

 1
Linked diagrams
8301

(9005-9308)TCR2#..ATM

Click highlighted areas on diagram

A46DF

diagram 33403G 33404G 33404H 33404J 33404K 33485A 9161160814
Part # Description Qty Price
33403G - GEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)
33482-29186

TCR20

N=20,MARK 20:6

 1
33403-29445

TCR20..CND;TCR20..07S..USA..EFI

N=20,MARK 20:6

 1
33404G - SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (ATM)
33404-35010

TCR20..ATM

 1
33404H - RING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE)
90301-18018

TCR20..ATM

 1
33404J - SEAL, OIL (FOR ATM SPEEDOMETER SHAFT SLEEVE)
90310-09001

TCR10,20..ATM

 1
33404K - CLIP (FOR ATM SPEEDOMETER SHAFT SLEEVE)
90468-12005

TCR20..ATM

 1
33485A - PLATE, SPEEDOMETER SLEEVE LOCK (ATM)
33485-30020

TCR20..ATM

 1
Common parts
91611-60814

(9001-9308)TCR20..ATM

Click highlighted areas on diagram

A46DF

diagram 33403G 33404G 33404H 33404J 33404K 33485A 9161160814
Part # Description Qty Price
33403G - GEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)
33482-29186

TCR20

N=20,MARK 20:6

 1
33403-29445

TCR20..CND;TCR20..07S..USA..EFI

N=20,MARK 20:6

 1
33404G - SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (ATM)
33404-35010

TCR20..ATM

 1
33404H - RING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE)
90301-18018

TCR20..ATM

 1
33404J - SEAL, OIL (FOR ATM SPEEDOMETER SHAFT SLEEVE)
90310-09001

TCR10,20..ATM

 1
33404K - CLIP (FOR ATM SPEEDOMETER SHAFT SLEEVE)
90468-12005

TCR20..ATM

 1
33485A - PLATE, SPEEDOMETER SLEEVE LOCK (ATM)
33485-30020

TCR20..ATM

 1
Common parts
91611-60814
