TCR20L-RESDKA (1990)
Toyota Previa
Production
Jan 1990
-
Aug 1995
Engine
2TZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9005-9308)TCR2#..ATM

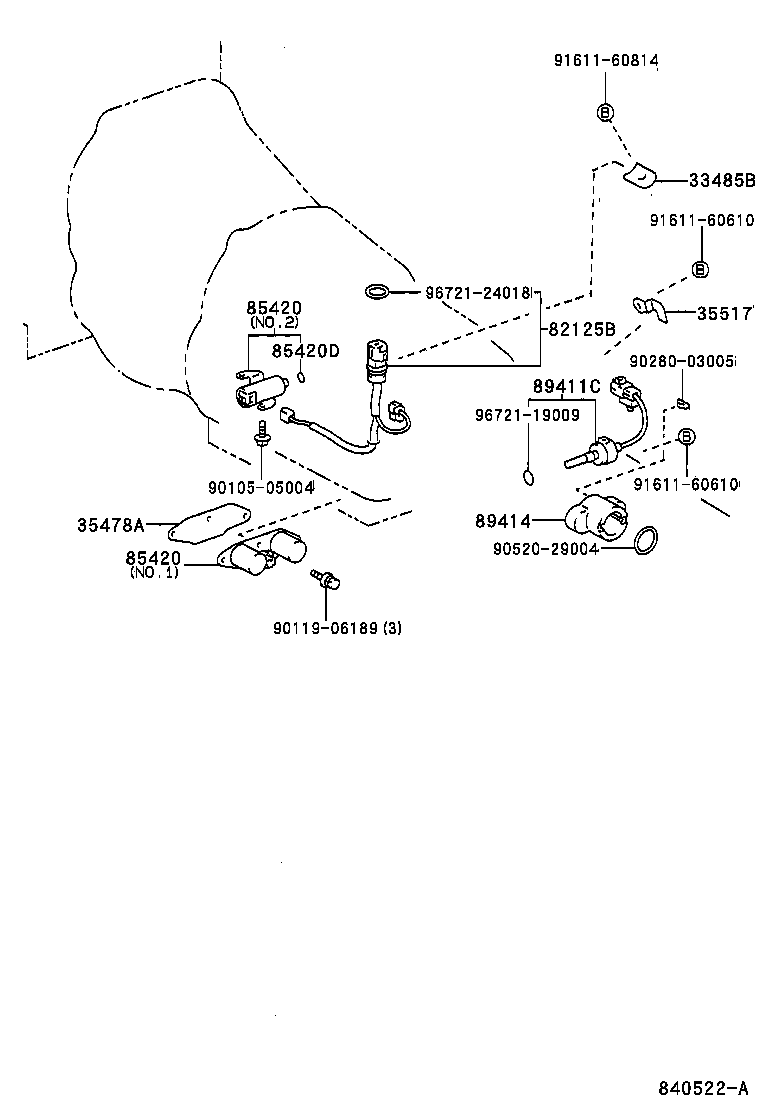

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-05004 | ||||
| 90119-06189 | ||||
| 90280-03005 | ||||
| 90520-29004 | ||||
| 91611-60610 | ||||
| 91611-60814 | ||||
| 96721-19009 | ||||
| 96721-24018 | ||||
| Linked diagrams | ||||
| 8401 | ||||
(9001-9608)TCR20..ATM..EFI
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33485B - PLATE, TRANSMISSION WIRE | ||||
| 33485-28010 |
TCR10,20..ATM..EFI |
1 | ||
| 35478A - GASKET, SHIFT CONTROL SOLENOID | ||||
| 35478-30010 |
TCR10,20..ATM..EFI |
1 | ||
| 35517 - PLATE, TRANSMISSION WIRE LOCK | ||||
| 35517-26010 |
TCR10,20..ATM..EFI |
1 | ||
| 35517-28010 |
TCR20..ATM |
1 | ||
| 82125B - WIRE, TRANSMISSION | ||||
| 82125-28010 |
TCR20..EFI |
1 | ||
| 82125-28010 |
TCR10,20..ATM |
1 | ||
| 85420 - SOLENOID ASSY, TRANSMISSION | ||||
| 85420-30050 |
TCR10,20..ATM NO.1 |
1 | ||
| 85420-30050 |
TCR10,20..ATM NO.1 |
2 | ||
| 85420-30070 |
TCR10,20..ATM NO.2 |
1 | ||
| 85420-30070 |
TCR10,20..ATM NO.2 |
2 | ||
| 85420 - SOLENOID ASSY, TRANSMISSION | ||||
| 85420-30050 |
TCR10,20..ATM NO.1 |
1 | ||
| 85420-30050 |
TCR10,20..ATM NO.1 |
2 | ||
| 85420-30070 |
TCR10,20..ATM NO.2 |
1 | ||
| 85420-30070 |
TCR10,20..ATM NO.2 |
2 | ||
| 85420D - RING, O (FOR TRANSMISSION SOLENOID) | ||||
| 90301-06004 |
TCR10,20..ATM..EFI |
1 | ||
| 89411C - SENSOR, SPEED | ||||
| 89411-28030 |
TCR20..ATM |
1 | ||
| 89414 - ROTOR, SENSOR | ||||
| 89414-35010 |
TCR20..ATM |
1 | ||
| Common parts | ||||
| 90105-05004 | ||||
| 90119-06189 | ||||
| 90280-03005 | ||||
| 90520-29004 | ||||
| 91611-60610 | ||||
| 91611-60814 | ||||
| 96721-19009 | ||||
| 96721-24018 | ||||
