TCR20L-RESDKA (1990)
Toyota Previa
Production
Jan 1990
-
Aug 1995
Engine
2TZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9005- )

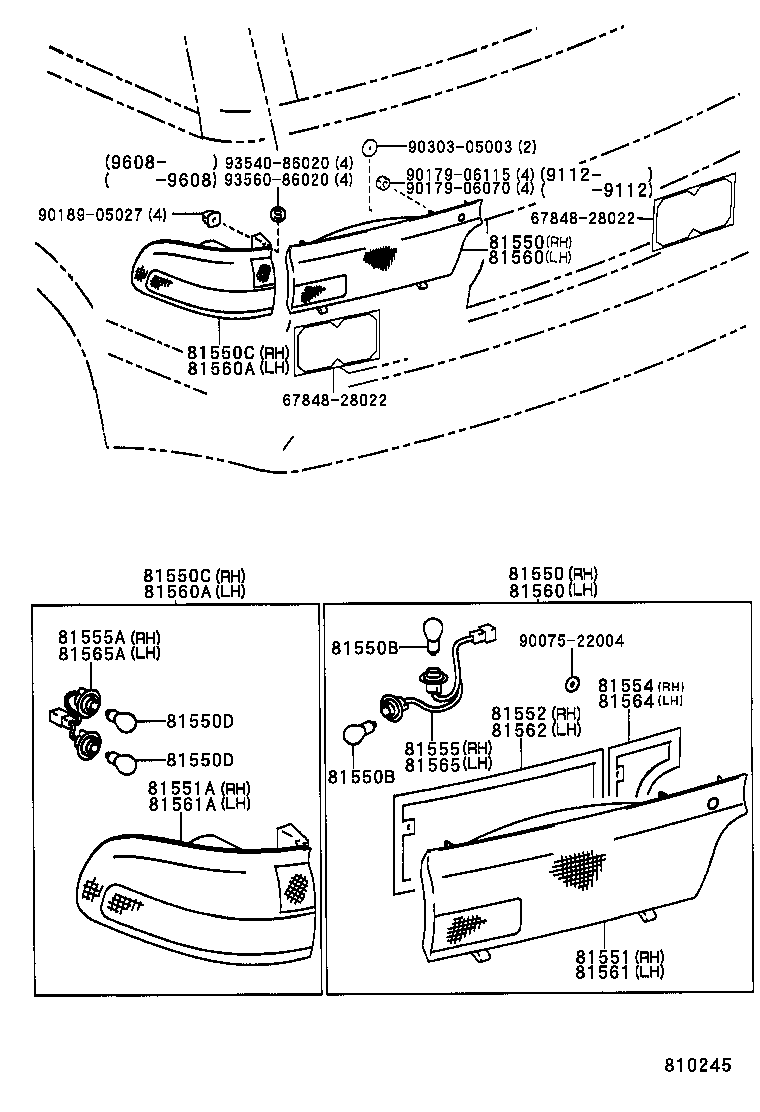

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 67848-28022 | ||||
| 67891-28040 | ||||
| 76817-28020 | ||||
| 90075-22004 | ||||
| 90179-06070 | ||||
| 90179-06115 | ||||
| 90189-06018 | ||||
| 90950-01716 | ||||
| 93540-86020 | ||||
| 93560-86020 | ||||
(9001- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81550 - LAMP ASSY, REAR COMBINATION, RH | ||||
| 81550-95D02 |
TCR10,20 |
1 | ||
| 81550 - LAMP ASSY, REAR COMBINATION, RH | ||||
| 81550-95D02 |
TCR10,20 |
1 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-11270 |
TCR10,20 12V 27W |
2 | ||
| 99132-21270 |
TCR10,20 12V 27/8W |
2 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-11270 |
TCR10,20 12V 27W |
2 | ||
| 99132-21270 |
TCR10,20 12V 27/8W |
2 | ||
| 81550C - LAMP ASSY, REAR COMBINATION, RH | ||||
| 81550-95D01 |
TCR10,20 |
1 | ||
| 81550C - LAMP ASSY, REAR COMBINATION, RH | ||||
| 81550-95D01 |
TCR10,20 |
1 | ||
| 81550D - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-21270 |
TCR10,20 12V 27/8W |
2 | ||
| 99132-11270 |
TCR10,20 12V 27W |
2 | ||
| 81550D - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-21270 |
TCR10,20 12V 27/8W |
2 | ||
| 99132-11270 |
TCR10,20 12V 27W |
2 | ||
| 81551 - LENS, REAR COMBINATION LAMP, RH | ||||
| 81551-95D02 |
TCR10,20 |
1 | ||
| 81551A - LENS, REAR COMBINATION LAMP, RH | ||||
| 81551-95D01 |
TCR10,20 |
1 | ||
| 81552 - GASKET, REAR COMBINATION LAMP LENS, RH | ||||
| 81552-95D02 |
TCR10,20 |
1 | ||
| 81554 - GASKET, REAR COMBINATION LAMP BODY, RH | ||||
| 81554-95D02 |
TCR10,20 |
1 | ||
| 81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH | ||||
| 81555-95D02 |
TCR10,20 |
1 | ||
| 81555A - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH | ||||
| 81555-95D01 |
TCR10,20 |
1 | ||
| 81560 - LAMP ASSY, REAR COMBINATION, LH | ||||
| 81560-95D02 |
TCR10,20 |
1 | ||
| 81560 - LAMP ASSY, REAR COMBINATION, LH | ||||
| 81560-95D02 |
TCR10,20 |
1 | ||
| 81560A - LAMP ASSY, REAR COMBINATION, LH | ||||
| 81560-95D01 |
TCR10,20 |
1 | ||
| 81560A - LAMP ASSY, REAR COMBINATION, LH | ||||
| 81560-95D01 |
TCR10,20 |
1 | ||
| 81561 - LENS, REAR COMBINATION LAMP, LH | ||||
| 81561-95D02 |
TCR10,20 |
1 | ||
| 81561A - LENS, REAR COMBINATION LAMP, LH | ||||
| 81561-95D01 |
TCR10,20 |
1 | ||
| 81562 - GASKET, REAR COMBINATION LAMP LENS, LH | ||||
| 81562-95D02 |
TCR10,20 |
1 | ||
| 81564 - GASKET, REAR COMBINATION LAMP BODY, LH | ||||
| 81554-95D02 |
TCR10,20 |
1 | ||
| 81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH | ||||
| 81555-95D02 |
TCR10,20 |
1 | ||
| 81565A - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH | ||||
| 81555-95D01 |
TCR10,20 |
1 | ||
| Common parts | ||||
| 67848-28022 | ||||
| 90075-22004 | ||||
| 90179-06070 | ||||
| 90179-06115 | ||||
| 90189-05027 | ||||
| 90303-05003 | ||||
| 93540-86020 | ||||
| 93560-86020 | ||||
