TCR20L-RESDKA (1990)
Toyota Previa
Production
Jan 1990
-
Aug 1995
Engine
2TZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9005- )

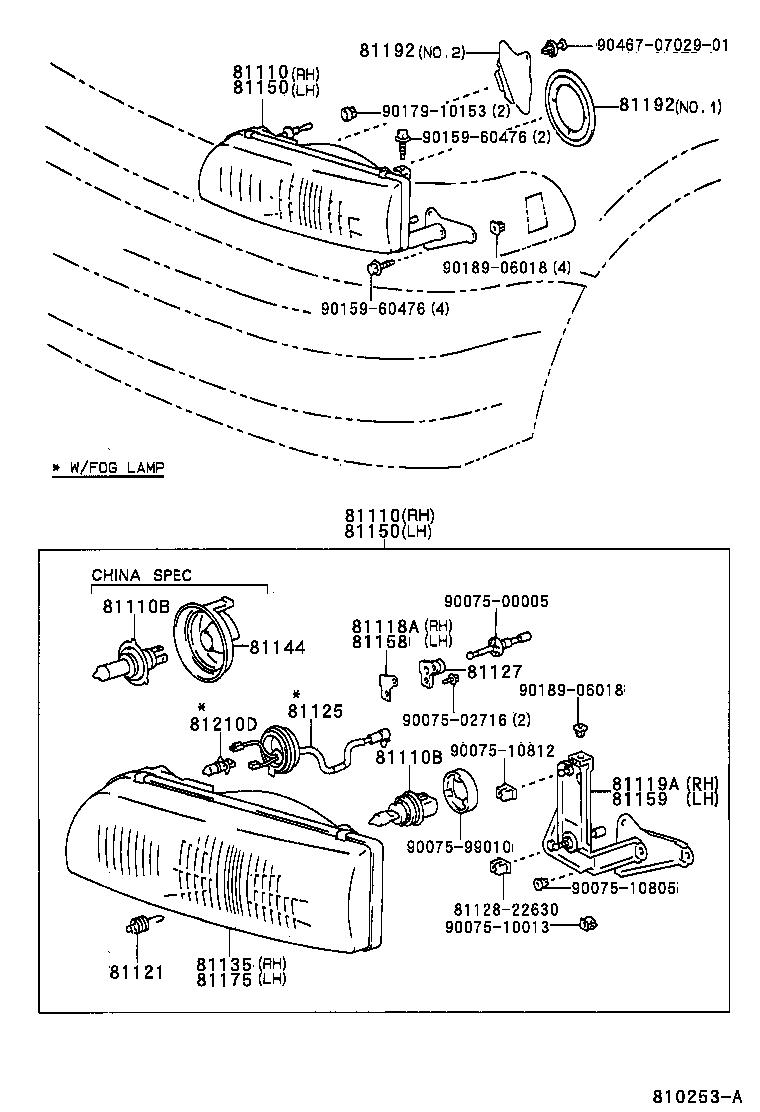

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 81128-22630 | ||||
| 90075-00005 | ||||
| 90075-00010 | ||||
| 90075-02716 | ||||
| 90075-10013 | ||||
| 90075-10805 | ||||
| 90075-10812 | ||||
| 90119-06576 | ||||
| 90159-60476 | ||||
| 90179-10153 | ||||
| 90189-06018 | ||||
| 90467-0702901 | ||||
| 93269-54012 | ||||
(9308- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-95D00 |
TCR10,20 |
1 | ||
| 81110-28330 |
TCR10,20 |
1 | ||
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-95D00 |
TCR10,20 |
1 | ||
| 81110-28330 |
TCR10,20 |
1 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13032 |
TCR10,20 12V 65/45W,*HAL,*WH |
2 | ||
| 81118A - BRACKET, HEADLAMP, RH | ||||
| 81118-95D01 |
TCR10,20 |
1 | ||
| 81119A - BRACKET ASSY, HEAD LAMP, RH | ||||
| 81119-95D01 |
TCR10,20 |
1 | ||
| 81121 - SPRING, HEADLAMP TENSION | ||||
| 90075-25505 |
TCR10,20 |
2 | ||
| 81127 - BEARING, HEADLAMP, NO.1 | ||||
| 81129-95D01 |
TCR10,20 RH |
1 | ||
| 81169-95D01 |
TCR10,20 LH |
1 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81130-95D00 |
TCR10,20 |
1 | ||
| 81130-28330 |
TCR10,20 |
1 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-28330 |
TCR10,20 |
1 | ||
| 81150-95D00 |
TCR10,20 |
1 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-28330 |
TCR10,20 |
1 | ||
| 81150-95D00 |
TCR10,20 |
1 | ||
| 81158 - BRACKET, HEADLAMP, LH | ||||
| 81118-95D01 |
TCR10,20 |
1 | ||
| 81159 - BRACKET ASSY, HEAD LAMP, LH | ||||
| 81159-95D01 |
TCR10,20 |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81170-28330 |
TCR10,20 |
1 | ||
| 81170-95D00 |
TCR10,20 |
1 | ||
| 81192 - SEAL, HEADLAMP | ||||
| 81192-28010 |
TCR10,20 NO.1 |
2 | ||
| 81192-28020 |
TCR10,20 NO.2 |
1 | ||
| 81192 - SEAL, HEADLAMP | ||||
| 81192-28010 |
TCR10,20 NO.1 |
2 | ||
| 81192-28020 |
TCR10,20 NO.2 |
1 | ||
| Common parts | ||||
| 81128-22630 | ||||
| 90075-00005 | ||||
| 90075-02716 | ||||
| 90075-10013 | ||||
| 90075-10805 | ||||
| 90075-10812 | ||||
| 90159-60476 | ||||
| 90179-10153 | ||||
| 90189-06018 | ||||
| 90467-0702901 | ||||
(9001-9308)

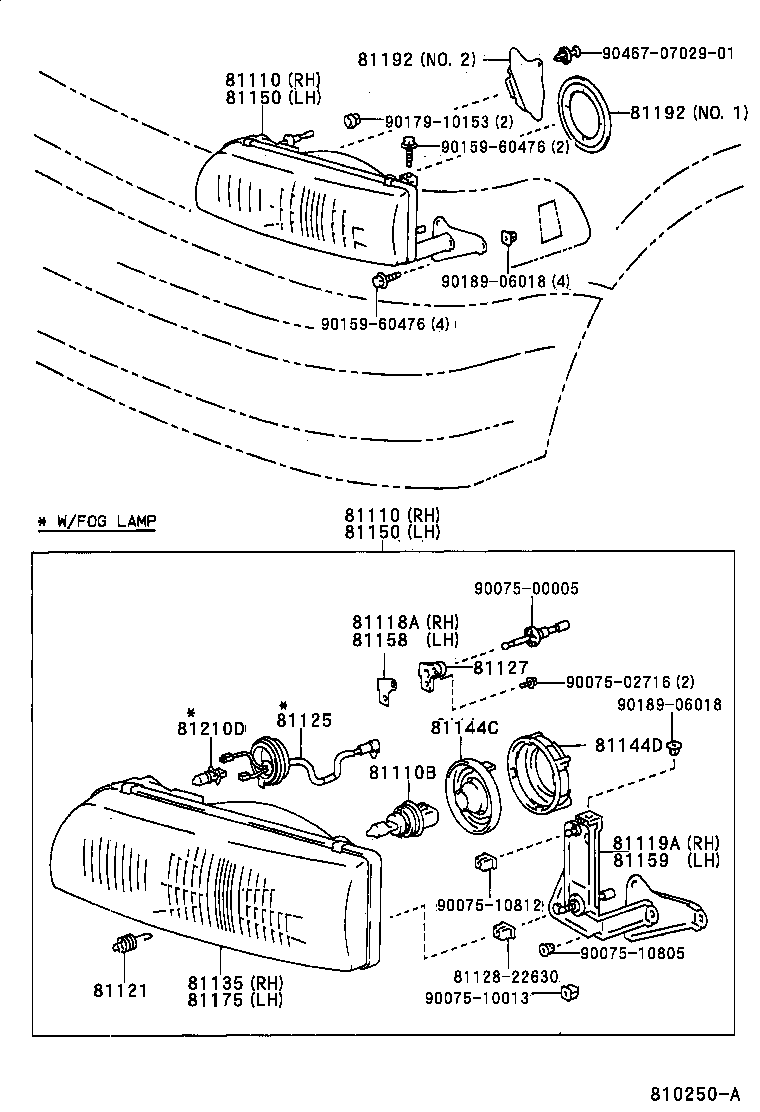

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-95D00 |
TCR10,20 |
1 | ||
| 81110-28330 |
TCR10,20 |
1 | ||
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-95D00 |
TCR10,20 |
1 | ||
| 81110-28330 |
TCR10,20 |
1 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13032 |
TCR10,20 12V 65/45W,*HAL,*WH |
2 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13032 |
TCR10,20 12V 65/45W,*HAL,*WH |
2 | ||
| 81118A - BRACKET, HEADLAMP, RH | ||||
| 81118-95D01 |
TCR10,20 |
1 | ||
| 81119A - BRACKET ASSY, HEAD LAMP, RH | ||||
| 81119-95D01 |
TCR10,20 |
1 | ||
| 81121 - SPRING, HEADLAMP TENSION | ||||
| 90075-25505 |
TCR10,20 |
2 | ||
| 81127 - BEARING, HEADLAMP, NO.1 | ||||
| 81129-95D01 |
TCR10,20 RH |
1 | ||
| 81169-95D01 |
TCR10,20 LH |
1 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81130-95D00 |
TCR10,20 |
1 | ||
| 81130-28330 |
TCR10,20 |
1 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-28330 |
TCR10,20 |
1 | ||
| 81150-95D00 |
TCR10,20 |
1 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-28330 |
TCR10,20 |
1 | ||
| 81150-95D00 |
TCR10,20 |
1 | ||
| 81158 - BRACKET, HEADLAMP, LH | ||||
| 81118-95D01 |
TCR10,20 |
1 | ||
| 81159 - BRACKET ASSY, HEAD LAMP, LH | ||||
| 81159-95D01 |
TCR10,20 |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81170-28330 |
TCR10,20 |
1 | ||
| 81170-95D00 |
TCR10,20 |
1 | ||
| 81192 - SEAL, HEADLAMP | ||||
| 81192-28010 |
TCR10,20 NO.1 |
2 | ||
| 81192-28020 |
TCR10,20 NO.2 |
1 | ||
| 81192 - SEAL, HEADLAMP | ||||
| 81192-28010 |
TCR10,20 NO.1 |
2 | ||
| 81192-28020 |
TCR10,20 NO.2 |
1 | ||
| Common parts | ||||
| 81128-22630 | ||||
| 90075-00005 | ||||
| 90075-02716 | ||||
| 90075-10013 | ||||
| 90075-10805 | ||||
| 90075-10812 | ||||
| 90075-99010 | ||||
| 90159-60476 | ||||
| 90179-10153 | ||||
| 90189-06018 | ||||
| 90467-0702901 | ||||
