TCR20L-RESDKA (1990)

Toyota Previa

Production Jan 1990 - Aug 1995
Engine 2TZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9005- )

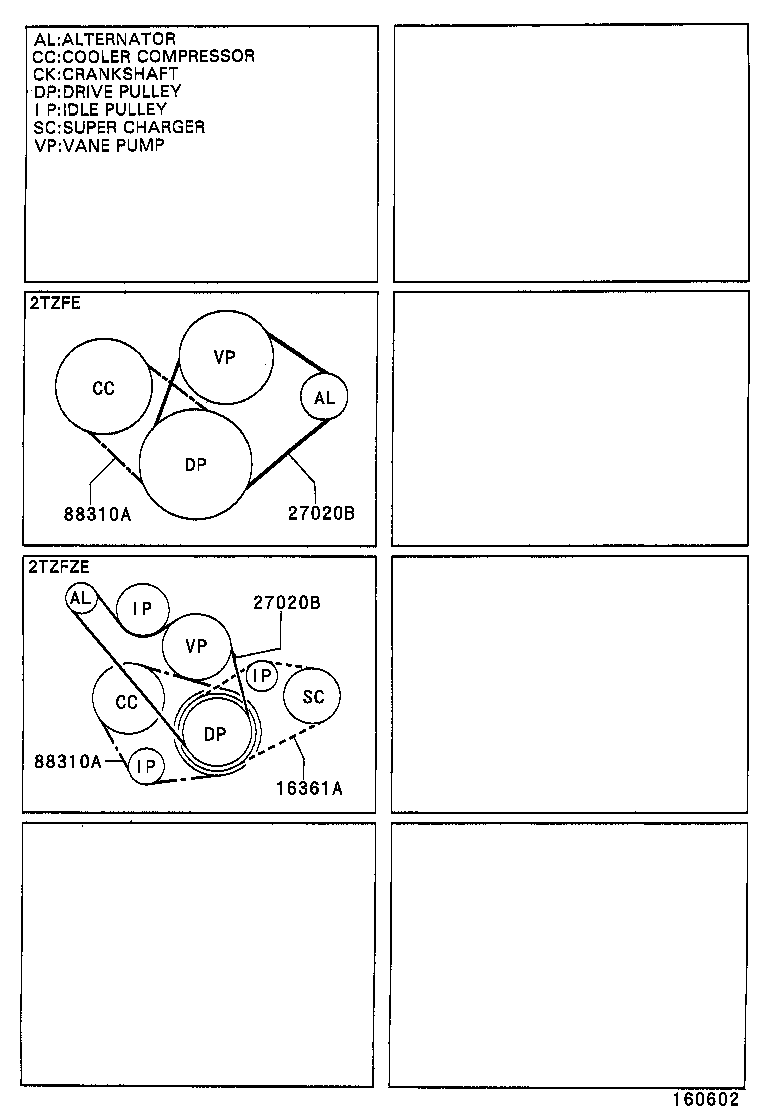

Click highlighted areas on diagram

diagram 27020B 88310A
Part # Description Qty Price

(9001-9707)

Click highlighted areas on diagram

diagram 16361A 27020B 27020B 88310A 88310A
Part # Description Qty Price
27020B - BELT, V(FOR ALTERNATOR)
99366-50820

2TZFE..TCR10,20

 1
99366-70820

2TZFE..TCR10,20

 1
27020B - BELT, V(FOR ALTERNATOR)
99366-50820

2TZFE..TCR10,20

 1
99366-70820

2TZFE..TCR10,20

 1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
99364-00720

TCR10,20..USA

MITSUBOSHI

 1
99364-20720

TCR10,20..USA

MITSUBOSHI

 1
99364-50720

TCR10,20..USA

BANDO

 1
99364-70720

TCR10,20..USA

BANDO

 1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
99364-00720

TCR10,20..USA

MITSUBOSHI

 1
99364-20720

TCR10,20..USA

MITSUBOSHI

 1
99364-50720

TCR10,20..USA

BANDO

 1
99364-70720

TCR10,20..USA

BANDO

 1
